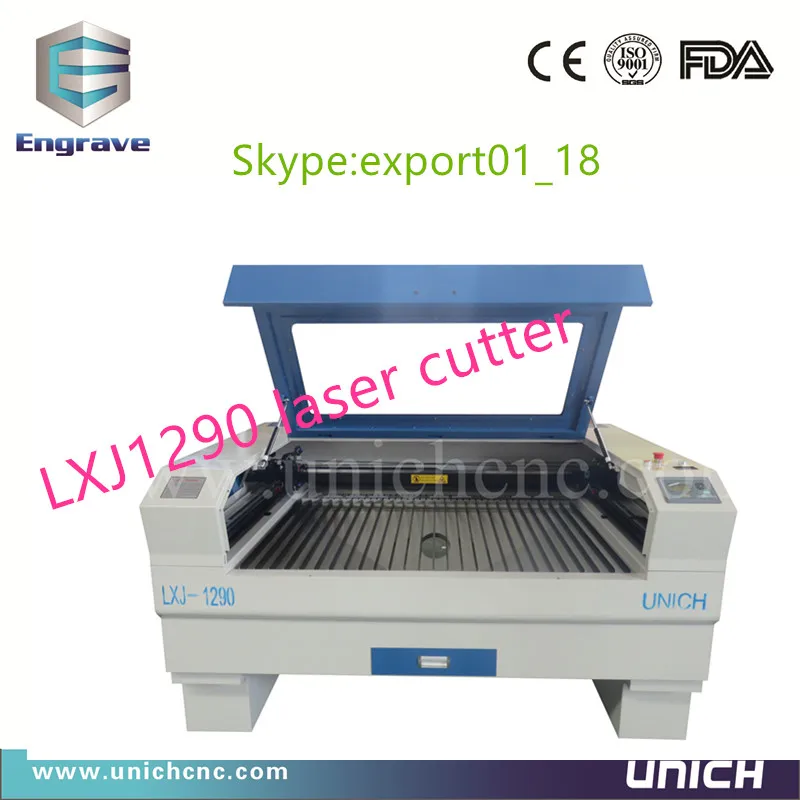

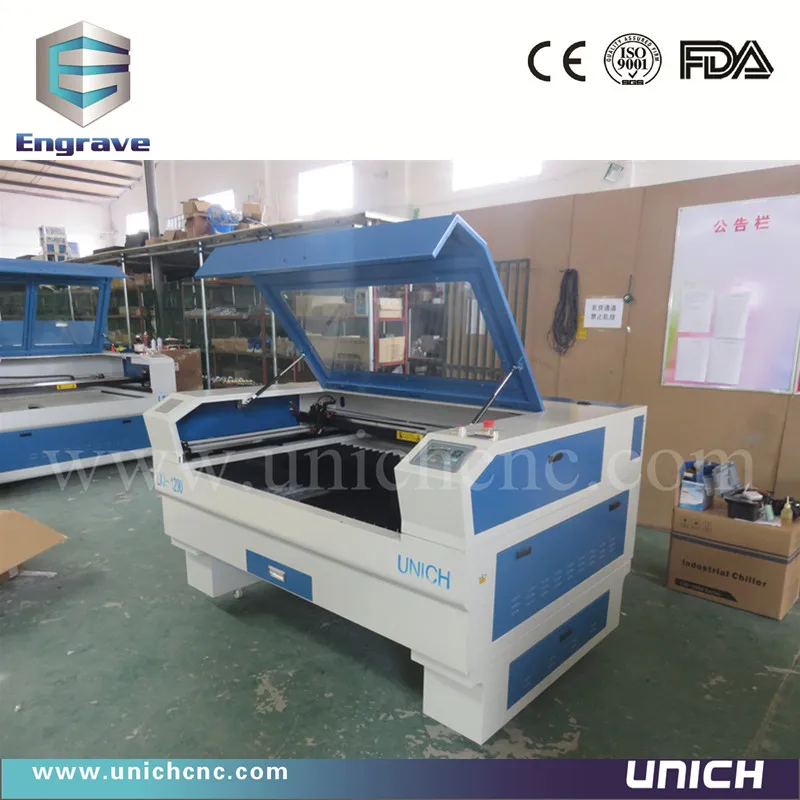

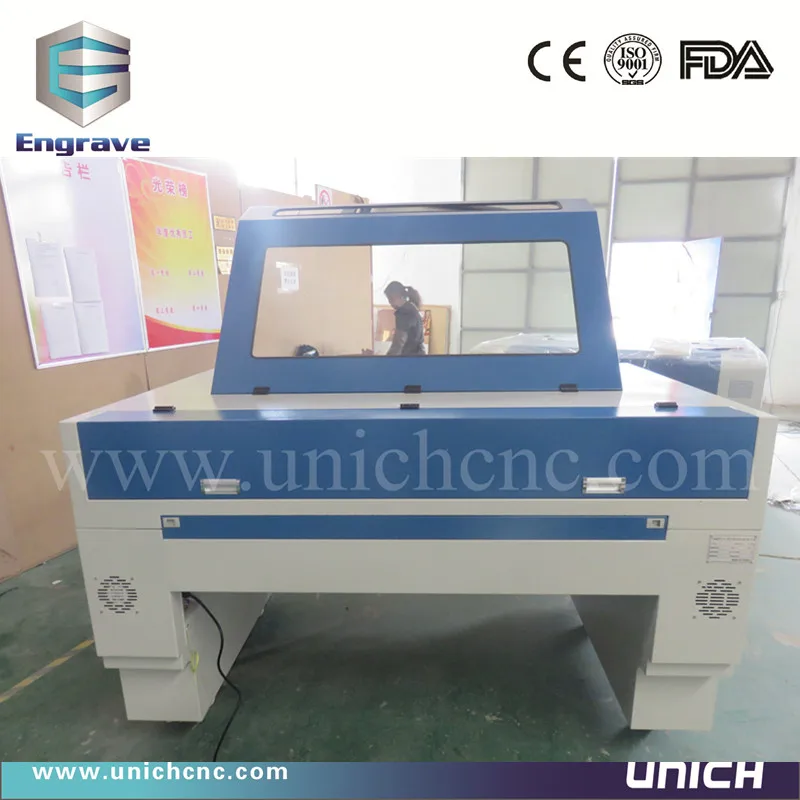

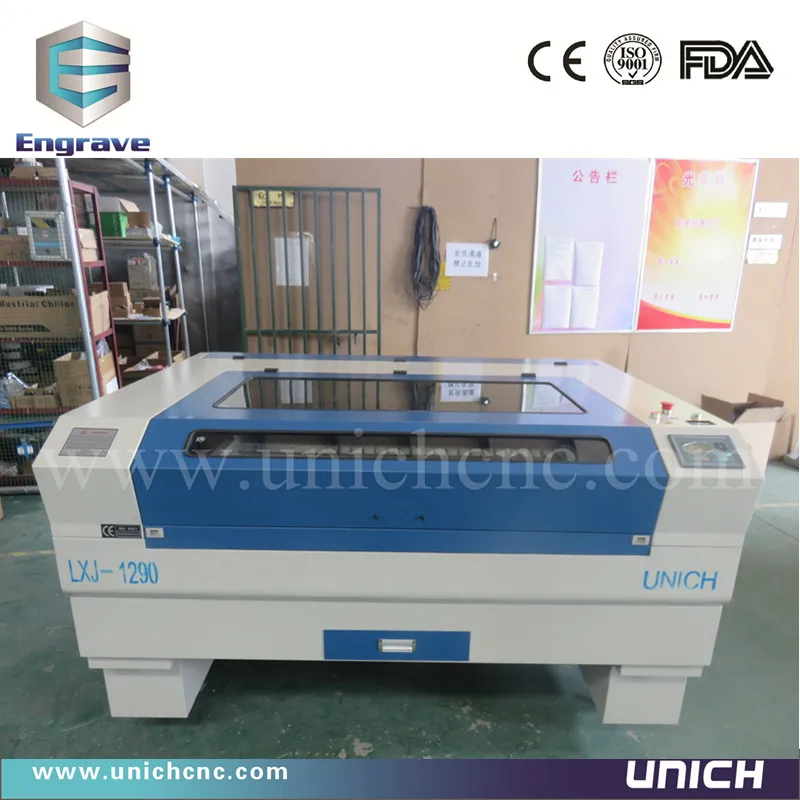

Unich easy operation 90w/100w/150w laser cutter machine/engraving machine | Инструменты

Unich easy operation 90w/100w/150w laser cutter machine/engraving machine | Инструменты

WhatsApp: 008613793193929

 Good news: Now, our company have a big discount, the high quality machine have a economic price, hope you can attach this chance.

APPLICATIONS

Material

Cut

 Engrave

Acrylic | Plexiglass | PMMA | Perspex

√

  √

Organic board | Double color sheet

√

  √

Wood | Plywood | Veneer | MDF | Balsa

√

  √

Leather | PU | Shoe Material | Synthetic Leather | Genuine Leather

√

  √

Fabric | Cloth | Textile

√

  √

Carpet | Mat | Rug | Wool Felt

√

  √

Paper | Cardboard | Chipboard | Press Board

√

  √

Ceramic | Tile | Marble | Glass

√

  √

Plastic

√

  √

Fiber Glass | Filter Cloth

√

  √

STANDARD CONFIGURATION

1> RECI/EFR/CO2 laser tube has a good beam and strong stability, lifetime over 10000 hours.

2> DSP control panel in English, USB interface, offline or online work, reading U flash

3> Adopts imported linear guide rail, with high precision.

4> Adopts Japanese three-phase stepper motor drive, it's stable and reliable, and with high precision.

5> Routeway feeding ensures material with unlimited length

6> Up & down worktable suitable for cutting and engraving on different height materials.

7> Honey-comb and blade worktable are optional.

8> The circulation of water cooling, guarantee the water temperature is constant, extend the service

time of the laser.

9> Exclusion of dust and smoke

10> The huff protection,air injector protects lens from heat and exhaust gas

11> The proprietary software supports various files format: PLT,BMP,DXF,DST,T100,etc.

12> Supply various options

• Double heads: double the speed of the cutting and engraving, improve the effiency greatly.

• Red dot pointer, location system, showing the exact outline.

• Rotary systems, suitable for engraving on cylinder materials

• Up and down worktable, suitable for cutting and engraving on different height of the materials.

PARAMETER

Model

Engraving area (mm)W*L

900*1300mm

Laser tube power

RECI:80W 100W 130W 150W

Laser type

CO2 sealed laser tube

Control system

RD/Leetro control system

Engraving speed

0-36000mm/min

Cutting speed

0-36000mm/min

Resetting positioning

accuracy

≤±0.01mm

Laser output

1-100%software setting

Cooling mode

Circulating-water cooling and protection system

Motor

Leadshine stepper motor

Platform

Blade table or Honeycomb table

Min. shaping character

Chinese Character: 2.0mm×2.0mm,
English Letter: 1.0mm×1.0mm.

Power supply

AC220V 50HZ

Dictate format

*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las etc.

Operating temperature

5°C-40°C

Operating humidity

5-95%(Free of Condensed Water)

Compatible software

CorelDraw ,AutoCAD transmit directly

Standard accessories

Air pump,Exhaust fan,Water chiller

Optional accessories

Rotary system, Auto focus system,Motorized table(Up-down table),

Open flap protection,Visible red dot pointer

Laser tube working lifetime

Weegiant:3000-6000h; 6 months warranty
RECI:8000h-10000h ; 10 months warranty

 (Counted from the date of produced)

  >>>>>>>>>Company information.

1. About us?

We are one of the true manufacturer, big factory. located at Jinan. About 20 minutes to Jinan Air port.

2. About price and quality?

 Good quality is our first rule. We produce machines as 5S management rules,

 and ISO standard.Competitive price is our big advantage.

3. What's the maintenance of the machine?

(1). About laser tube,when you do not use the machine, please let the water

out from the output light side.

(2). About water chiller, when you put water into it, please keep water clean,

after long time work, it's better to change the water

(3). About the lens and mirrors. Please keep the lens clean when you work with

the machine, clean the lens every day or every day three times as per

your work quantity.

 4. what other machine type except laser cutting machine?

laser marking machine, cnc router,cnc woodworking machine,cnc stone engraving and

cutting machine, cutter plotters.

 >>>>>>>>>>Delivery, Packaging, Payment.

Delivery:

Within 7-15 working days after the deposit.

Packing:

Wooden case or as your requirment

Payment:

1. T/T, 30% deposit and the balance 70% should be paid before shipment.

2. Paypal.

3. Alibaba.

>>>>>>>>>>>Services

24 hours technical support by Email or Calling.

(Skype: export01_18 WhatsApp: 008613793193929)

1.Two years quality guaranty, the machine with main parts(excluding the consumables)shall be changed free of charge when if any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. 24 hours on line service each day, free technical support.
5. Machine has been adjusted before delivery

>>>>>>>>>>>FAQ

In order to help you choose the best suitable machine, please try to reply my questions below, thanks.

Q1: What about your material, wood or acrylic or?
Q2: The size of your mateiral, length? Width and thickness?
Q3: Do you want to cut or engrave your material? Or both cut & engrave?
Q4: What machining effection do you want to get? It is better you can send sample pictures to me .

Q5: The machine chooses 220v or 110v or?

Q6: What about your nearest sea port?

If you want to make sure whether this laser engraving machine suitable for your material, please tell me:
1.What materials do you want to engrave or cut?

Different types cnc machine apply to different material.
2.What's the max size of your material?(Length *width* thickness)
Once you tell me this information of your material, then I'll recommend you the most suitable machine and the best price for you.

And we can also customize one for you or send you a solution.

This is the first time I use this kind of laser engraving machine   Is it easy to operate?
Yeah. Don't worry about this.

1. English guide video and instruction book are sent to you free together with the   metal laser engraving machine
2. Free training course in our factory. Engineers are also available to serve overseas if necessary.
3. 24 hours technical support by calling, video and email.

I will try my best to help you.

Attention:

You can not pay on Aliexpress, because Aliexpress only support Air transportation with samll size. e will deliver the machine by sea, You can tell me your nearest port, then i will check the shipping fee for you. ou can pay by Trade Assurance, T/T, Paypal and West Union. Any questions, contact me please!
