Specification:

Brand Name: Eachine

Model: Tyro79S

Item Name: 140mm 3 Inch F4 FPV Racing Drone RTF

Version: RTF 2x Battery Version/ RTF 4x Battery Version ( Optional)

Receiver: Frsky XM+ Receiver

Flight Time: 4 mins ( Take example as 3s 650mAh Lipo)

Tyro79 140mm Frame Kit

Brand Name: Eachine

Model: Tyro79

Item Name: 140mm Wheelbase Racing Frame

Arm Plate Thickness: 3mm

Upper Plate Thickness: 1mm

Side Plate Thickness: 1mm

Material: 3K Carbon Fiber & CNC 6065 Aluminium

F4 OSD Flight Controller

Brand Name: Eachine

Main Control Chip: STM32F411

Sensor: ICM20602 6-Axis

Integrated OSD

PPM/DSM/IBUS/UAR share: UART1-RX

Mounting holes distance: 20x20mm

Weight: 24g

PID circulation rate and refresh rate can up to 32kHz

Supports Betaflight/cleanflight/inav firmware

20A BLheli_S 4In1 Brushless ESC

Brand Name: Eachine

Continuous Current: 20A

Burst Current: 25A (8S)

BEC Output: NO

Input voltage: 2-4S

Main control chip: 48mhz EFM8BB2

- with 25V 150uF Capacitor ( Solder well on ESC Board)

Firmware upgrade: Supports Dshot600/BLHeli_S/Oneshot125

MOS: 3*3

MOS Type: TPN2R703N

Size: 27x31mm ( Mounting Hole: 20x20mm)

Weight: 3.7g

1607 2800KV 2-4S Brushless Motor

Brand Name: Eachine

KV: 2800KV

Lipo cell: 2-4S

Weight: 17.8g (includes wires)

Output shaft length: 14mm

Maximum pull: signal 630g (4S 3030 4-blade propeller)

Maximum power: 350W

Configu-ration: 9N/12P

Mounting holes distance: 12*12mm

Mounting holes: φM2

Bearing: NSK

N52 Strong NdFeB Magnet

Racerstar Tornado 3040 3-Blade Propeller

Brand Name: Racerstar

Model: Tornado 3040

Item Name: 3040 3x4 3 Inch 3-Blade Propeller

Material: PC

Mounting hole: 5mm

Center thickness: 5.5mm

Quantity: 4 CW & 4 CCW

Color: Transparent White

Weight: 1.8g/PC

XF5805 5.8G 40CH 25/100/200mW VTX

Supports TBS SmartAudio

Transmitting power:25/100/200mW switchable

Channel: 40CH

Full video format: NTSC/PAL

Input voltage: 7V~26V

Power dissipation: +12V/200MW; 260mA

Size: 25×20×4mm

Weight: ≤3.2g (except antenna)

With copper pipe mini antenna (ipex antenna)

Make sure the antenna is installed at the output end before powering up to avoid damaging internal components

Eachine 700TVL CMOS Camera

Case size: 19x19mm

Weight: 9.5g

Total pixels: PAL: 1020H×596V (0.61MP); NTSC: 1020H×508V (0.52MP)

Effective pixels: PAL: 976H×582V (0.57MP); NTSC: 976H×494V (0.48MP)

Signal system: PAL

Resolution ratio(horizontal center): 700TVL

Video output: 1.0Vp-p/75Ω

Automatic gain control: 0.25/0.50/0.75/1.00, up to 55dB

White balance: off

Exposure mode: electron exposure

Electronic shutter: 1/50(1/60) - 1/100000 S

Gamma correction: 0.45/1.0

Synchronization method: inter-sync

Camera lens: standard 2.1mm

Lens operating voltage: DC 5-12V

Working current: 70mA (low power consumption)

Working temperature: -20℃~-60℃

Humidity: 0%~98%

Frsky XM+ Receiver

Number of Channels: Up to 16CH from SBUS (1-15ch for PWM,16ch RSSI for FC)

Operating Voltage Range: 3.7~10V

Operating Current: 30mA @5V

Operating Range: Full range

With RSSI output on board: Analog 0~3.3V

Firmware Upgradeable

Compatibility: FrSky D16 mode

Dimension: 21.5*12*3.5mm(L x W x H)

Weight: 1.6g

LiteRadio Radio Transmitter

Brand Name: Eachine

Model: LiteRadio

Version: Mode 2

Frequency Range: 2.4G (2403MHz-2447MHz)

2.4G System: CC2500

Channel: 8

System: Frsky Protocol (D16/D8)

Power: ≤80mw

Model Type: Multi-rotor

Support USB Charging

Support FPV Simulator Connected

Output: PPM, support Student Radio Mode

LED Light: Green-Power On / Red-Warning / Blue-Normal

Battery: 350mAh 2S Lipo Battery

Weight: 227.4g (with battery)

3S 11.1V 650mAh Lipo Battery

Brand Name: Eachine

Item Name: 3S 11.1V 650mAh 45C 3S1P Lipo Battery XT30 Plug

Size: 57x32x19mm (LxWxH)

Weight: 55g

Features:

- The drone builds and setup well out from factory

- with Battery, Receiver and Radio Transmitter, ready to fly

- Upgrade with TPU Part on the tail, more easier to install receiver cable and antena

- Upgrade with Racerstar Tornado 3040 3-Blade Propeller, more power and durable

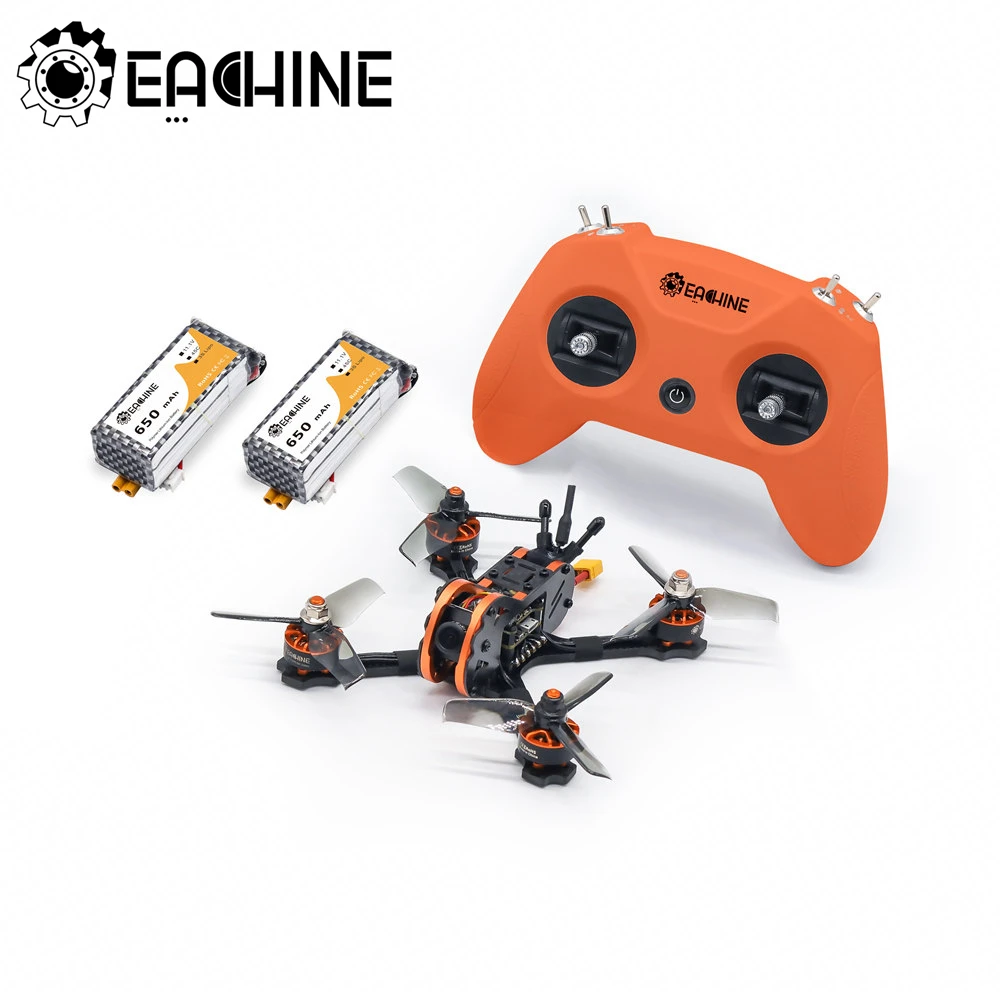

Package Included:

2 Battery Version:

1x Tyro79S FPV Racing Drone

1x LiteRadio Radio Transmitter ( Mode 2 version)

2x Eachine 3S 11.1V 650mAh 45C Lipo Battery

1x 350mAh 2S Lipo Battery ( for Radio Transmitter)

1x B3 Pro Charger

4 Battery Version:

1x Tyro79S FPV Racing Drone

1x LiteRadio Radio Transmitter ( Mode 2 version)

4x Eachine 3S 11.1V 650mAh 45C Lipo Battery

1x 350mAh 2S Lipo Battery ( for Radio Transmitter)

1x B3 Pro Charger
