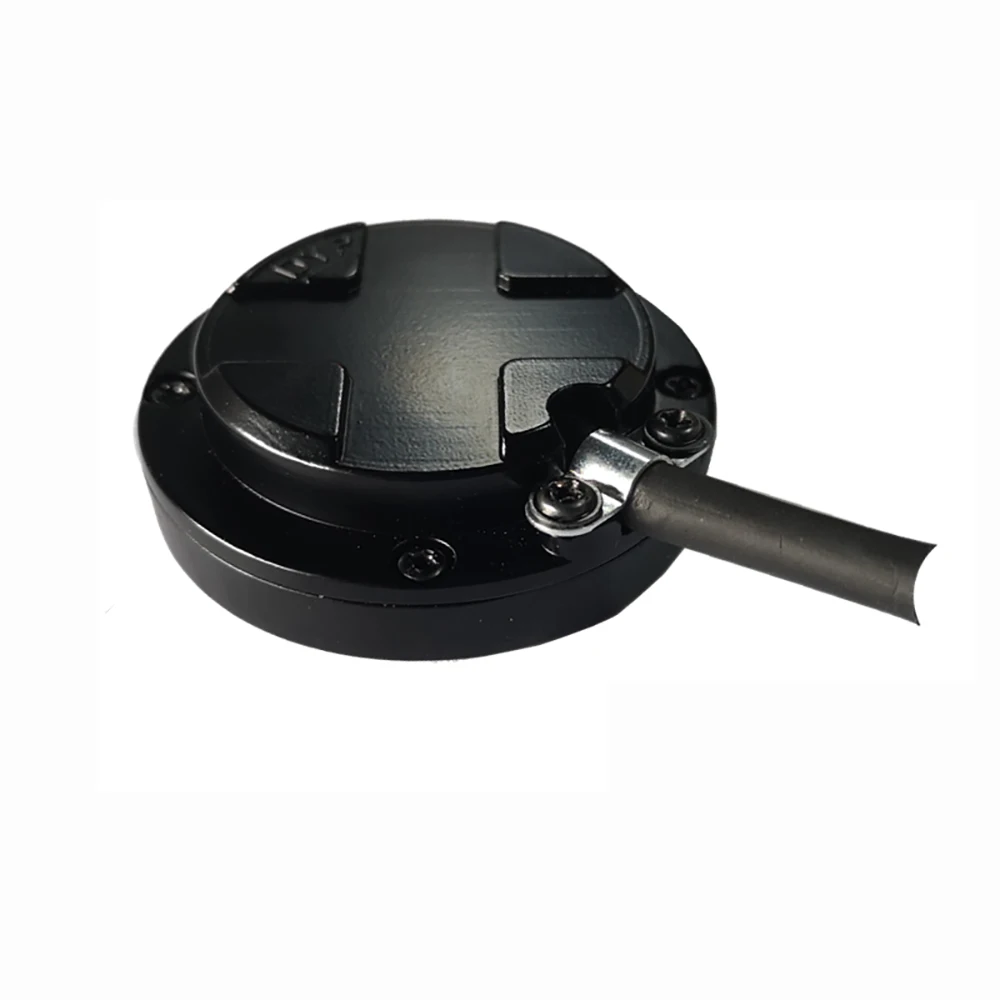

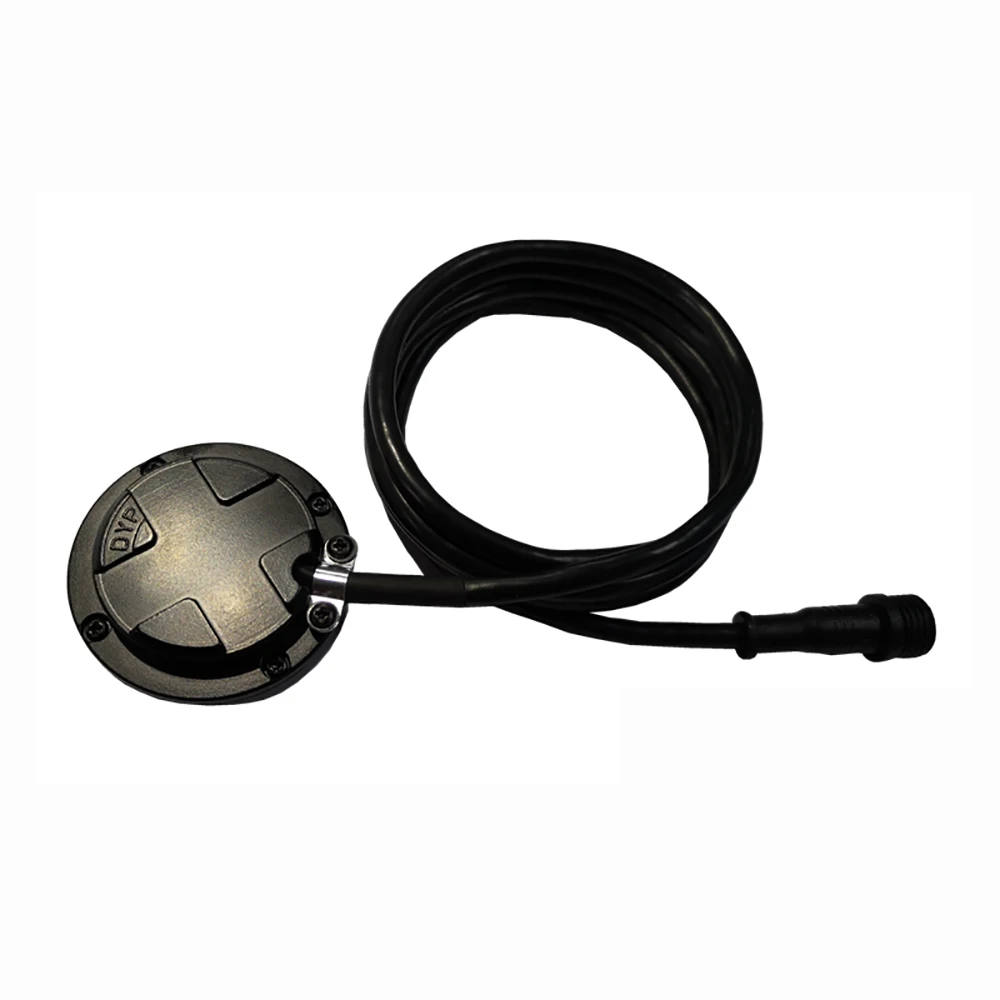

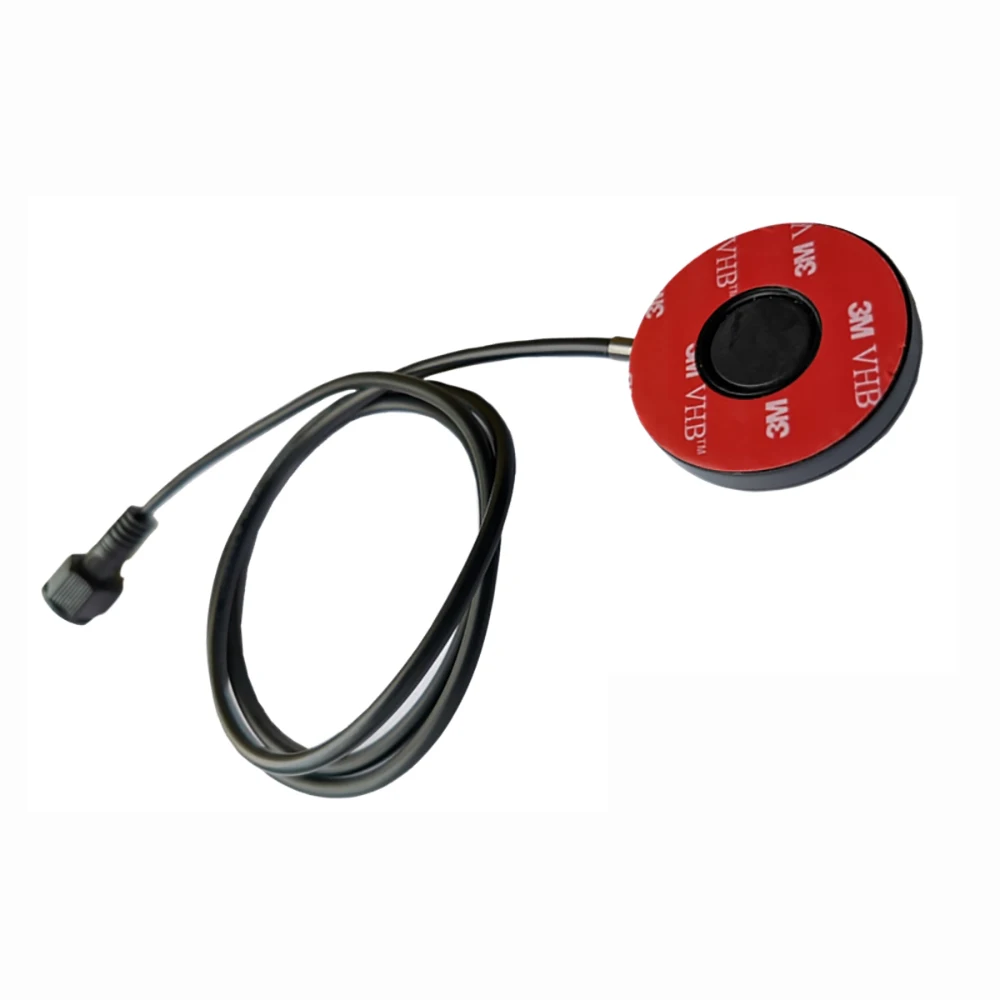

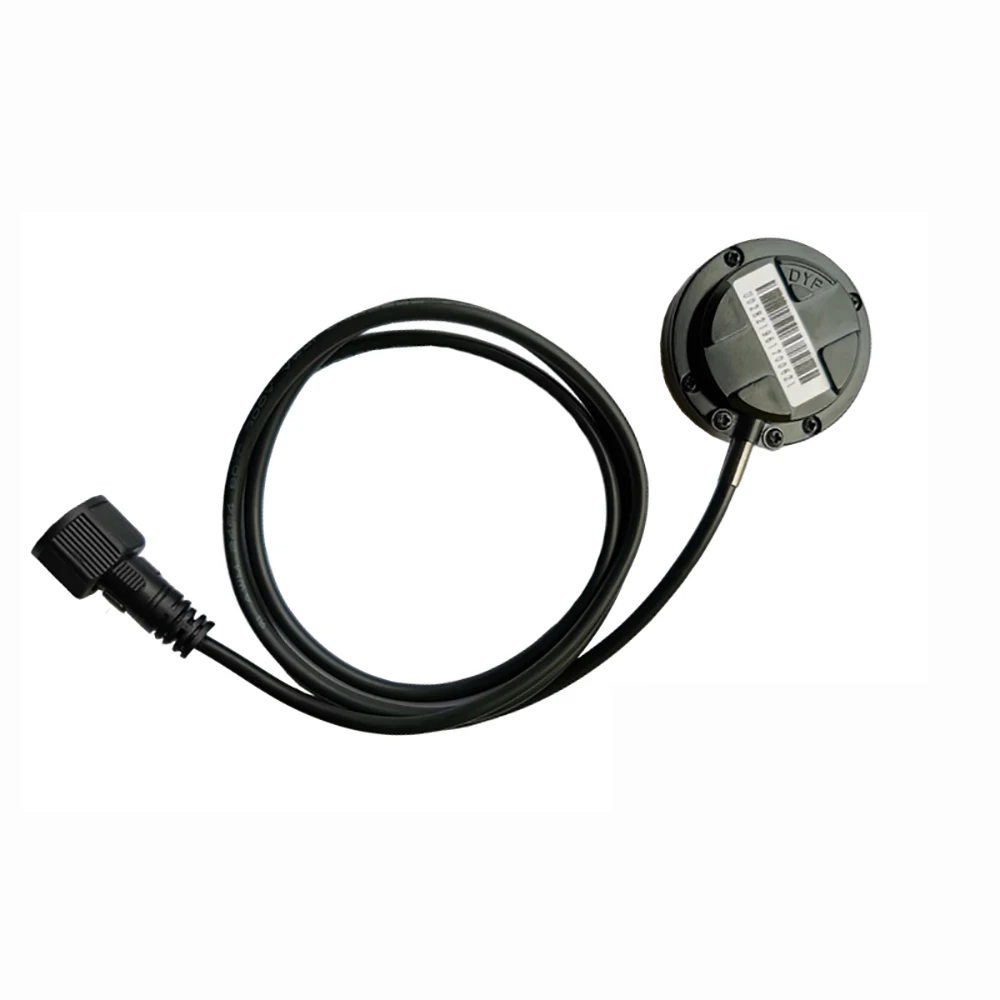

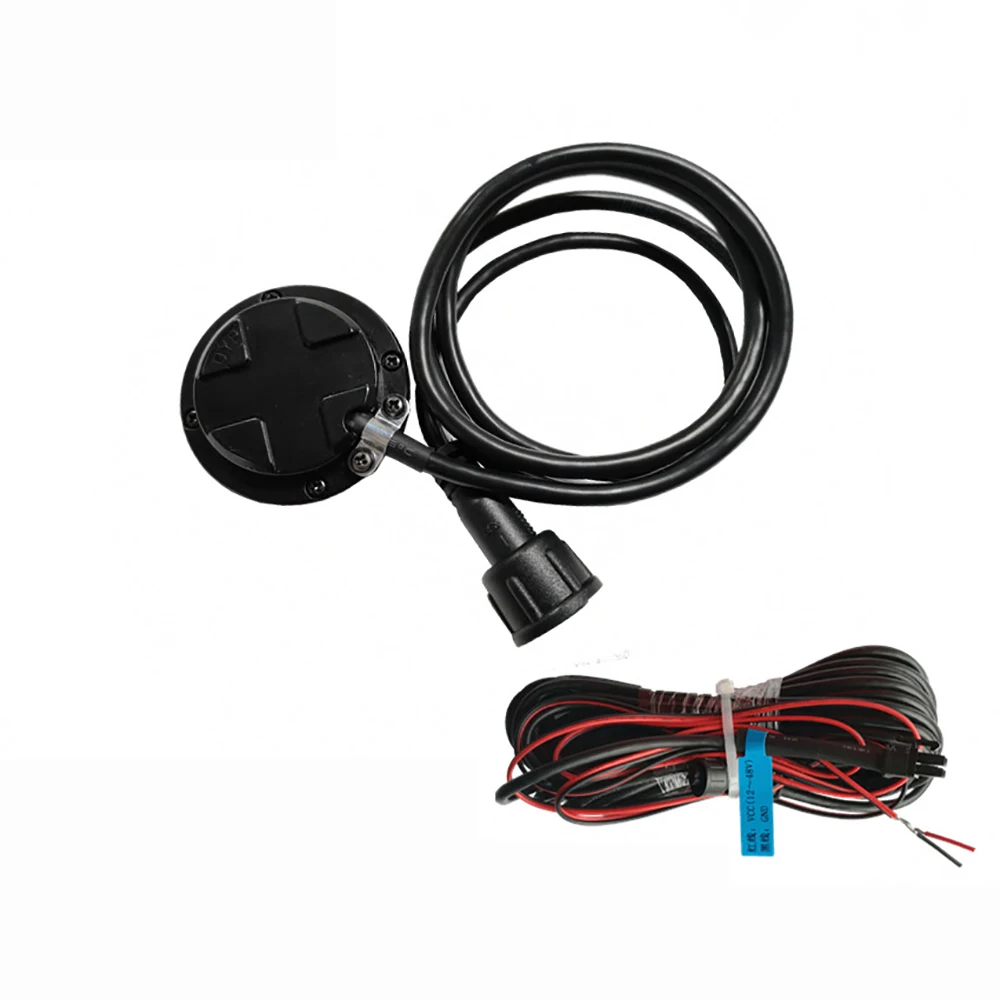

Ultrasonic Fuel Level Sensor Vehicle Consumption Manage Automobile GPS Oil Detector Non-Contact Diesel | Инструменты

Ultrasonic Fuel Level Sensor Vehicle Consumption Manage Automobile GPS Oil Detector Non-Contact Diesel | Инструменты

Specification:

Model: DYP-U02-V1.0 Product name: Ultrasonic Fuel Level Sensor Working voltage: DC12-48V Working current: ≤25mA Measuring angle: 2-4° Measuring range: 5-100CM Output mode: RS232/RS485/0-5V Analog

Feature:

1. Non-contact measurement, no need to change the shape of the container ,no need to polishe the surface paint layer of the container; 2. Metal shell, internal circuit embedment treatment, waterproof design,no pressure for outdoor environment; 3. Built-in strong magnet, external waterproof adhesive, installation is simple and firm 4. Wide voltage woring, DC12~48V supply power, suitable for all kinds of vehicles; 5. Two output port is RS232 output port &RS485 output port, Compatible with various sensor signal acquisition equipment connection; 6. High-frequency ultrasonic detection, high solid penetration, suitable for various materials such as metal, plastic containers 7. High stability measurement output, built-in anti-interference data processing model, intelligent filtering, compensation environment interference; 8. High-precision measurement output, built-in high-precision calculation model, millimetre measurement resolution 9. IP67 level of protection

Application:

1. Vehicle fuel tank fuel level monitoring (Tank truck oil level detection) 2. Automobile oil tank oil level detection 3. Watering cart detection 4. Liquid level measurement of liquid storage tank 5. Container water level monitoring 6. Measurement of canned liquid gas
