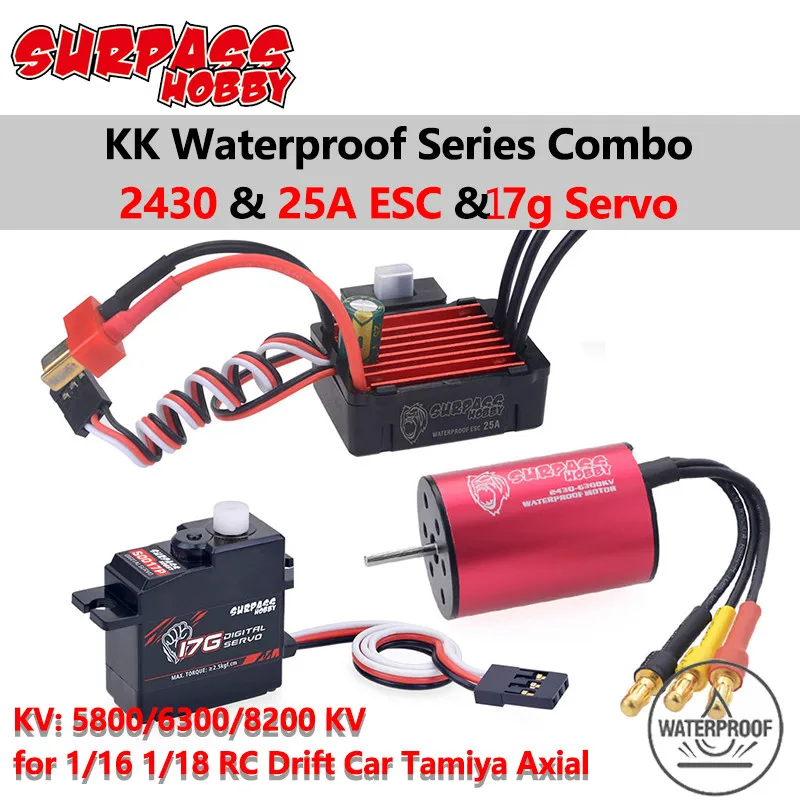

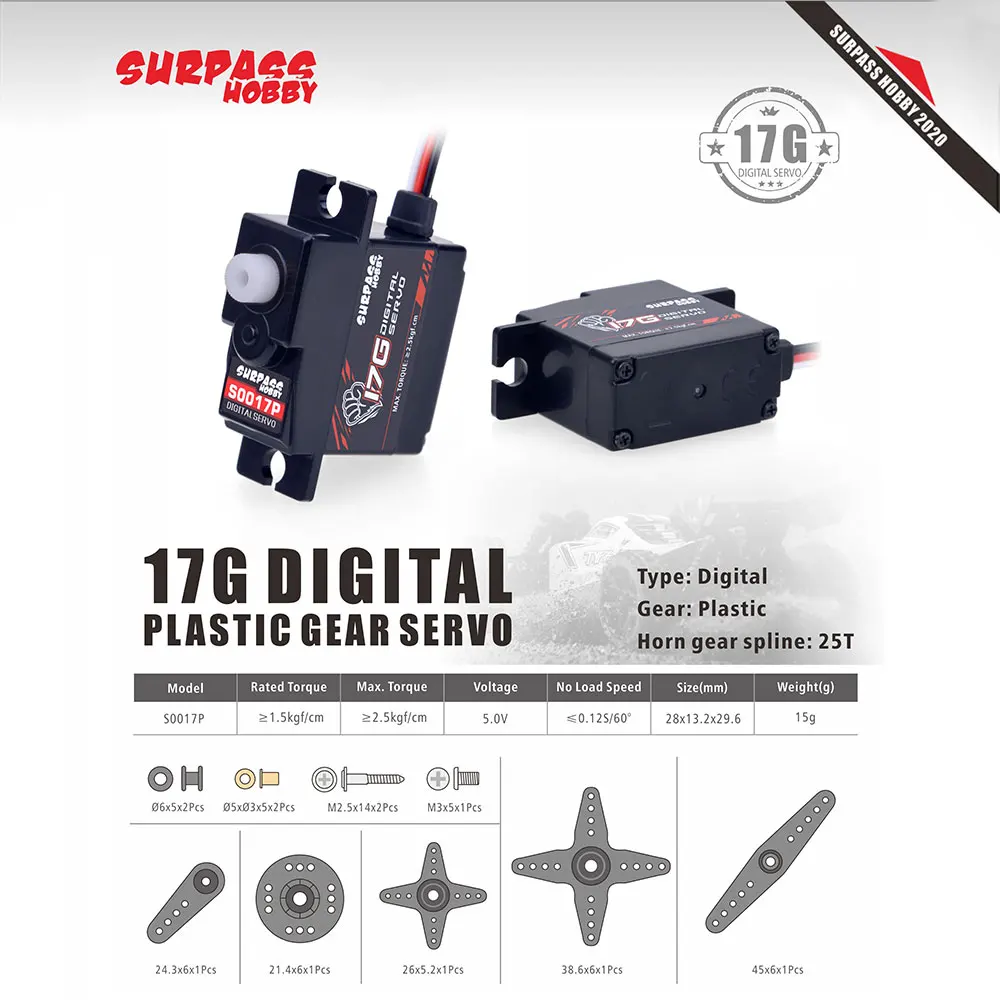

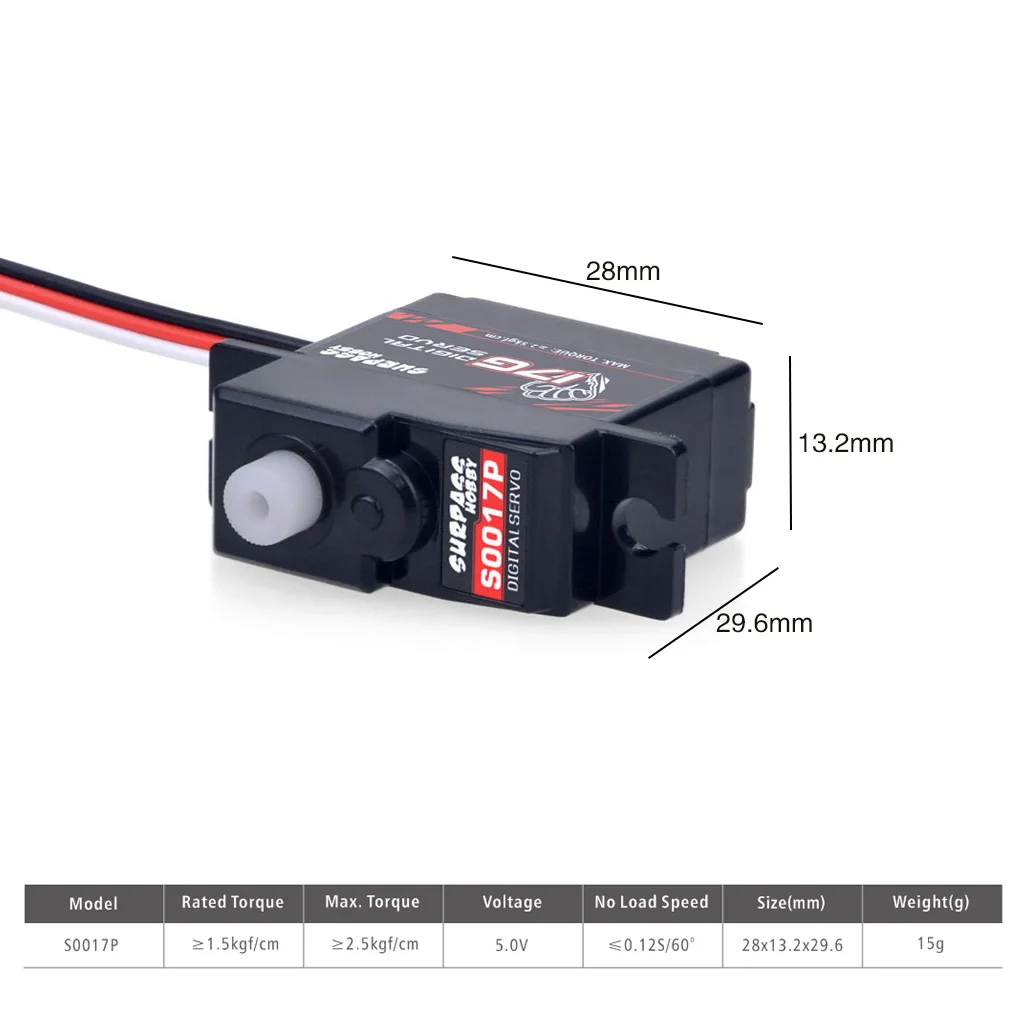

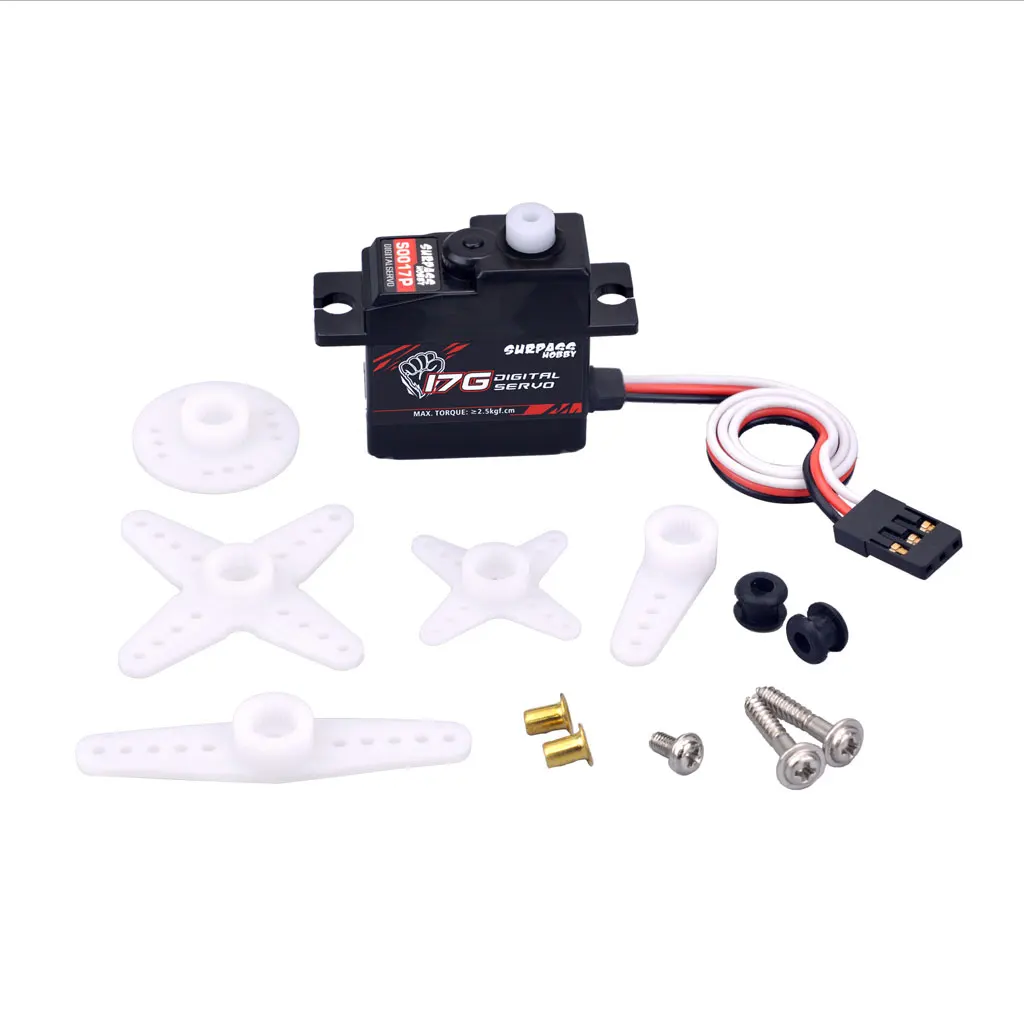

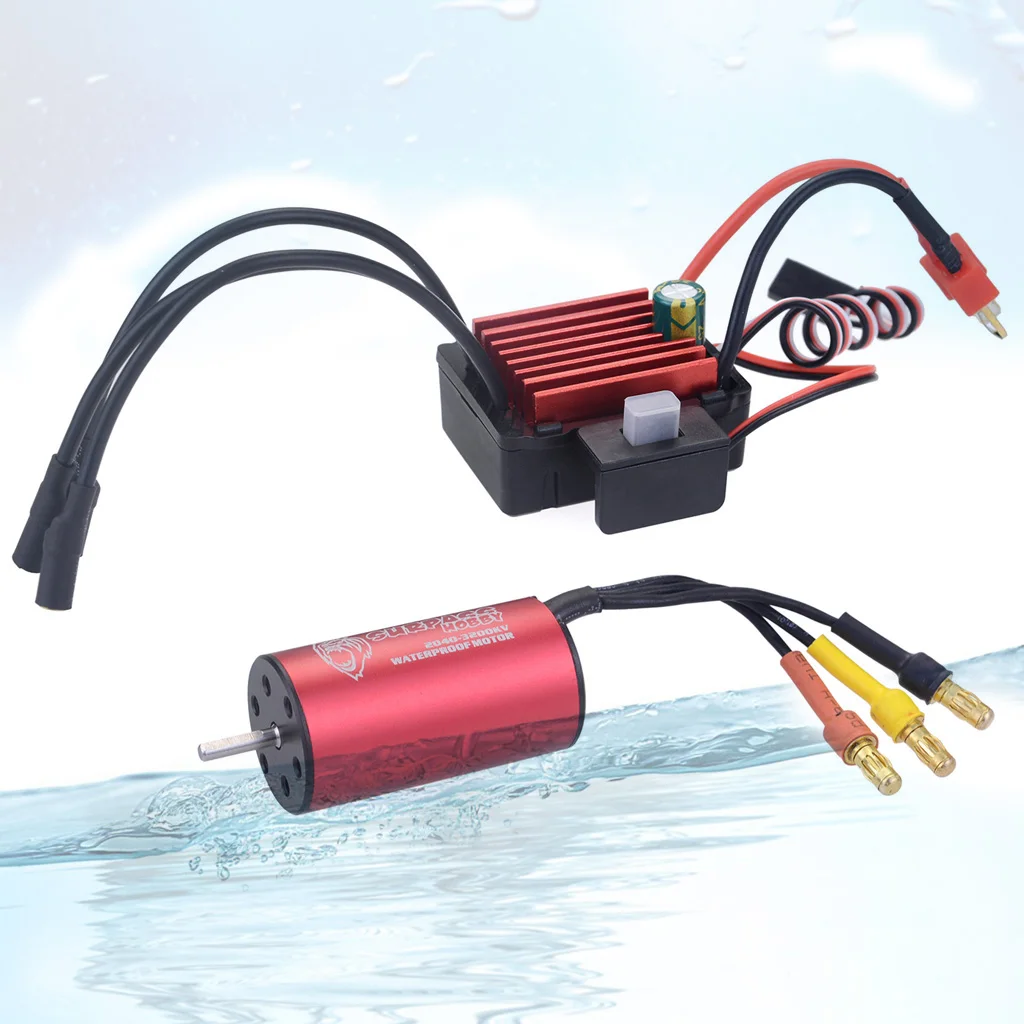

Surpass Hobby KK Waterproof Combo ESC Brushless Motor 2430 5800/6300/8200KV 2S with 25A 17g Servo for 1/16 1/18 RC Drift Car | Игрушки и

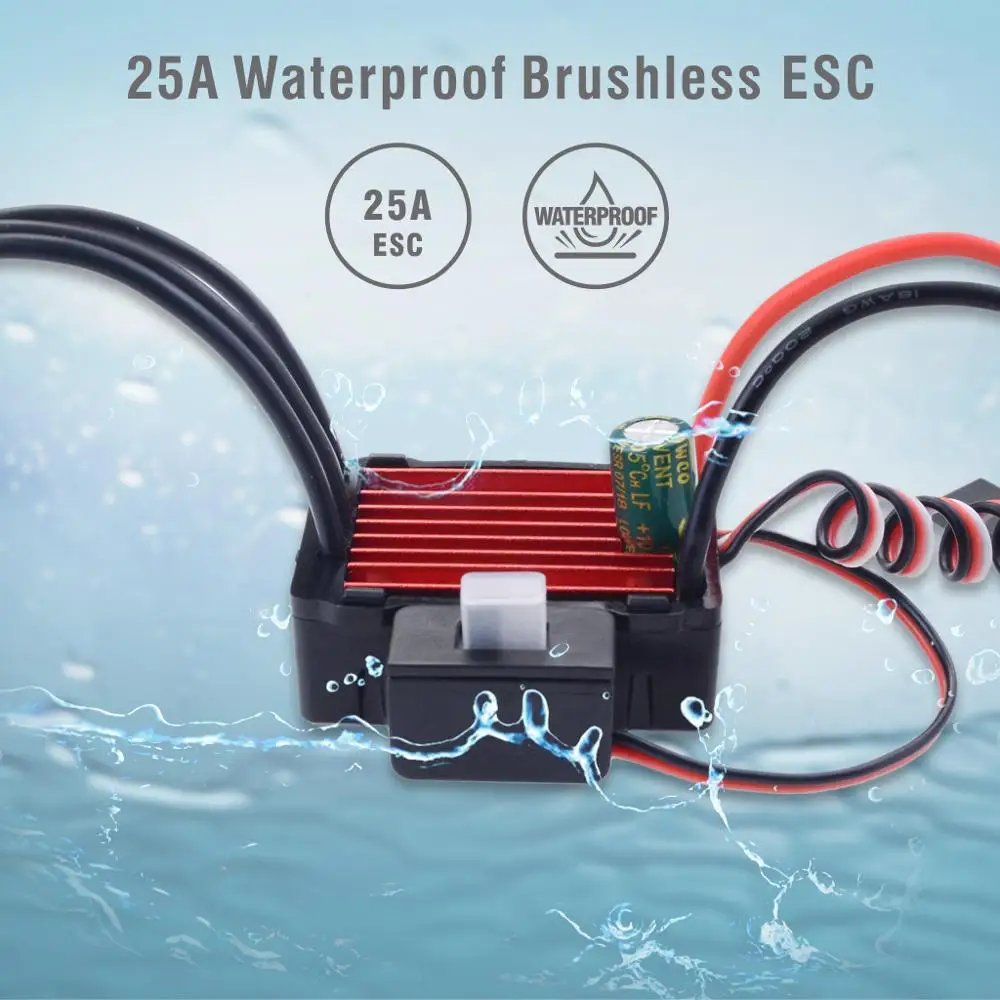

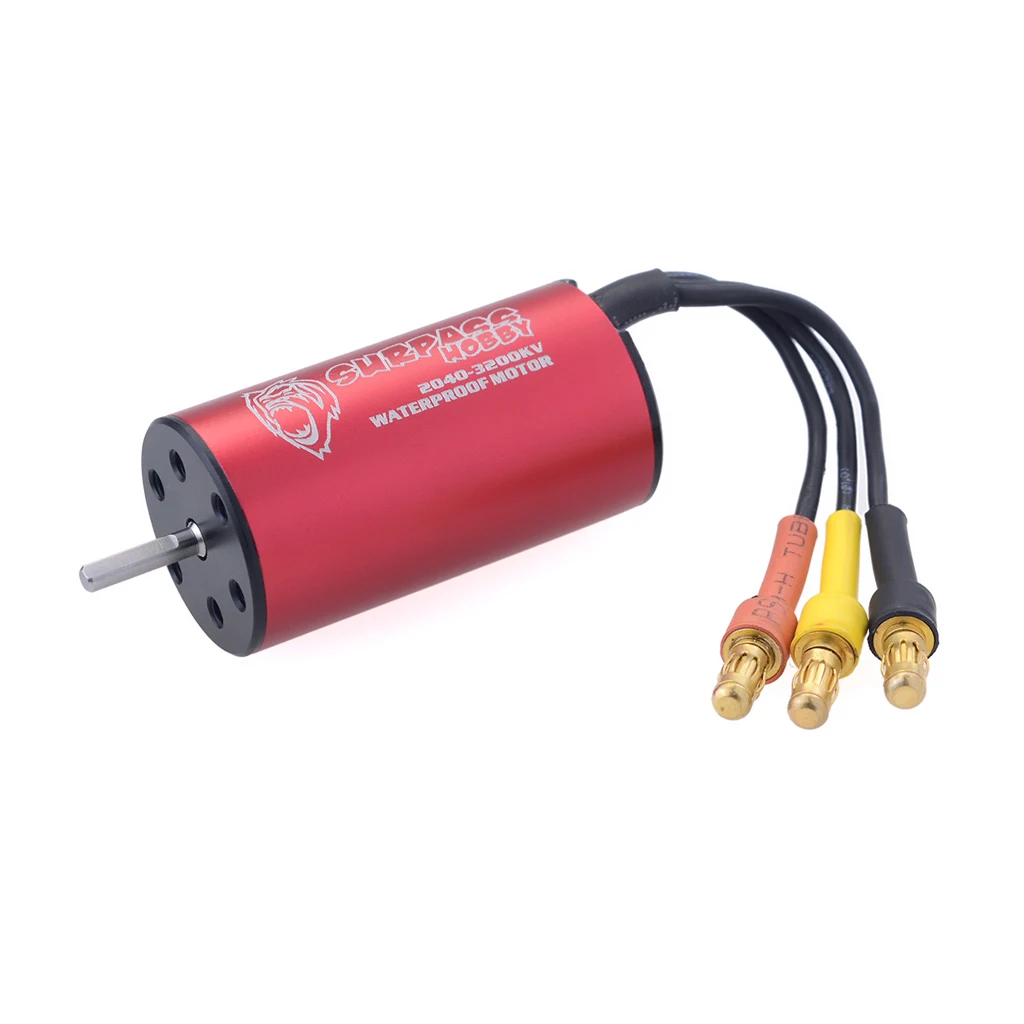

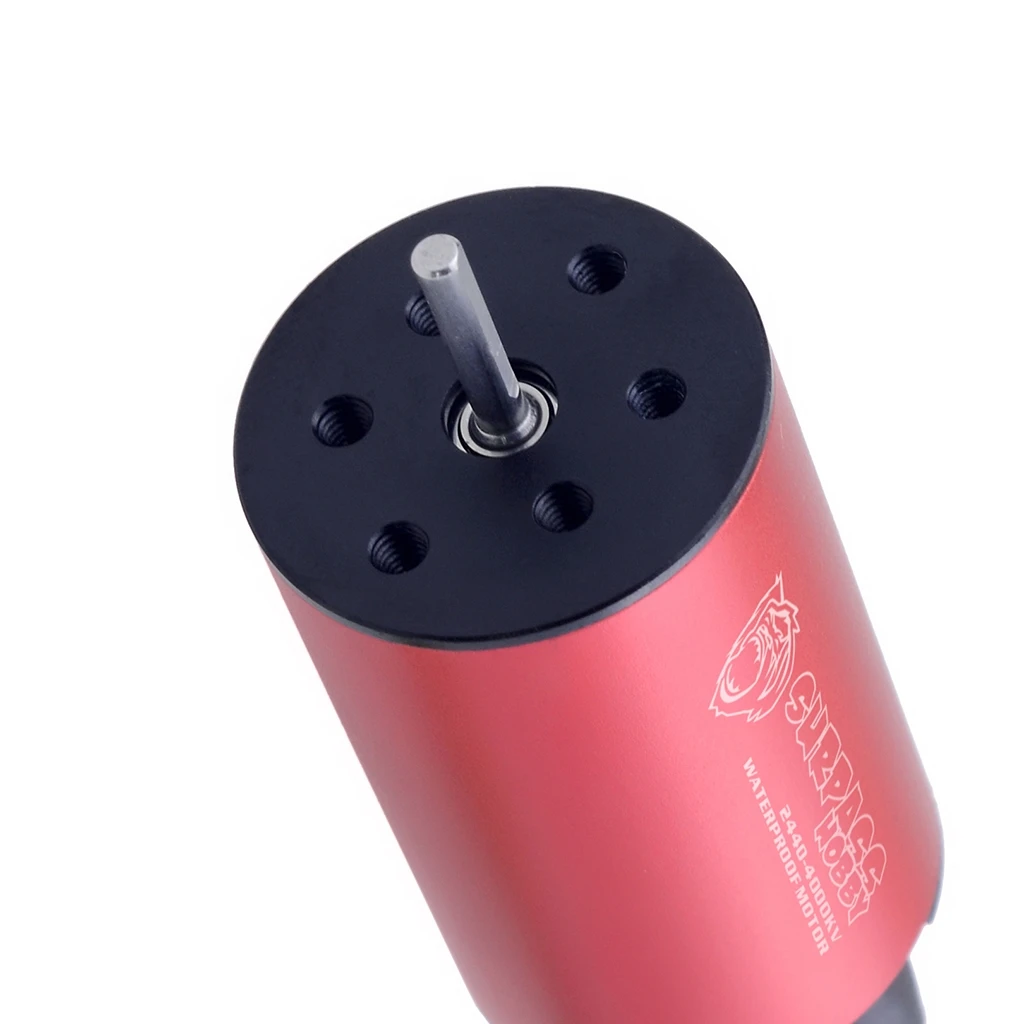

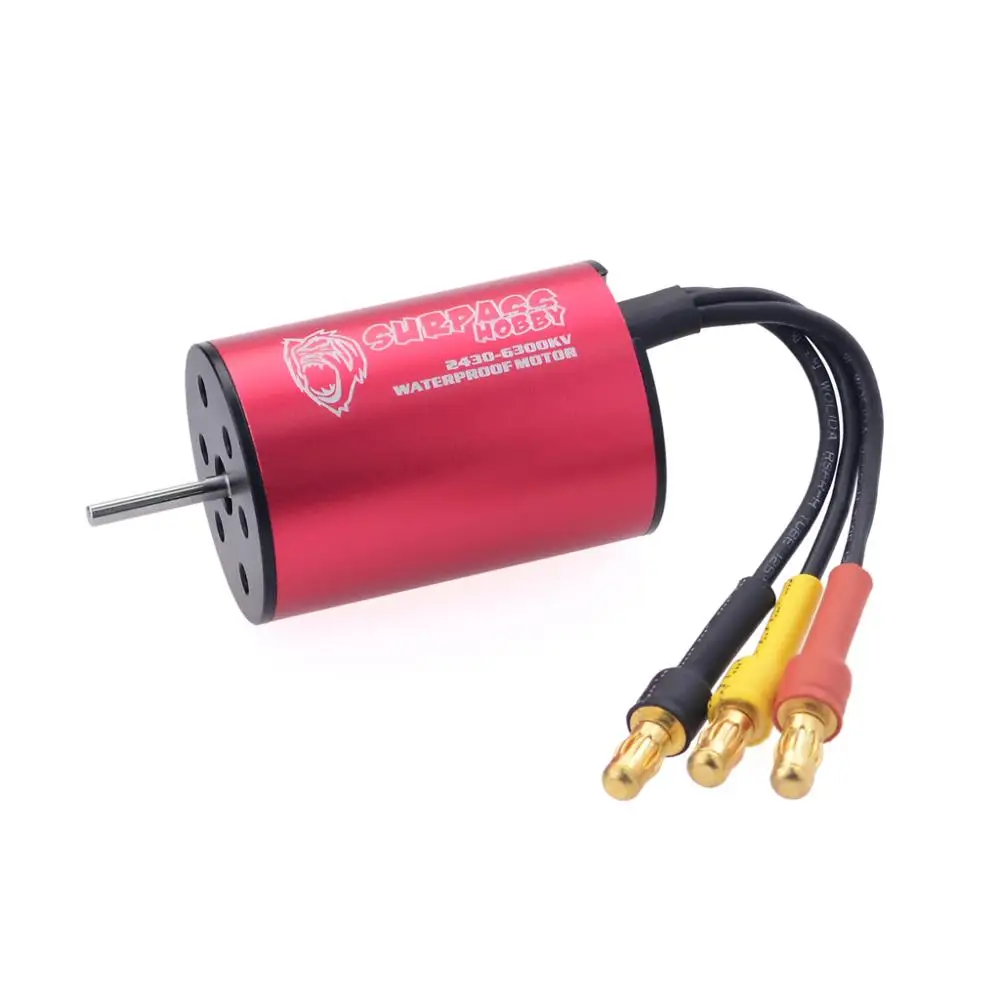

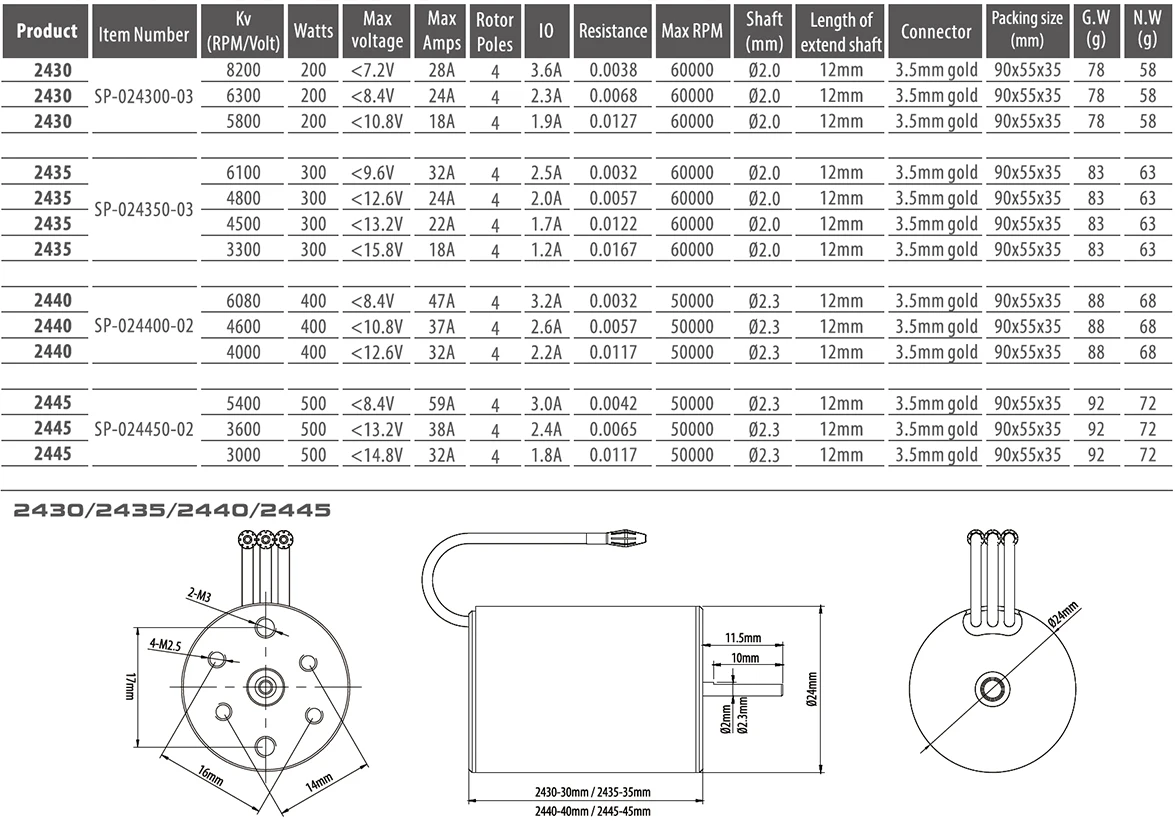

Motor Features:             1.4 Pole 12 Slot Hi-torque Motor Design.       2.High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings.      3.Universal fit, for 1:16,1:18 2S RC racing car.      4.Precision balanced rotor,smoothness for best reliability and maximum RPM. 5.Stator - Super Thin (0.35mm) Laminations.   Motor Specifications: Brand: SURPASSHOBBY Series: KK Name: 2430 RC Motor Color: red KV(RPM/Volt): 5800KV/6300KV/8200KV Watt:200 Max RPM: 50000 Max voltage: <7.2V Max amps: 28A Rotor poles: 4 Diameter: 24mm Length: 30mm Shaft: 2.0mm Shaft length: 12mm Connector: 3.5mm gold Weight:45g   ESC DECLARATION: This is Electronic Speed Controller (ESC) for car. High power system for RC model is very dangerous, so please read this manual carefully.  Since we can't control over the correct use, installation, application, or maintenance of our products, we'veno liability shall be assumed nor accepted for any damages,  losses or costs resulting from the use of the product. Any claimsarising from the operating, failure of malfunctioning etc. will be denied.  We assume no liability for personal injury,consequential damages resulting from our product or our workmanship.   25A ESC Features: 1. Water- proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water;Clean and dry it soon after the use for avoiding the connectors get rusty.) 2. Specially designed for RC car with excellent start-up, acceleration and linearity features. 3. Compatible with sensorless brushless motor. 4. The strong resistant current capability, excellent heat dissipation. 5. Multiple protection features: Low voltage cut-off protection for litium or nickel battery /Over-heat protectionThrote signal loss protection / Motor blocked protection/ 6. Easily programmed and compatible with pocket-sized program card.   25A ESC Specification: Brand: SURPASSHOBBY  Name: KK 25A ESC Cont.Current/Burst Current: 25A/100A Motor Type: Sensorless Brushless Motor                     1. on-road: 24XX-Size or smaller motor with the KV<7200KV                     2. off-road/Buggy/Monster: 24XX-size or smaller motor with the KV <4800KV Suitable Car: 1/20 1/18 1/16 Car Resistance: 0.0014ohm Battery: 2S Lipo/4-6Cells NiMH BEC Output: 5.0V/2A(analog mode) Dimensions/Weight: 40x32x15mm/33g   S0017P Torque: 2.3kgf.cm at 4.8V; 2.6kgf.cm at 6V; No load speed: 0.19s/60° at 4.8V; 0.16s/60° at 6V; Product weight: 15g(0.53oz); Boundary dimension: 28*13.2*29.6mm (1.1*0.52*1.2 inch); Operating voltage: 4.8V ~ 6VDC; Working frequency: 1520 μ s / 333hz; Motor type: DC motor; Gear type: Plastic gear;   Package Included: 1 x SURPASSHOBBY 2430 Brushless Motor 1 x SURPASSHOBBY 25A ESC 1 x 17g Plastic gear servo 1 x English Manual
