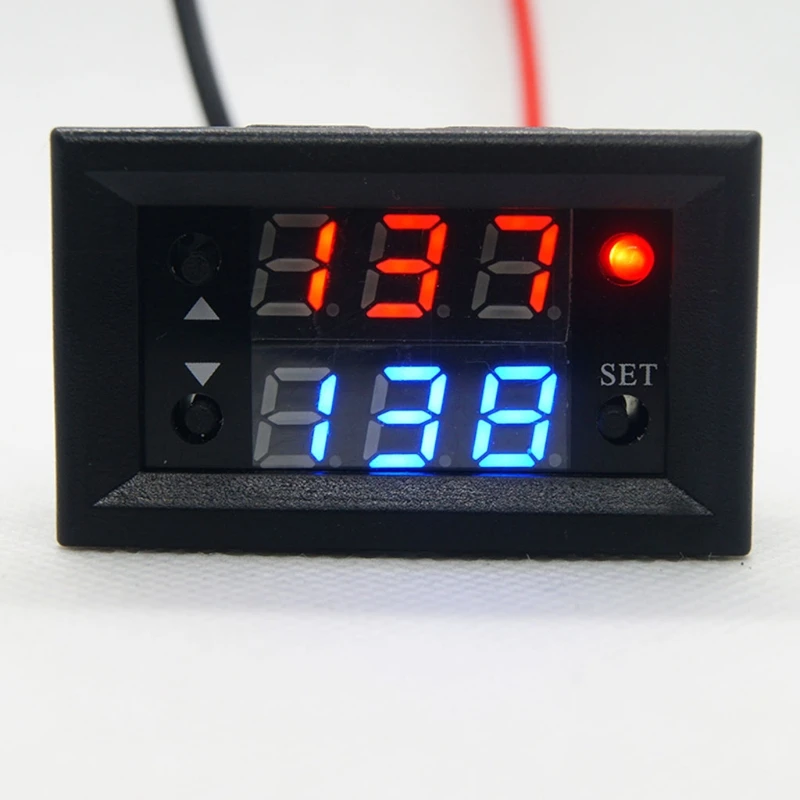

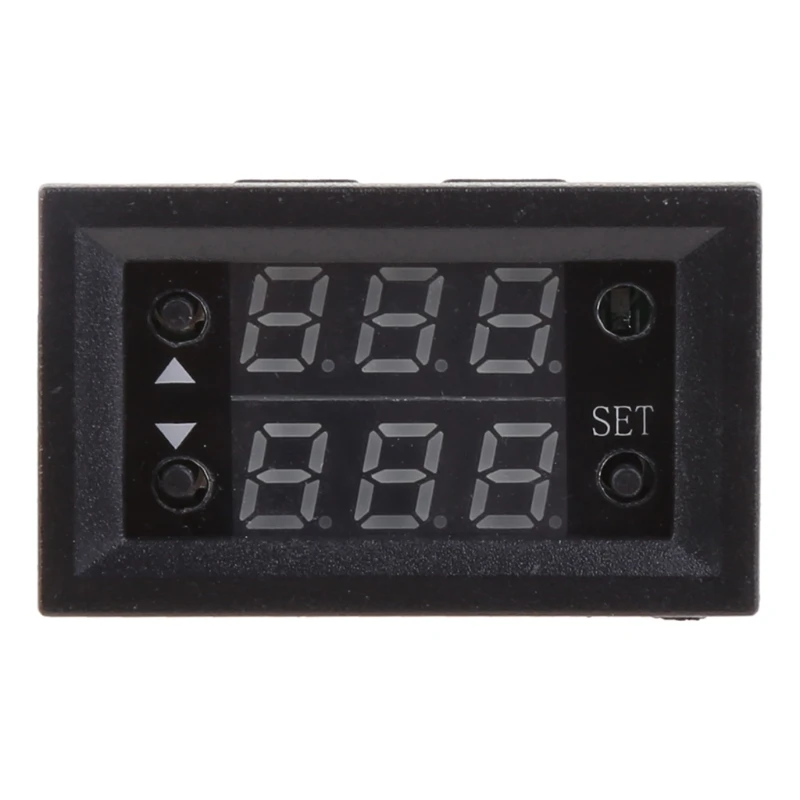

Product Name:T2302 Time Digital Relay
OOTDTY
Working voltage:DC12V
Relay:20A
Timing range:0-999 seconds, 0-999 minutes, 0-999 hours
Working mode:delay on,delay off,timing on,timing off,cycle on,cycle off
Product Instructions

Please pay attention for your first use.You need wait 6s after your setting data,the module will save the date you have set after 6s.

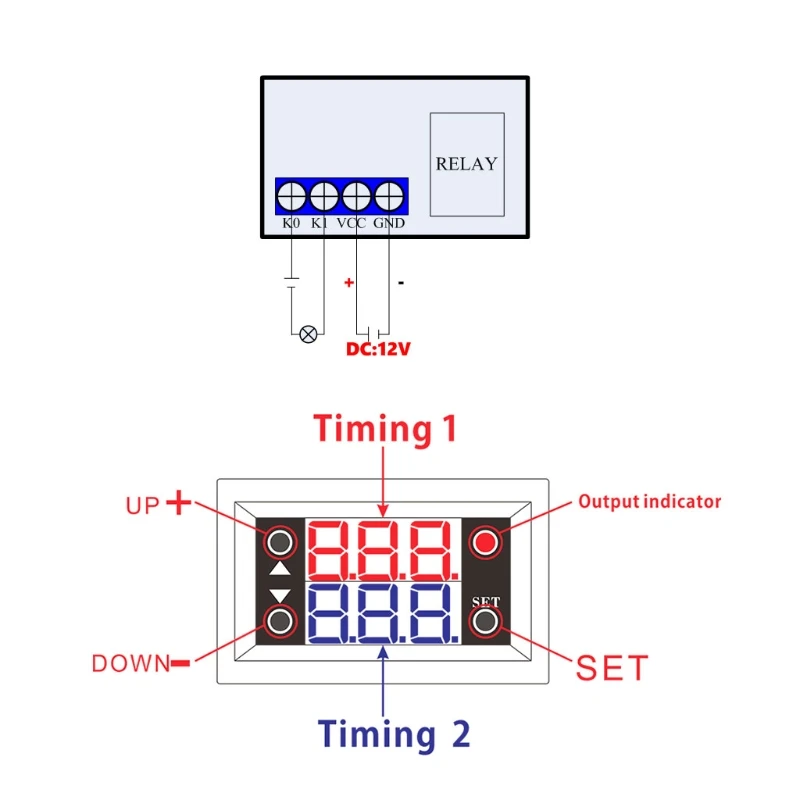

Short press button SET:If you start the time setting mode,Nixie tube will blink.You could adjust the time T1 and T2 by button+ and button-.Please wait 5s after your setting date,the module will save the date you have set after 5s .
Long press button SET:if you start the parameter setting mode.There are two group parameter for your choice :P0 and P1.You could switch P0 or P1 by short press SET. Under the parameter P0 and P1,you could set the timing mode by the button+ and button
P0--0:Timing time mode:0---999s.
P0--1:Timing time mode:0---999min.
P0--2:Timing time mode:0---999h.
P1--0:The relay will connect after you delay the T1 time .
P1--1:The relay will disconnect after you delay the T1 time.
P1--2:The relay will connect after you delay the T1 time first,Then the relay will disconnect after you delay the T2 time,it finish.
P1--3:The relay will disconnect after you delay the T1 time first,Then the relay will connect after you delay the T2 time,it finish.
P1--4: The relay will connect after you delay the T1 time  first,Then the relay will disconnect after you delay the T2 time,it is cyclic.
P1--5:The relay will disconnect after you delay the T1 time first,Then the relay will connect after you delay the T2 time,it cyclic.
Example:A customer needs 10 seconds to start up and 20 seconds off.Setup is as follows:
T1 set time 10,T2 set time 20
P0--0 (T1 time range is seconds)
P1--5 (timer work mode)

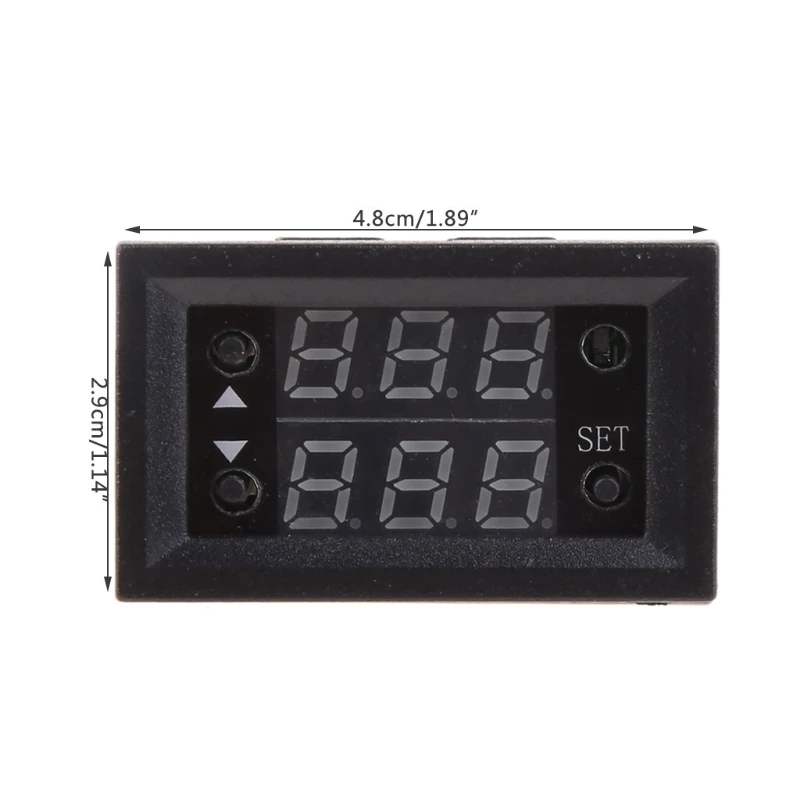

Size:4.8x2.9cm/1.89x1.14inch

Note:
Please allow 1-3mm error due to manual measurement.pls make sure you do not mind before you bid.
Due to the difference between different monitors,the picture may not reflect the actual color of the item.Thank you!

Package Includes:
1x Timer Delay Relay
