Heavy duty Intelligent High Speed Security Boom Automatic Barrier with DIY 5 meters arm boom 6 seconds take off and landing |

Heavy duty Intelligent High Speed Security Boom Automatic Barrier with DIY 5 meters arm boom 6 seconds take off and landing |

Thick steel Boom Barrier System

Franchisee contact the seller for a discount

Automatic rising barriers are frequently installed to control access to public carparks (at hospitals, shopping centres and universities, etc.) and on private premises (business parks, haulage and distribution depots, etc.)

Automatic rising barriers are not ususlly installed as a means of securing a site – more so to control the flow of vehicles in and out of a site. For example to prevent unauthorised parking or prevent trucks leaving a warehouse cmplex without having their loads checked.

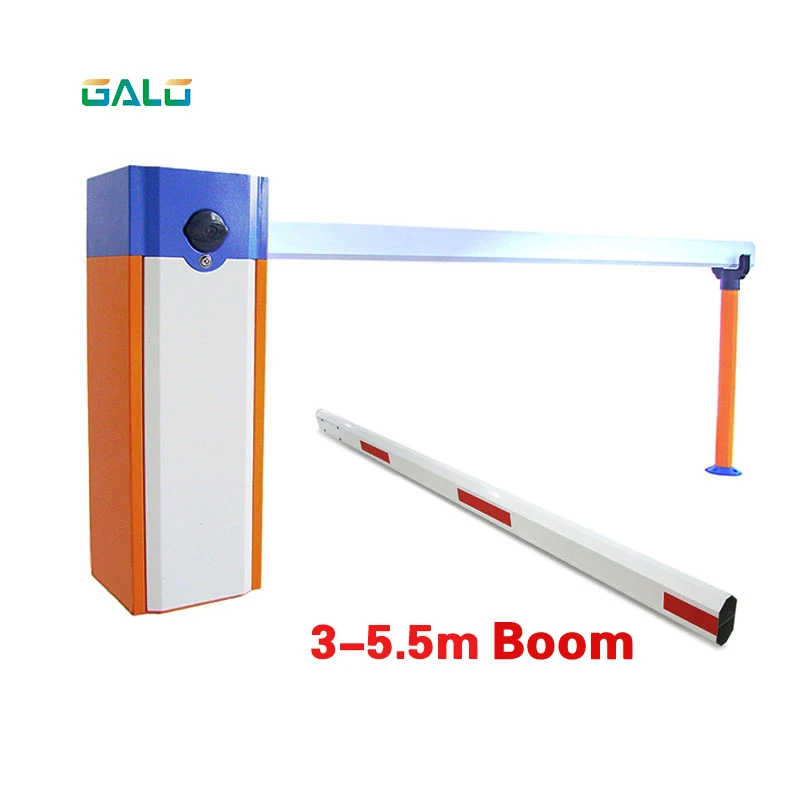

The max arm length by air is no more than 5.5 meters,  and if you need the arm more than 3 meters, please do contact the seller and quote it by sea.

 Functions and Features:

1. Open the barrier gate by motor wheel when power off and automatic locking when power on

2. Balanced boom running with a motor transmission of cranks and shafts

3. Remote control to operate the barrier gate

4. Auto-reverse when the boom meets obstruction

5. Infrared photocells connector is available

6. Loop detector connector is available

7. Well-integrated with car parking system equipments, with wire control (push button)

8. Connector for traffic light

9. Offering dry contact signal for car parking system (COM, NC, NO)

10. Auto-delay when closing (adjustable)

Technical Data:

1. Working temperature(motor): -35- + 60 degree centigrade

2. Working temperature(control panel): -35- + 60 degree centigrade

3. Voltage: 220V±10% or 110V ±10%, 50/60Hz

4. Rated Power and capacitor: 80W, 9+9uF/450W

5. Humidity: ≤90% RH

6. Distance of remote control: 30M≤L≤100M in the open air

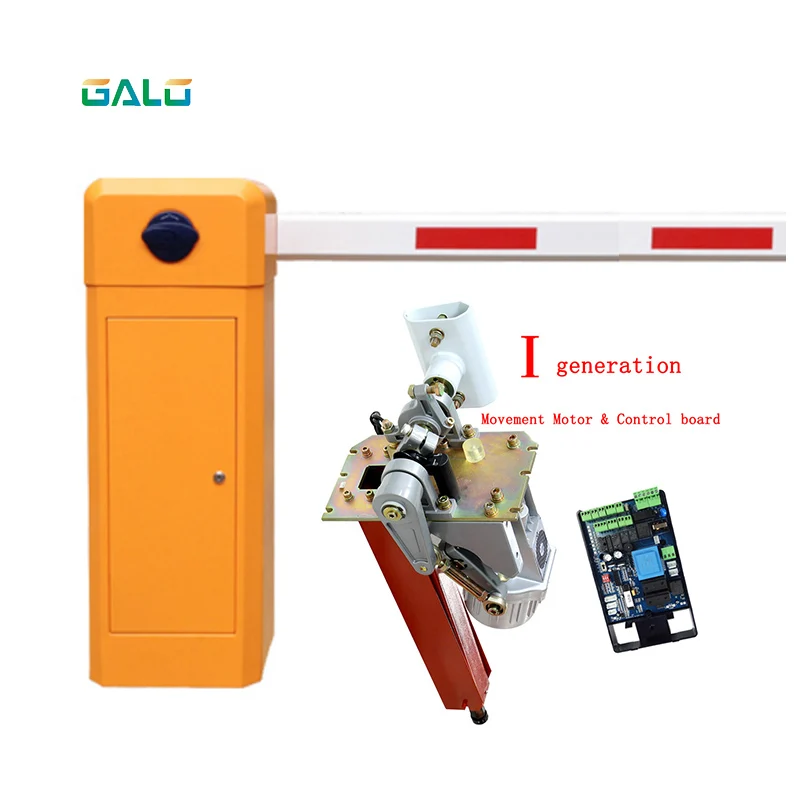

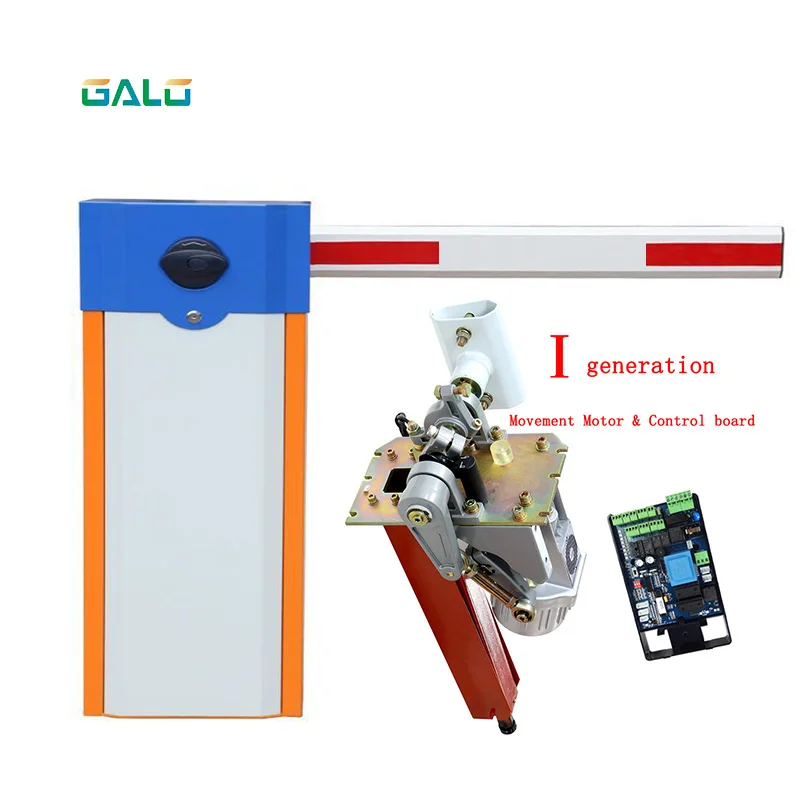

Barrier Gate Motor and Structure:
