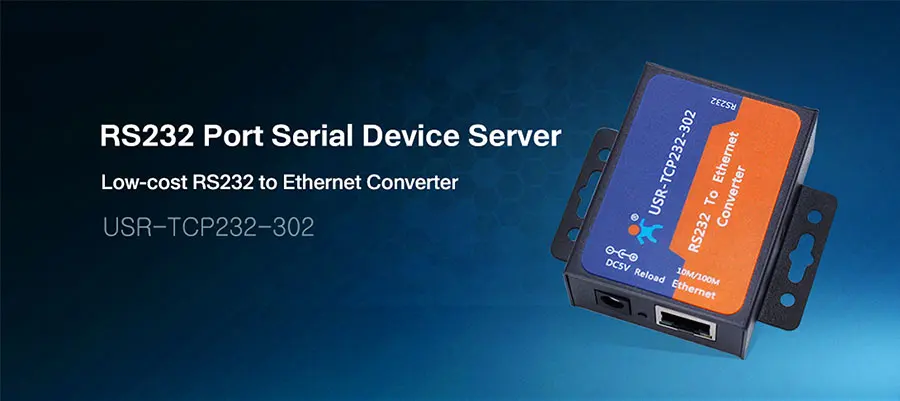

New model [USR-TCP232-302] RS232 to Ethernet converter  is upgraded version of old one [USR-TCP232-200]

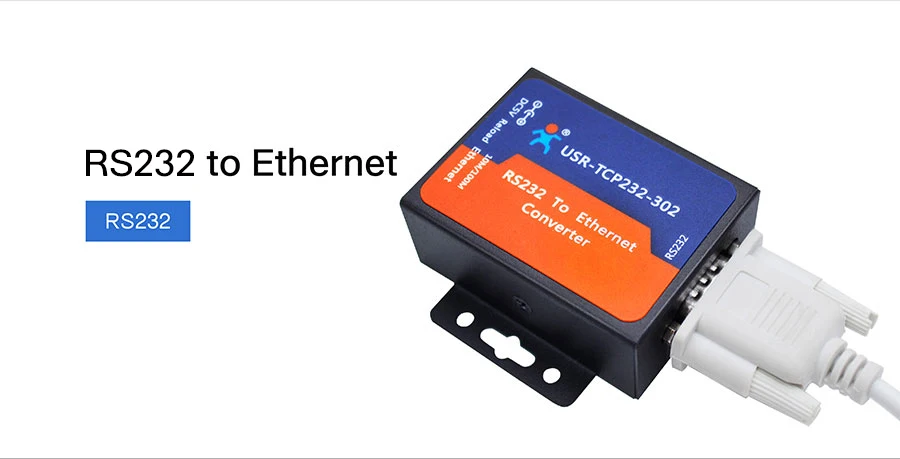

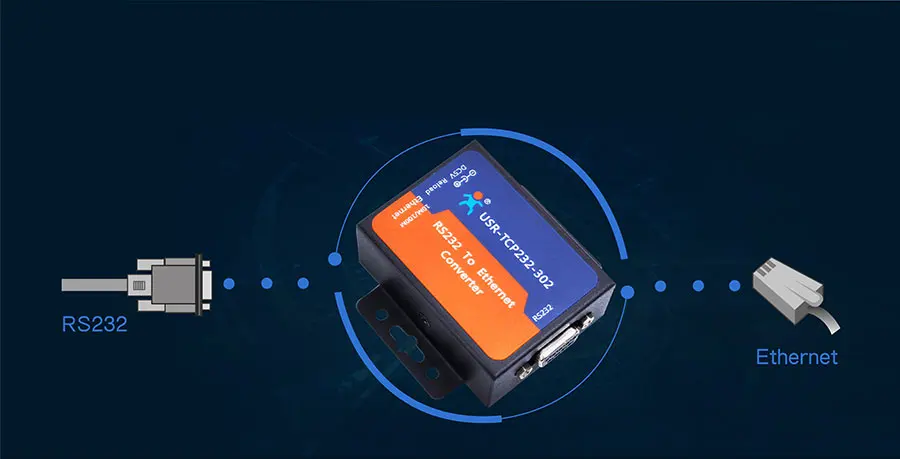

1 port RS232 to Ethernet converters USR-TCP232-302 can transmit data transparently between TCP/IP and RS232. RS232 to IP Converters USR-TCP232-302 are widespread required in industrial automation. Simple configuration and easy to use.

● Single RS232 to ethernet converters

● Cost-effective

● RS232 port

● Power supply: DC 4.75-7V

● Compact, Light Weight

● Supports TCP server/client, UDP server/client

● Virtual COM

System Information

Processor

TI Cortex-M0

Ethernet

Port Number

1

Interface Standard

RJ45

Rate

10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection

Protection

2KV electromagnetism isolation, shell insulation blocking

Network Protocol

IP、TCP/UDP、ARP、ICMP、IPV4、HTTP

Buffer

Send: 6K bytes, receive: 4K bytes

Serial Port

Port Number

1

Interface Standard

RS-232: DB9 female port

Data Bits

5, 6, 7, 8

Stop Bit

1, 2

Check Bit

None, Even, Odd, Space, Mark

Baud Rate

600 bps ~ 230.4 Kbps

Flow Control

Null

Buffer

Receive: 800 bytes

Software

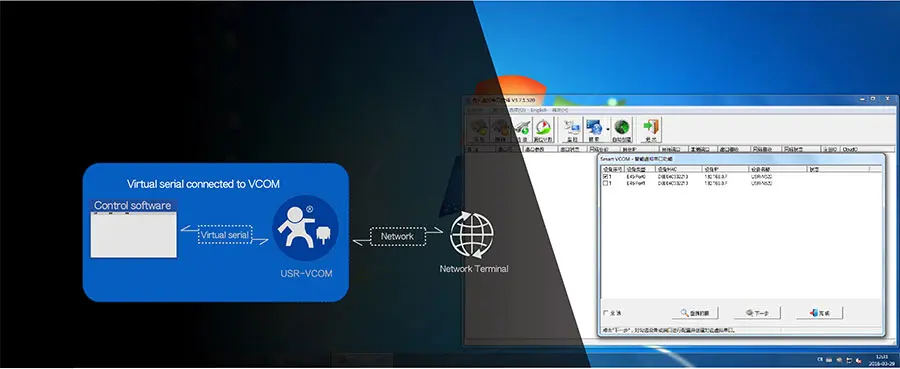

Virtual Serial（USR-VCOM）

Windows 2000 or higher (32 bit/64 bit)

Configuration

Computer set-up software, serial command, built-in webpage

Basic Parameter

Size

71 x 60 x 25 mm

Operating Temp.

-25 ~ 75°C

Storage Temp.

-40 ~ 105°C, 5 ~ 95% RH

Input Voltage

DC 4.75 ~ 7V

Working Current

150mA @ 5V

Power

<1W

More

Warranty

2 years

Accessory

5V1A power supply

Certificate

CE/FCC/RoHs

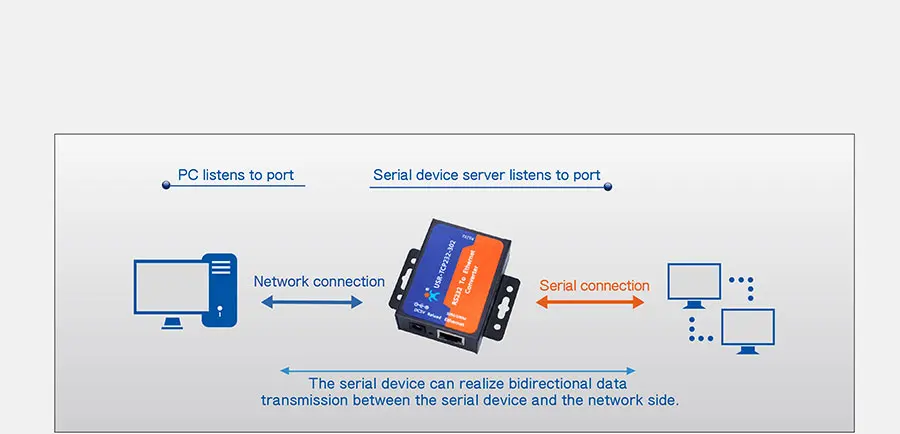

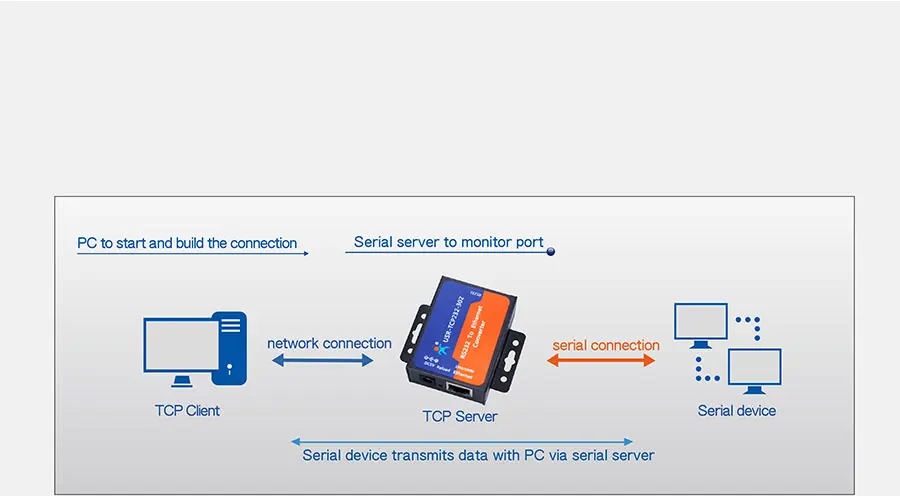

RS232 to Ethernet converters USR-TCP232-302 monitor the set port and waits for a TCP client connection.
Data from the serial device will transmit to all successfully-connected TCP clients.

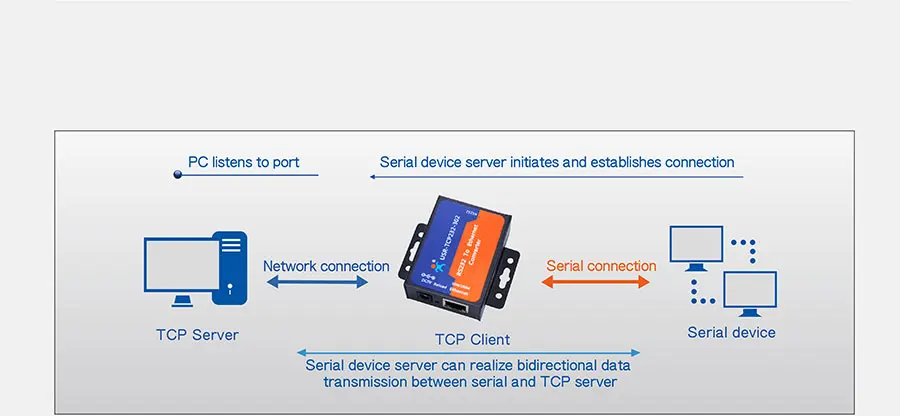

RS232 to Ethernet converters USR-TCP232-302 will initiate TCP connection to the destination IP address that
configured by the user and USR-TCP232-302 will continuously try to reconnect if establishing TCP connection
unsuccessfully. If the USR-TCP232-302 establishes TCP connection to TCP Server successfully, it can realize
bidirectional data transparent transmission between TCP Server and the serial device.

RS232 to Ethernet converters USR-TCP232-302 will transmit serial data from serial device to target network device
by UDP connection. USR-TCP232-302 will listen to port and transmit all received data to serial device.

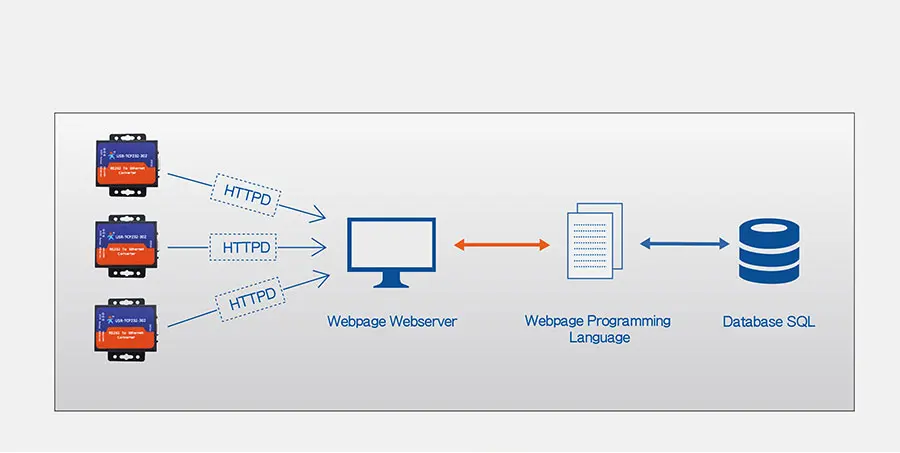

RS232 to Ethernet converters USR-TCP232-302 supports https Client mode which can transmit serial data
to the https server in https format(GET/POST).

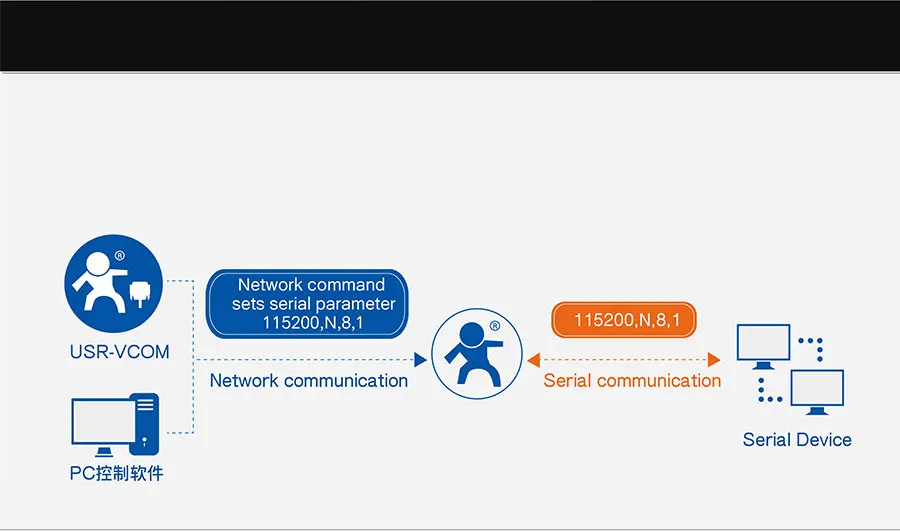

Dynamically change baud rate, data bit, check bit and stop bit of serial device server via network command.

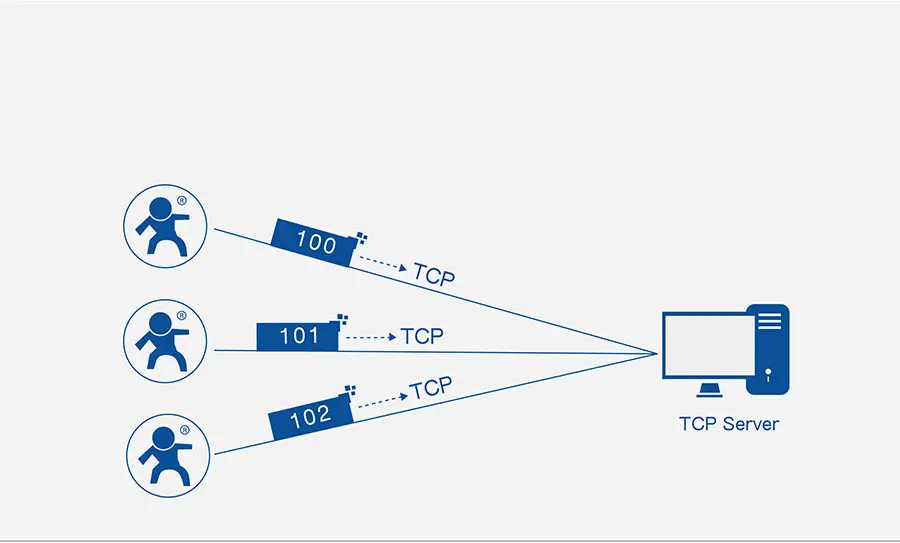

When RS232 to Ethernet converter USR-TCP232-302 works as TCP Client, it can send identity packet to TCP server
which can be identification. Identity packet can be IMEI code, ICCID code and user editable identity packet.

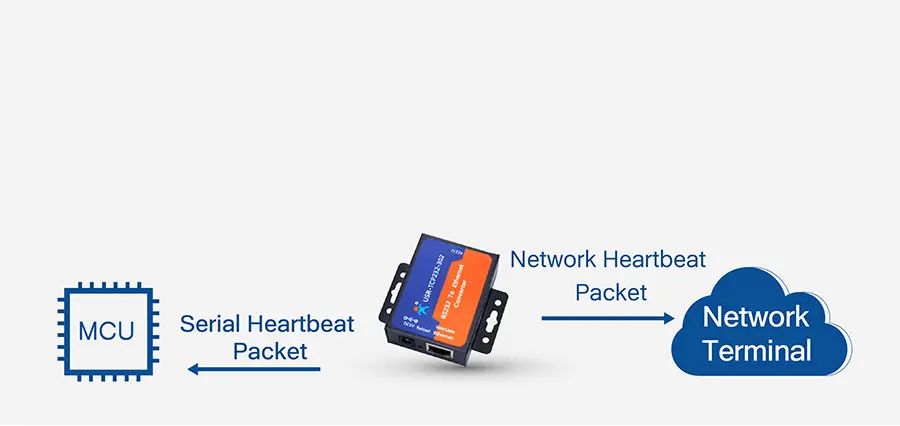

RS232 to Ethernet converters USR-TCP232-302 maintain the normal connection with the server by
sending heartbeat packet regularly.

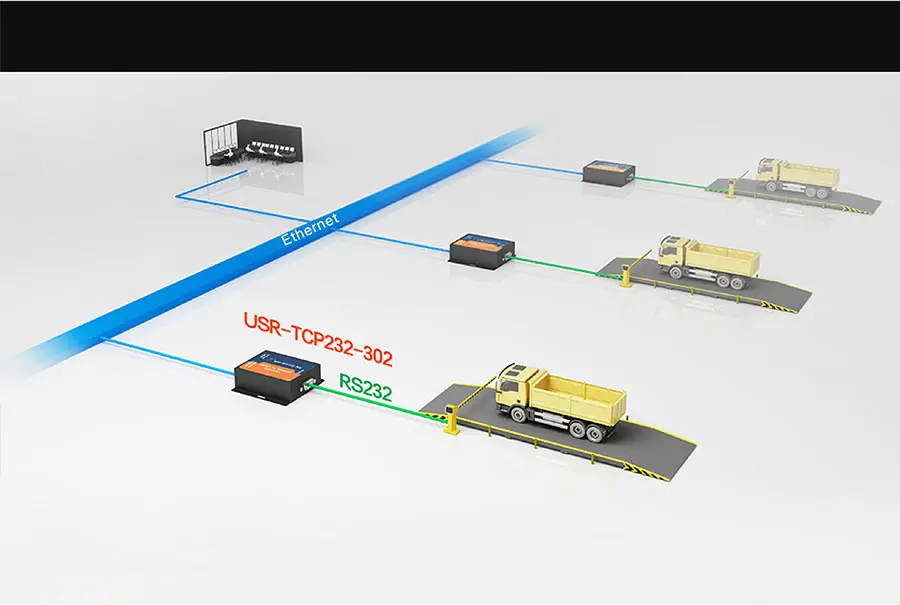

Connect RS232 to Ethernet converters USR-TCP232-302 to barrier gate and they can realize remote control of
barrier gate by Ethernet in control center.

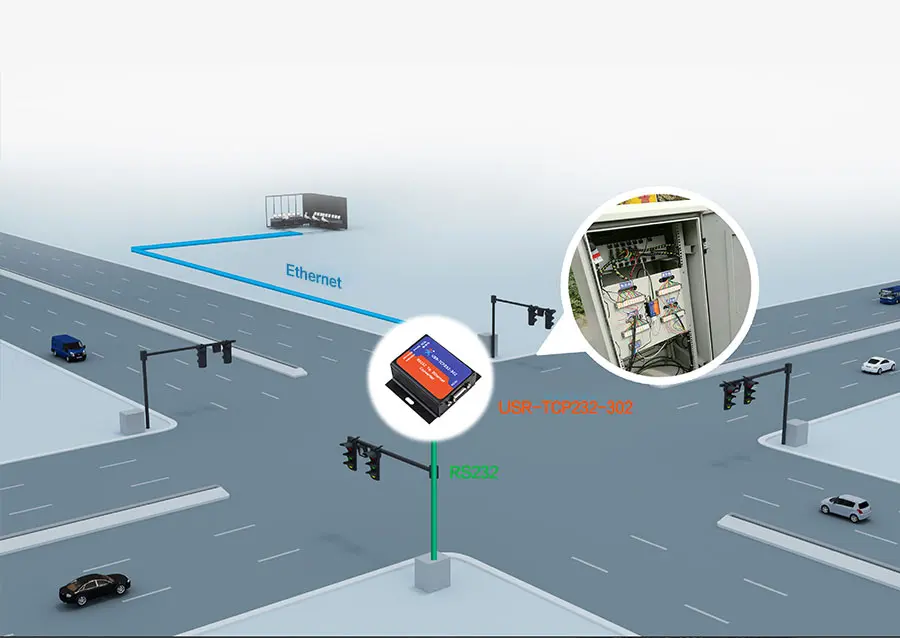

Connect RS232 to Ethernet converter USR-TCP232-302 and it can realize traffic data acquisition and processing
by Ethernet in control center. It can also provide accurate quantitative basis for traffic dispatch
management and urban transport planning Can implement the optimum control for transportation phenomena
such as traffic jam, traffic accident, traffic capacity from a regional or global perspective.
