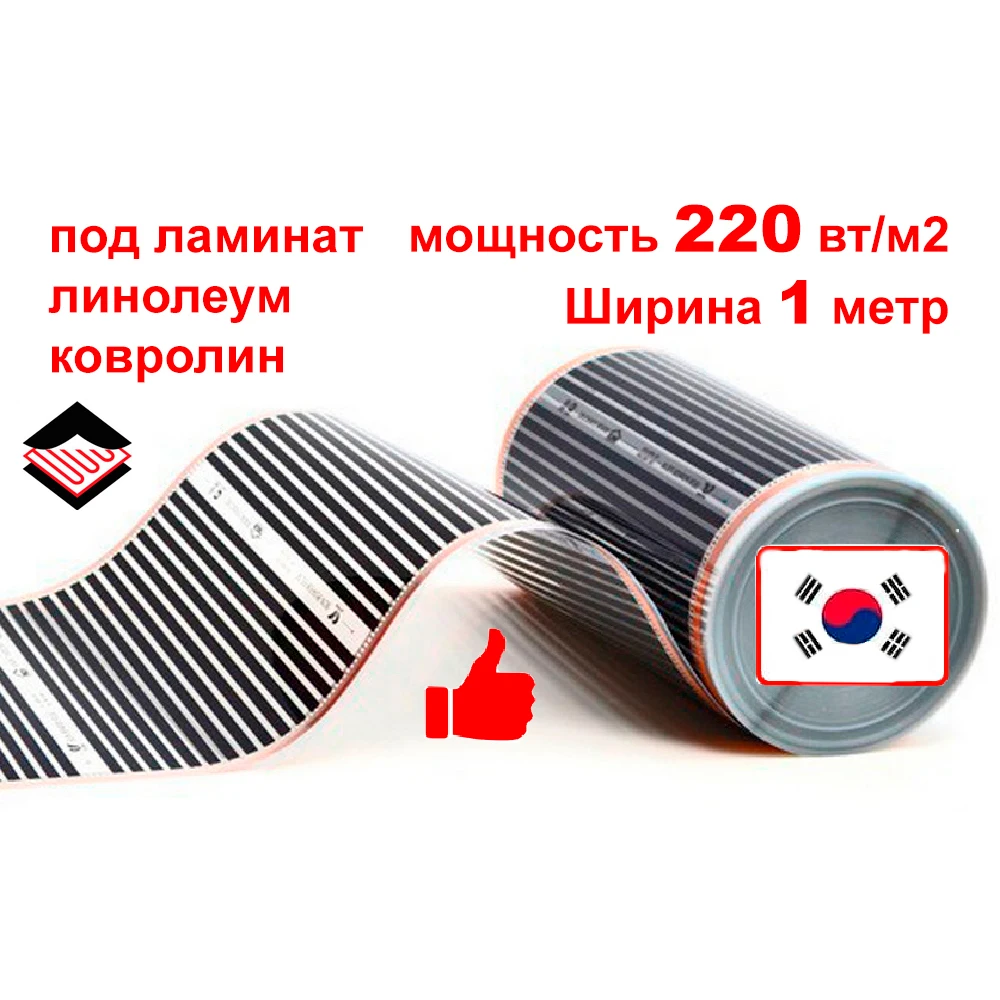

Heating film, infraredWarm floor, For mounting under unfixed coatings-laminate, linoleum, carpet and parquet board. Width рулона-1- Power supply voltage 220 Volt. Power-220 watts/sq. m. Production-South Korea.Plus a width of 1 meter-in reducing the number of connections and accordingly increasing the reliability of the heating system.

Attention: in delivery only film. To connect the film to the thermoregulator, connecting kits are purchased. Kits need as many as the film bands you want to mount. And be sure to use the thermoregulator. To buy connecting kits click on the picture

Magnification cutting пленки-25 cm, thickness пленки-0, 33mm. Connects to the thermoregulator with the help of sub-connecting kits. The number of sets depends on the configuration of the size of the room. Under the infrared film, thermal insulation with lavsan coating is retreated. Be sure to use a thermoregulator for warm floors with a floor temperature sensor.

Lavita film structure:

Silver contact:Carbon strips are combined in sections of 25 cm long. Carbon layer with plasticizer is Homogenic, with great precision applied to PE backing. Excluded overheating on films with a large specific power.

Smallest contact resistance copper-Carbon:The most responsible area in the design of the infrared film is the location of the contact of the current copper tire and the carbon heating layer. Contact is provided by silver-containing paste and the absence of an air layer.

Because of its structural and technical parameters (smooth rise and uniform temperature distribution, limited size power), the IR film is ideal for heating, called "high temperature". Wood, linoleum or carpet. Technical parameters of the film will not exceed the limits of heat resistance flooring materials, and in combination with suitable thermostats are respected and requirements of Snip (surface temperature of floor not more than 27 deg. Celsius). For example, with classical heating elements working with higher temperatures of the heat carrier, there is a drop in air humidity, which affects the quality of the wood and laminate floors. That is why this cunning system reliably and with greater comfort heats more than 2,5 million square meters. Meters of warm floors throughout Europe and recommended by the most famous manufacturers of materials for floors (Pergo, scandyfloor, allog, Junckers, etc.). And this is despite the fact that electricity in Europe is much more expensive than in Russia.

It is possible to use for ceiling heating of premises.

User _ installation Lavita_plenka.PDF

Video editing-//youtu.be/rwwyjroq-XG

Features and pluses of the film:

Infrared film, thanks to its features, is indispensable for creating warm floors and other sinking surfaces.
-Versatility. With the help of IR film, almost any kind of flooring, as well as ceilings and walls.
-Easy laying. Mount the warm floor from the IR film easily with your own hands. No special tool and some special skills are required.
-Flexible heating control. Thermal heaters of a warm floor allow you to accurately monitor the degree of heating of floors, because. Temperature sensors are in close proximity to Greek elements.
-Ability to move. Warm infrared floor can easily be dismantled and moved to another room, and when moving, just take with you.
-Invisibility. The film has a thickness of 0,34mm, it can be ignored when calculating the height of the "pie" of the floor.
-Безинерционность. Heating film is almost instant.
-Uniformity of warming. The area of effective heat dissipation of the film is larger than that of any other heating element. Virtually no cold areas.
-Perfect microclimate. Such a warm floor does not dry air. Air humidity remains natural. And since the legs are always warm, and the head in the cold, then health is fine.

Connection of film:
