body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } Overview: NX4832T035 is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface
between a human and a process, machine, application or appliance.
NX4832T035 is mainly applied to Internet of thing (IoT) or consumer electronics field.
It is the best solution to replace the traditional LCD and LED Nixie tube.
NX4832T035 includes a hardware part (a series of TFT boards) and a software part (the NX4832T035 editor).

The NX4832T035 TFT board uses only one serial port to communicate. It lets users avoid the hle of wiring.
As a solution to this situation, NX4832T035 editor has m components such as button, text, progress bar, slider,
instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming,
which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
It's easy to adapt NX4832T035 family HMI to existing projects. Users just need to provide it a UART.
Basic NX4832T035 NX4832T035 HMI TFT ligent Display Module is a powerful , which is member of NX4832T035 family.
Features include: resistive Press sn display, 16M Flash, 3.5KByte RAM, 65k colors.

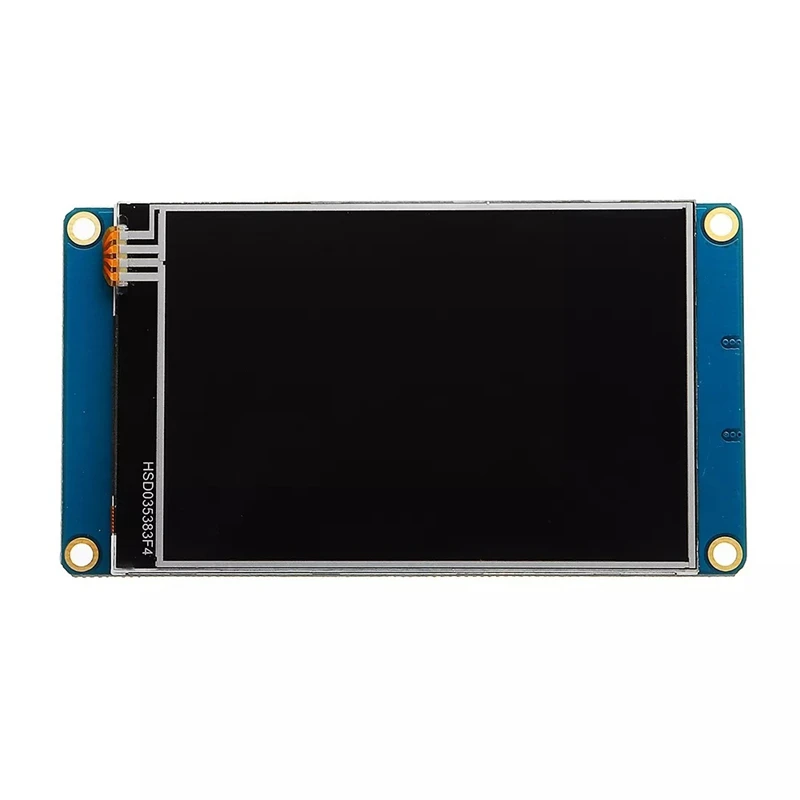

Features:480 x 320 Resolution
TFT Sn with integrated 4-wire Resistive Press Panel
Easy 4 pin interface to any TTL Serial Host
16M Flash memory for User Application Code and Data

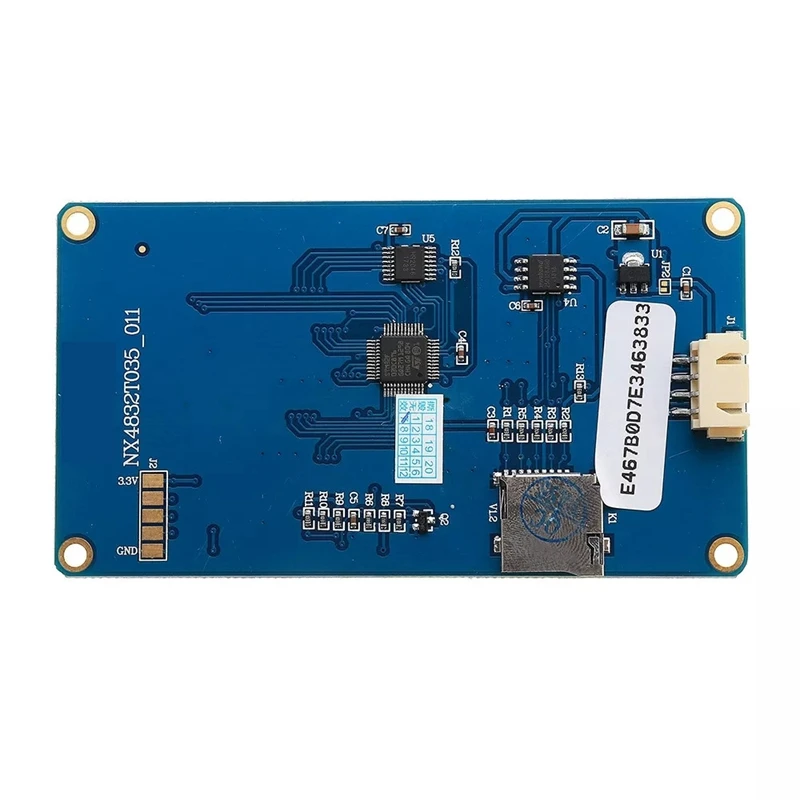

On board micro-SD card for firmware upgrade

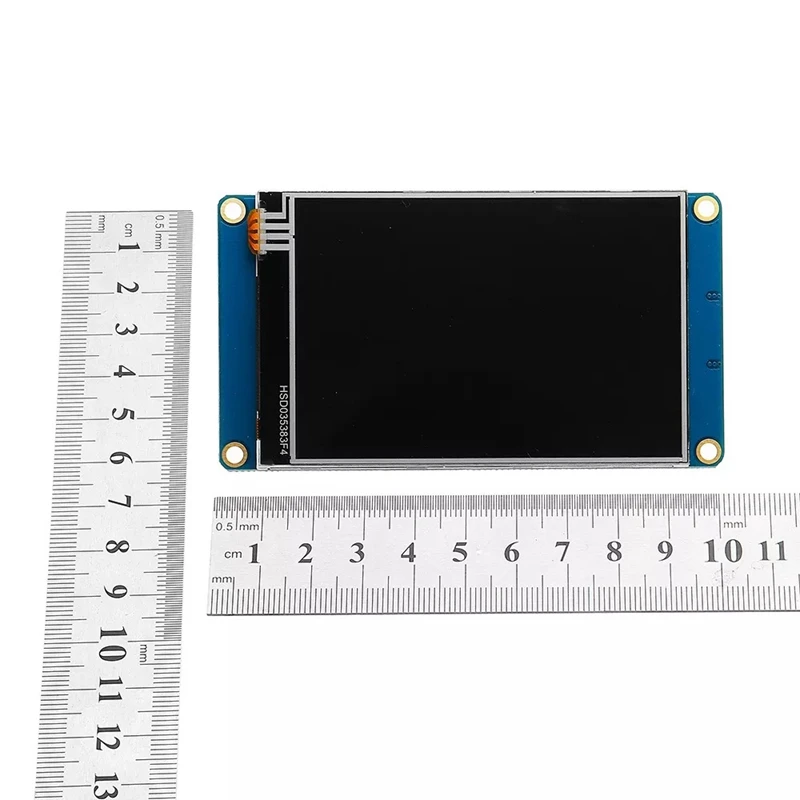

Visual Area:73.44mm(L)x48.96mm(W)
Adjustable Brightness:0~180 nit, the interval of adjustment is 1%
5V500mA DC recommended power supply
colour: blue
Material: plastic
size: 12x7.5x4mm

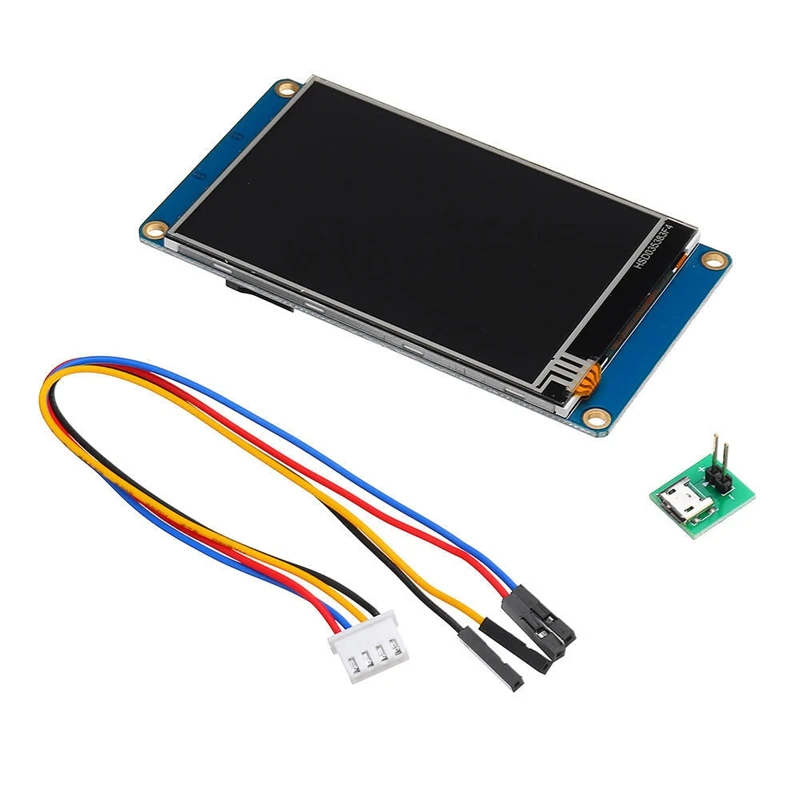

Package Contents:

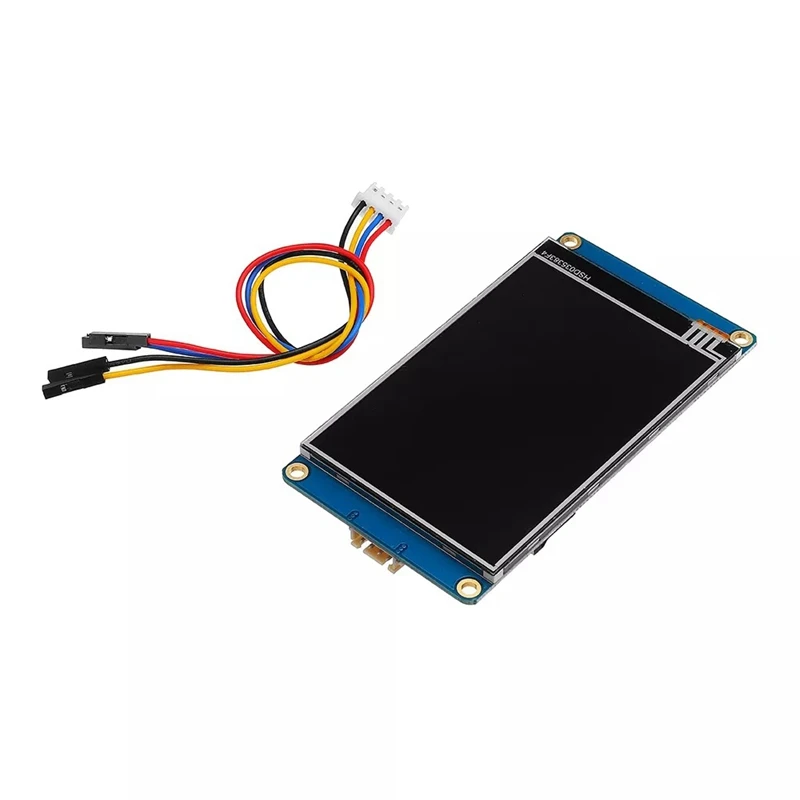

1 x 3.5 Inch Serial Press TFT LCD Sn
1 X Mini USB to 2P Connector Board
1 X 4-Pin Grove Cablb

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
