Indoor P2.5 LED display module 160*160mm

Due to product upgrades, the batches of LED modules are different, and the module plastic casing, chip IC, PCB board, screw position, LED color, cabinet and other components may be different from the picture. LED modules of different companies and different batches of LED modules cannot be used together. If you buy for repair, please confirm with us before placing an order.

Specification：

Module Size: 160mm x 160mm

Module Pixel Pitch: 2.5mm

Module Resolution: 64dots x 64dots

Pixel Density: 160000dots/sqm

Color Configuration: 1R1G1B 3 in 1

LED Package: SMD2121

Drive Mode: 1/32 Scan Constant Current

Standard Cabinet Size: 640mmX640mm

Cabinet Weight: 11KG

Brightness: 800-2500 cd/sqm(adjustable)

Best Viewing Distance: 2m-30m

Drive IC: 2037 or same level

Refresh Rate: 980-3840HZ(adjustable)

Frame Rate: 120frame/sec

Grey Scale: 16.7M colors

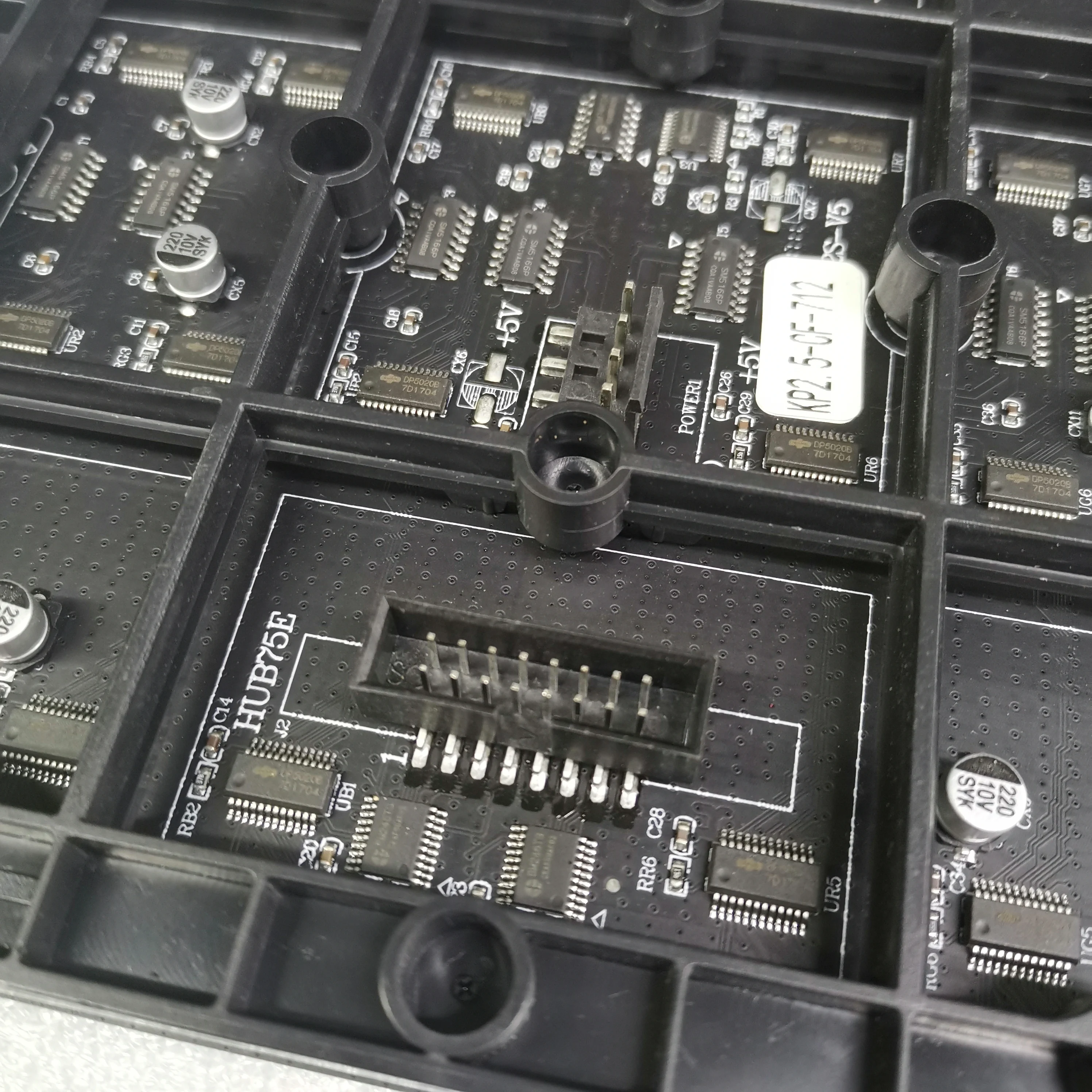

Interface: HUB75E

Viewing Angle: H: 160°; V:160°

Color Temperature: 256 level(adjustable)

Power Input: DC5V

Ave Power Consumption: 300W/sqm

Storage Temperature: -30~+70 degree

Working Temperature: -20~+50 degree

IP grade: IP50(Not waterproof)

Operating Humidity: 10%~95%

Blind Spot Rate: <1/10000

Life Span: >100,000 Hours

Warranty: 3 Years

Control Method: Synchronous, Asynchronous, 3G,WIFI,USB

Video Signal Mode: RF, S-Video, RGB, RGBHV, YUV, YC etc

Certificate: CE, FCC, PSE, RoHS

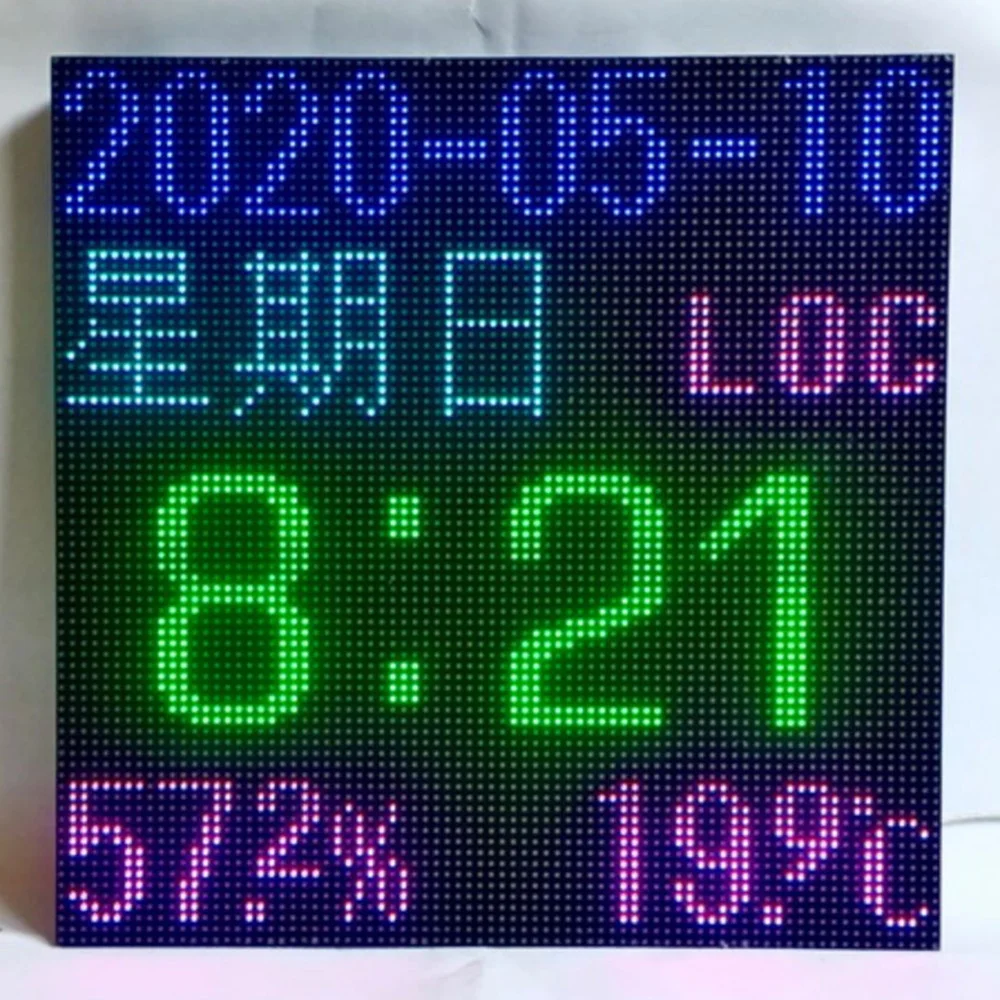

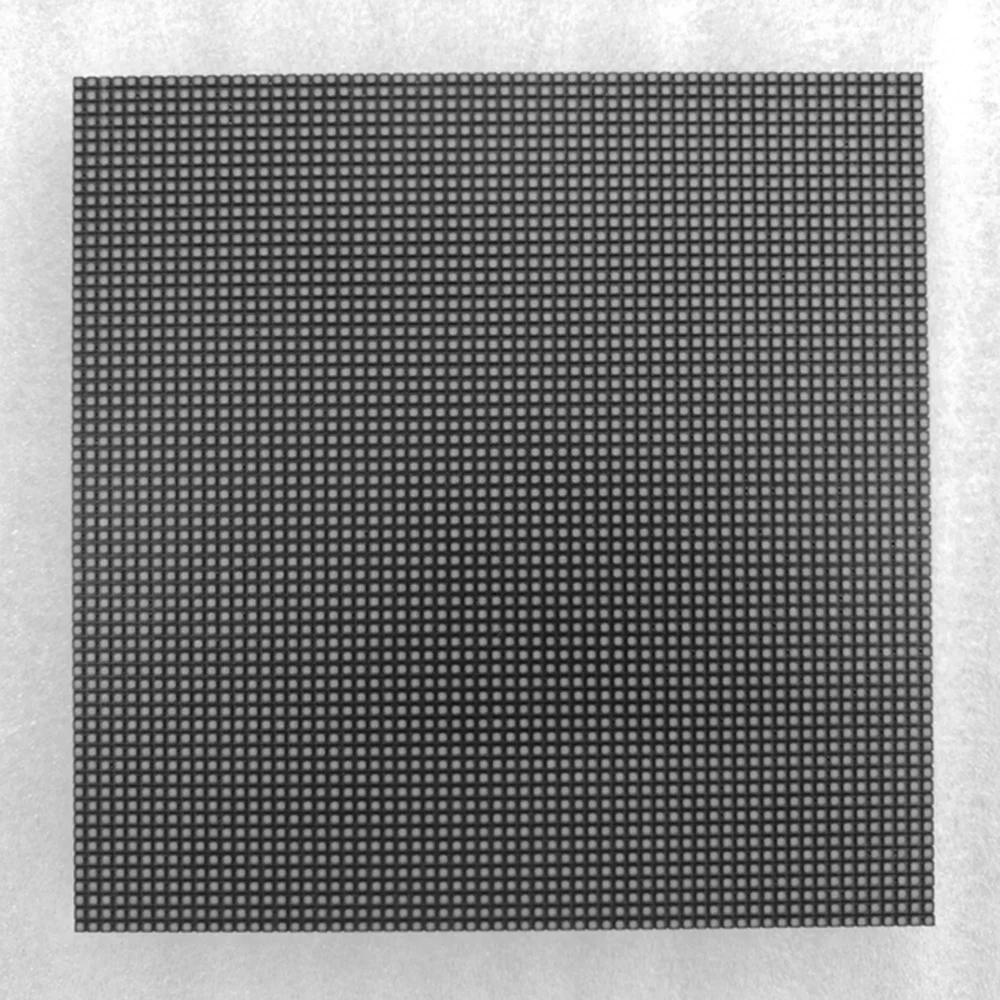

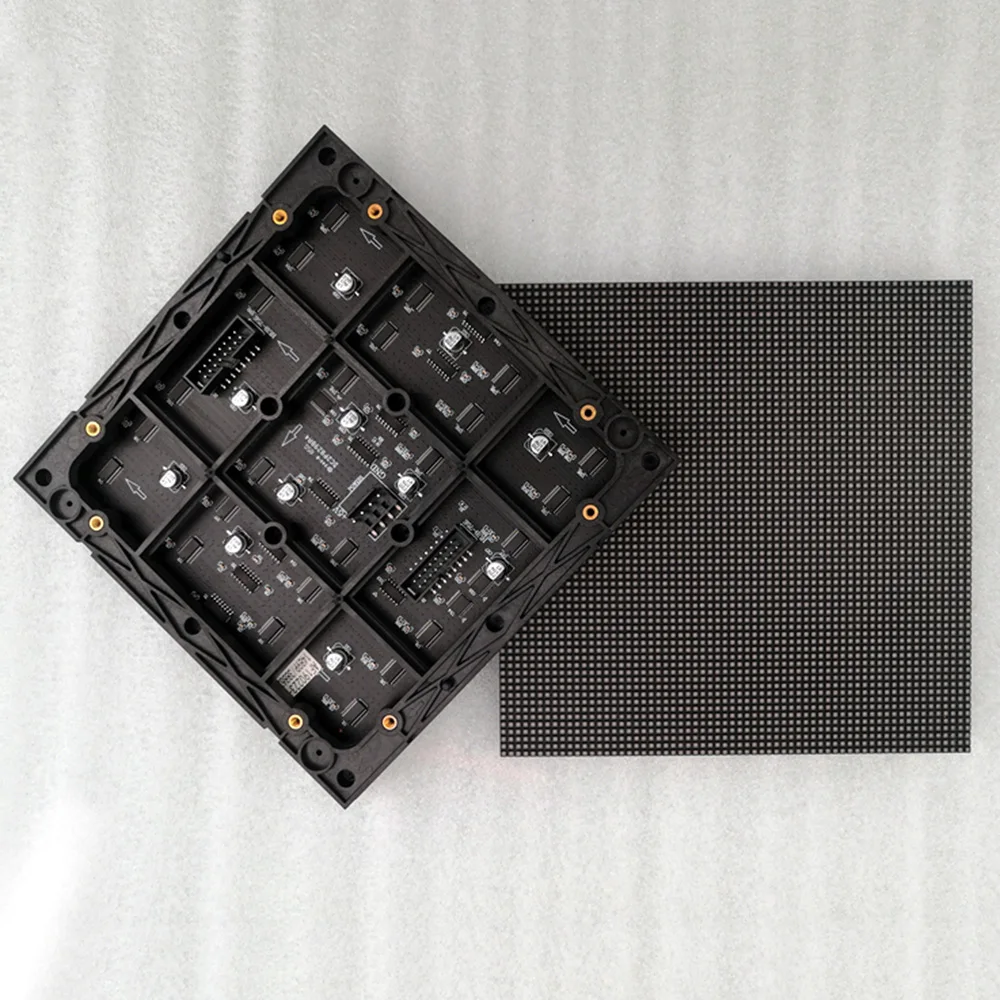

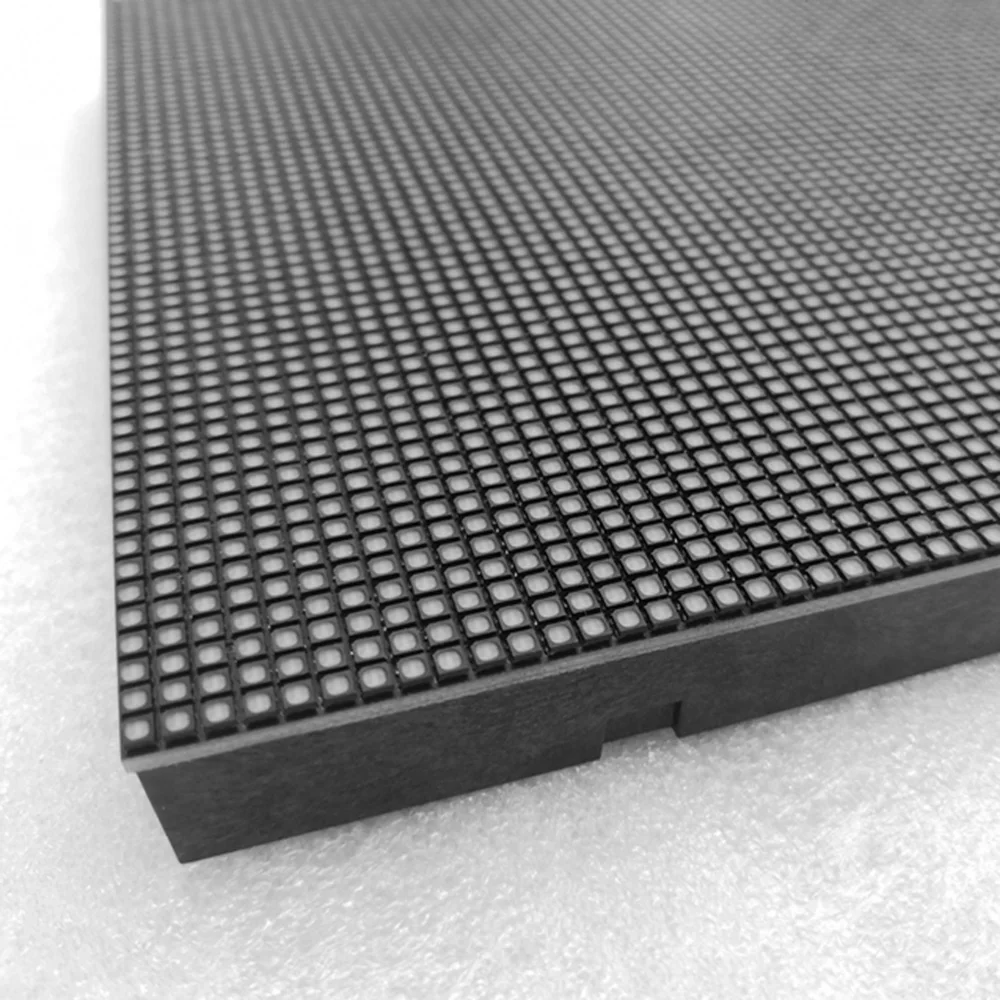

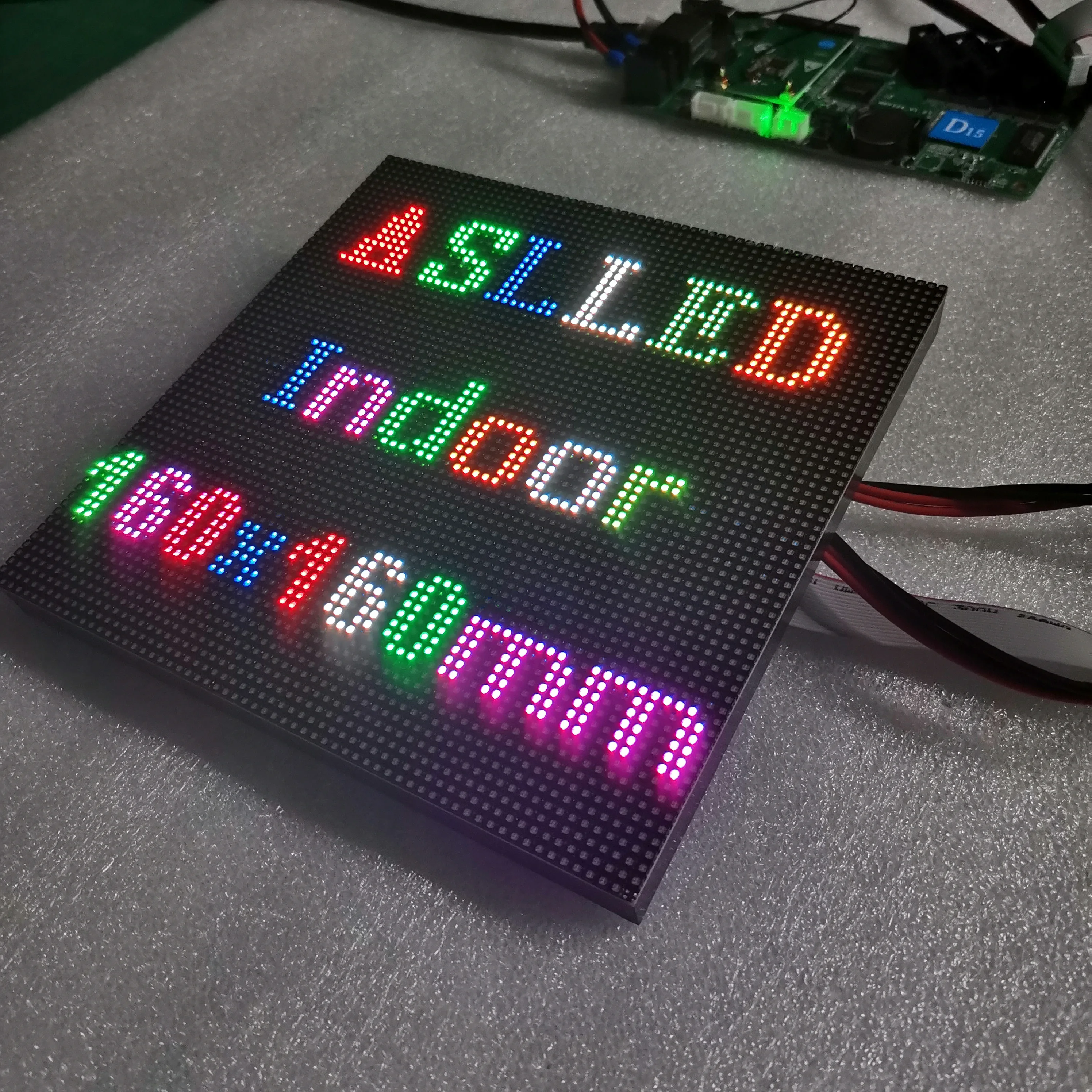

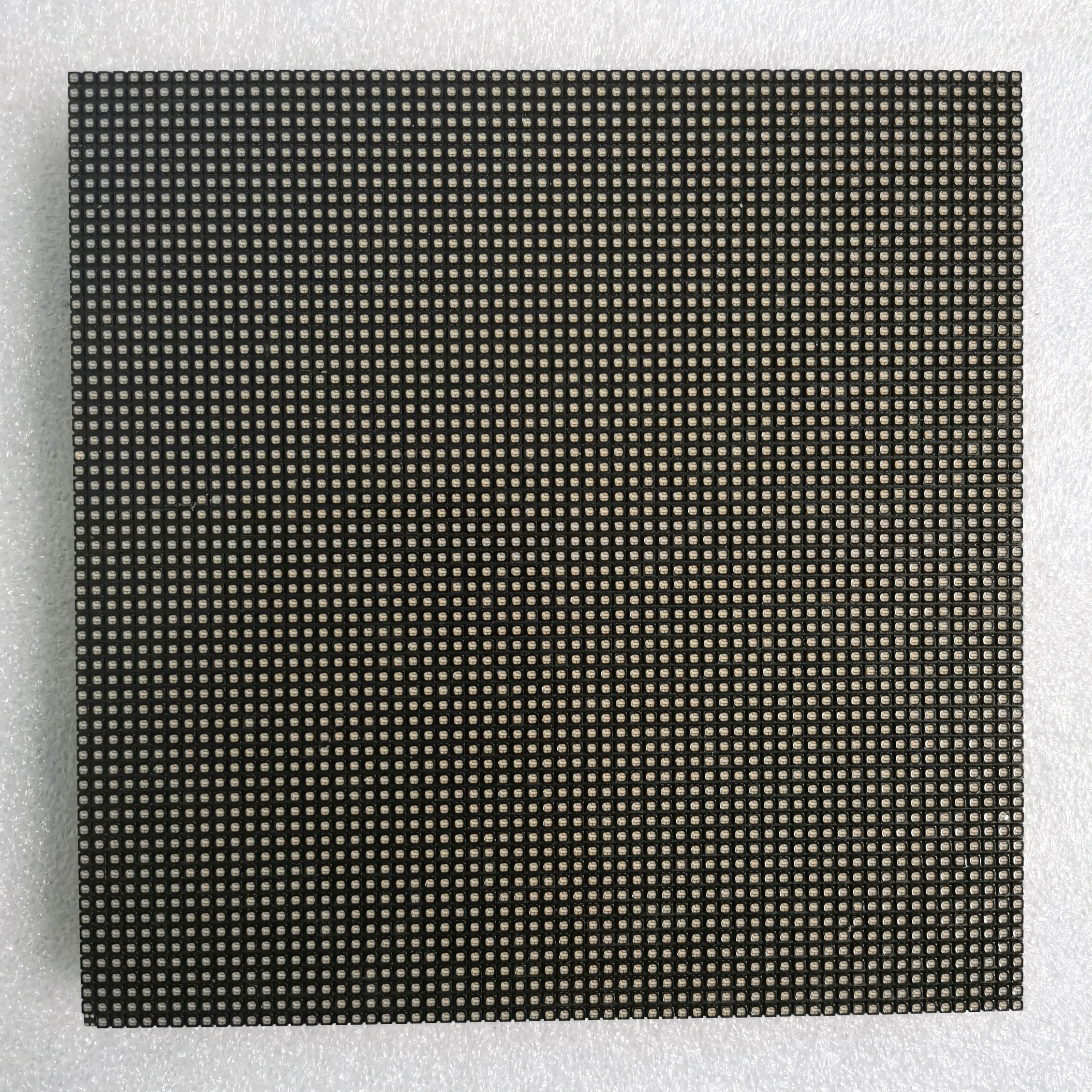

Product display:

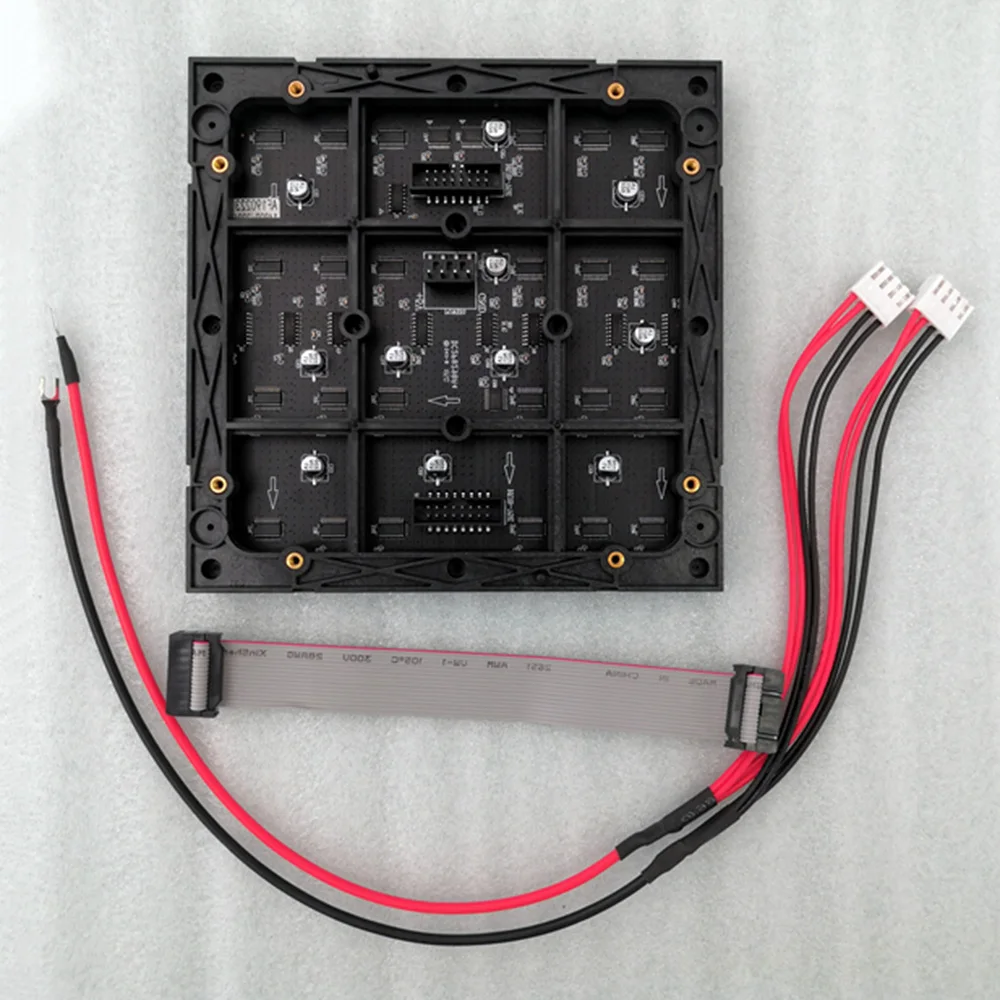

Packing list for purchasing N LED modules:

1.N LED modules

2.N data lines

3.N / 2 power cords (because 1 power cord can support 2 LED modules.)

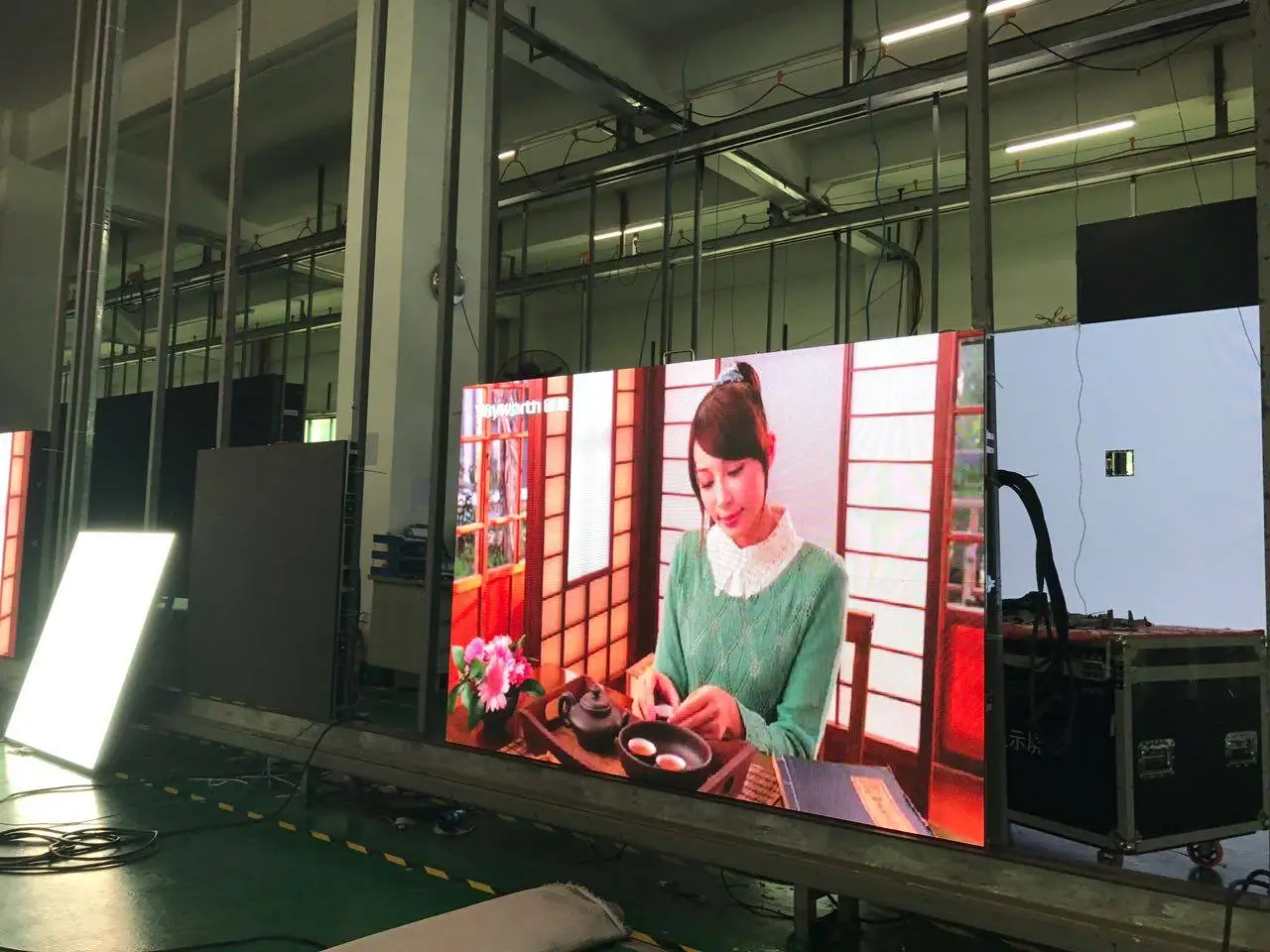

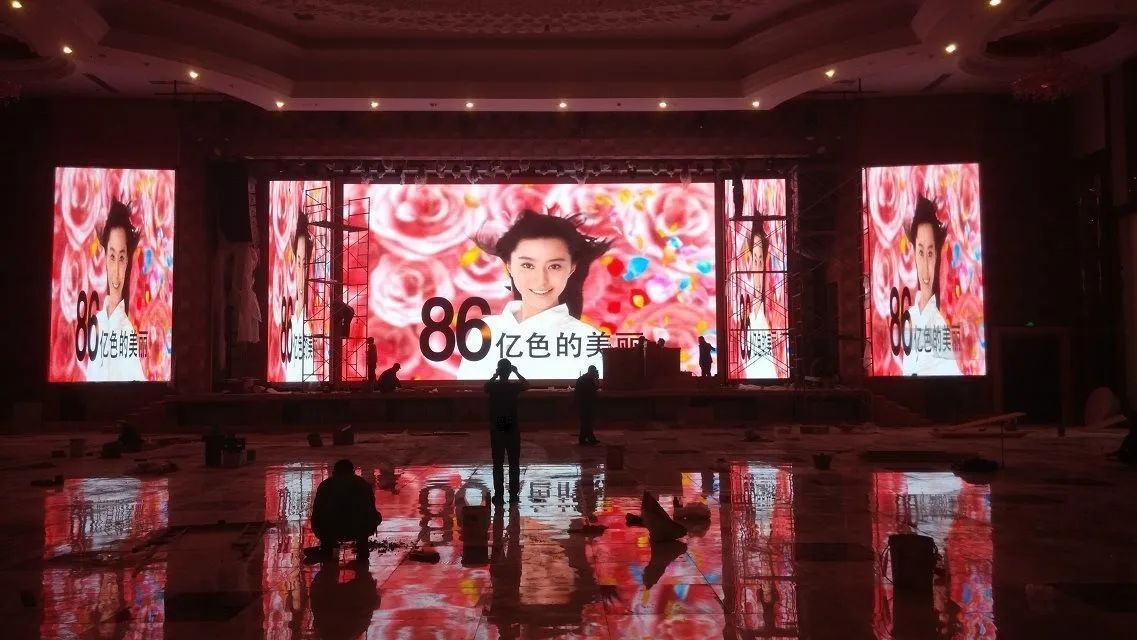

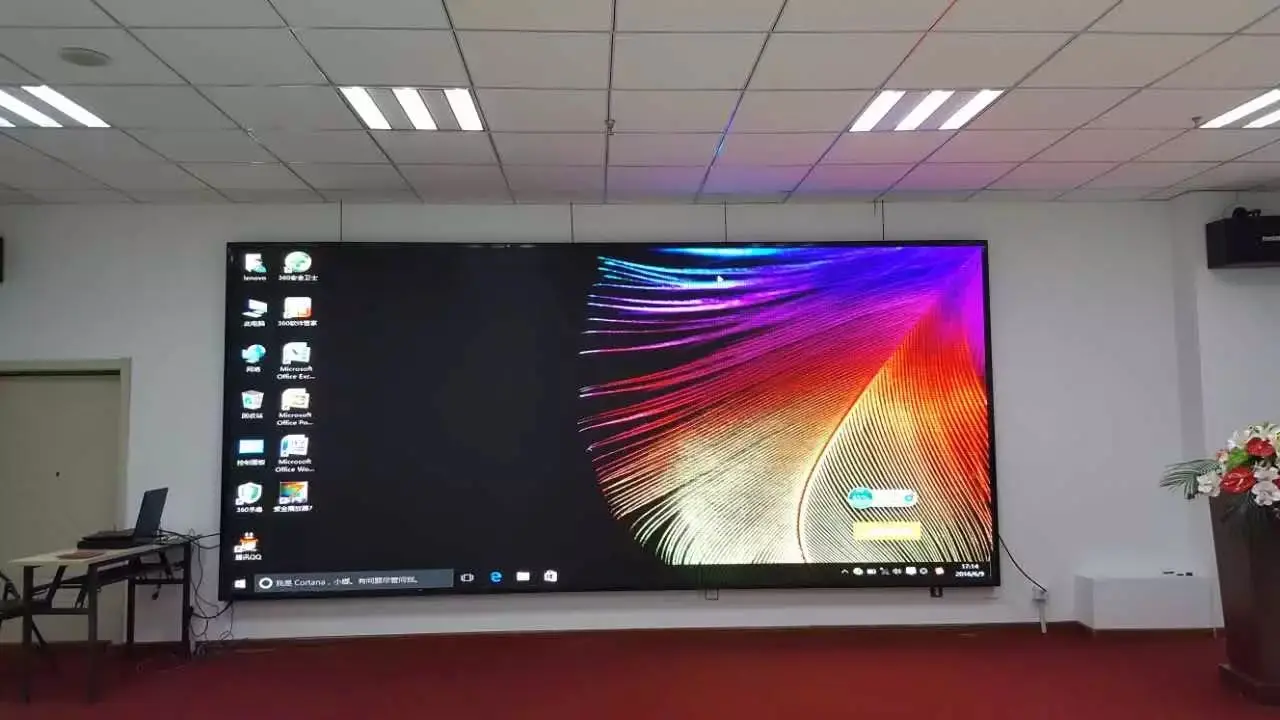

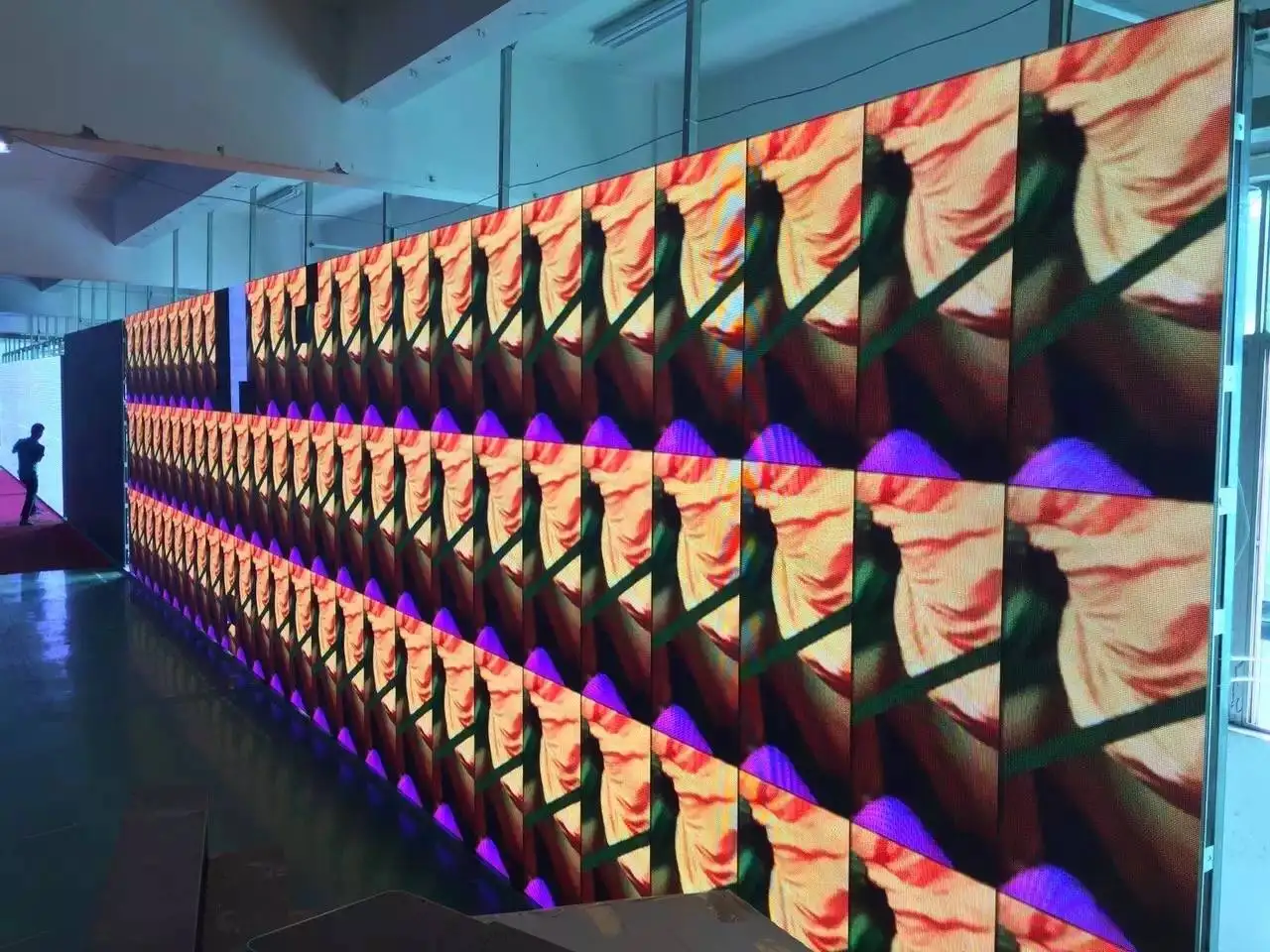

Whole screen Effect

Products Recommended:

We have different types of LED cabinets, if you need other specifications, please contact us, we can customize the LED display screen you need.

Display installation method：
