FY107B&FY107C

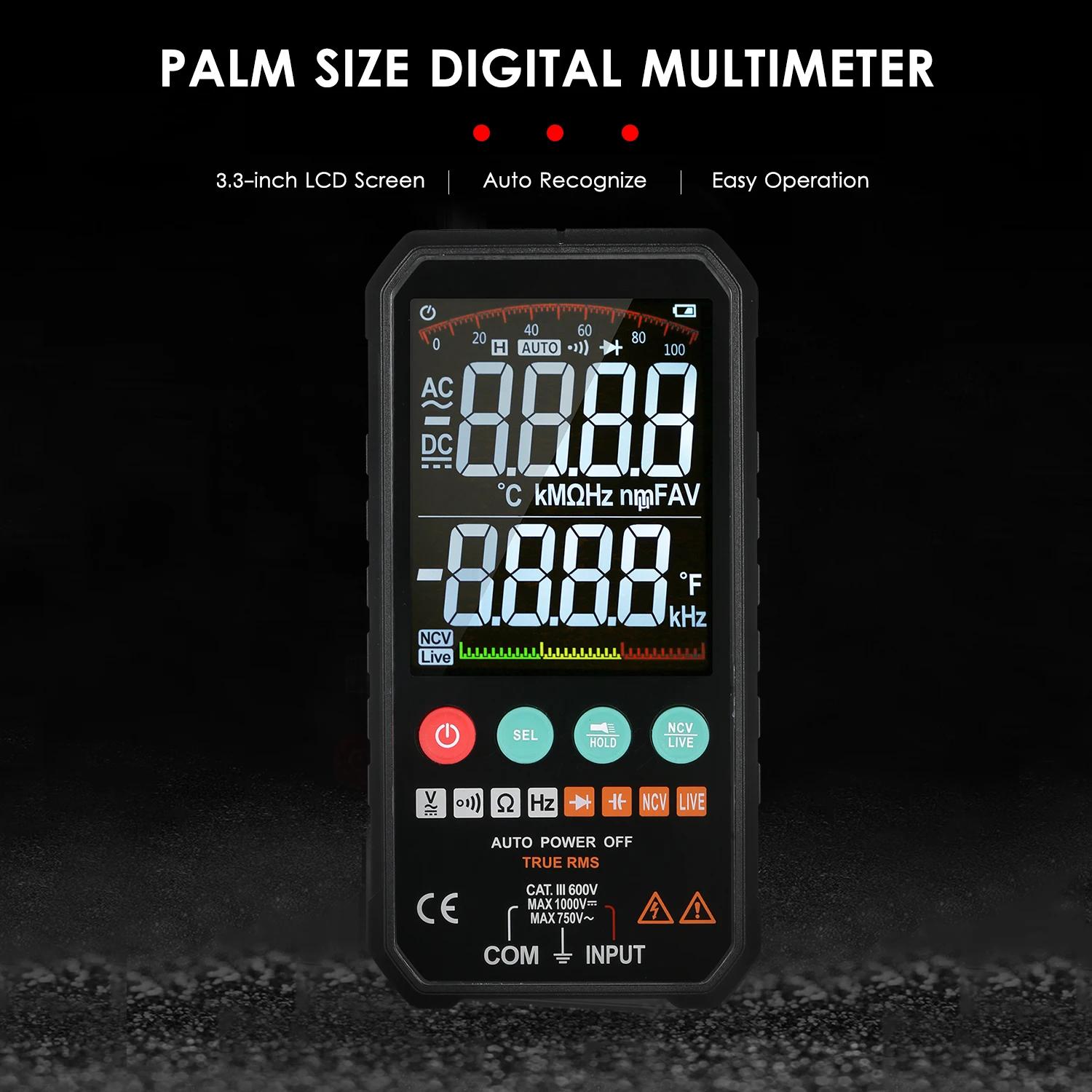

The 6000 counts handheld digital multimeter features fast response, easy-to-read large LCD display, lightweight and portable, which is very suitable for using in school, home, factory, and for the professions and hobbyists.

Features:

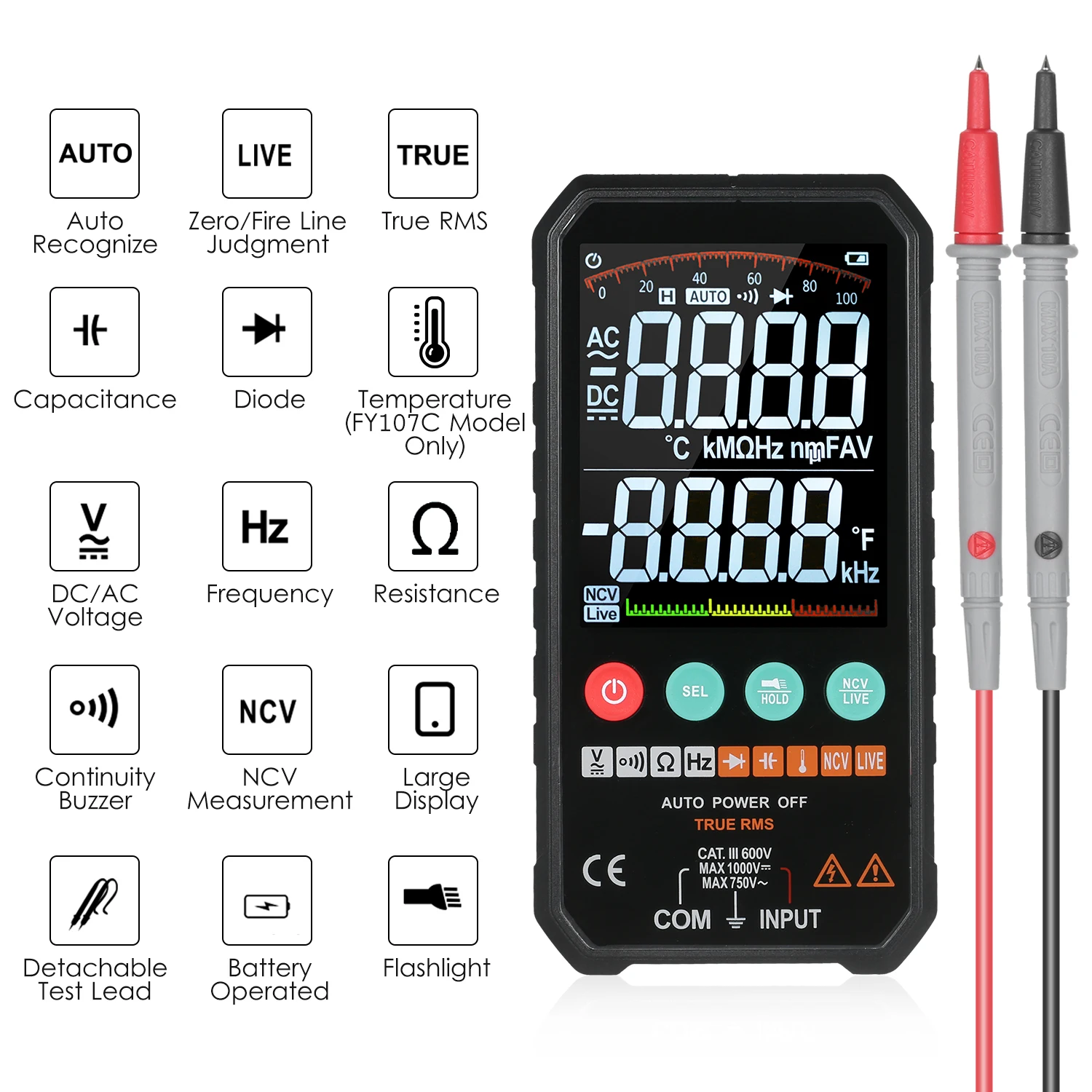

Wide Measurement Range: can be used to measure AC/DC voltage, resistance, capacitance, frequency, diode and continuity, NCV test, temperature(FY107C Model Only), etc.

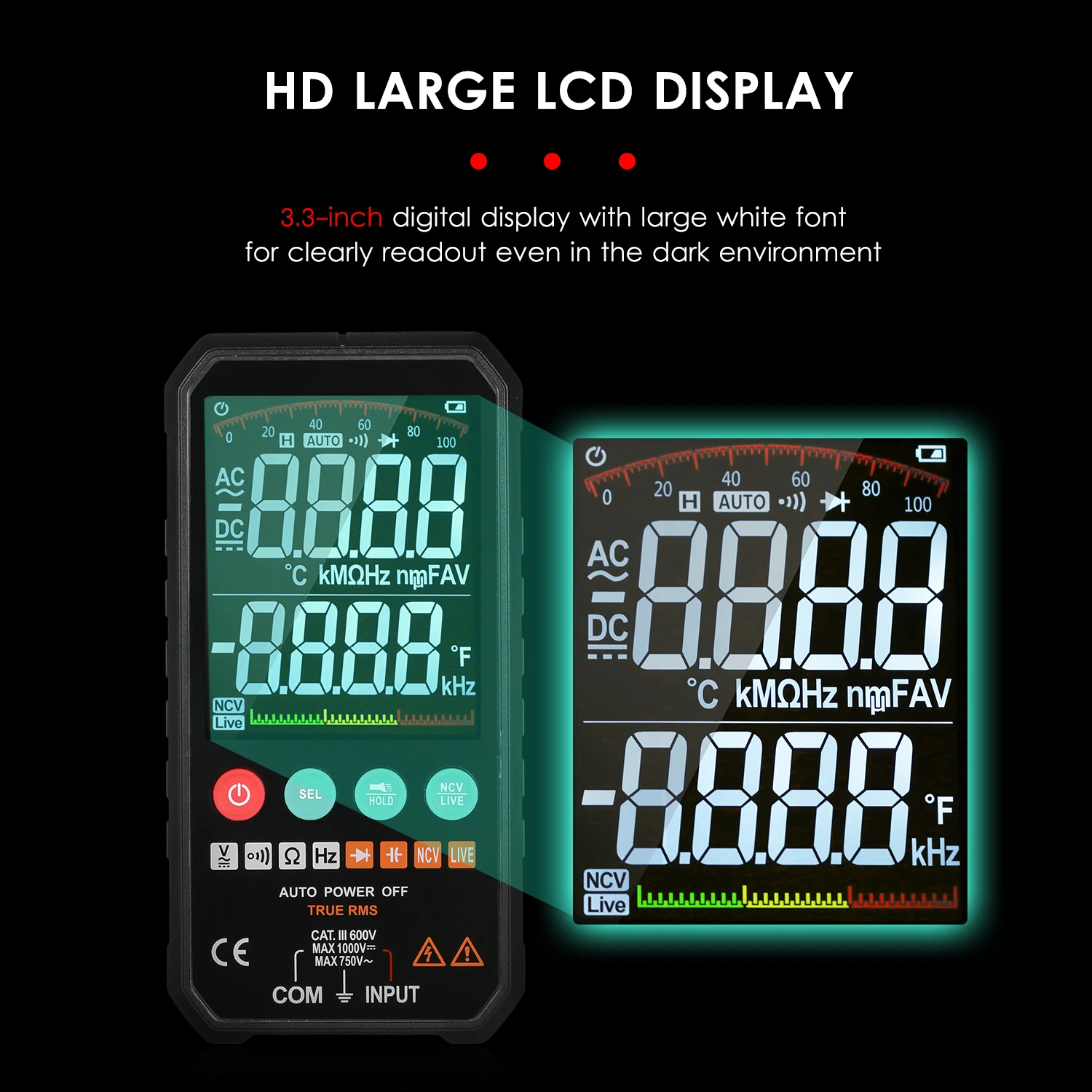

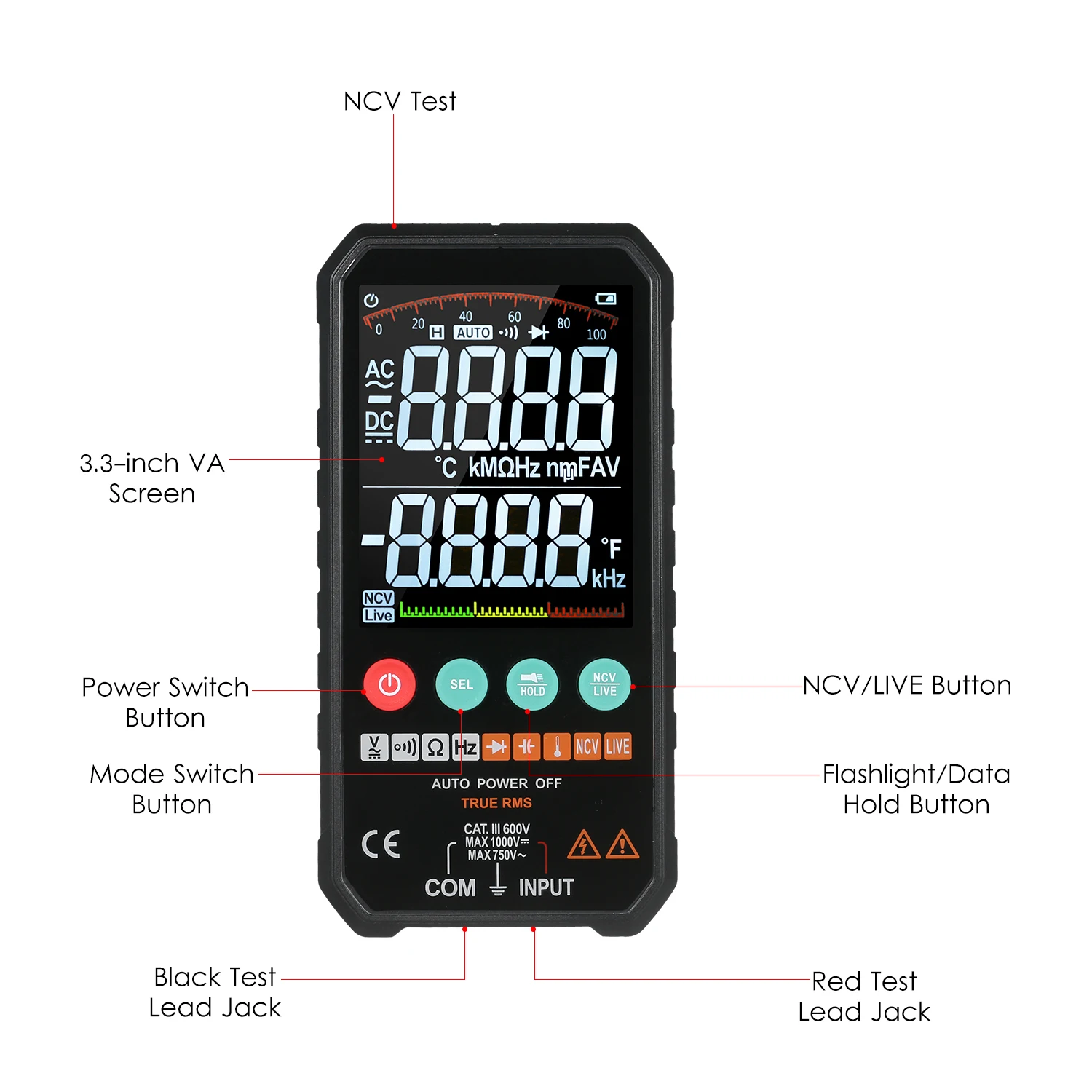

HD Large LCD Display: multifunctional large screen 3.3-inch digital display with large white font for clearly readout even in the dark environment.
Measurement Data Retention: hold the display after you take the measurement, convenient for writing down the measured data or enter it into a spreadsheet.

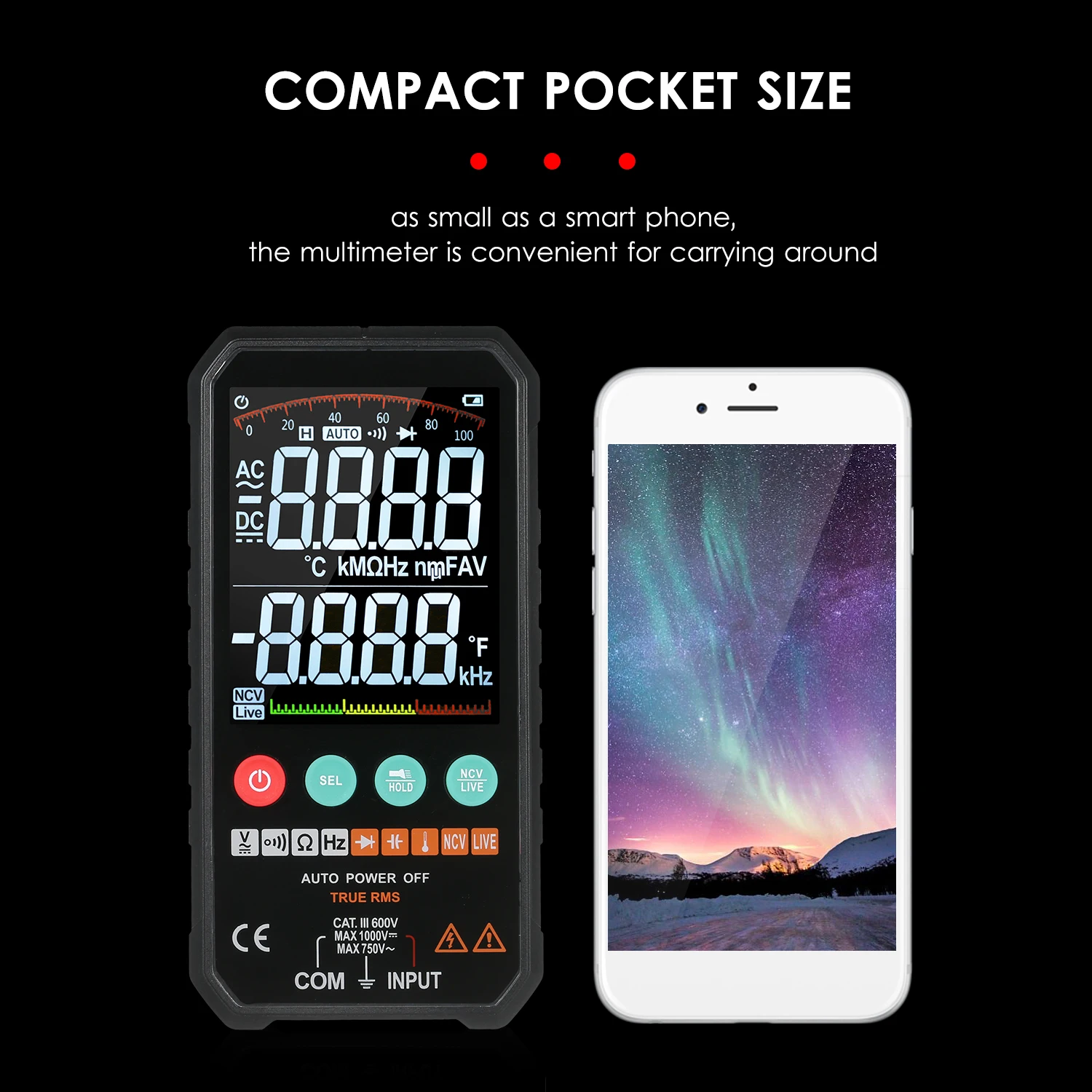

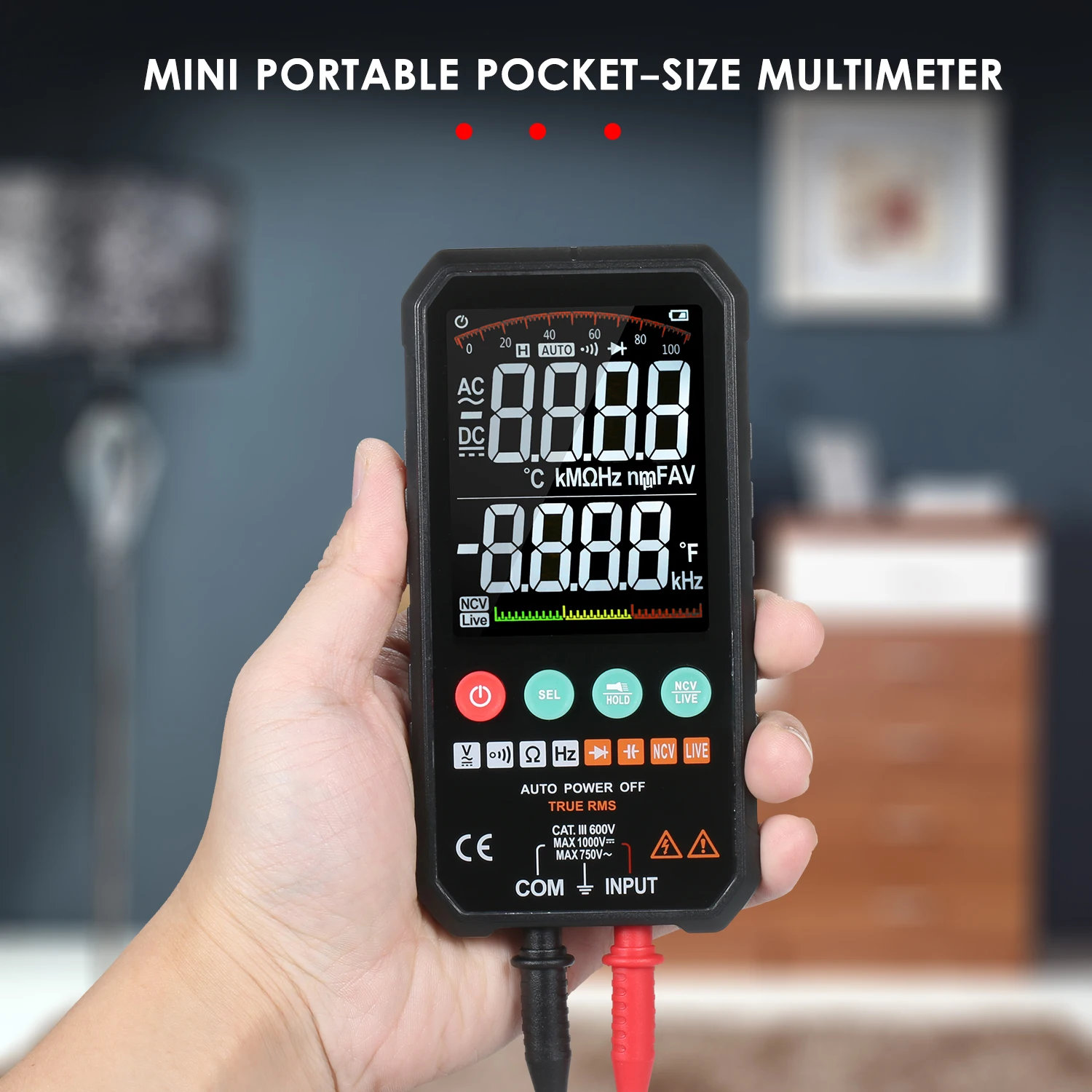

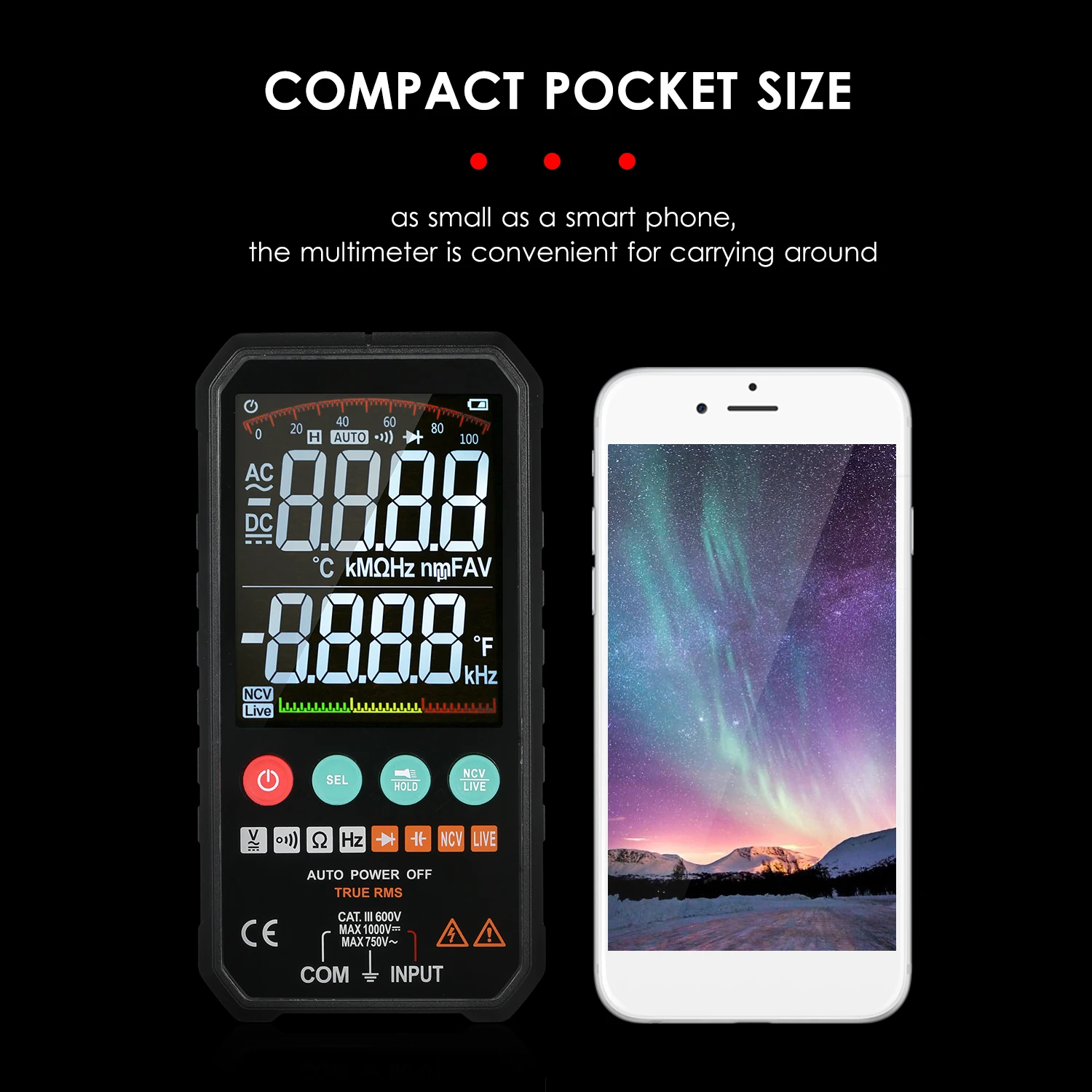

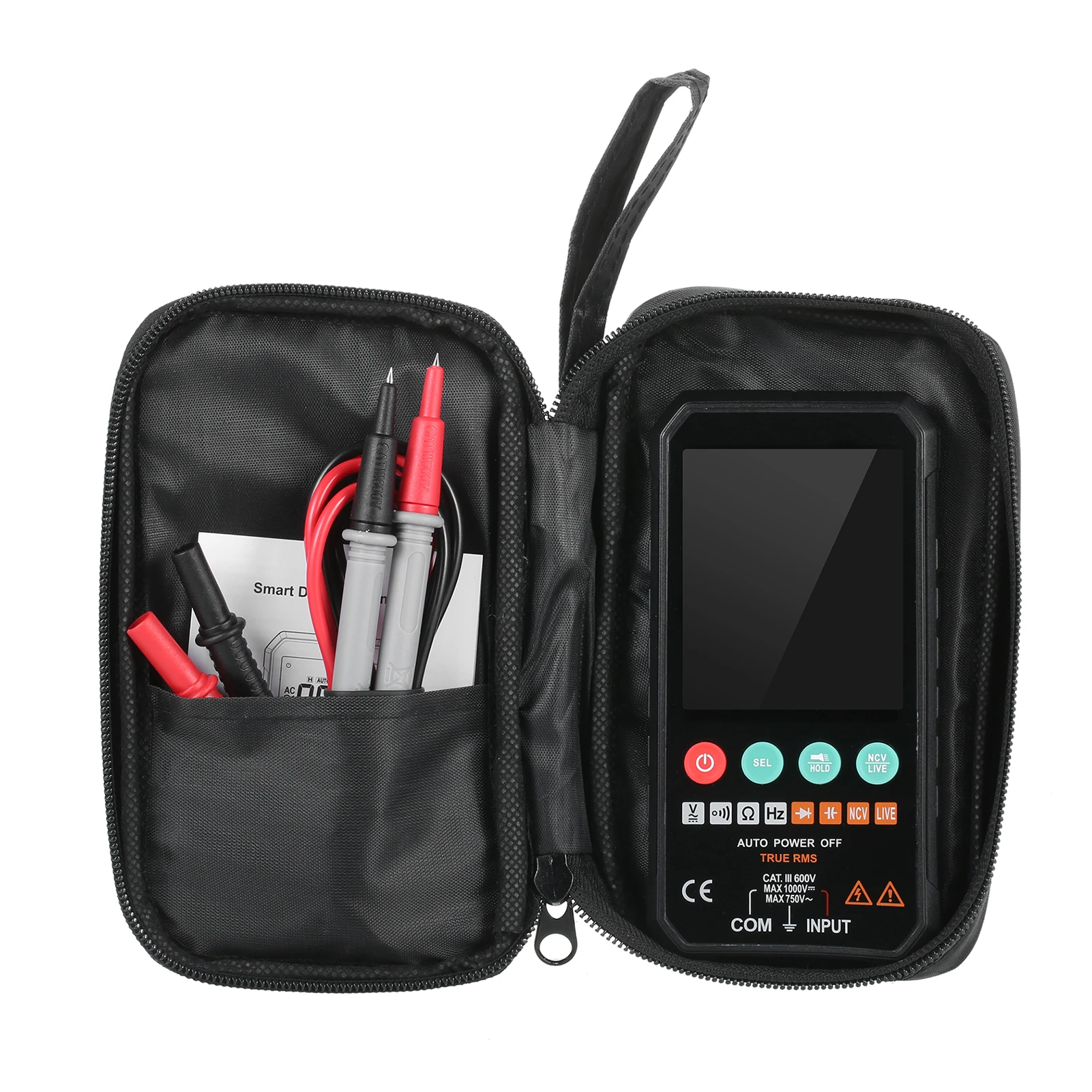

Compact Pocket Size: as small as a smart phone and powered by 2pcs AAA battery(NOT included), the multimeter is convenient for carrying around. Comes with a storage zipper bag for effectively protect the multimeter from damage.
Smart Anti-burning Design: the multimeter automatic recognize the tested objects, and has 250V DC/AC overload protection.

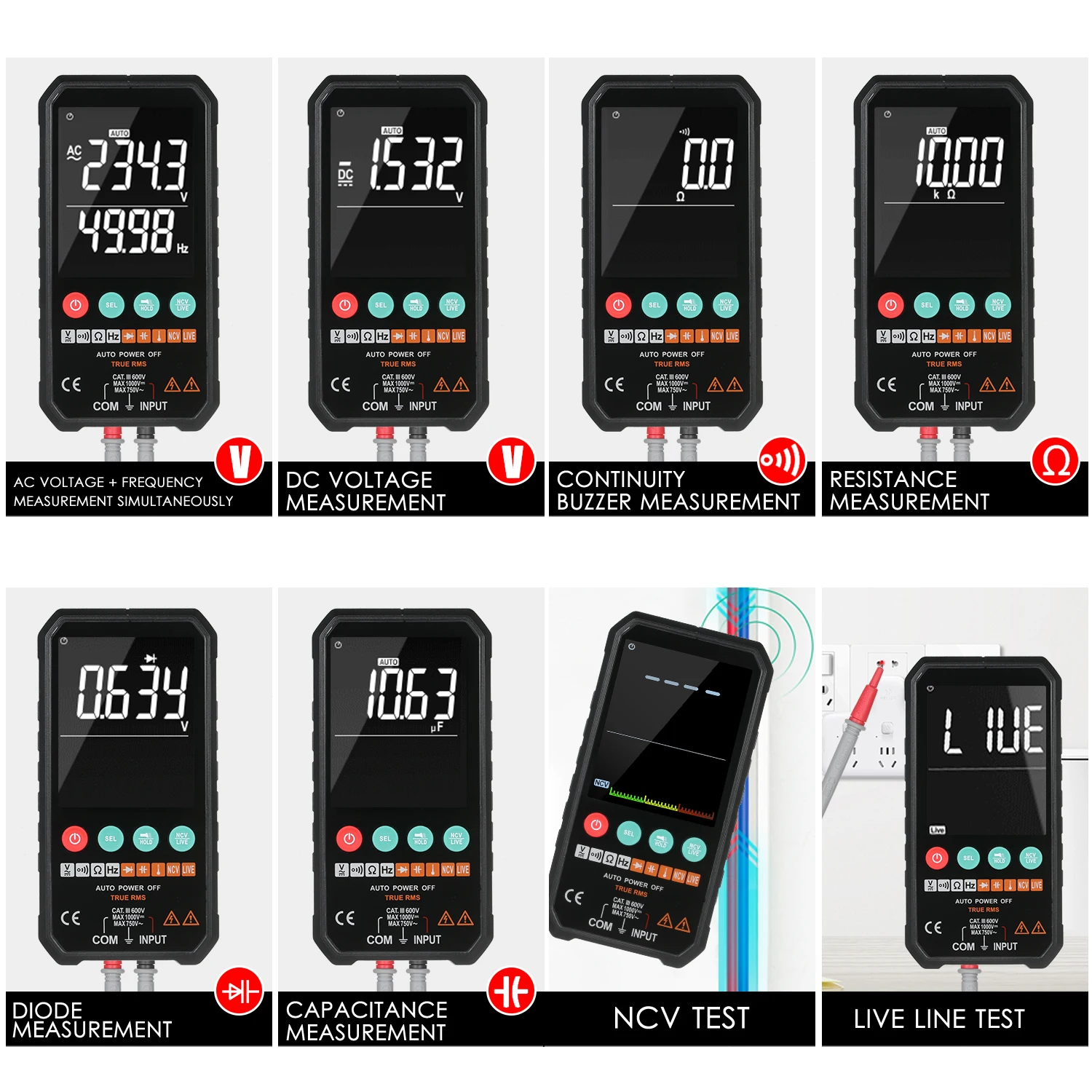

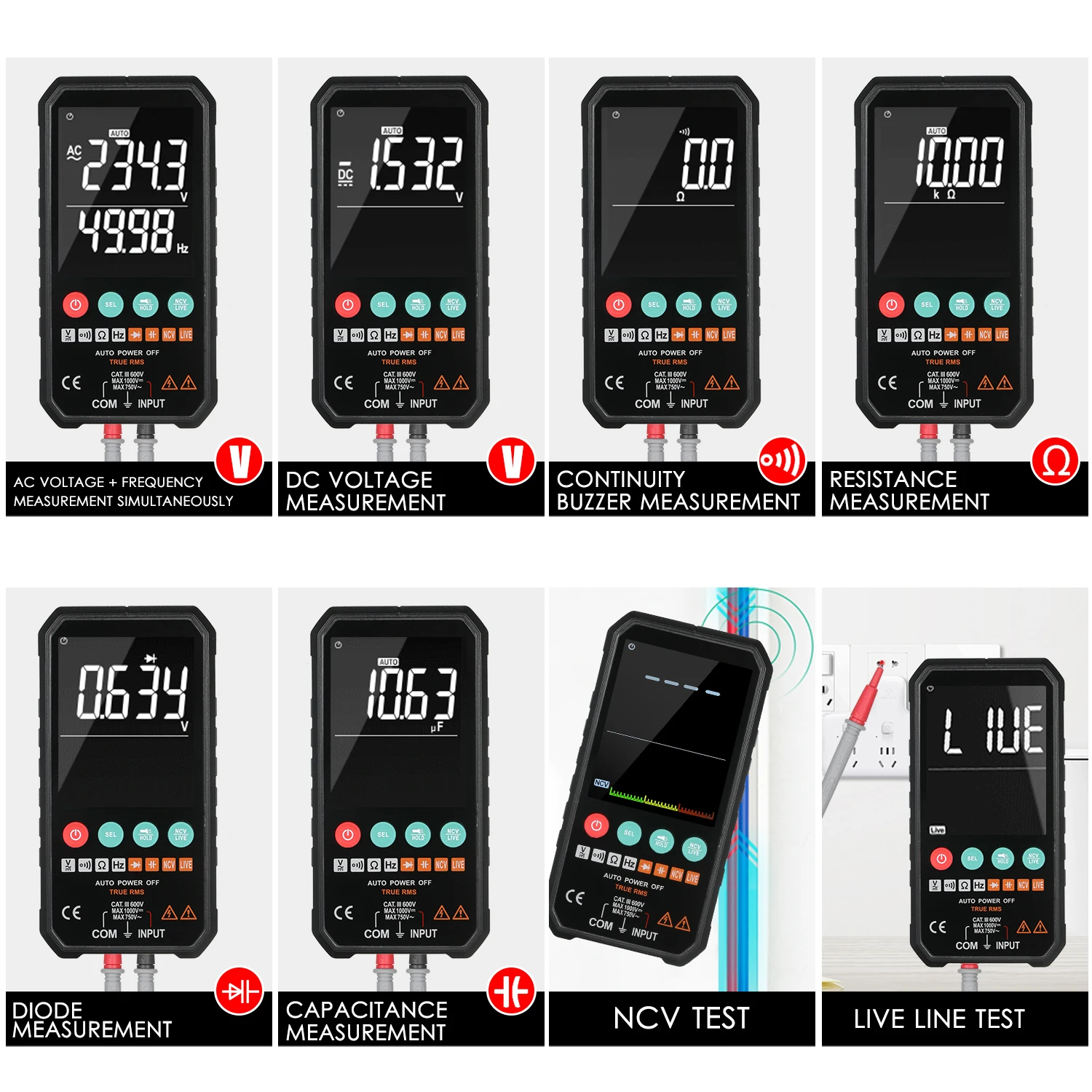

4 Measurement Modes: auto measurement(DC/AC voltage, resistance, and continuity can be measured), NCV test, LIVE test, and diode test.

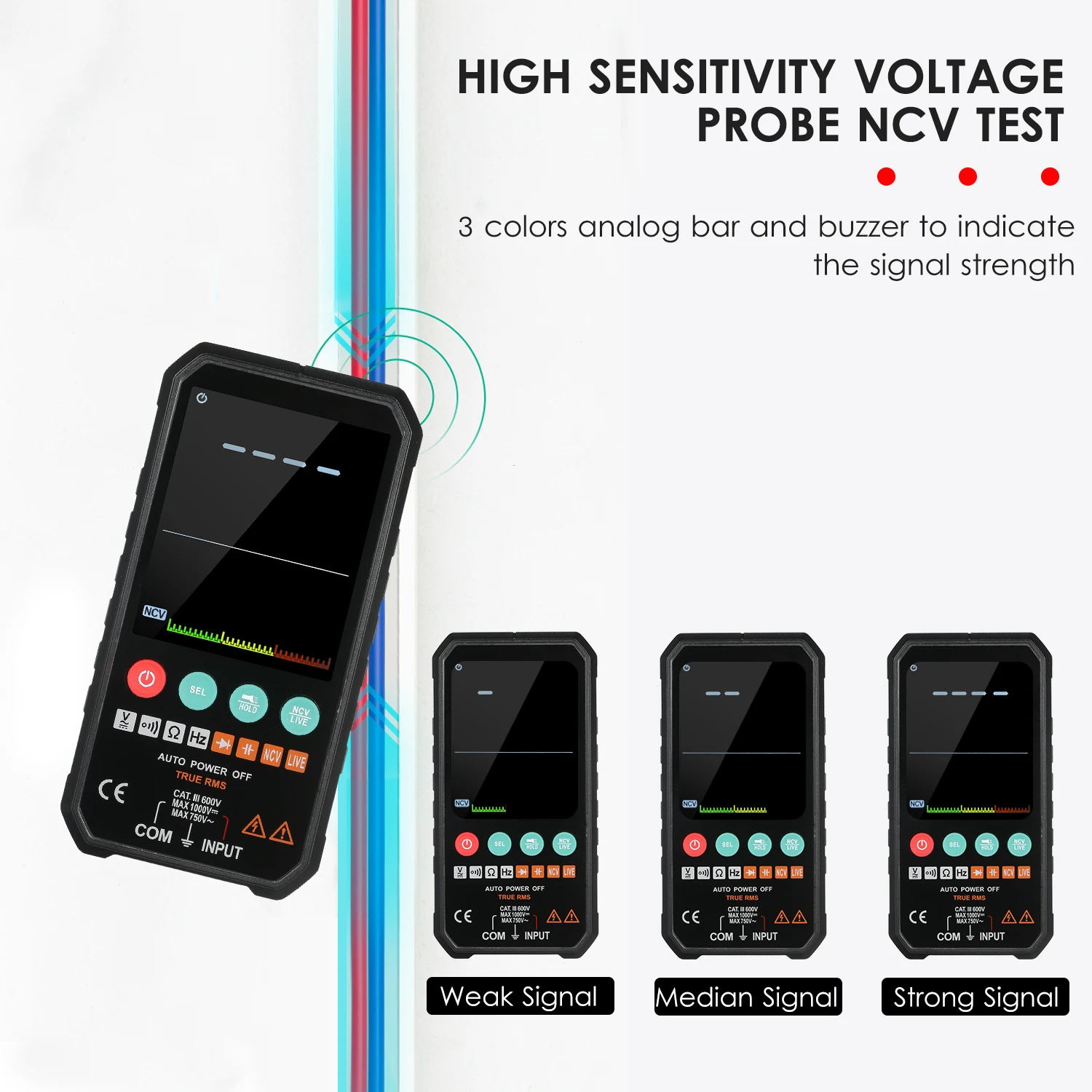

NCV Test: high sensitivity voltage probe measurement, 3 colors analog bar and buzzer to indicate the signal strength.

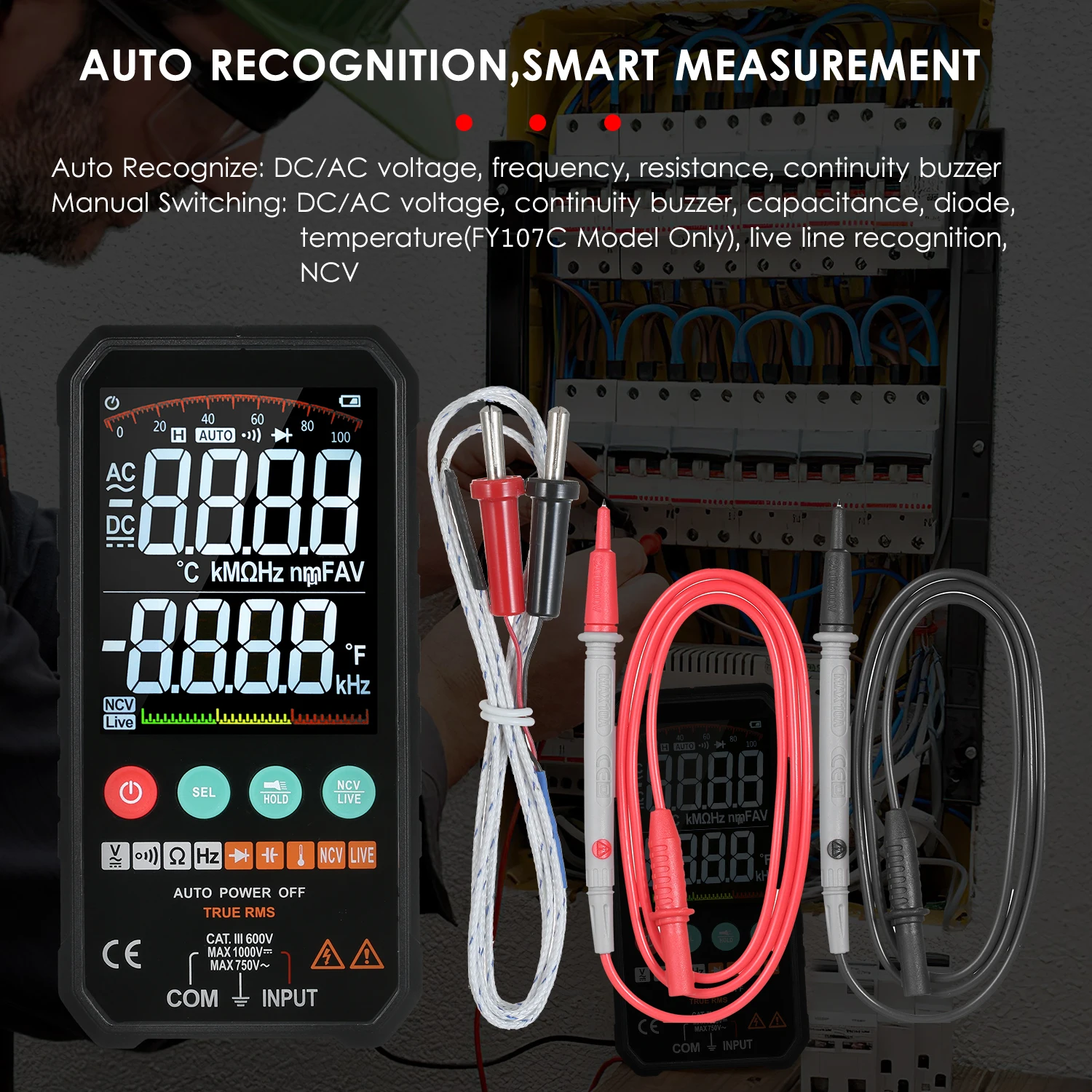

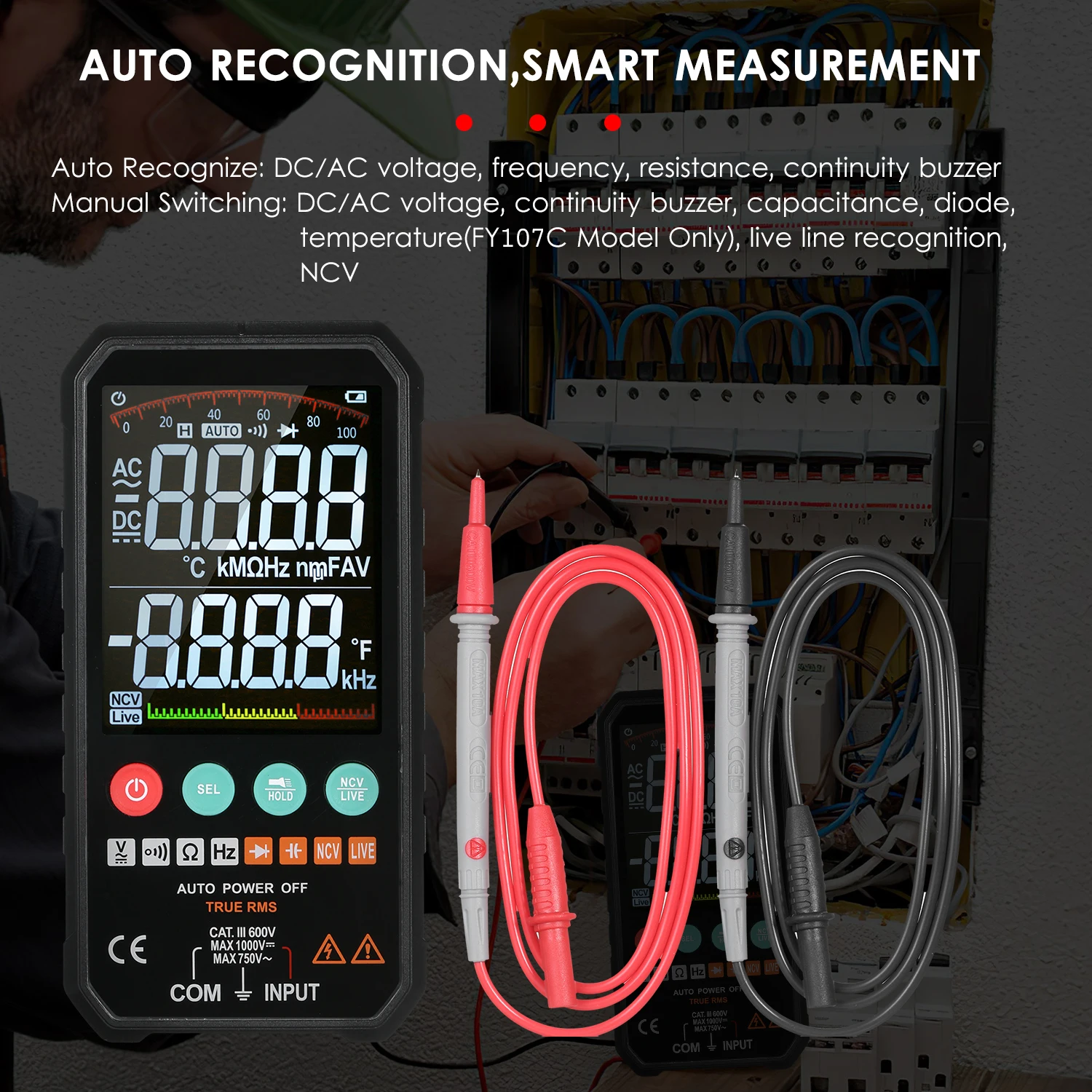

Smart Measurement: it can automatically recognize the DC/AC voltage, frequency, resistance, continuity buzzer without manual switching.

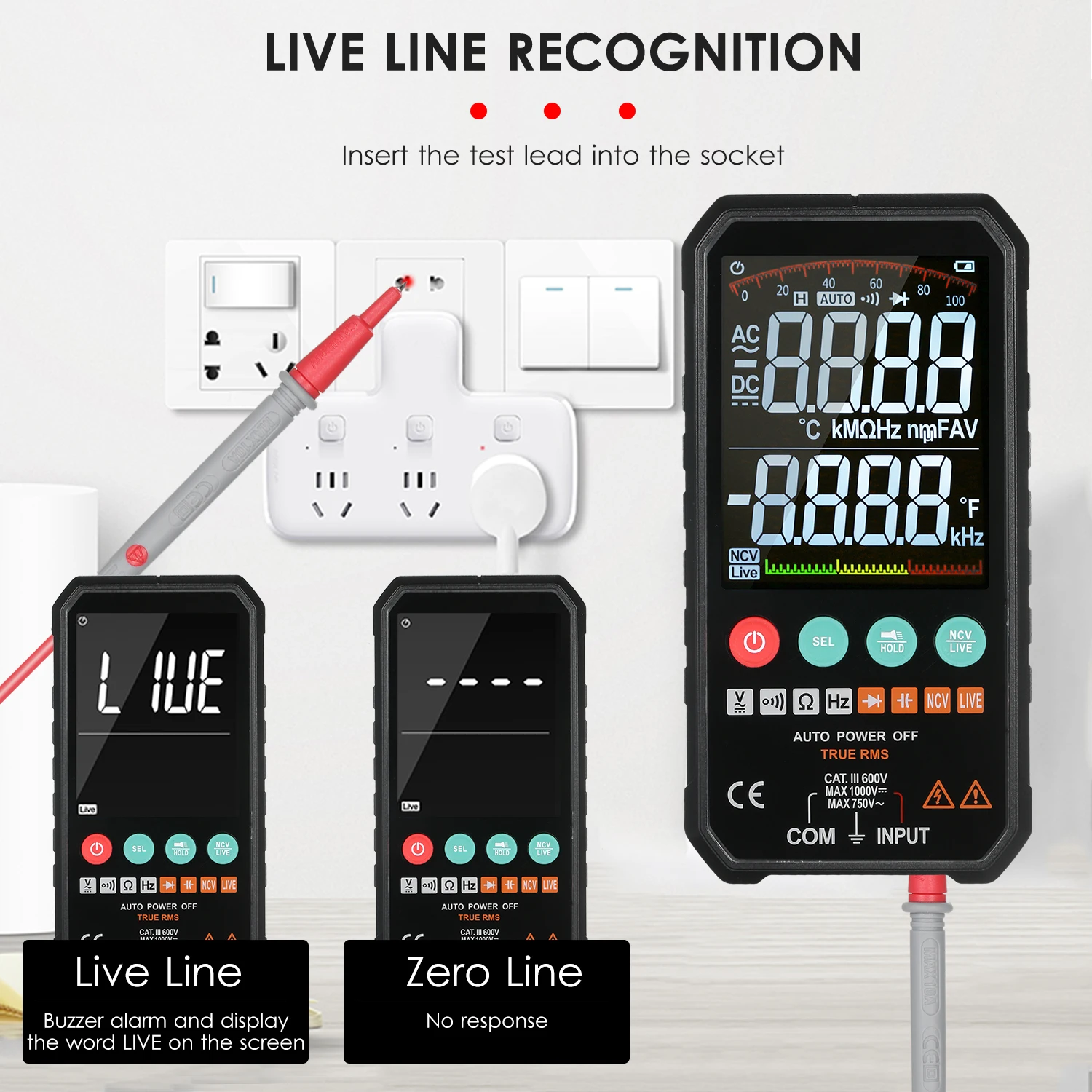

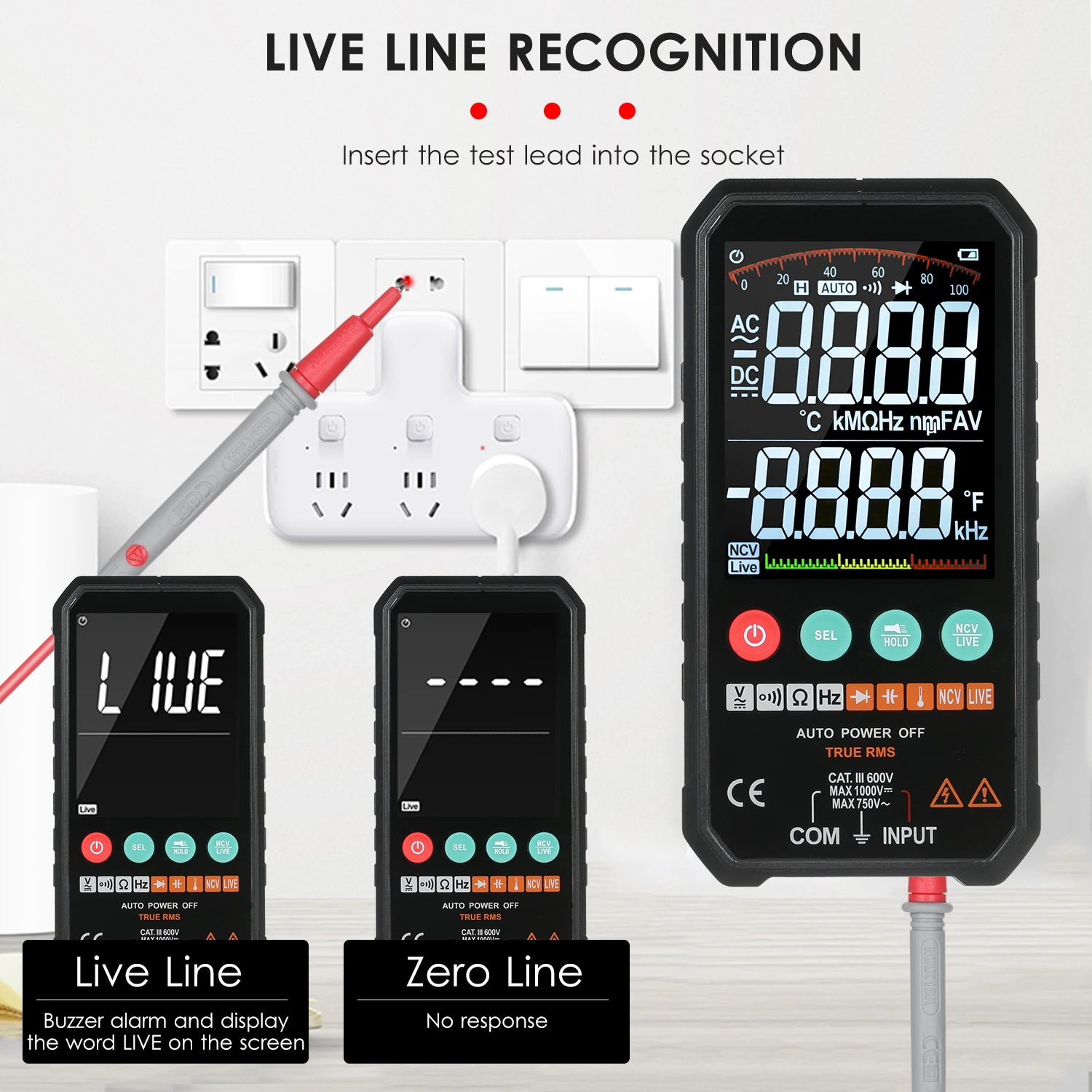

More Features: flashlight, true RMS, 15 minutes auto-off, low battery indication, live line indication, continuity buzzer.

Specifications:

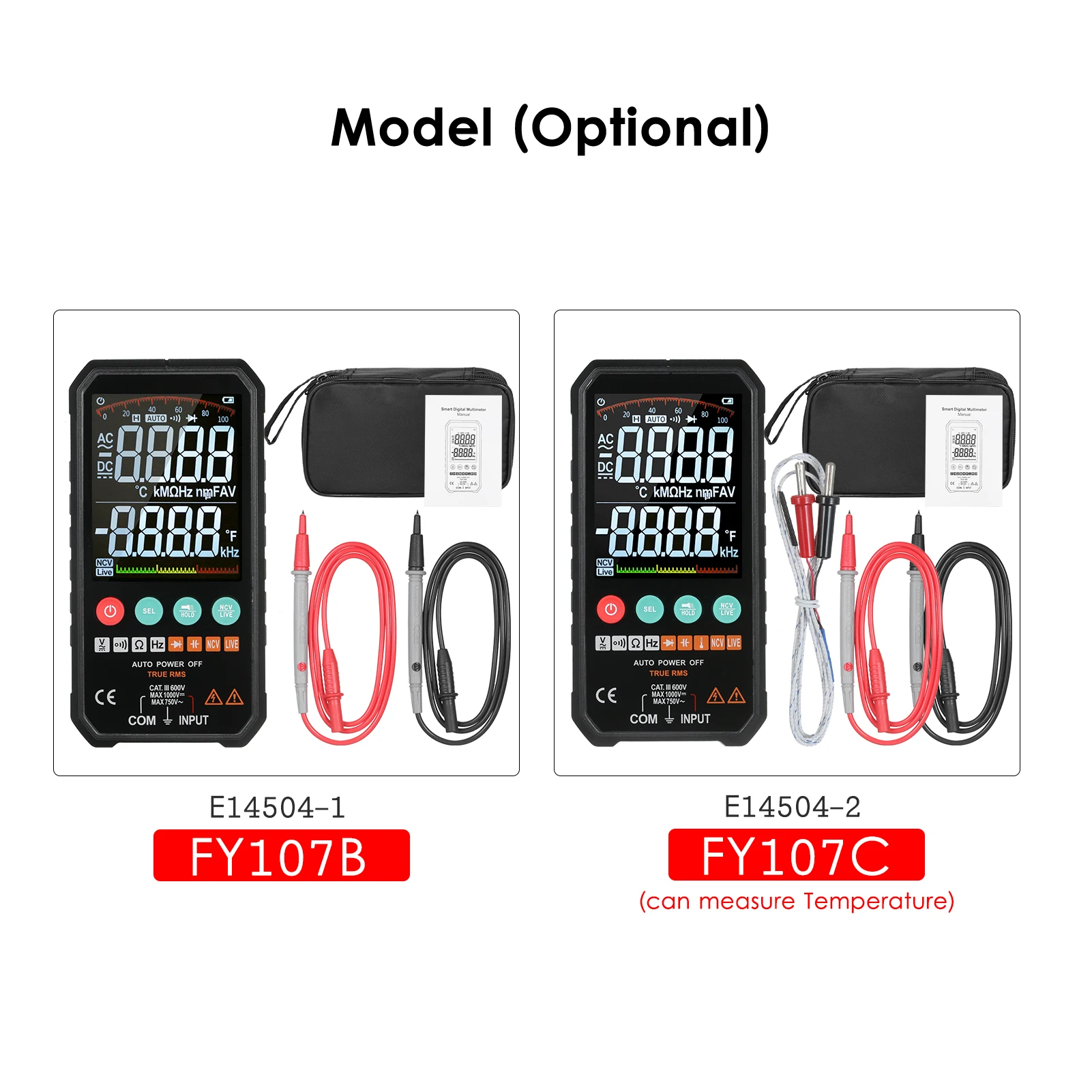

Model: FY107B / FY107C (Optional)
DC Voltage Range: 6V/60V/600V/1000V
AC Voltage Range: 6V/60V/600V/750V
Resistance Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Capacitance Range: 6nF/60nF/600nF/6μF/60μF/600μF/60mF
Frequency Range: 6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz
Temperature Range: -20~1000℃ / -4~1832℉ (FY107C Model Only)
Continuity: 100Ω
Material: ABS
Display: 6000 counts LCD
Safety Level: 600V CAT III
Pollution Level: 2
Over Range Indication: OL
Sampling Time: 3 times/second
Operating Temperature: 0~40℃
Storing Temperature: -10~60℃
Operating Altitude: <2000m

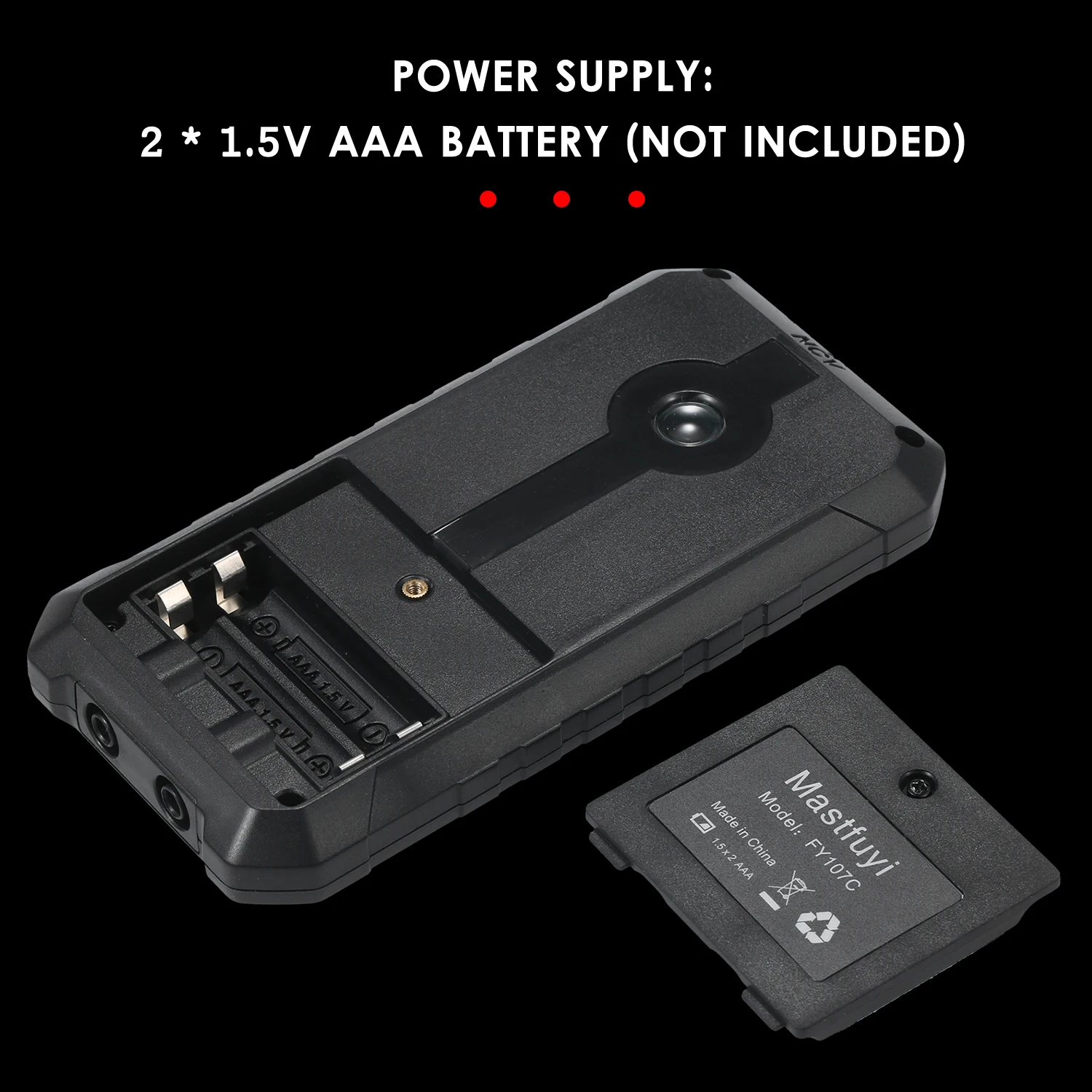

Power Supply: 2 * 1.5V AAA battery (NOT included)

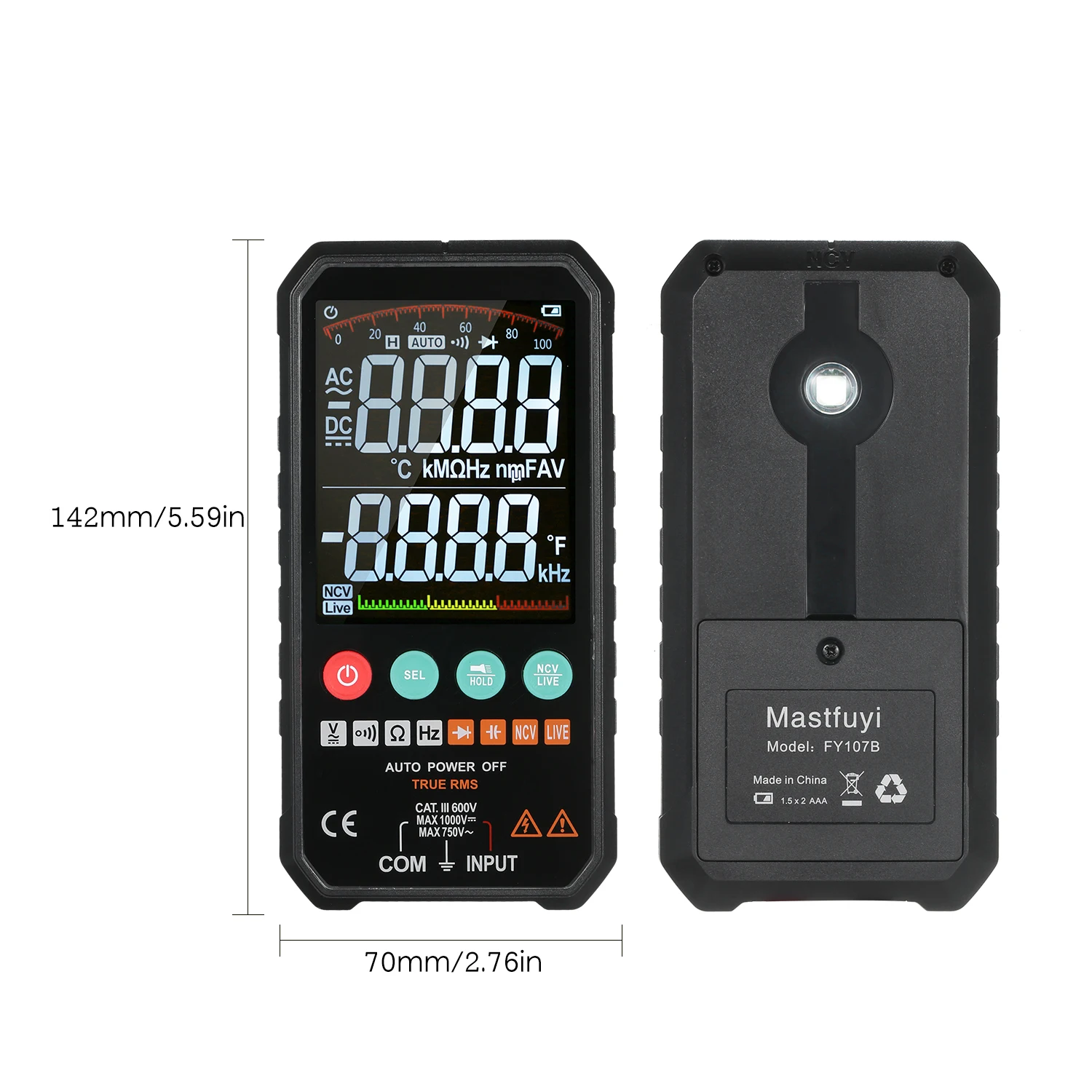

Item Size: 142 * 70 * 20mm / 5.59 * 2.76 * 0.79in
Item Weight: 189g / 6.69oz(FY107B), 202g / 7.14oz(FY107C)
Package Weight: 293g / 10.35oz(FY107B), 305g / 10.77oz(FY107C)
Package Size: 19.5 * 11.5 * 4cm / 7.68 * 4.53 * 1.57in

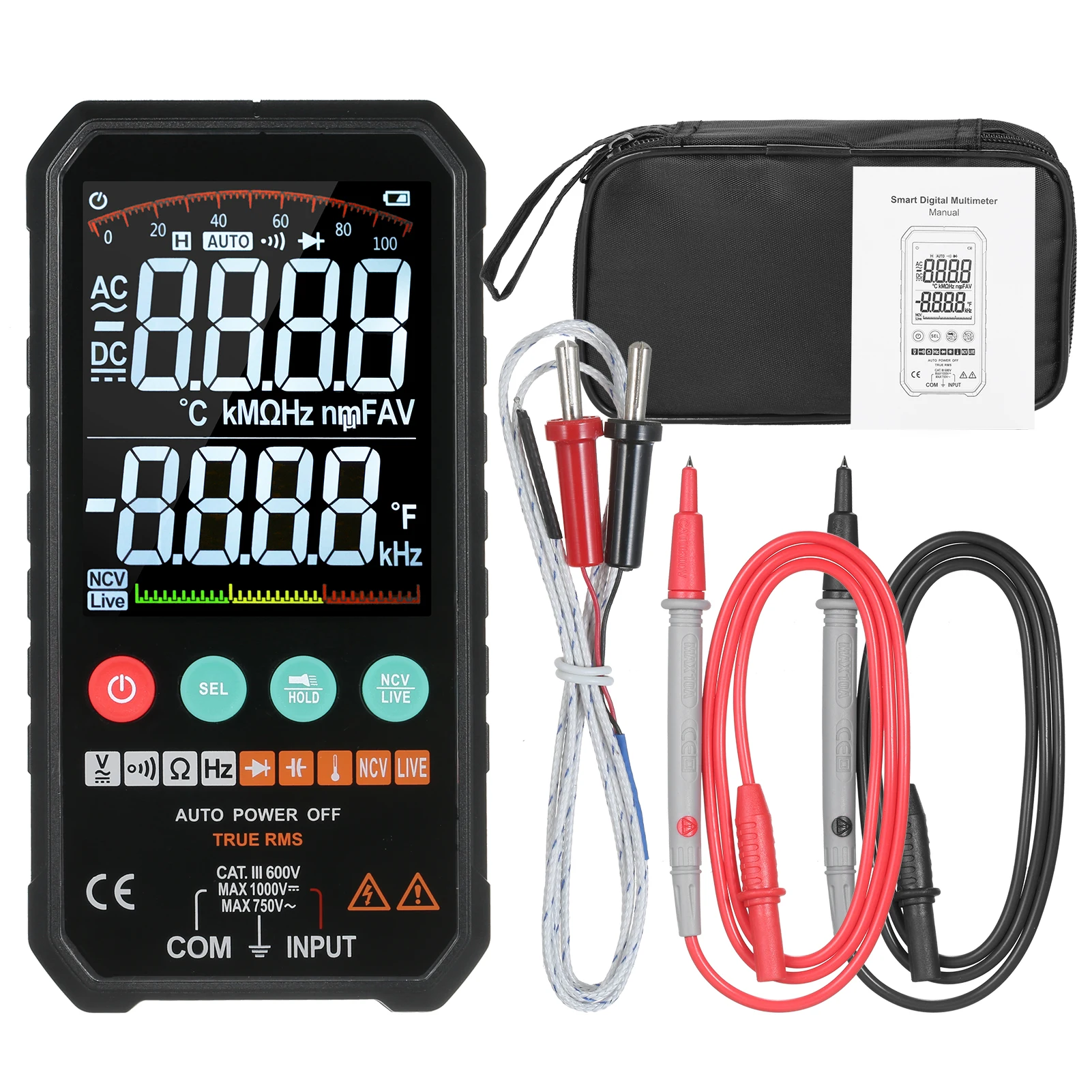

Packing List:
1 * Multimeter

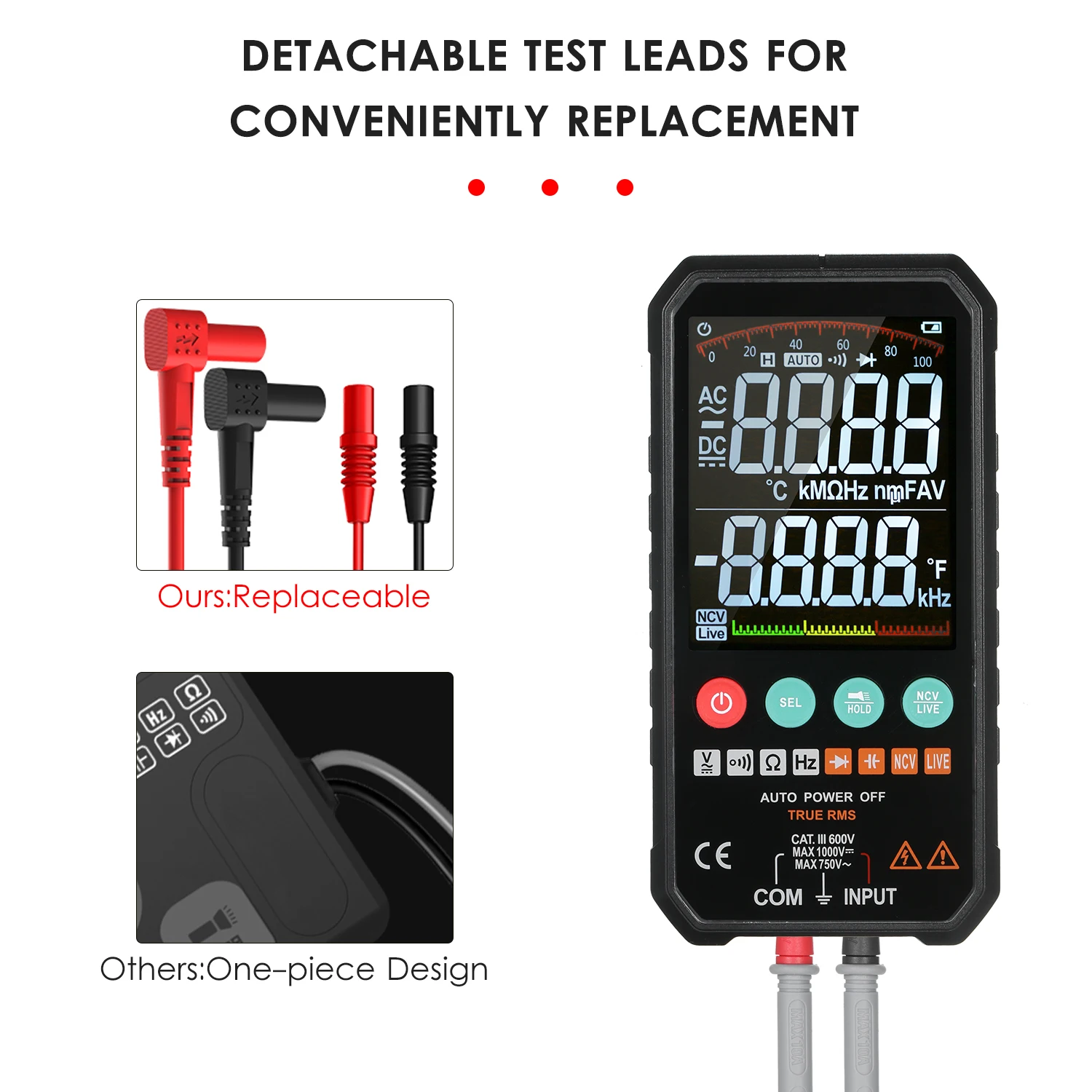

1 * Pair of Test Lead
1 * Storage Bag

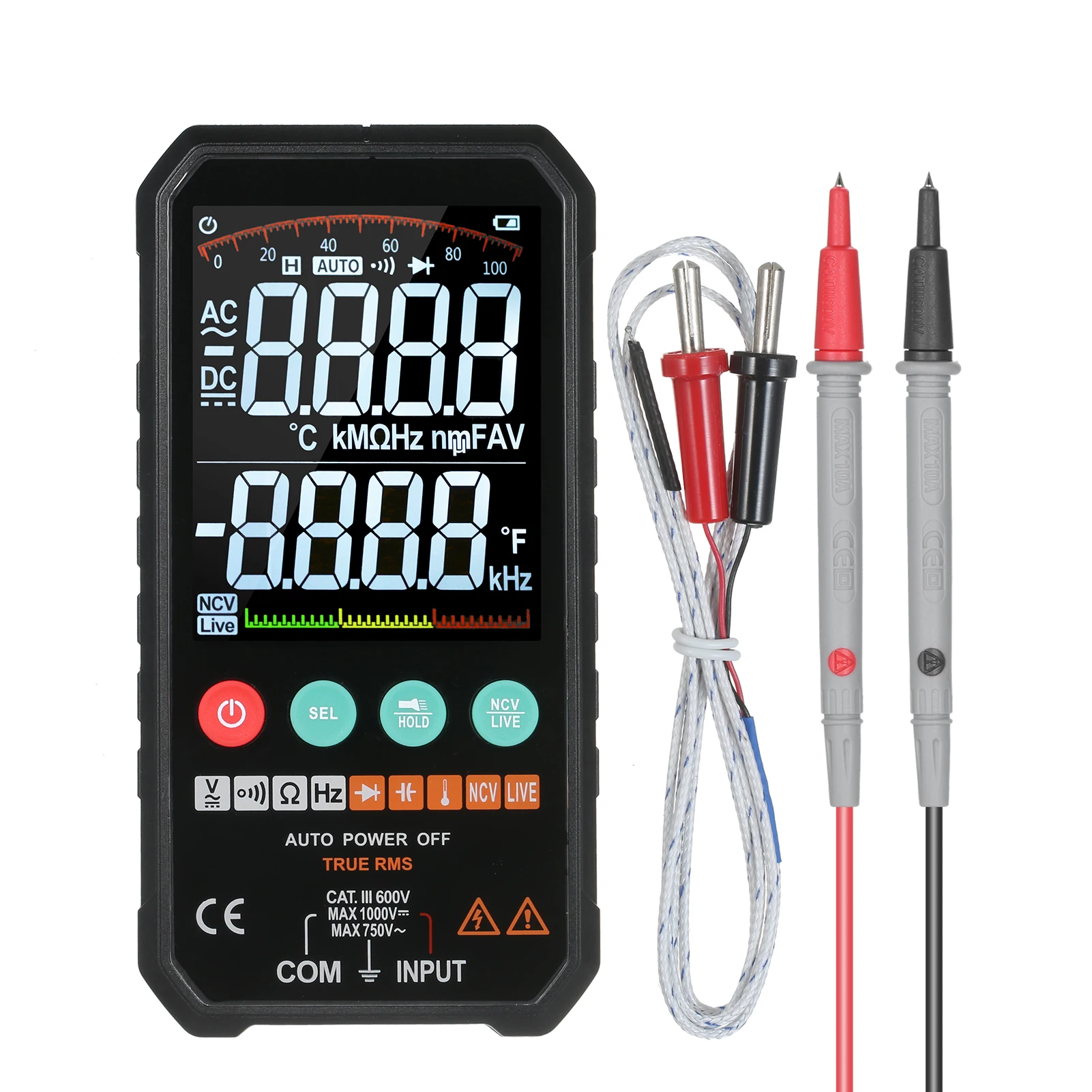

1 * Temperature K-type Probe (FY107C Model Only)
1 * Manual (English)

S11-black&S11-red

This multifunction multimeter with large LCD display screen, can be used for current, voltage, resistance, capacitance and duty ratio test, which is multifunctional and practical, suitable for the professional, factory and family to use. Come on and try it, it will not let you down.

Features:
Automatic measuring ranges and full ranges overload pro-tection function, and the maximum display value is 9999.
With large LCD display screen, easy for you to read the measured values, give you a better using experience.
Multifunctions: Can be used for temperature, NCV, voltage, resistance, capacitance, frequency, duty ratio,diode,continuity,live test.
Auto shutdown function: The multimeter will automatically shutdown with any signal input after 5 minutes, which can save the energy.
3 results display: The screen can show 3 test results on the screen, such as voltage, frequency and ana-log bar.
Wide applications: A fine helper for you to use in your daily checking, professional operations and checking, factory and other places.

Specifications:
Material: ABS
Color: black, red (optional)
Type: S10, S11(optional)
Power:
S10: without battery, need connect with the USB cable to use
S11: 1 * lithium battery, 800mAh (included)
Direct current voltage measuring:
ranges: 0.8V~620V
Resolution: 0.001V
Accuracy: ±(0.5%+3counts)
Input impedance: 10MΩ
Maximum input voltage: 620V direct current and AC(RMS)
AC voltage measuring:
ranges: 2.2V~620V
Resolution: 0.001V
Accuracy: ±(0.5%+3counts)
Input impedance: 10MΩ
Maximum input voltage: 620V
Frequency range: 1KHz (<10V), 6KHz (10V~600V)
Resistance measuring:
Ranges:1Ω~999.9Ω, 1KΩ~60MΩ
Resolution: 0.1Ω
Accuracy: ±(2.0%+5counts), ±(1.0%+3counts)
Capacitance measuring:
Ranges:1nF~999.9nF, 1uF~60mF
Resolution: 0.001nF
Accuracy: ±(6.0%+5counts), ±(3.0%+3counts)
Frequency measuring:
Ranges:1Hz~1KHz (ACV 2~10V), 1Hz~60KHz (ACV 10~620V)
Resolution: 0.01Hz
Accuracy: ±(1.0%+5counts)
Duty ratio measuring:
Ranges: 0.1%~99.9% (ACV 2~620V)
Reslolution: 0.1%
Accuracy: ±(3.0%+5counts)
Diode measure: within 3V
Continuity: If the resistance <50Ω, the bu-zzer sounds
The temperature:
Range: 0~50℃
Accuracy±2℃ (update every 30 seconds)
Package size:
S10: 147 * 85 * 42mm / 5.8 * 3.3 * 1.7in
S11: 169 * 95 * 44mm / 6.7 * 3.7 * 1.7in
Package weight:
S10: 180g / 6.3ounce
S11: 320g / 11.3ounce

Packing list:
1 * Multimeter (Optional)
1 * Probes
1 * User Manual
1 * EVA Bag
1 * USB Cable
