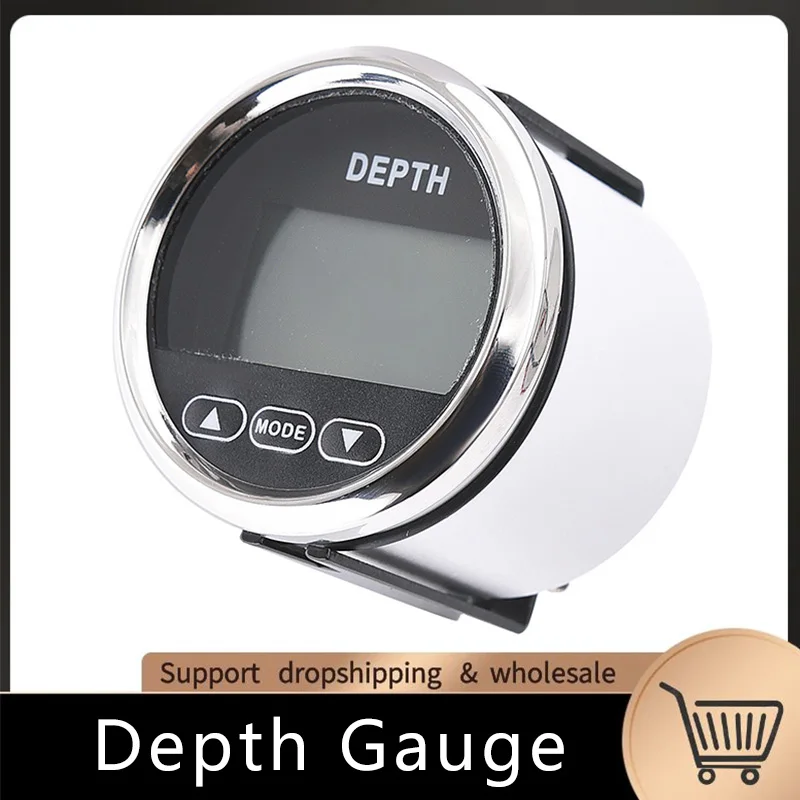

52MM Depth Gauge Digital Marine Boat Depth Meter Pulse Signal

Specification:

* Name:52mm Depth Gauge meter * Backlight:White * Diameter:52mm * Operating Voltage : 9~32VDC * Operating current :≤60mA; * Operating temperature : -30~+75°C * Storage temperature : -40~+85°C

Package Included

1x Depth Gauge 1x Multi-plug socket 1x Installation Instruction

Connection

1.Red--+12VDC 2.NC 3.Orange--Backlight(+) 4.Blue--Ground(-)

Operation:

A. This device is work with 12V system only, to indicate the depth appointed. Normally, the buzzer beeps once when it was connected correctly then turn on the power B. Keypad"Mode": Quick press the keypad"Mode" to switch SH/DP/KL/ UN Hold the keypad"Mode" to turn on/off the monitor Short press the keypad“▲"“▼"to set the value required Hold the keypad“▲”“▼"to keep the digital increasing/decreasing fluently. Parameter: SH: (Low level alarm) Range : 0-0.6-19.9, when the level no more than value(SH) appointed,the symbol flickering and the buzzer beeps all the time. If SH=0 -->No alarm Alarm setting range :0.6-19.9

DP:(Depth alarm):

Range: 1). Unit“M”: 0-99 2). Unit“FT":0-199 3). Unit“F”: 0-49 If the level exceed the a ppointed value , the buzzer will beeps twice Keel offset (KL): Range: 1). Unit“M”: 0-6.0 2). Unit“FT":0-19.9 3). Unit“F”:0-3.3
