   Wardrobe Sliding Door Pulley Hidden Wheel Wall Cabinet Door Wardrobe Kitchen Partition Door Up Down Track Roller Accessories
Specifictions:

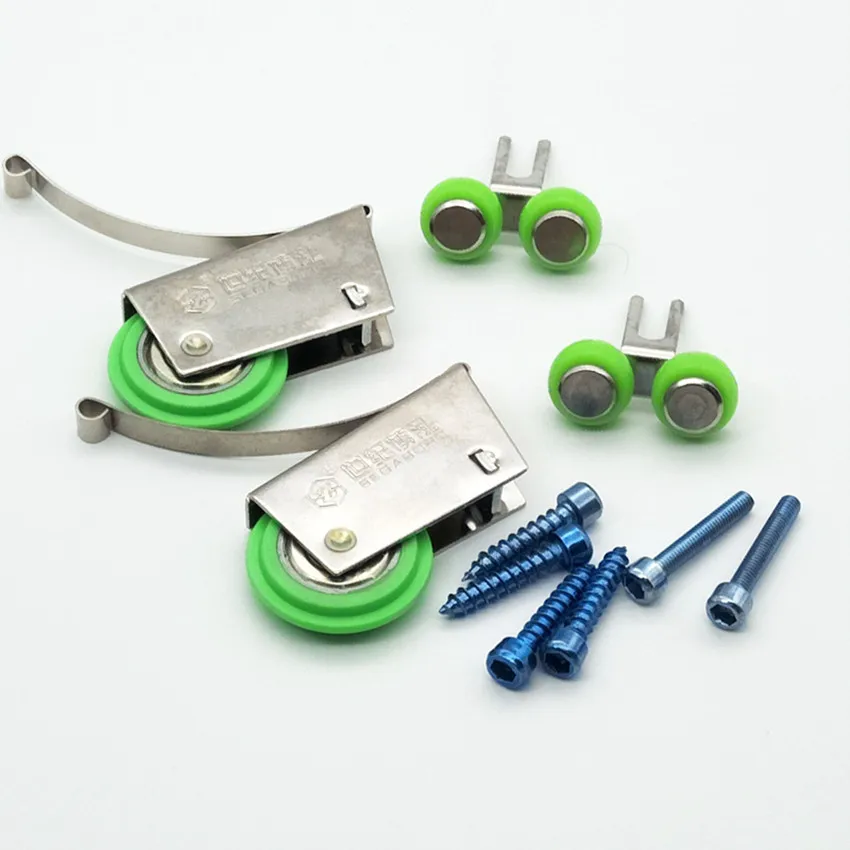

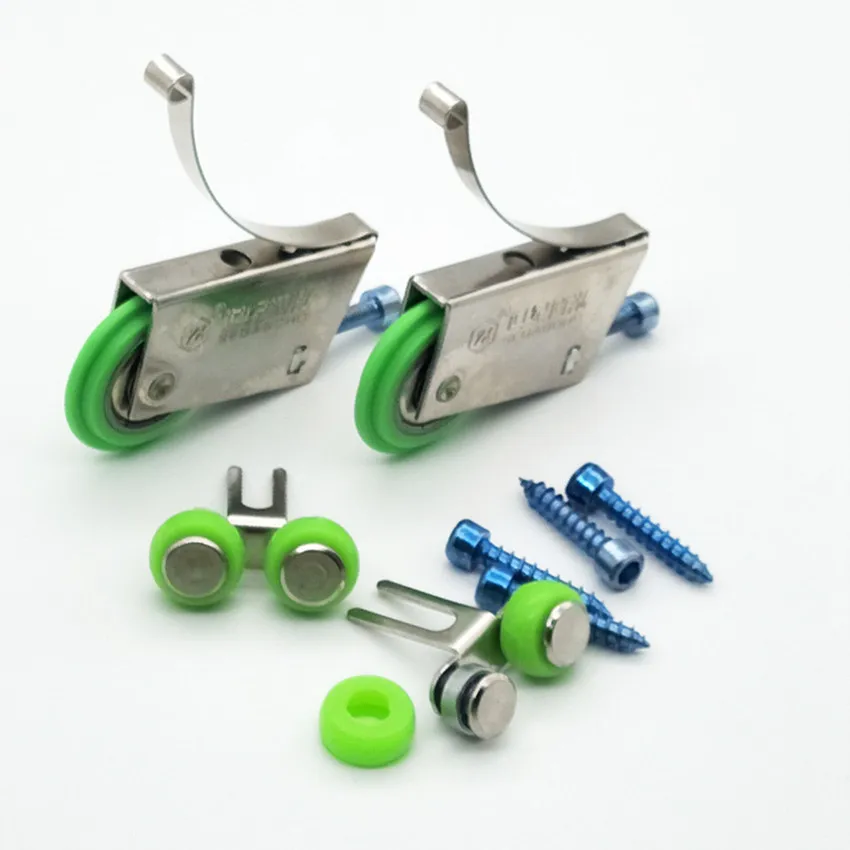

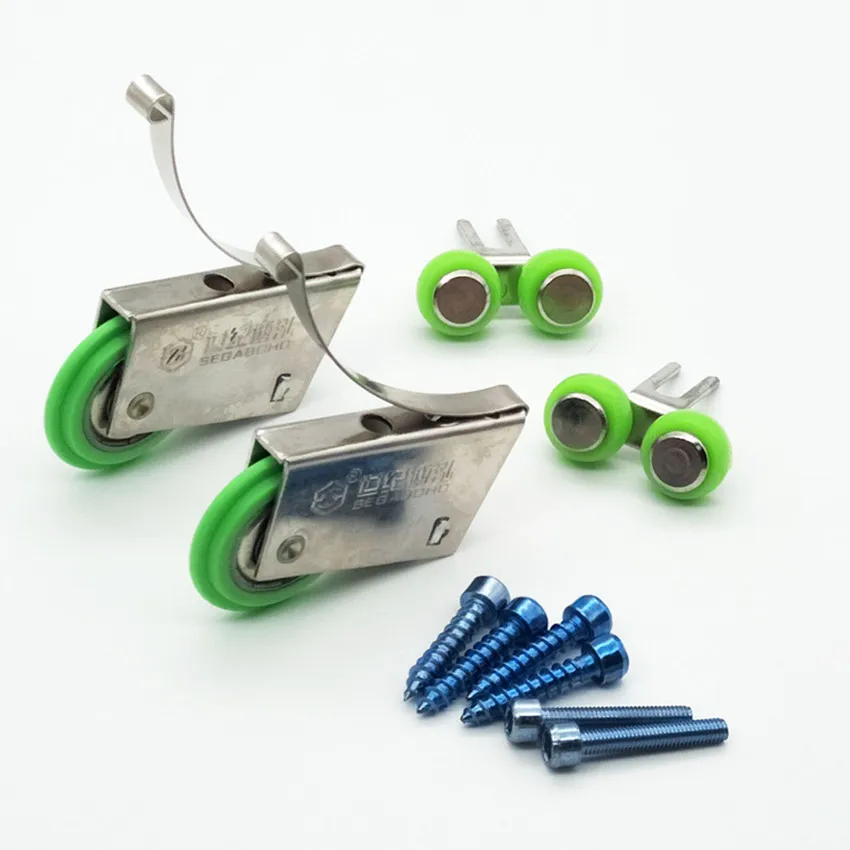

【Name】: Wardrobe Sliding Door Pulley

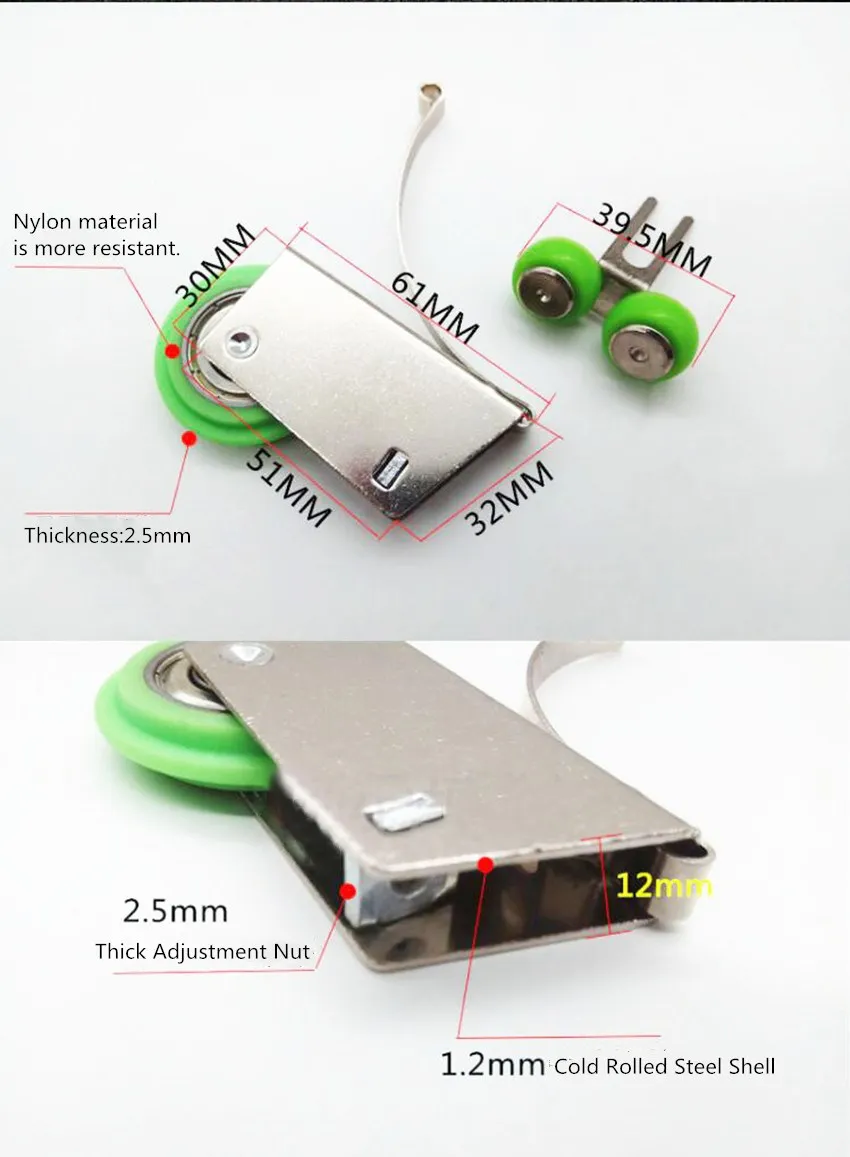

【Material】: Cold Rolled Steel
【Wheel Material】: Nylon
【Wheel Type】: Concave Wheel
【Package】: 1 x bottom wheel
                         1 x top wheel
【Scope Of Application】: Furniture Accessories

  Features:
<1>: Soft anti-jump : Ultra-soft buffer function to ensure zero noise pollution.

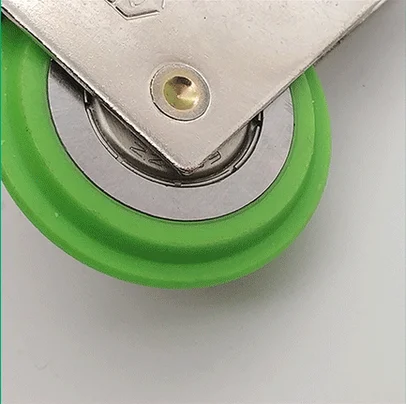

<2>: Class A Bearings : Smooth, good friction, not hurt the track.




Step 1 : Lift the door upwards, reach into the lower frame and press the pulley to keep the door out of the rail.
Step 2 : Use a wrench to remove the pulley screw and remove the pulley.
Step 3:After putting the new slide wheel into the slot, use the screws to align the holes.

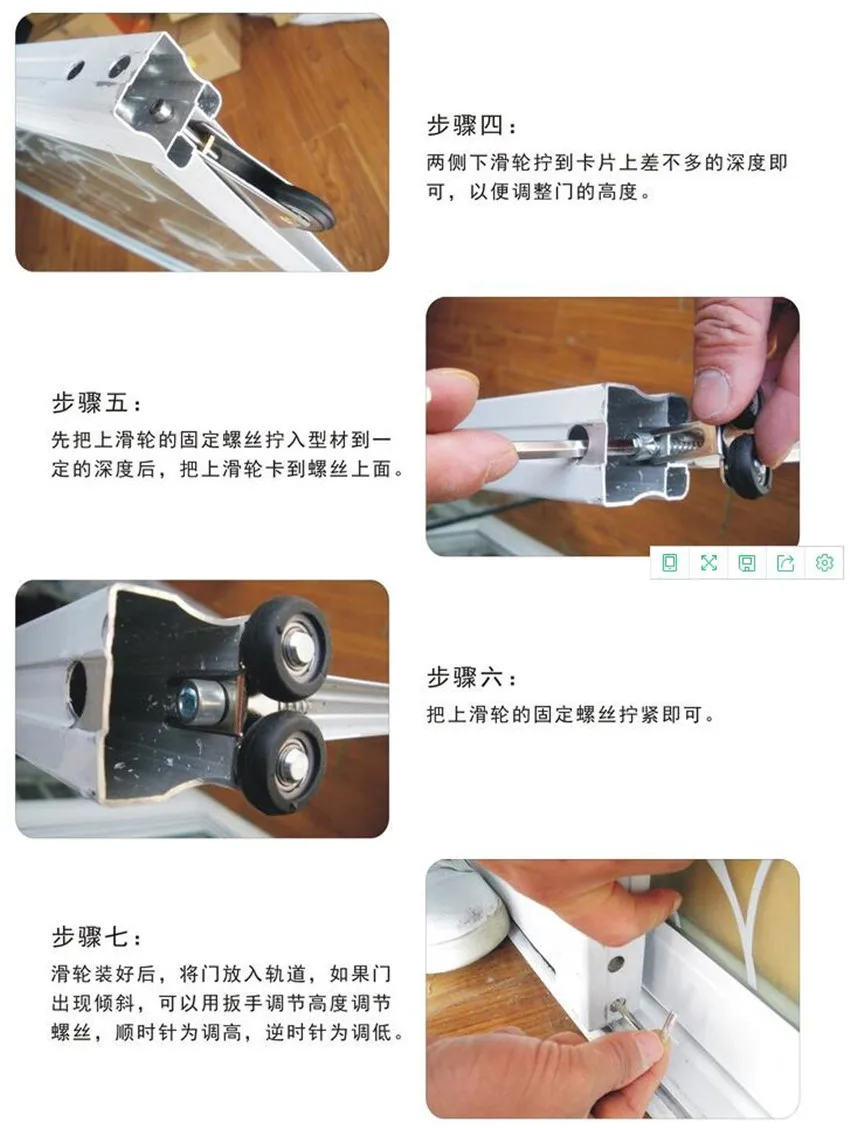

Step 4:The sliding wheels on both sides can be screwed to an appropriate depth, which is convenient for adjusting the height of the door.
Step 5:First screw the fixing screw of the upper pulley into the profile to a certain depth, and then snap the upper pulley onto the screw.
Step 6:Tighten the fixing screws of the upper pulley.
Step 7:After the pulleys are installed, put the door into the track. If the door is tilted, use a wrench to adjust the height screw.
