Color Classification:

Model1: EE16-A2 (3+2 pins)

Model2: EE16-A4 (2+2 without 5 pins)

Model3：EE16-S24 red (2+3 feet)

EE16-A2/EE16-A4 High frequency transformer of switching power supply，collocationTNY268PNorTNY278Series switching power supply chip，Maximum output power10Wpower,

EE16-A2 AndEE16-A4What's the differenceEE16-A2byEE16 3+2needle。EE16-A4byEE16 2+2needle，thanEE16-A2The second is missing5needle（Empty feeti），The other parameters are exactly the same。The price will be a few cents lower if one stitch is missing，The cost of welding is also lower。If the customer does not need to use the second5In case of wrong foot insertion，have access toEE16-A4replaceEE16-A2，It can reduce the cost。

EE16-A2AndEE16-A4compare，The parameters are exactly the same，They can replace each other，EE16-A2thanA4More than a third5foot，It can prevent reverse insertion，howeverEE16-A4cheapness，Plug in processing costs are also a foot less。Cost sensitive，Users who are not easy to make mistakes，You can use itEE16-A4replaceEE16-A2.

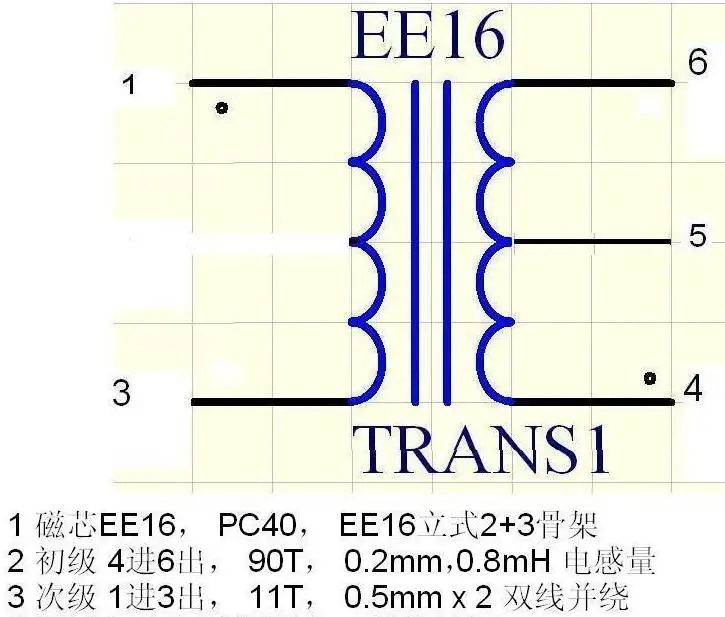

Primary inductance0.8mH，Turn ratio90:11, Primary stage three-layer tape insulation

longxwidexhigh：16.3mm x 12.5mm x 16mm

Especially remind the customers who don't know about switching power supply，This is a switching power transformer，Not directly220V 50Hzuse，Direct connection50HzAlternating current will burn out
