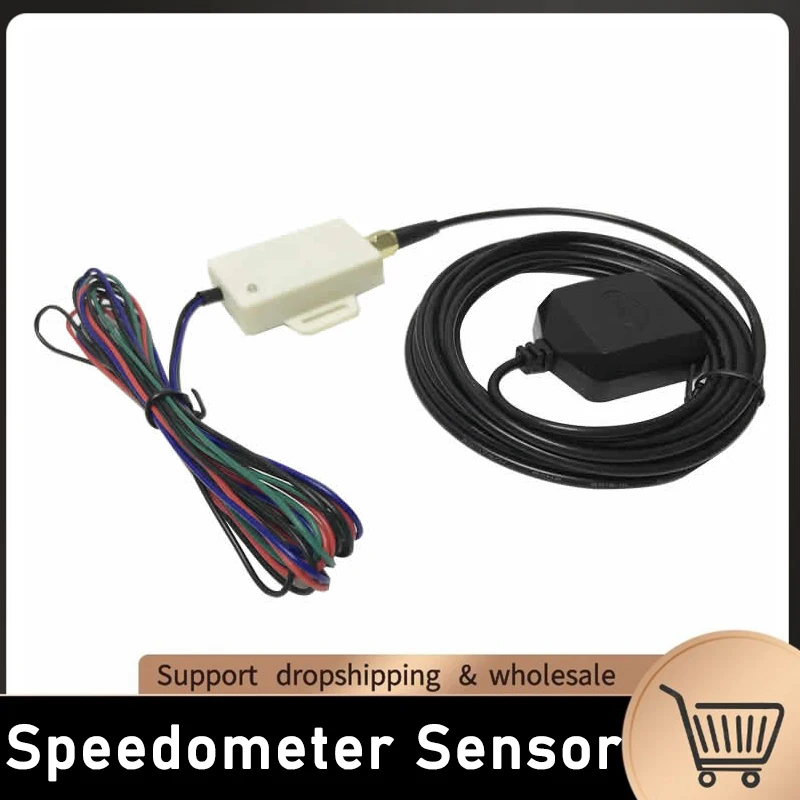

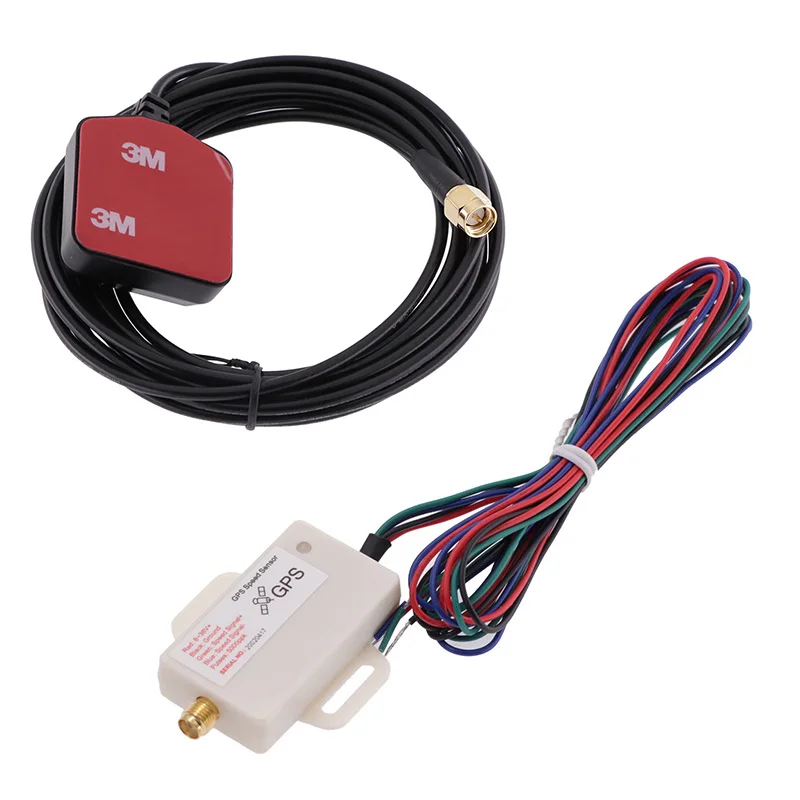

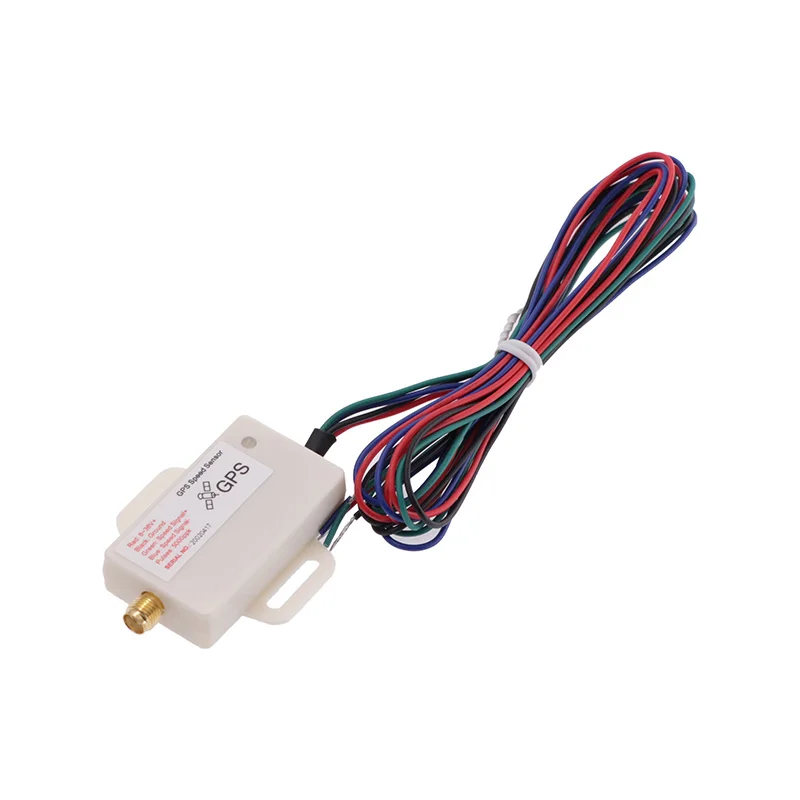

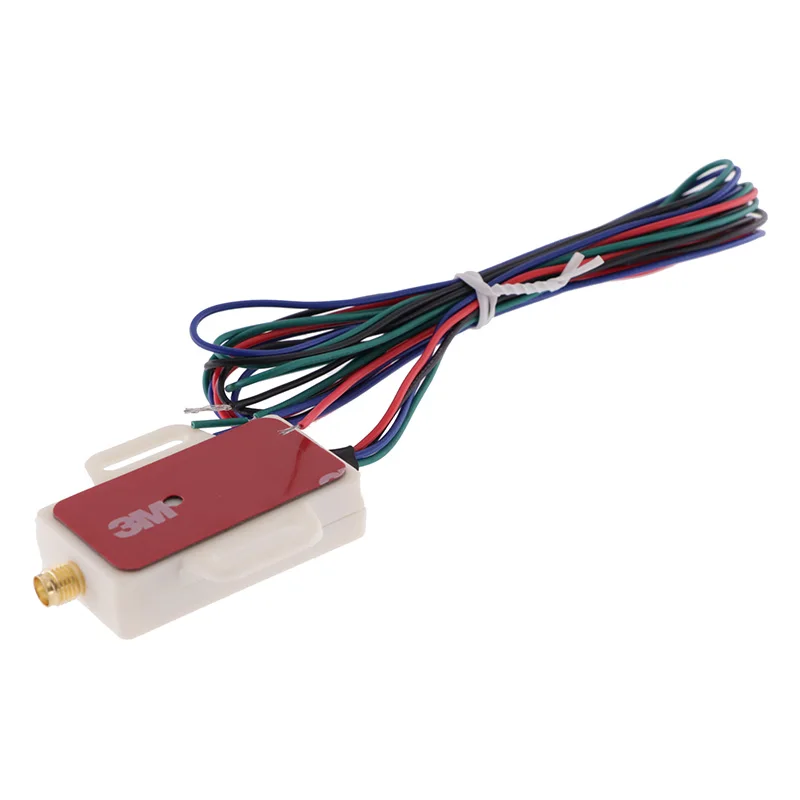

Mini Universal Speedometer Sensor Adapter Kit GPS Speed Sender

GPS Speed Sender (MiniSize, Universal Type)

Specification:

-Application: All kinds of Speedometer,Tachograph -High Accuracy only 0.2% deviation (mechanical speed sensor will be 3~5% deviation) -Anti-GPS Stationary Drift technology -Support both Negative & Positive Pulse output with Max 50,000pules/km -Compatible with different gauges with programmable speed ratio and lowest 0.5km/h speed to start -Output two speed signals which are reverse -Shockproof and Circuit Protection design -Pulse/Odometer Compensation when inTunnel or under Bridge Default Speed Ratio: 5000ppk (5000 pulses perkm) -High quality GPS Active Antenna which performs well in windy or heavy rainy weather -MiniSize: 4.5cm(L)x1.9cm(W), 100cm extended cable -DC12V/24V Power Supply (6~36V DC)

How does it work?

- GPS Odometer Speed Sender provides a reliable calibration-free replacement for mechanical speed senders. - Using data received from the Global Positioning Satellite network, the GPS Speed Sender calculates three-dimensional ground speed and provides a pulsed output compatible with existing mechanical speed senders. - This high-technology solution eradicates the dependency on vehicle specific parameters thereby reducing installation time and eradicating the need for periodic calibration.

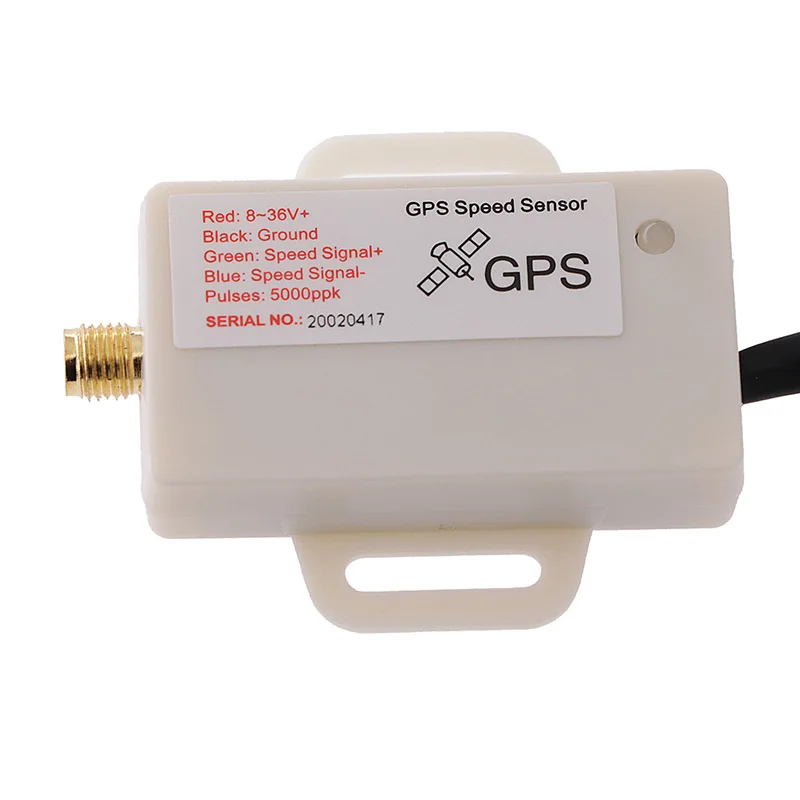

Cable Definition:

- RED: Power +, DC8~32V - BLACK: GROUND - GREEN: Speed Pulse Signal Output + - BIUE: Speed Pulse Signal Output- Please connect GREEN or BLUE cable (one of the two) to your current Speedometer/odometer/tachograph.
