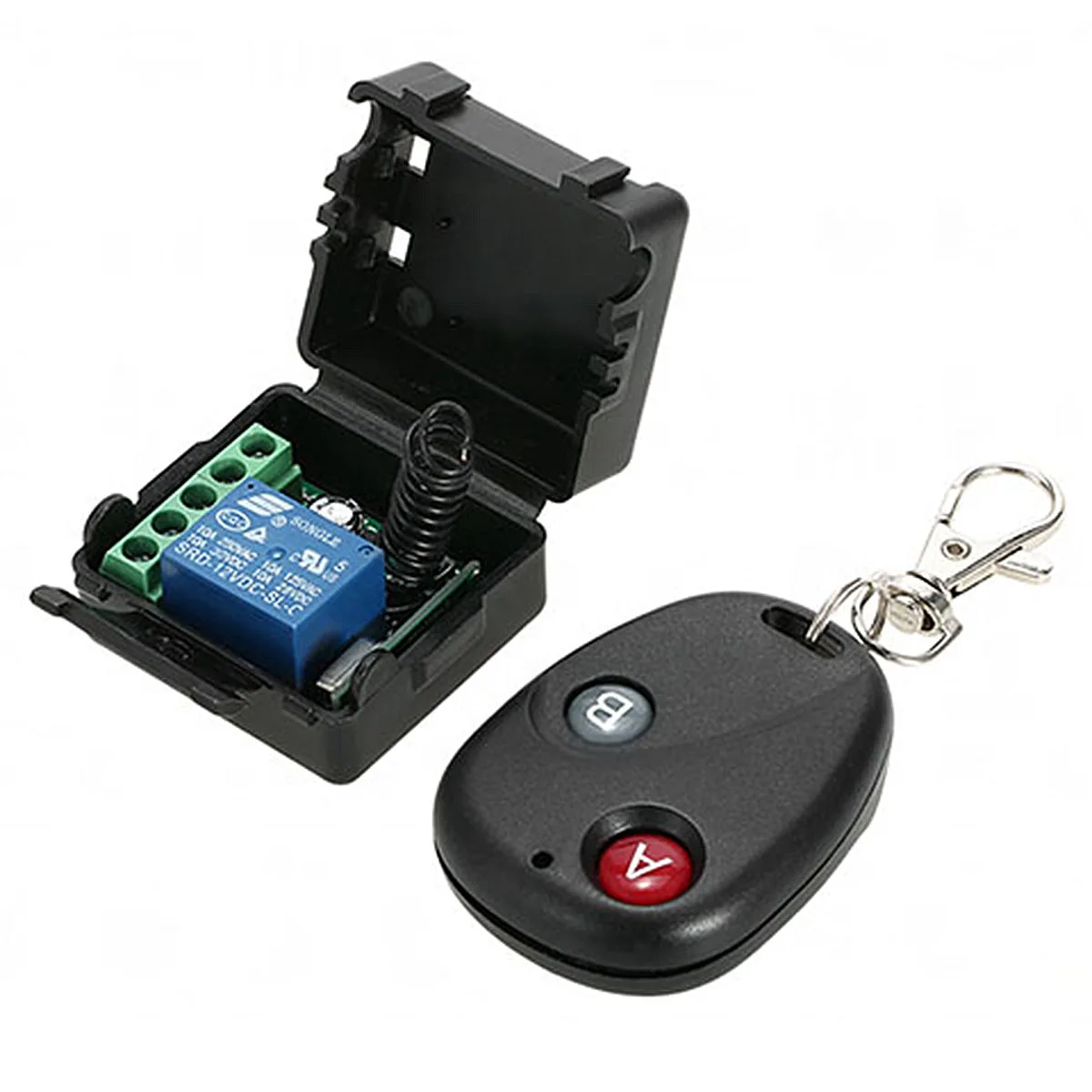

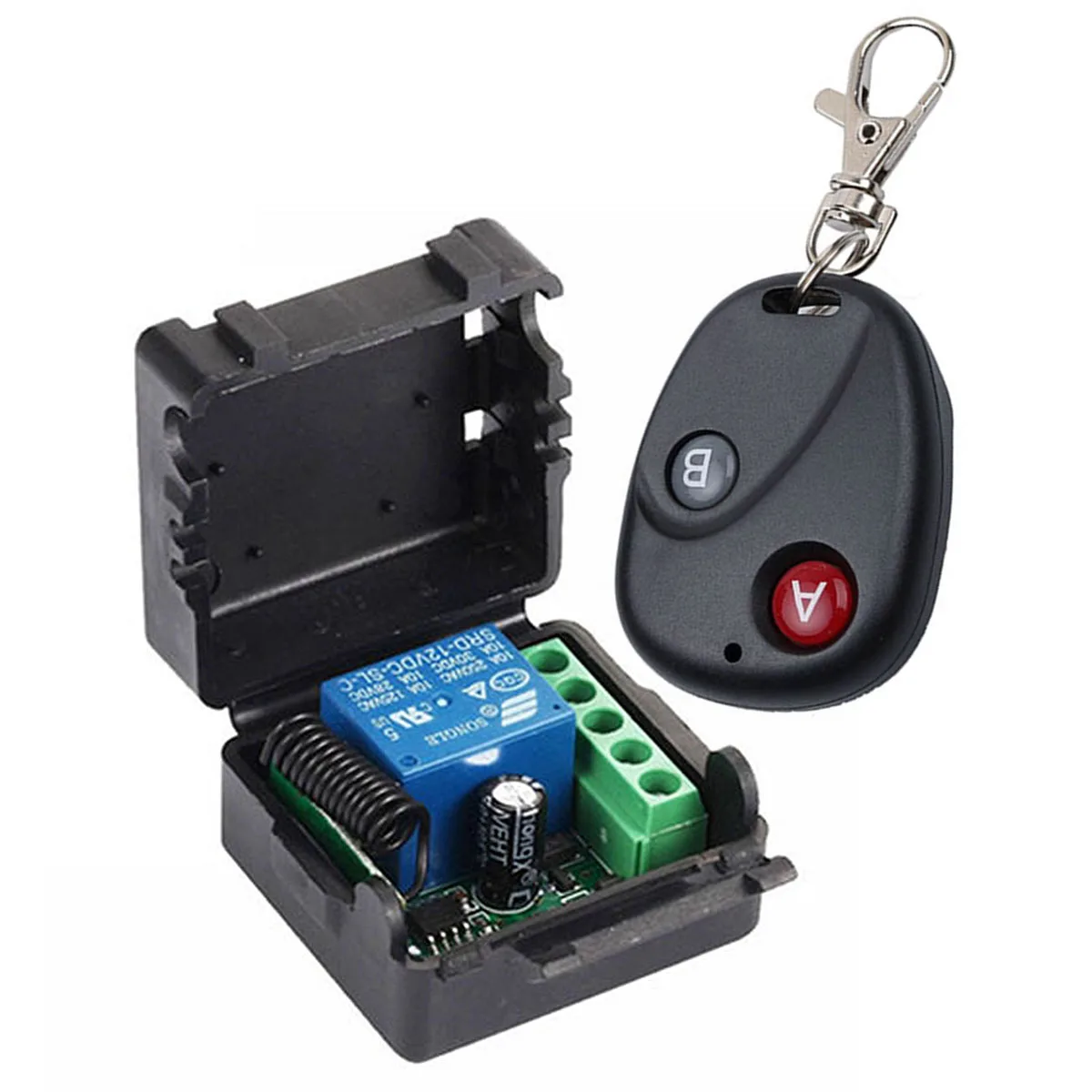

DC 12V 1CH Wireless RF Delay Remote Control Garage Door Access Switch Transmitter With Receiver 433Mhz
Description:
This DC 12V single-track remote control has high reliability and wide application, mainly used for access control, LED control, motor control, security and other fields.
Specification:
Input Voltage: DC 10V-14V
Standby Current: :
Clear Code:
Press and hold the learning button for 8 seconds. When the indicator is off and returns to always-on, the data is successfully cleared.
Note: The remote control can store up to 19 different codes and code must be cleared before learning any function.
Learning Function:
1. Jog: Press the learning button once. After the red light is always on, immediately press the remote control button you want. The red light will flashes continuously and then go off. The learning is successful.
2. Self-lock: Continuously press the learning button twice. Immediately press the remote control button you want after the red light is always on. The red light will flashes continuously and then go off. The learning is successful.
3. Inter-lock: Continuously press the learning button 3 times. After the red light is always on, immediately press the first button once to turn on. After the red light flashes 2 times, it will be be always-on, then press the second button to turn off. The red light will flashes continuously and then go off. The learning is successful.
4. Delay 5 seconds: Continuously press match-code button 4 times and the LED indicator flashes 4 times. Press the remote control button that needs to be coded after the LED indicator lights up. The LED indicator on control panel continuously flashes 3 times and the match code is successful.
5. Delay 10 seconds: Continuously press match-code button 5 times and the LED indicator flashes 5 times. Press the remote control button that needs to be coded after the LED indicator lights up. The LED indicator on control panel continuously flashes 3 times and the match code is successful.
6. Delay 15 seconds: Continuously press match-code button 6 times and the LED indicator flashes 6 times. Press the remote control button that needs to be coded after the LED indicator lights up. The LED indicator on control panel continuously flashes 3 times and the match code is successful.
7. Delay 20 seconds: Continuously press match-code button 7 times and the LED indicator flashes 7 times. Press the remote control button that needs to be coded after the LED indicator lights up. The LED indicator on control panel continuously flashes 3 times and the match code is successful.
Working Mode:
1. Jog: Press the remote control button once, the relay is connected; release the button and the relay is disconnected.
2. Self-lock: Press the remote control button, the relay is connected; press the remote control button twice, the relay is disconnected.
3. Inter-lock: Press remote control button A, the relay is connected; press remote control button B, the relay is disconnected.

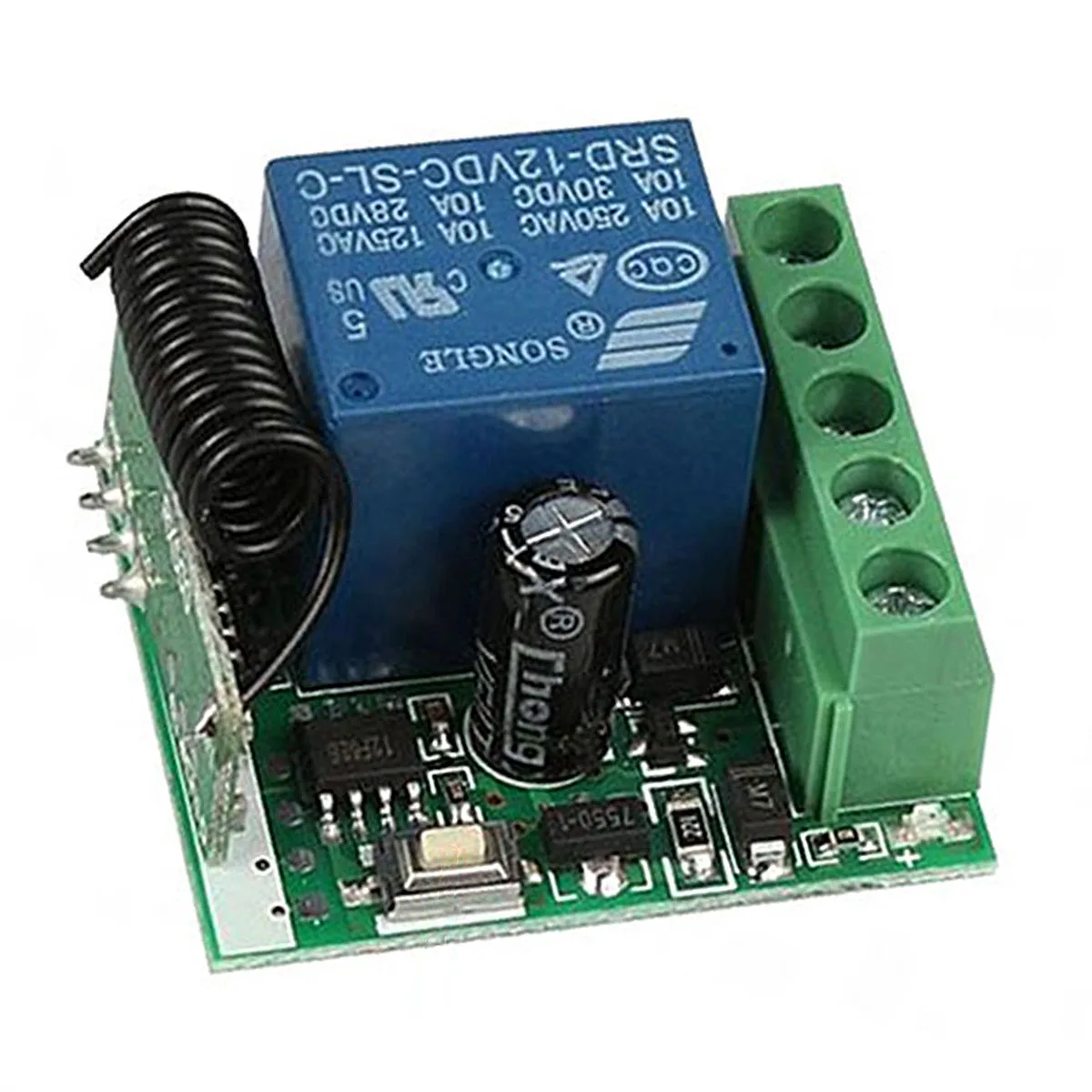

Wiring:
1. "+" : Connect to the positive pole of 12V power supply;
2. "-" : Connect to the negative pole of 12V power supply;
3. NO: output; normally open port of the relay;
4. COM: output; common port of the relay;
5. NC: output; normally close port of the relay;
NOTES:
1. Be sure to clear the code once for the first time use.
2. Please avoid the interference source and similar shield cover while installing.
3. Improper use will reduce the performance and longevity of the product, even bring potential safety hazard in severe case.
4. Suitable for controlling small power household appliances[Use high power for controlling fans].
Package Includes:

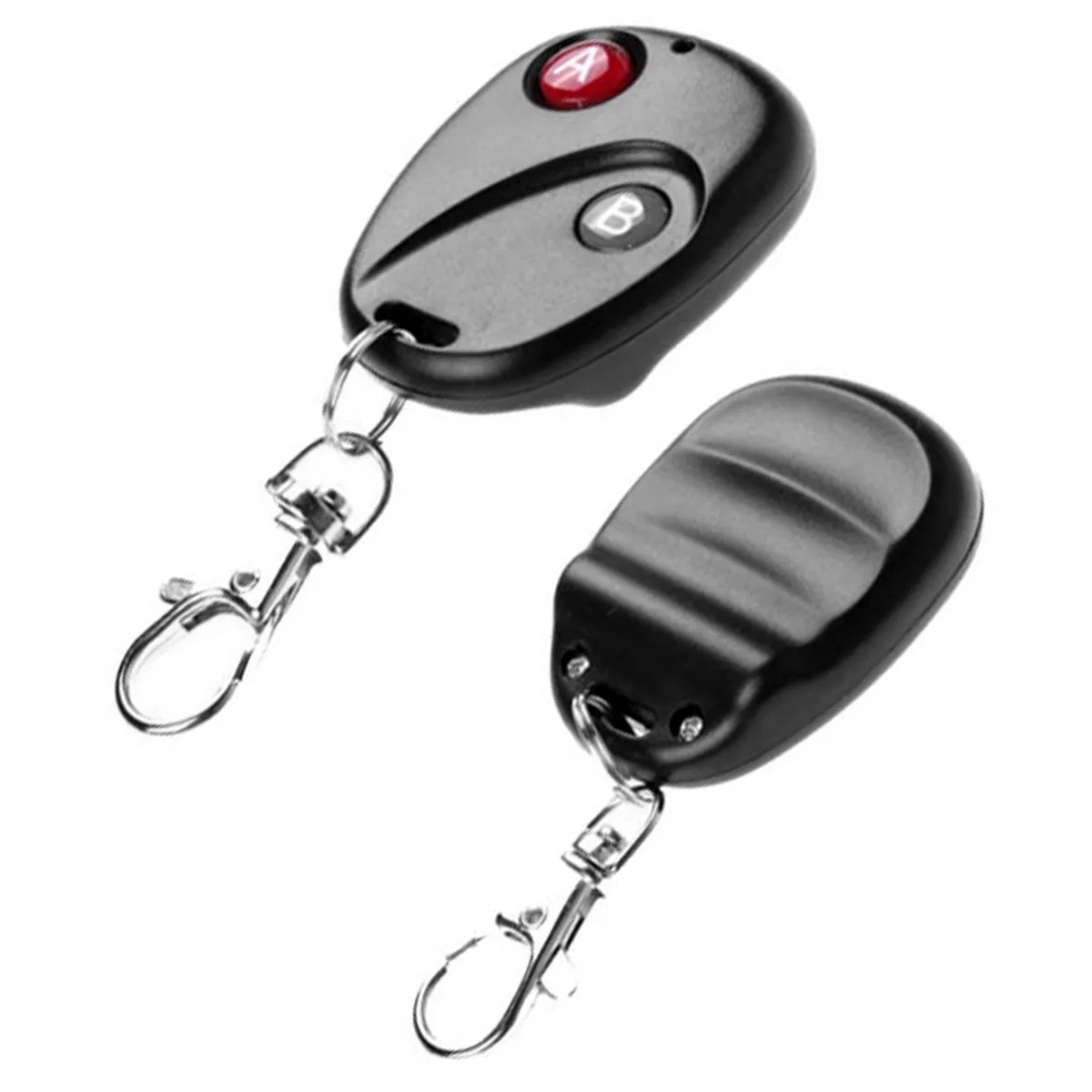

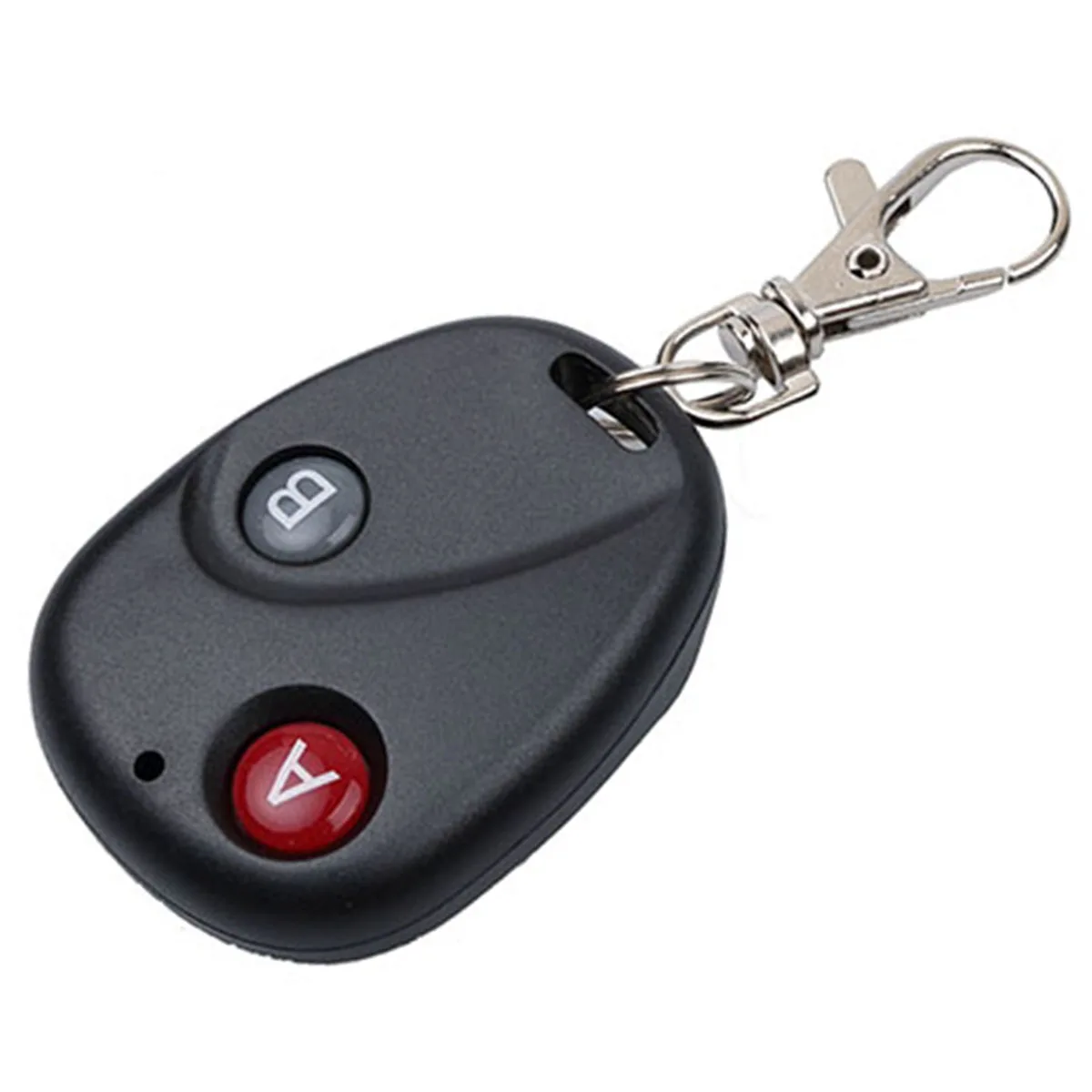

1 x Transmitter
1 x Receiver
Packing list
1 x Transmitter
1 x Receiver
