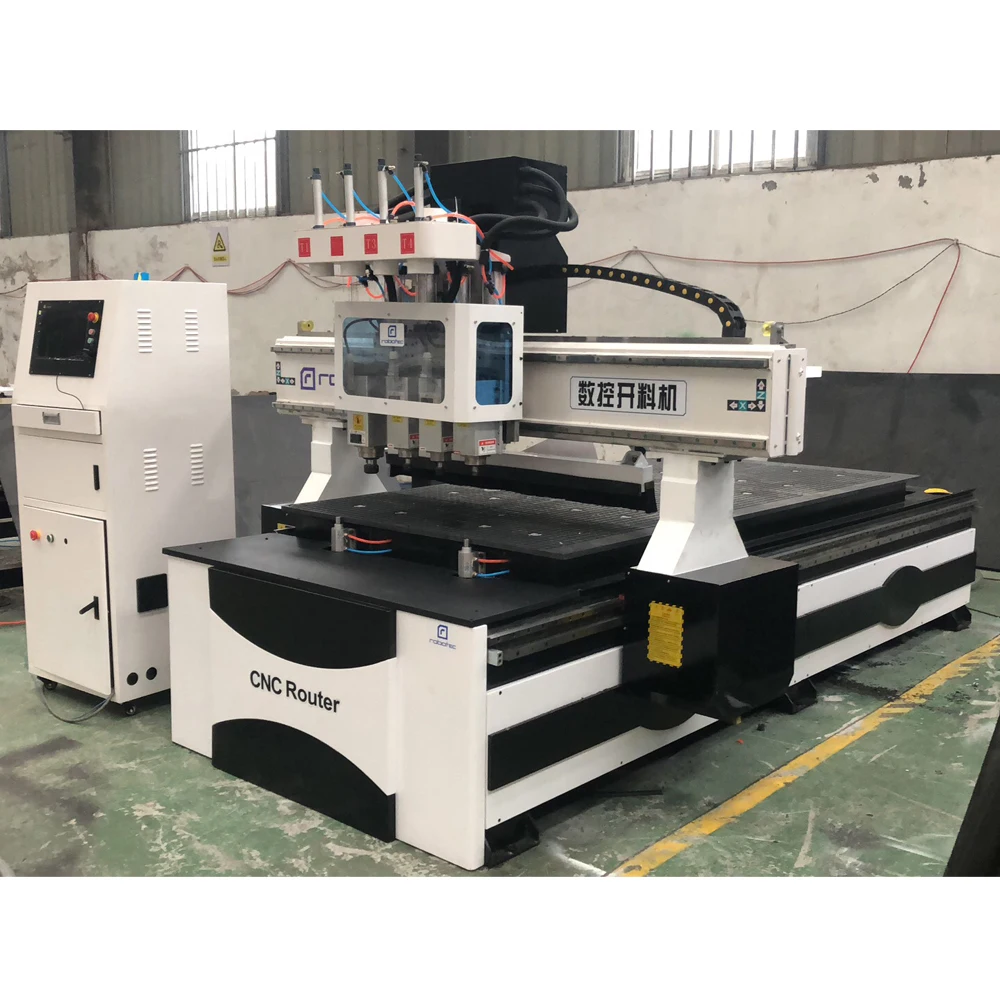

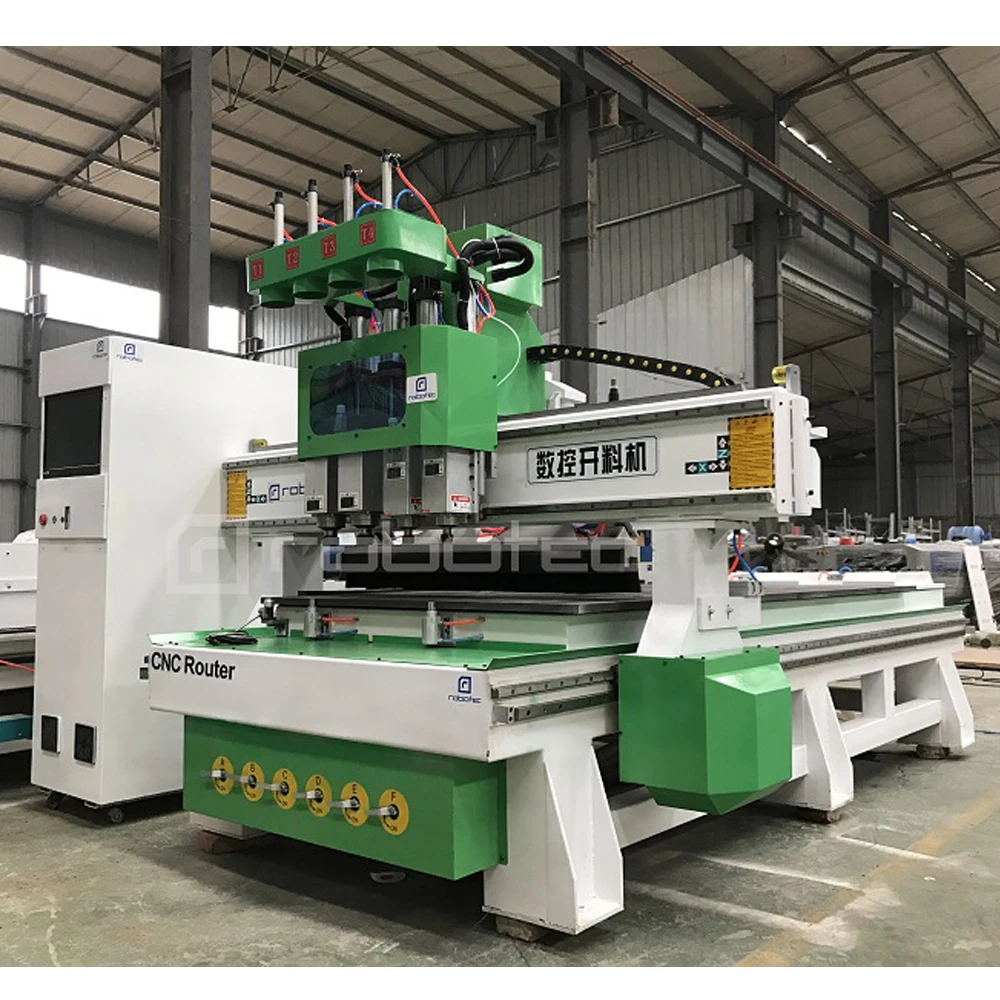

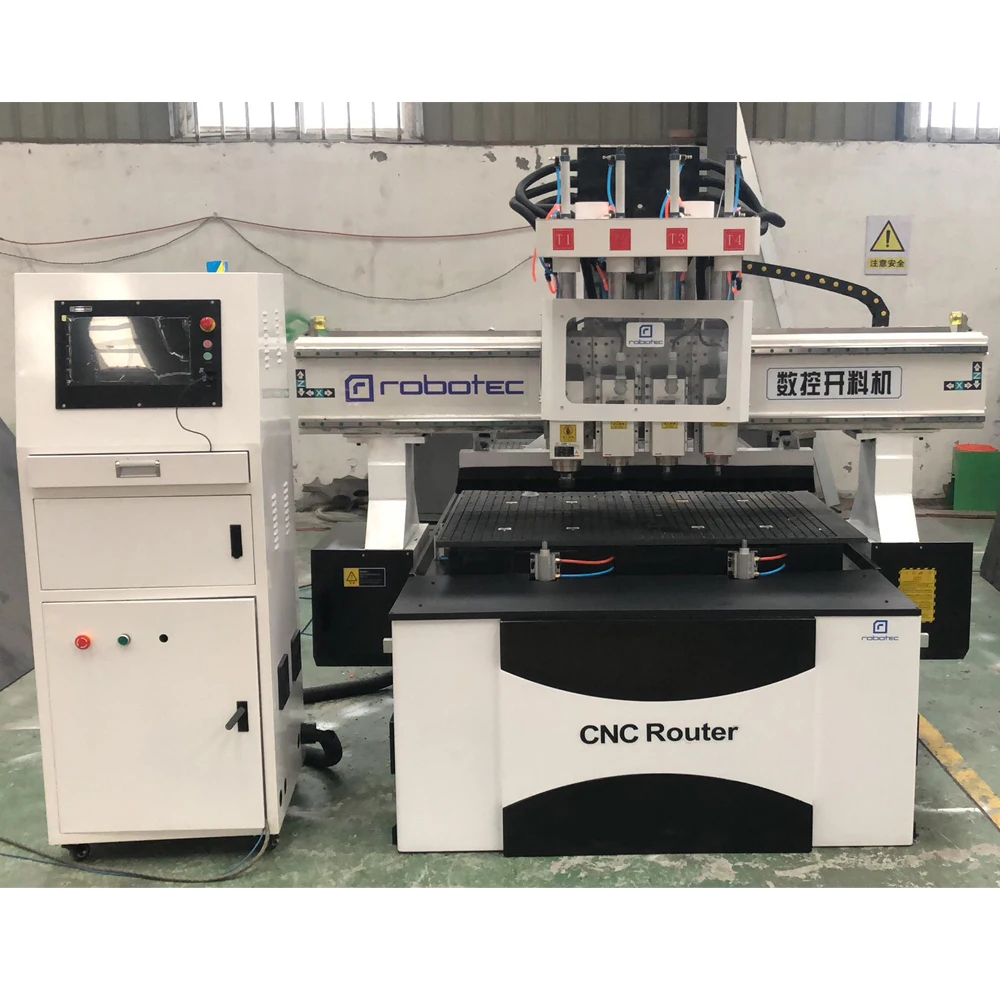

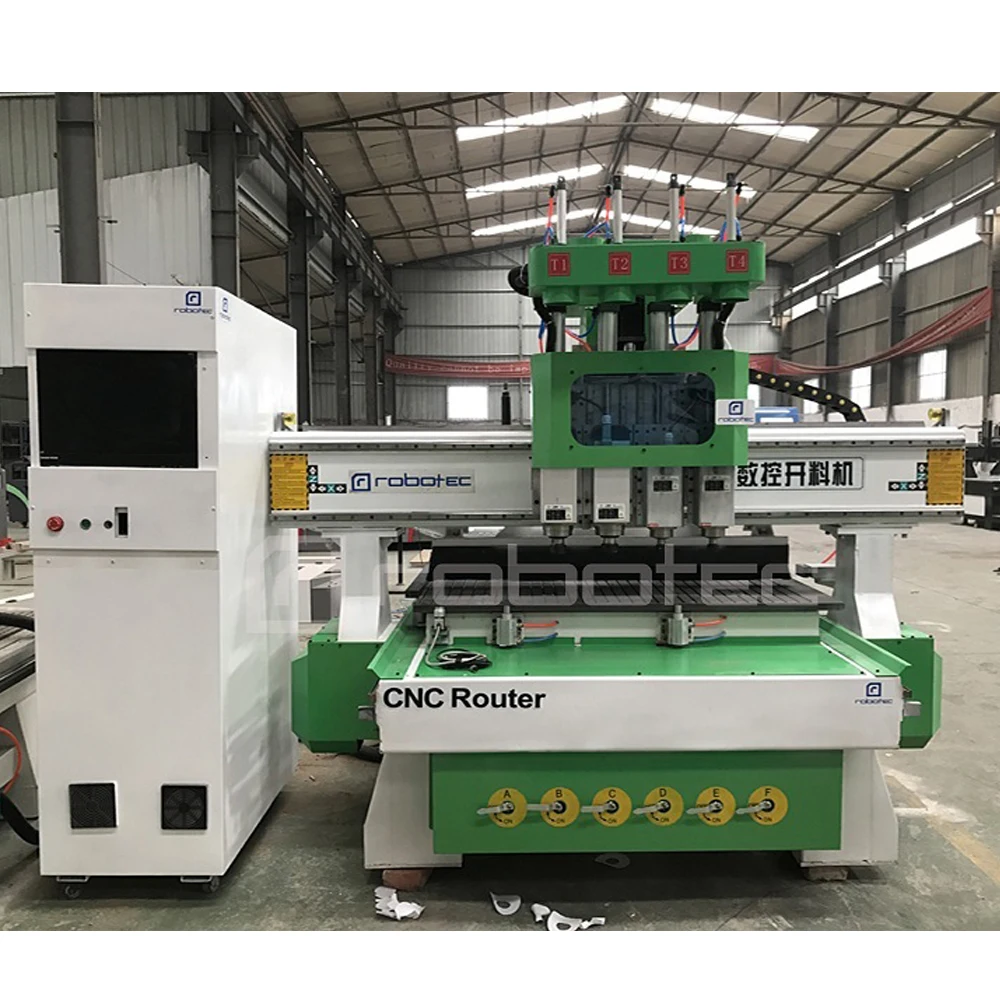

Auto tool changer wood cnc router pictures:

Auto tool changer wood cnc router description:

Model

RTM-1325-3

Working area (X*Y*Z)

1300*2500*200mm

Table size

1750*3050*1240mm

Body structure

Thicken steel made

X, Y Structure

Rack and pinion

rails

Taiwan 25 size hiwin square rails

Z Structure

Taiwan TBI ball screw

X, Y Resolution

<0.01mm

Max Moving Speed

60000mm/min

Max Engraving Speed

30000mm/min

X,Y,Z traveling positioning accuracy

±0.01mm

X,Y,Z repositioning accuracy

±0.01mm

Spindle power

3.0kw air cooling spindle

Spindle Speed

0-18,000rpm

Voltage

380v/3phase or as customer needed

Drive type

servo motors and drivers

Working  Dictate

G Code

Operating system

DSP/Nc-studio/Syntec

Tool sensor

Yes

Auto oil lubricator

Yes,included

Wire protect

Yes,included

Running Environment

Temperature: 0℃~45℃

package

Export wooden box

After packed size

3100*2200*1900mm

G.W

1500kgs

Auto tool changer wood cnc router parts:>>Auto tool changer wood cnc router Standard Configuration:

1)Syntec control system:Popular and easy operation, with USB port to transfer program;

2) Italian HSD Air-cooling Spindle:Long working life, easy maintenance;

3) Yaskawa Servo Driving Motor:With highly control precision and high speed, reliable and stable;

4) Taiwan Hiwin Guide and Block:Guaranteed genuine rail with good quality, realizing smooth movement;

5) Taiwan TBI ball screw:linear motion with high precision and and in high speed

6) Helical rack and pinion:quiet running, greater accuracy, smoother cutting and allows greater acceleration and feeding rates, longer lifetime because of smaller wearing force.

7) Taiwan Delta Inverter:Guarantee the variety working speed and protect the spindle very well;

Auto tool changer wood cnc router Features:

#Heavy duty machine body
#1300*2500*200mm XYZ effective working size
#Vacuum table with T-slot
#3.0kw air cooled spindle*3
#Fuling inverter
#Leadshine servo motor and driver, with break and gear reducer
#X Y axis Taiwan Hiwin square rail and bearings;TBI ball screw
# Z axis Taiwan Hiwin square rail and bearings; TBI ball screw
#DSP control system
#ATC tool sensor
#Dust collector with ATC spindle hood
#Schneider electric components
#Auto lubrication

Auto tool changer wood cnc router applicable materials:

>>Applicable Material:Acrylics, artificial stones, artificial marble, woods, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.

>>Applicable Industry:Woodworking industry, stone industry, advertising industry, artwork or decoration industry, electronica industry, mold industry and music industry etc.

Auto tool changer wood cnc router samples:

1.Service before order:our salesman will try to know more about your demands ,  including the max working size, main processing materials and the thickness , so we will offer you suit machine.

2.Service during production: we will send the production the machine pictures for customer in time , customer can know more the detailed machine parts.

3.Service before shipping: the machine parts will be installed and tested by our professional.

technician, send the test video according to customer’s processing materials for customer confirmations.

4.Service after shipping: we will check when the machine arrive your sea port or the approximate arrival date, so that the customer can know the arrival date and to prepare to pick the machine up

5.Service of training: the English manual and operating video will be sent to customers with the machine together, it will help customer how to operate the machine , it there is any question about the operation , we will have the professional technician to help them how to operate by online ,until the customer can use it freely.

6.Service of warranty: we guarantee the machine forTwo Years, some machine parts ( quality problems ) can be free charge to replace it within warranty.
