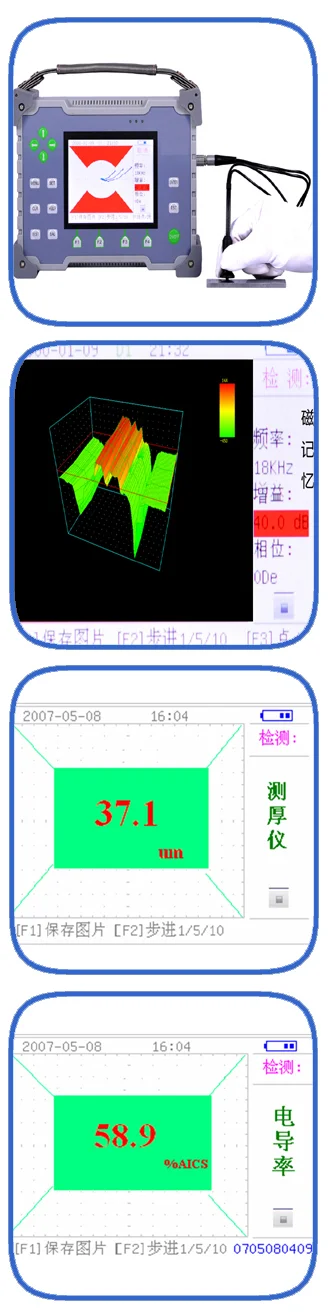

HUATEC Фазовый массивный дефектоскоп на основе электромагнитного контроля для проверки сварных конструкций и металлических трубопроводов HEF-4D.

HUATEC Фазовый массивный дефектоскоп на основе электромагнитного контроля для проверки сварных конструкций и металлических трубопроводов HEF-4D.

Unavailable in

HEF-4D相控阵超声波探伤仪,用于焊接钢铁管道检测和金属测试

产品描述

1)HEF-4D是HUATEC电磁产品家族的一个"加法",采用了世界上最先进的DSP和FPGA集成技术,大大提高了信号处理速度,检测准确率是同类产品的10倍.

2)  Suitable for almost all eddy current testing applications, but also effectively suppress interference signals, which not only has a conventional digital "dual" eddy current testing, also has a "magnetic memory, conductivity, thickness measurement" measurement functions, products widely used in military vulnerability assessment ( surface inspection blades, wheels, landing gear and other aircraft components); aircraft rivet holes or bolt holes in the surface crack detection hole without dismantling or removing fasteners state, the multilayer structure of the aircraft, and aluminum skin detection wing fuselage joints, the stress of the metal structure has a strong focus on early diagnosis function

3) HEF-4D Fool-style operation available., Without long time special training, we will be able to work posts.

Applications

Used in aerospace, aviation, special, higher education, metal parts, pipes, construction, weld, metal parts and other testing,

Technical Parameters

1) Large screen, high brightness 5.7-inch color TFT-LCD, to solve the shortcomings of traditional screen

2) Independent Detection Frequency:2 in total

3) Frequency Range:10 Hz~10 MHz,Step 1 Hz

4) Gain:0 dB~99 dB,Step 0.1 dB

5) Phase:0~359°,Step 1 Deg , flexible phase rotation

6) Intelligent Mixing Unit:1 in total

7) Lift-off height: 1--3mm, no need to hide the surface layer processing

8) Automatic Balance:Digital Electronic Balance

9) Phase / non-amplitude, box and fan boxes, alarm mode to meet your testing needs

10) Probe Driver:Vpp=1~8V,meet different probe structures, multi-function

11) Independent X and Y gain adjustment

12) Digital Filtering:HPF(0Hz~2000Hz),LPF(0Hz~2000Hz)

13) Capacity USB 2.0 (Host) output connection

14) Real-time signal preservation,playback,analysis,save and print:
       8G/24Hour

15) Center coordinates: X Y adjustable

16) Operating System:Linux 2.6   Operation Language:English/Chinese

17) Display Mode:Impedance, time base, rectangular coordinates, polar coordinates

18) Power Supply : 110V~220V, built-in rechargeable lithium battery 8000MAH

19) Online hotkey graphics, text help

20) Operating Temperature: -20° ~ 60°C

21) Standard system: Cartesian coordinates, polar coordinates

22) L X W X H :250 MM x 200 MM x 85 MM,Weight:2.0KG

Magnetic Memory Diagnostic Specifications :

1) Of Principle and a new method of diagnosis (21 century's most important detection method) --- MMM

2) Based on magnetic memory utilization due to the work load caused by stress concentration area of metal

3) This method belongs to the rapid detection method does not require the clean metal surface

4) Be having a stress concentration area of the test object and the most dangerous part of the work, so that "early" diagnosis and early warning, improve work efficiency and safety

5) Show mechanical stress concentration area - the main source of damage arising

6) Determination of stress concentration specific defect exists, and to assess their degree of danger

7) From horizontal metal structure began to measure the position of the future development of cracks, size and direction

8) The actual life assessment device

9) The measurement results using a computer to process information, and made with a special method and its corresponding systematic program to develop preventive measures to ensure the safe operation of the part being inspected

10)  Especially suitable for nuclear energy, electric power, petrochemical, aerospace, aviation and other sectors in the testing and stress testing and testing-service ferromagnetic metal parts of various pipelines, analysis and evaluation. Also used in boilers, petrochemical, pipeline pressure vessels, storage equipment testing

11) Measuring range :-500GT---+500GT

12) Detection speed :0.5-1m/s

13) Lift-off height :150mm

14) Minimum step :1mm

15) Gain :0 dB~99 dB,wide gain adjustment, increase the resolution

16) Display: waveforms, numeric, so you at a glance;

17) DSP digital filters: high-pass, low-pass frequency (0Hz ~ 2000Hz)

18) Fast digital electronic balance

19) Automatically clear impact "of the geomagnetic field

20) Alarm settings: Each channel independent non-amplitude size settings

21) Alarm sound: On / Off

22) 100 group testing process parameter storage

23) 10000 graphics storage, graphics can be saved as the U disk

Conductivity measurement technical data :

1) Testing method: eddy current method

2) Conductivity testing range :0.5%IACS-110.0%IACS (0.28-64.0Ms/m)

3) Display Unit :%IACS/MS/M both available

4) Resolution :0.1%IACS

5) List-off effect : Probe comp  0.004"(100um)

6) Accuracy :  ±1%IACS

7) Temperature:Built-in probe sensor with auto-compensation function

8) RAM:Above 10000 set of testing data could be saved

    Result could be auto-corrected to the value of 20°

Coating thickness measurement technical data :

1) Testing method: eddy current method

2) matrix: iron, non-ferrous

3) conductivity test range :0-1500μm (0-59.04mil)

4) display units: um mil convertible

5) resolution :1um

6) accuracy :  ±1um

7) data memory: the measurement data can be stored for more than 1000

8) Language: English

Additional features :

1) Scalable magnetic flux leakage inspection capabilities with eight channels

2) Scalable Array Eddy Current Testing

3) Scalable C-scan Eddy Current Testing

Standard configuration

1) Host :One set

2)  Probe: customized according to user-specific probes and structures different inspection requirements

College Standard: Print the probe through the probe, conductivity probe, thickness measuring probe, a magnetic memory probe

3) Probe cable: ONE

4) Charger: ONE

5) Battery: ONE

6) Test block: Optional

7) Instructions :ONE

8) Warranty Card : ONE

9) Product List : ONE
