AnjieloSmart Tuya New 7 Inch WiFi Smart IP Video Door Phone Intercom System with 2x720P Surveillance Camer Motion Detection |

AnjieloSmart Tuya New 7 Inch WiFi Smart IP Video Door Phone Intercom System with 2x720P Surveillance Camer Motion Detection |

Reminder: There are many product link options, and the outdoor doorbell cannot be used alone. It is recommended to order a complete set.

WiFi Smart IP Video Intercom System

This is a video intercom with wifi function that supports working with mobile phones,when visitor press the doorbell,your phone will receive the APP notification,it means you can use app to open the door,talk with visitor ,watch video and so on,when visitor press the doorbell,your phone will receive the APP notification.

Indoor Monitor:

♦ Resolution:1024(H)*3(RGB)*600(V)

♦ Calling Mode:Two-way Intercom

♦ Unlock:Monitor,smartphone and tablet unlock

♦ Memory:Micro SD Card (not include,64GB max.)

♦ Network: WIFI/RJ45 port

♦ Power Supply:External power DC12V

♦ Installation Way:Surface Mounting

♦ Motion Detection :YES

♦ System : Support 6 Indoor Monitor + 2 Call Panel + 2 Camera

♦ Language : English, Russian, Ukrainian, Polish, Arabic, Portuguese, Azerbaijani, Turkish, French, Spanish, German

♦ 7 inch LCD HD screen, resolution is 1024*600, this kit come with 720P/1.0MP HD outdoor camera. More clearer viewing.

♦ Customize ringtone and wallpaper.

♦ Point to point transfer call to any indoor monitor.

♦ Support play HD movie by indoor monitor.

♦ Maximum support connect with 2 outdoor call panels + AHD 2 cameras + 6 monitors in one system.

♦ Compatible with most models of CVBS or AHD doorbell, max 960P/1.3MP doorbell and camera input.

♦ Unlock door function.

♦ Motion detection without extra device (controlled by software).

♦ Call Panel and monitor volume could be adjusted.

♦ IR LED supply you clear night vision.

♦ Support Tuya smart / Smart Life APP remote control the door, view and record.

Excellent Performance

♦7"TFT Display, Plastic Case

♦Touch Button,MP4 Player, voice message supported

♦CVBS/AHD1.3MP input

♦Room to Room Intercom

♦Door Answering, Monitoring And Unlocking

♦Adjustable Color, Brightness and volume

♦Support External Max.32GB SD Card.

♦Customize Ringtone and wallpaprer

Clock & Date Mode

The latest software is the monitor standby time.If you not operated the monitor for 1 minute and the time will not displayed at the monitor. it can protect the life of the screen.

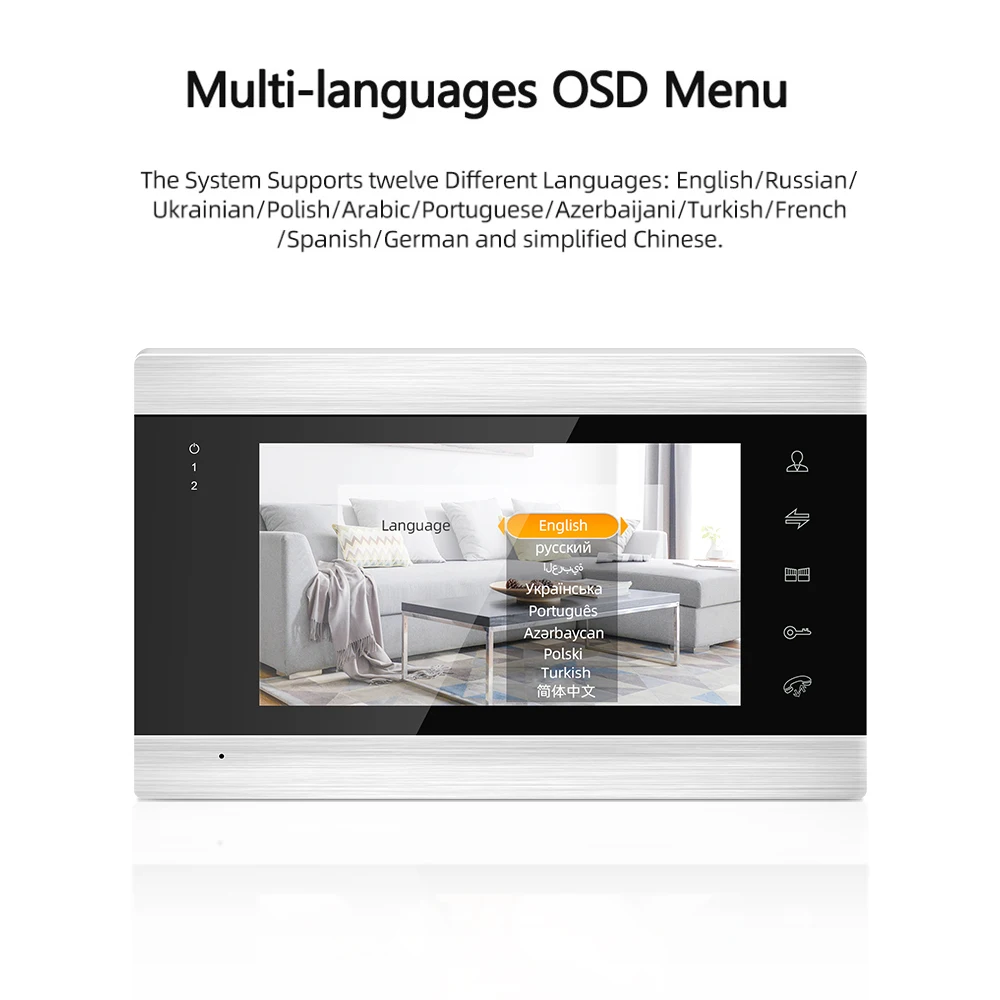

Multi-languages OSD Menu

The System Supports twelve Different Languages: English, Russian, Ukrainian, Polish, Arabic, Portuguese, Azerbaijani, Turkish, French, Spanish, German and simplified Chinese.

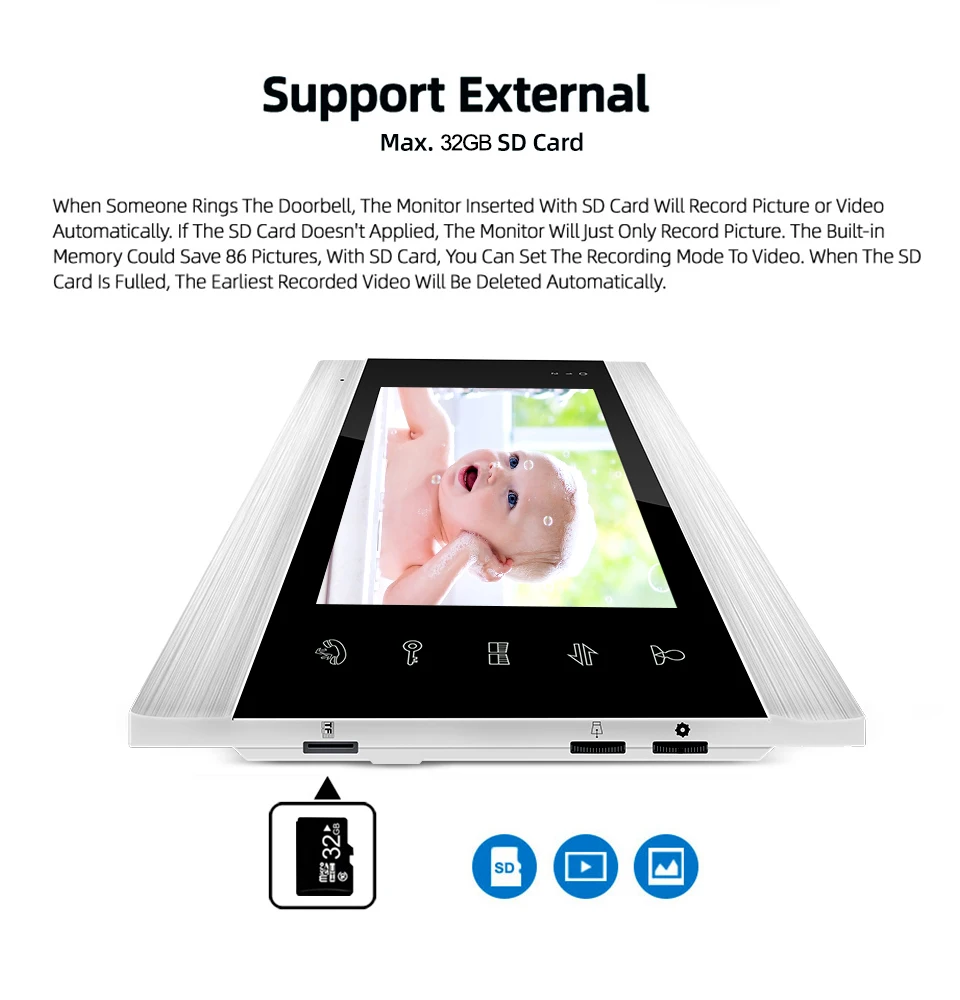

Video or Picture Record, SD Card Supported (Not Included)

When Someone Rings The Doorbell, The Monitor Inserted With SD Card Will Record Picture or Video Automatically. If The SD Card Doesn't Applied, The Monitor Will Just Only Record Picture. The Built-in Memory Could Save 86 Pictures, With SD Card, You Can Set The Recording Mode To Video. When The SD Card Is Fulled, The Earliest Recorded Video Will Be Deleted Automatically.

Built-in power supply and external power supply are optional

Outdoor Camera Doorbell :

Camera sensor:1/3" CMOS Lens

Image Sensor: 720P

Night Vision : IR light

Camera Lens: 3.6mm

Camera Angle: 92°

Installation: Surface mounting

Material: Zinc alloy +PMMA

Working Temperature: -20+60°

Size: Approx.12.7*5*4.4cm

Weight: Approach.234g

IR for Night-vision, allows you see color image at night

Most of video door phones in the market have night vision feature, but not intelligent. Some use infrared lights, you can only see black/white image at night(Not clear image); some use white light led, the lights will turn on once someone press the call button even at daytime(not humanized). This video door phone adopts a different design. The outdoor unit embeds in aintelligent IR sensor and 6 led lights, the IR sensor can control the leds according to illumination intensity.At night or at low light status, the 6 led lights will turn on automatically and allows you can still see color image at night. At daytime, the 6 led lights will not turn on. It is a brilliant design.

Waterproof and Dust-proof

The Outdoor doorbell is constructed with a metal front panel for protection from vandalism, while waterproofing protects from the rain or snow.With a rain proof cover to prevent the water and protect the outdoor camera from damage.

720P High Resolution

720P High Resolution,It can see more clearer than 1200TVL.

Ultra-clear sound characteristics

Excellent sound transmission system, clear microphone and speaker effects, away from noise, make ears more comfortable and make communication easier.

Remote Control

Enjoy security and convenience by Tuyasmart wifi wired video doorbell intercom system, Get mobile notifications when anyone presses the camera button on the door, Then answer the notification to see, hear, and speak to visitors from anywhere. Ultra-clear sound characteristics

Never Miss a Visitor

This IP video door phone system lets you answer your door by smartphone from anywhere.

Handsfree Dual-way Intercom

Communication between indoor monitor and outdoor camera is supported. Let you know easily what the visitor is talking about. When somebody call at outdoor, your monitor and smartphone will ring at the same time.

Support Electronic Lock, Analog Camera, PIR (All Not Included, if you need, contact us to buy)

Our 7" Video Door Phone Set Supports Connecting With PIR Detector, Analog Camera And Electronic Lock. It Can Protect Your Home And Property In All Aspects. Please Notes: PIR Installation Separately Can Be For Alarm Prompt only, Work With Camera Together Can Alarm And Video Recording.

Dual-way Intercom, Call Transfer Among Monitors

This Item Is Hands-free And Available For Dual-way Communication. It Supports Communication Between Indoor Monitor And Outdoor Camera, But Also Supports Communication Between Monitor And Monitor.

Adjust Lock Time, Compatible With All Electronic Lock (Not Included)

Support To Connect a Delay Function Electronic Lock To This System. With This Function, You Just Need To Press The Unlock Button On Monitor. Support Adjusting The Time Between Lock And Unlock. So, It Makes Your Home More Safety.

Motion Detection:

Built-in Motion Detection will trigger from 2 Camera and 1 Call panel at the same time and Auto take video , which is more effective for monitoring stangers from every angle. With morningtech, no need to buy extra PIR sensor, save small money, but earn big amount and safety home, You are worth it !

720P AHD CAMERA

Image Sensor: 1/4" CMOS with ICR Effective

Pixel: 1280(H)x720(V) or 1920(H)x1080(V)

Lens: Megapixel 3.6mm

Number of IR LEDs: 24 pcs, 5mm LEDs

Night Vision: 65ft(20m)

Minimum Illumination: 0 Lux(IR on)/0.1 Lux (IR off)

Working Environment: -20~+50, 10%~90%

Waterproof Level: IP66

Packing List

A Type

B Type

C Type

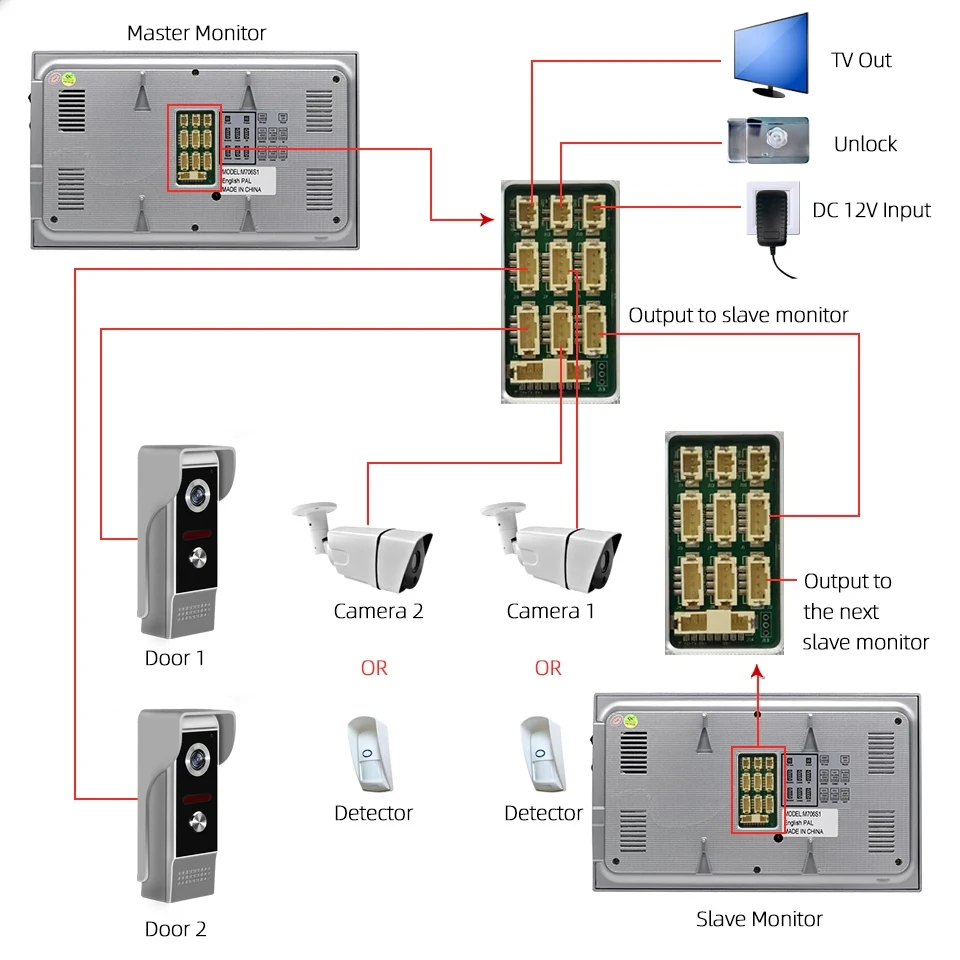

System Connection Wiring Diagram

Maximum support connect with 2 outdoor call panels + analog 2 cameras(or PIR detectors) + 6 monitors in one system. PIR sensor and CCTV camera installed to work together can alarm and video recording (Camera with individual power).
