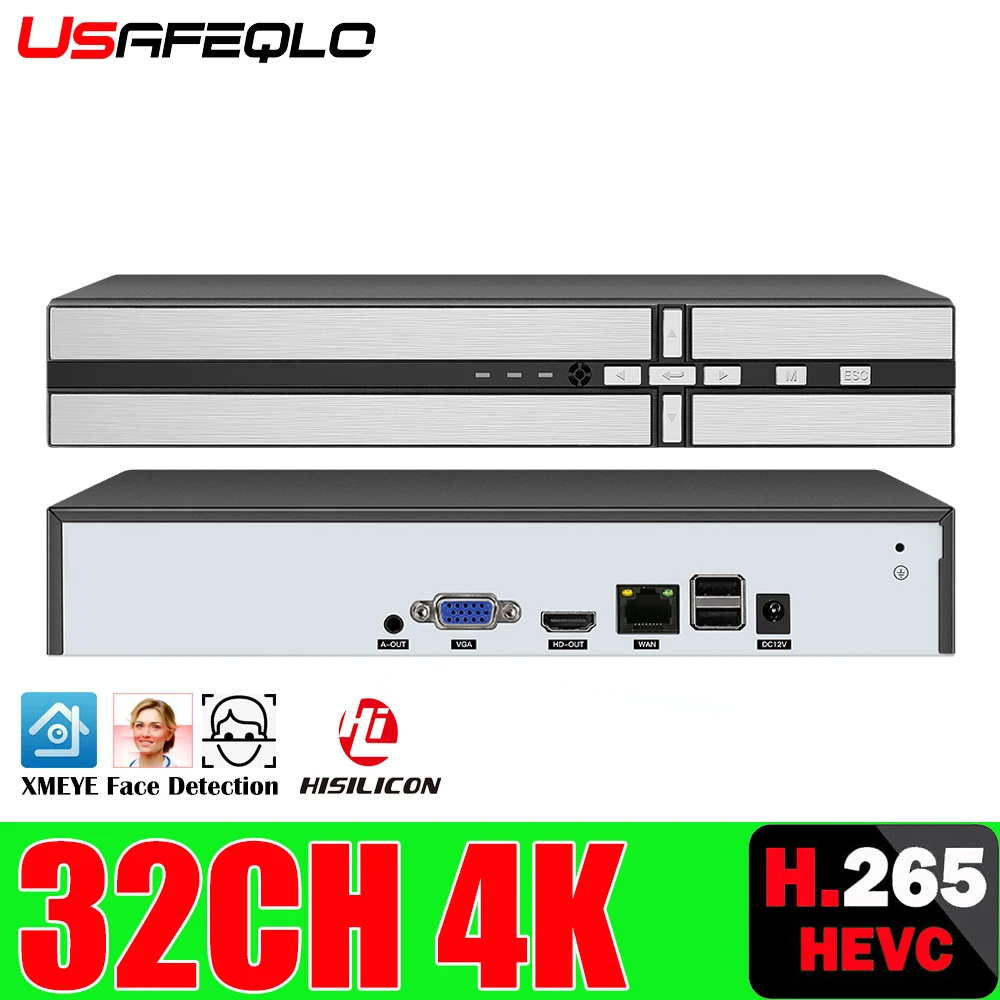

H.265 HEVC 9CH 10CH 16CH 32CH CCTV NVR for 8MP/5MP/4MP/3MP/2MP 2.0 IP Camera metal network video recorder P2P cctv system | Безопасность

SKU Means: 1. HDD question:
We recommend use the Newest HDD.
Use the security HDD will work more better.
PC HDD most can not work.
2.IP Camera 264 and 265 question:
This one only support the xmeye IP camera H.265,
if you use the dahua or hik camera, nvr will not match all of their cameras and not support h.265
3. VGA and HDMI question:
NVR have a defult display resolution,Your monitor must use the same resolution then will work first time. The second you can change the nvr output resolution as you need.

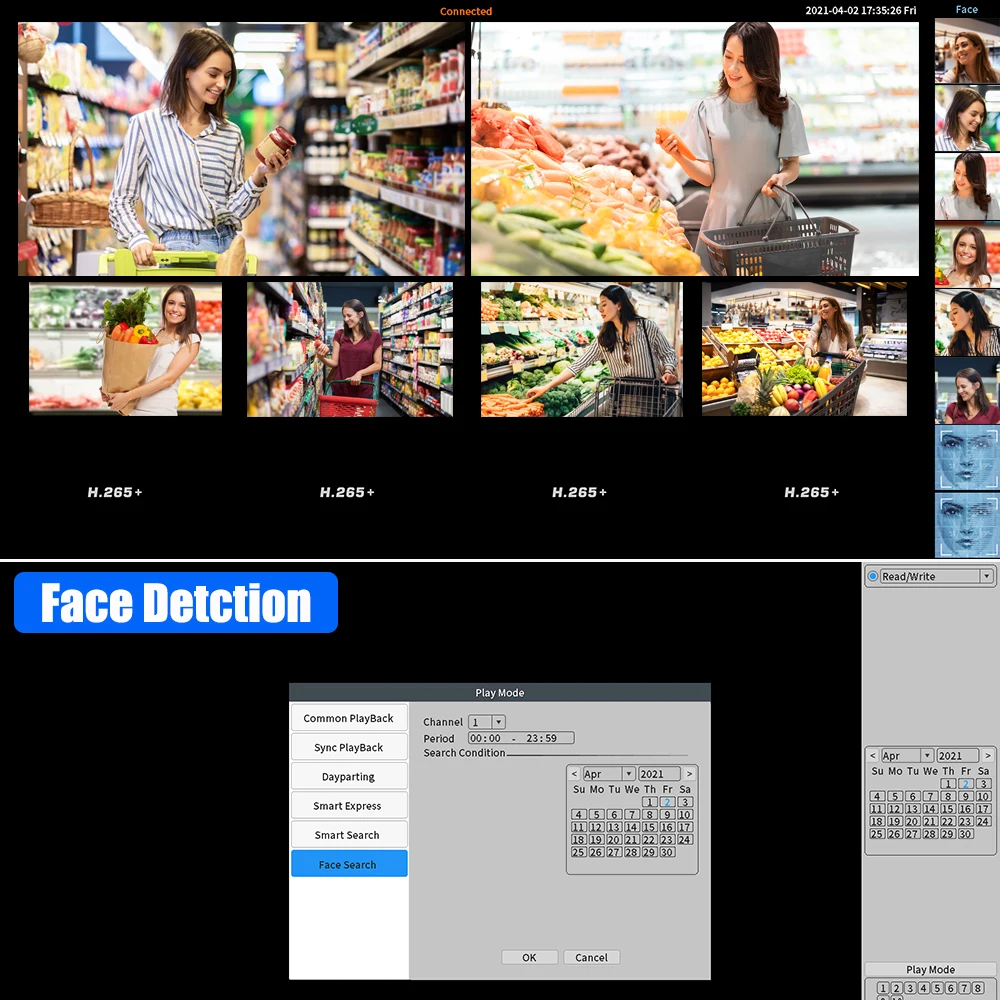

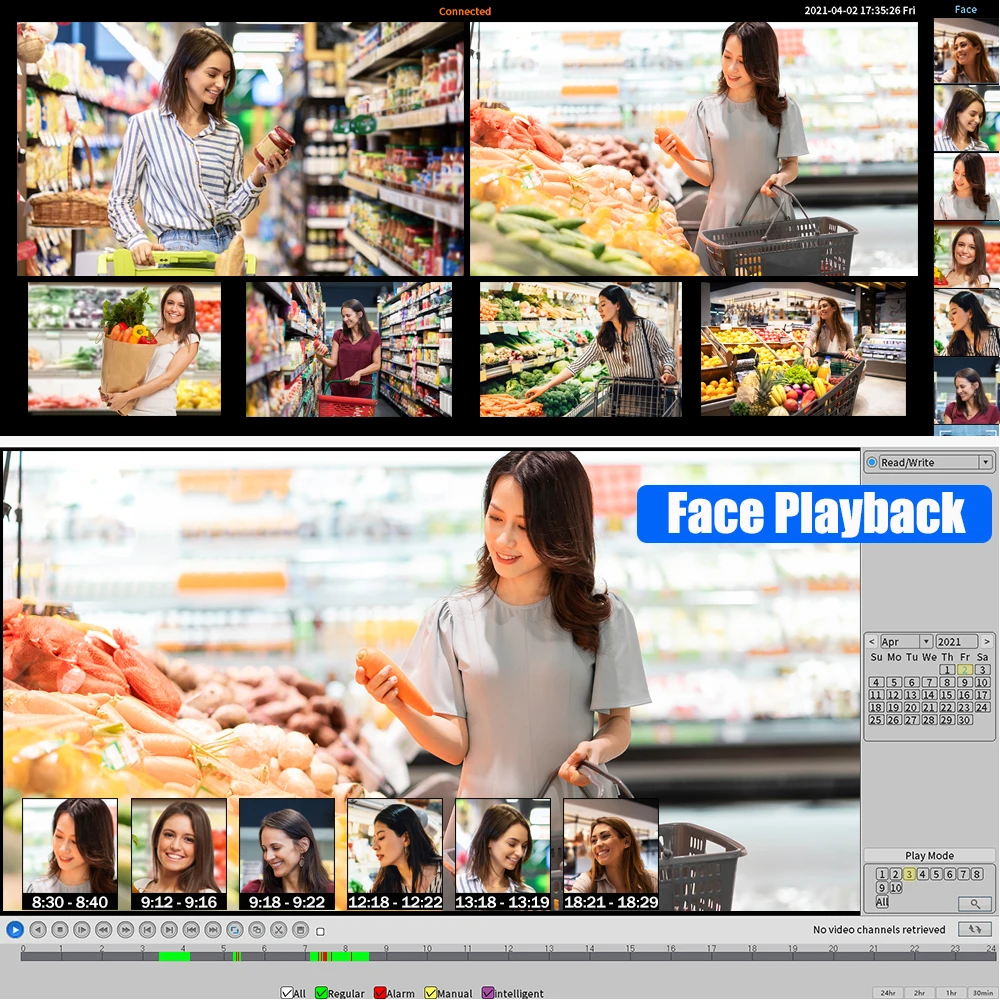

Face Record/Face Detection/Face Playback
Record every face that appears on the lens, without missing any details.
You need use the Face Detction Function IP CameraSupport the Face PlaybackSupport 4K IP CameraLangauages:
English,Russian,Italian,Portuguese,Spanish,French,Germany.,etc...
Total 28 languagesMotion Detection & Email Alert/Record
when motion is detected, the NVR can send email or start record to the hard disk without missing any important events.Max Support the 4K DisplayAdvanced H.265+ Video Compression
H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265+ video saves around 70% of the bit rate at the same quality of coding.Easy remote access Anytime anywhere
P2P technology supports remote access on the mobile device,Just intall the APP on your phone by scanning the QR cade or storing from the APP View the camera remotely anytime, any where. PC use the www.xmeye.net to visit the camera.3.5CH HDD SupportWe recommend the Seagate,WD purple,TOSHIBA.Product Information,Only support the Security HDDItem photo
iF you need the detailed manual, please offer your email address to seller.Description of applicable cameras

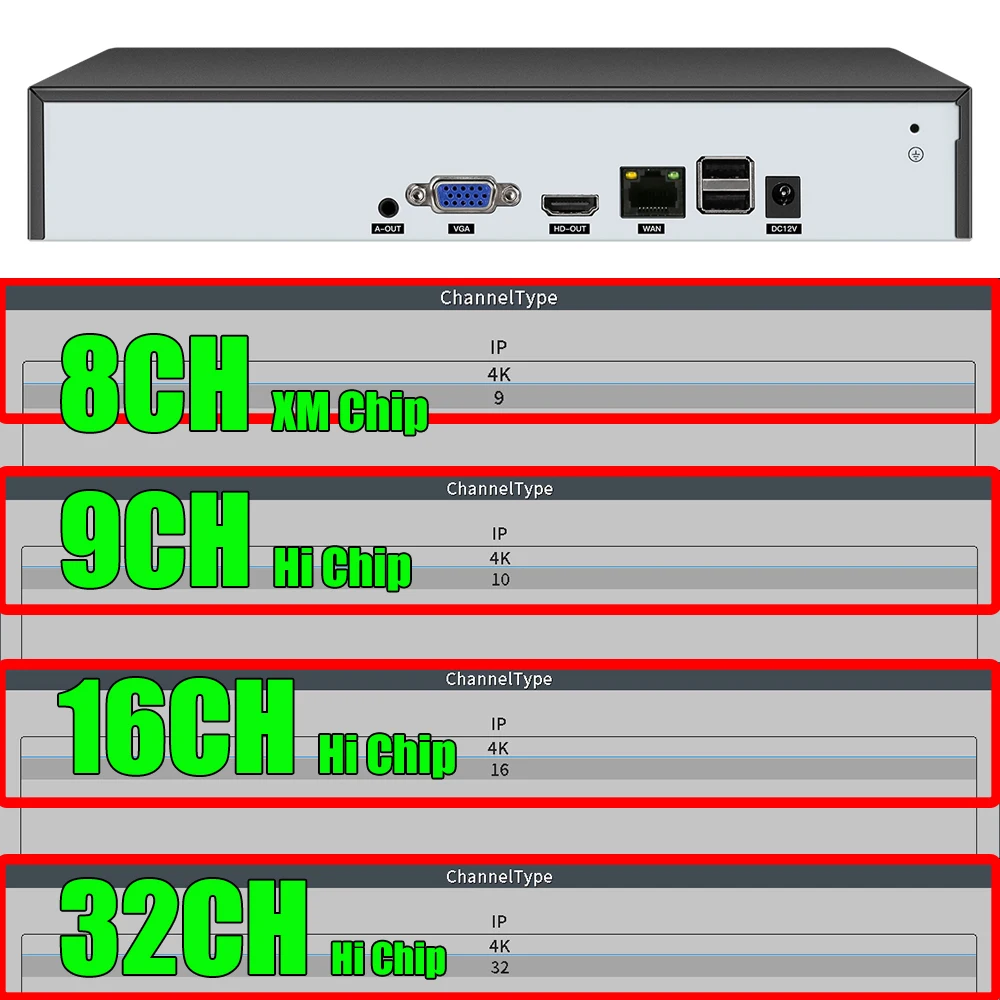

8CH XM Chip Support Max IP 4K/8MP
9CH Hisilicon Chip Support Max IP 4K/8MP
16CH Hisilicon or nova Chip Support Max IP 4K/8MP
32CH nova Chip Support Max IP 4K/8MPSupport 7601 Model Wifi Adapter
This link is not include wifi adapter, if you need, you can press the photo below to buy.
(Below main PCB is for this NVR)The latest technology,Simple and convenient connection, suitable for home, office, factory, school, shop.

1: We are the OEM factory, Label will not same all the time

2: 8CH SKU is the XM3536 chip,This new chip Operating temperature will be higher than Hi3536 chip,if you care about the temperature, please do not buy it

3: If item work well, not recommend update.

4: This one 8CH will be Metal Base for help Heat dissipation

Item Description: Model

32CH

16CH

10CH

9CH

Chip Brand

NOVA

Hisilicon or NOVA

Hisilicon

XM

System Compression Standard H.265++ OS Embedded Linux video Network Input 32CH 4K

16CH 4K

10CH 4K

9CH 4K

Output

MAX 3840x2160/2560x1440/1920x1080/1440x900/1280x1024/1024x768

Record Record Stream Dual stream recording Resolution Max 4K/ 5MP / 4MP / 3MP / 1080P / 960P / 720P Mode Manual, timer, motion, Alarm Playback Simultaneous Playback Max 4K Search time / event / tag search Alarm Mode Motion detection Triggering Record, e-mail, FTP Network Interface RJ45 10 / 100Mbps times 1 Protocol PPPoE, DHCP,NTP, SMTP.,etc Web Client Multiple users online Mobile Device

iPhone, Andriod mobile XMeye APP HDD Storage

SATA times 1, max 8T per HDD (HDD is optional) Backup Local Backup U disk, USB mobile HDD Network Backup Yes Port RS485 No USB USB 2.0 times 2 Others Power Supply DC12V 2A Consumption le 5W ( without HDD ) Dimensions(mm 260 times 225 times 50 ( W times D times H) Work Environment -10 ～ 50 deg,10% ～ 90% humidity

Win10 Style:

Aliexpress Free return service:

Our item is support this aliexpress Free return service, Means no matter what problem you get, you can use this service to make free return the item and full refund.

Item damage, item looks bad, item use bad or just not like it, All reasons will support This way.

And Please make sure the package is well, then send it free with the same package.

Becasue of the airport new rules, We make the following adjustments: 1: For Warehouse items. This item send from warehouse will include the CR2032 battery. 2: All the orders we will try to send with battery first, if the shipper baked the item, we will send again without battery. 3: We have the item with battery shipping for choose, if you can only accept with battery. You must contact seller how much cost should add to your country then make the order. 4: We will not accept any dispute just because the item received without battery. 5: This battery is for the DVR,NVR time display, without battery, the monitor will not show time on the right up.
