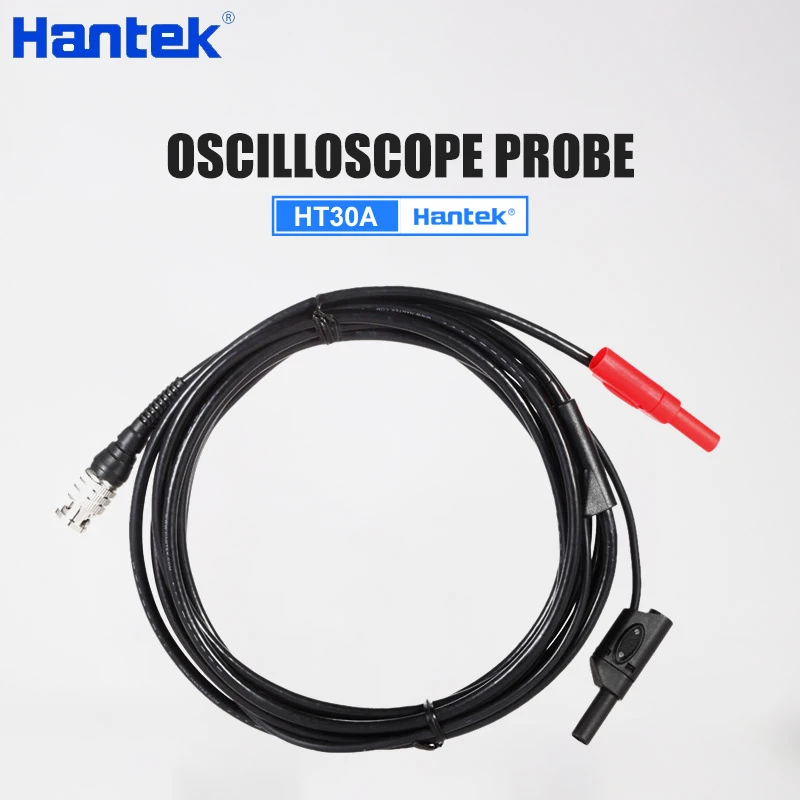

Hantek oscilloscope probe HT30A Dual Head Adapter Cable Test Leads 3M Professional Multifunctional Automotive

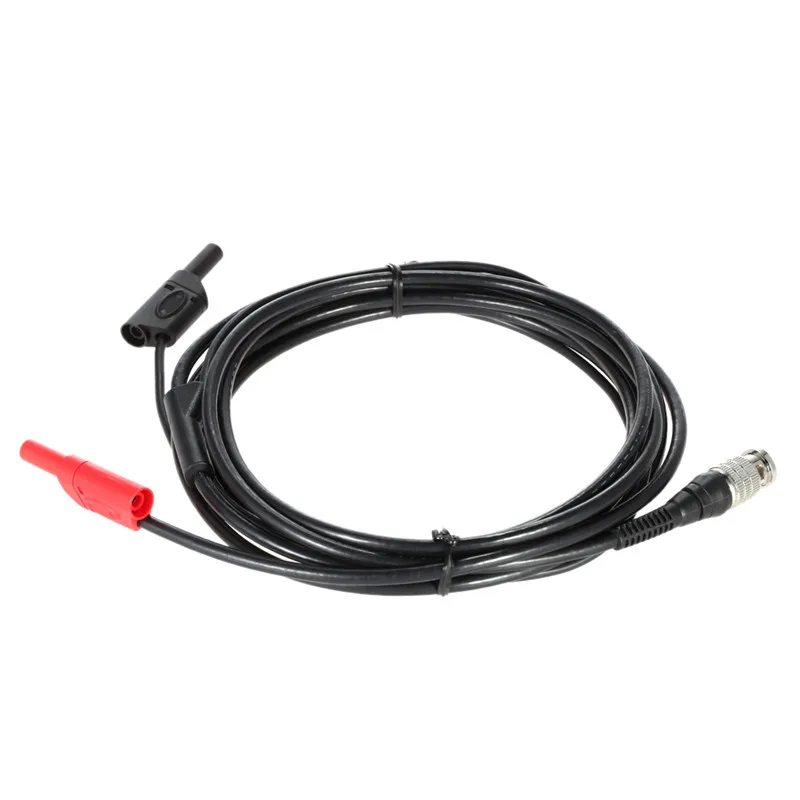

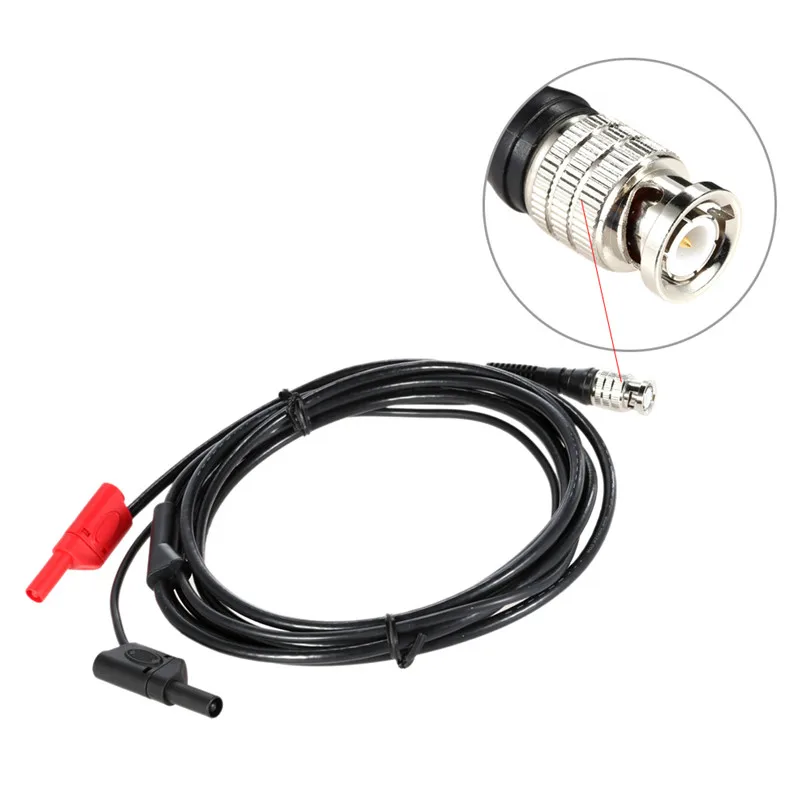

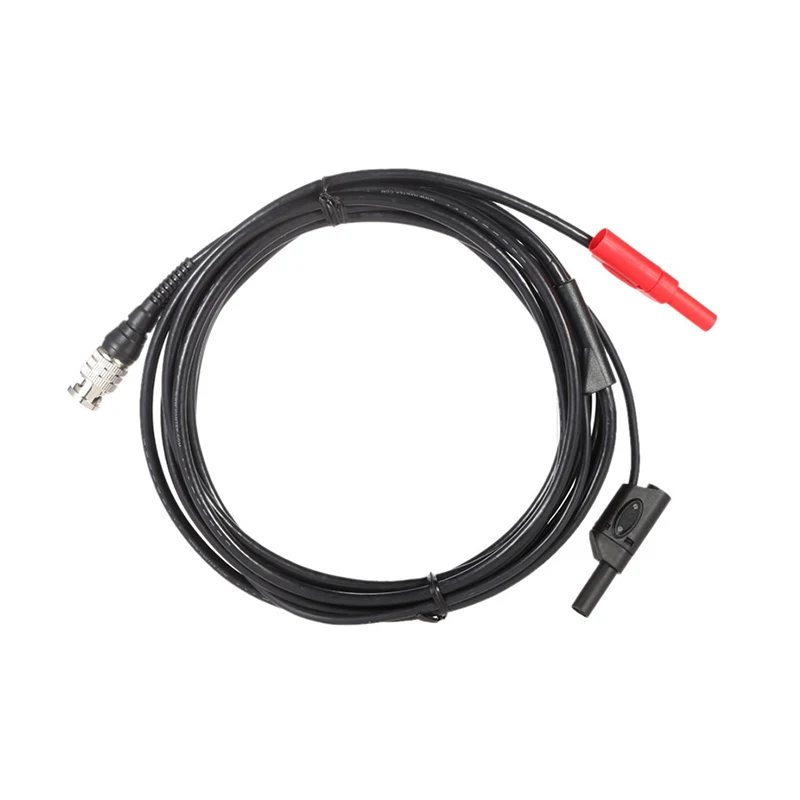

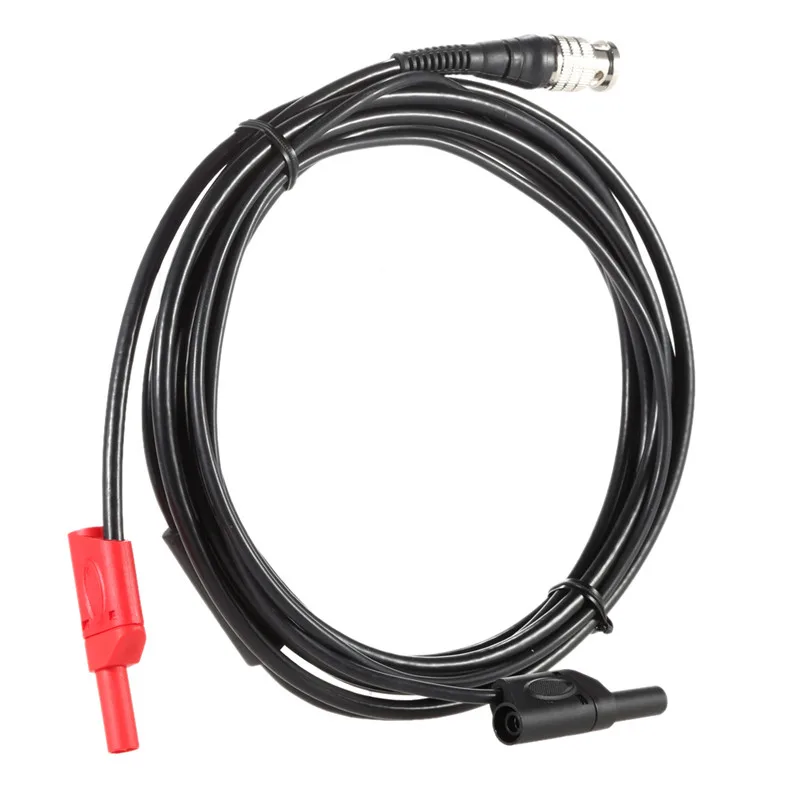

Test lead of a male BNC connector to (2) 4mm connectors. It's a special line for assisting automobile measurement instruments to test various types of signals. 4mm connectors are coded in two colors, black and red. Lead length is about 3 meter.

Features:

The auto test cable (HT30A) is a kind of special line for assisting automobile measurement instruments to test various types of signals.
High quality and professional high voltage auto test lead.
It's about 3 meter in length allows the oscilloscope to be placed on the work bench away from the car being tested or repaired.
It consists of wide range probes, clips, gators can be plugged into the 4 mm connectors at the end of the cable.
It adopts full shield which can help reduce the noise interference.

Note:

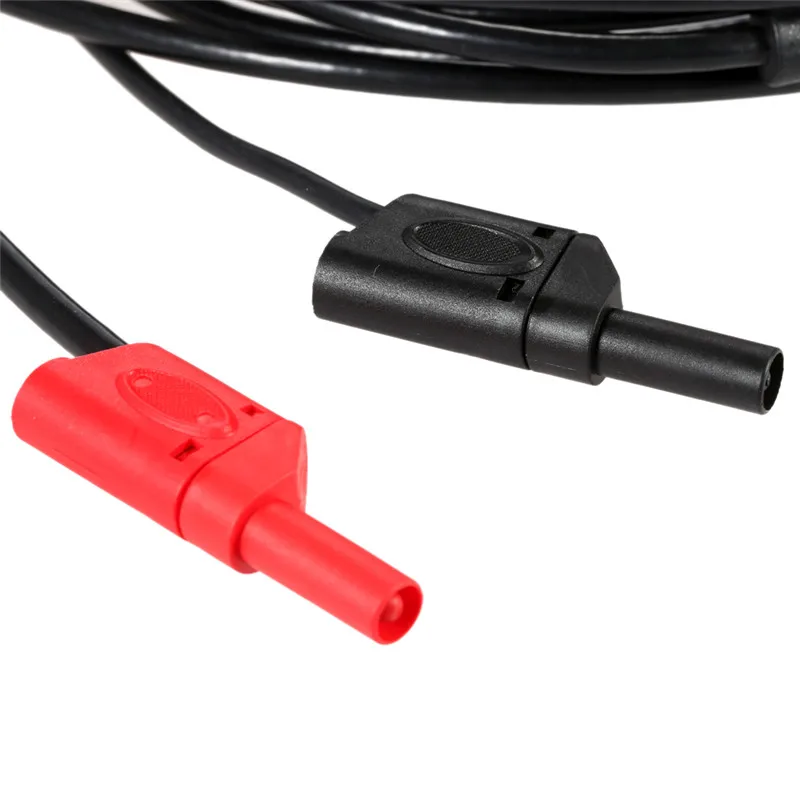

To avoide the lines twisting together, the two pieces of lines with connectors are not the same in length.
The short line is earth wire, and the long line is positive pole which should be connected with the auto engine cable, which also can cooperate with a 20:1 attenuator.

Specifications:

Probe Quantity: 1 pc
Peak Attenuation Ratio: 10000:1
Input Resistance: 50Ω
Length: Approx. 2.9m / 9.5ft
Item Weight: 148.5g / 5.2oz
Package Size: 24.5 * 17.5 * 3cm / 9.6 * 6.9 * 1.2in
Package Weight: 154g / 5.4oz

Package List:

1 * Auto Test Lead
