Lower Control Arm+Subframe Brace Fit For 92-95 Honda Civic 94-01Acura Integra | Engine

Description

Title:   Lower Control Arm+Subframe Brace Fit For 92-95 Honda Civic 94-01Acura Integra     Application:     Fit For 92-95 Honda Civic.
Fit  For 93-97 Honda Del Sol.
Fit  For 94-01 Acura Integra (Except Type-R)   Description:   100% quality assurance tested, more responsive, less expensive, easier to install.

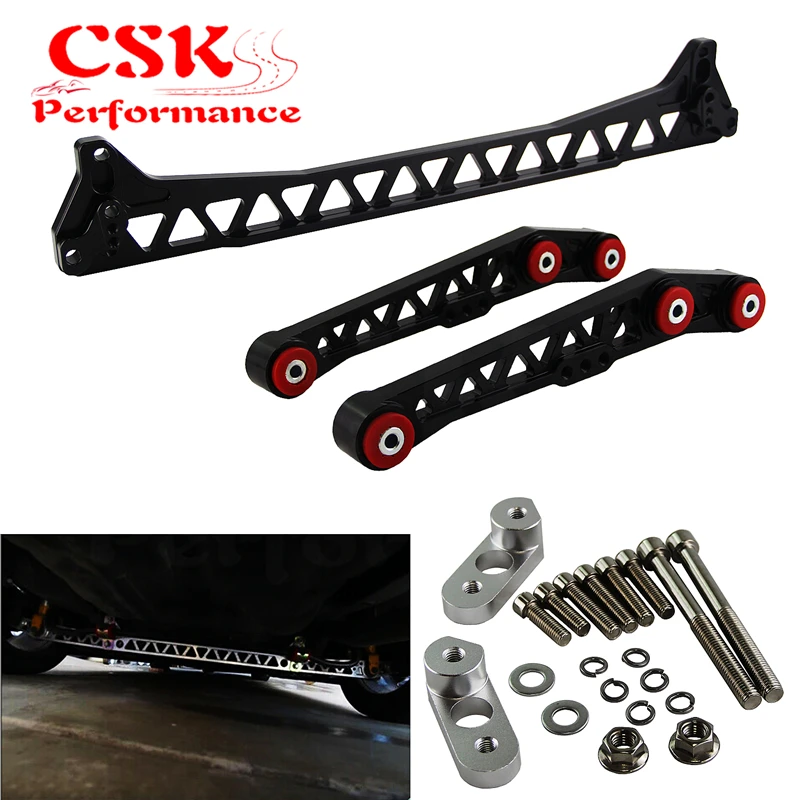

Lower subframe brace and control arms kit reinforces the rear cross member of the car chassis, treated for corrosion resistance.
Design for the extremes of racing use, improve handling and steering response.
Modular style allows individual component replacement and bushing rebuilds simple.
One-piece, direct bolt-on designed brace provides the maximum rigidity with the minimum weight.

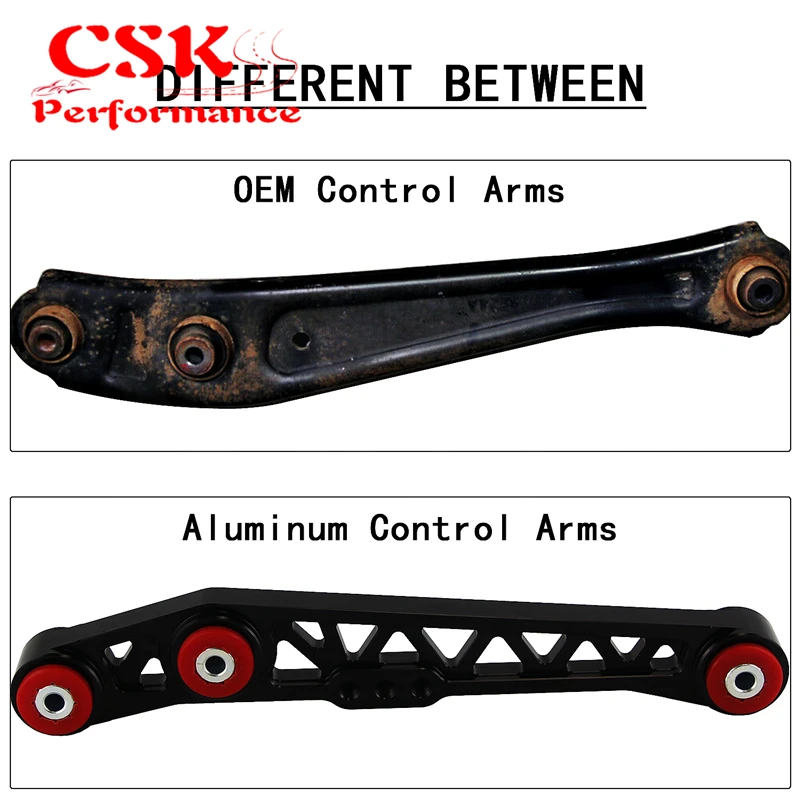

Entrapment-type bushings on arms do not require set screws which cause undue stress points. Aluminum bushing inserts prevent rust related issues found on stock ones.
3 sway-bar mount points can add adjustability of factory and aftermarket sway bars.
Each arm and brace is individually serialized & bar coded for quality control and trackability.     Color:Silver   Include:Same as the pictures

Installation Steps:
Remove the tires. Install new arms by three 14mm bolts. Can loosen bolts a little.
Bolt backing plate to the back of bracket. Install new brace.
Tighten every bolt when arm and brace position is adjusted well. Install the tires.

Note
No installation guides are included, we highly recommend to seek professional installation. Any damage during installation will not be refunded.







---
