DZ30LE leakage protective breaker,  leakage protective breaker  (phase wire+neutral wire+leakage+overload voltage)protective breaker is used in the single phase residence circuit of AC 50HZ/60HZ, rated voltage 220V, used as electron shock protection. It can protect civil electron circuit from over load and short-circuit. This product has advantages of small volume, high breaking capacity zero, and live wires are cutted off at the same time, also protecting person from electric shock when the livewire connected opposite.

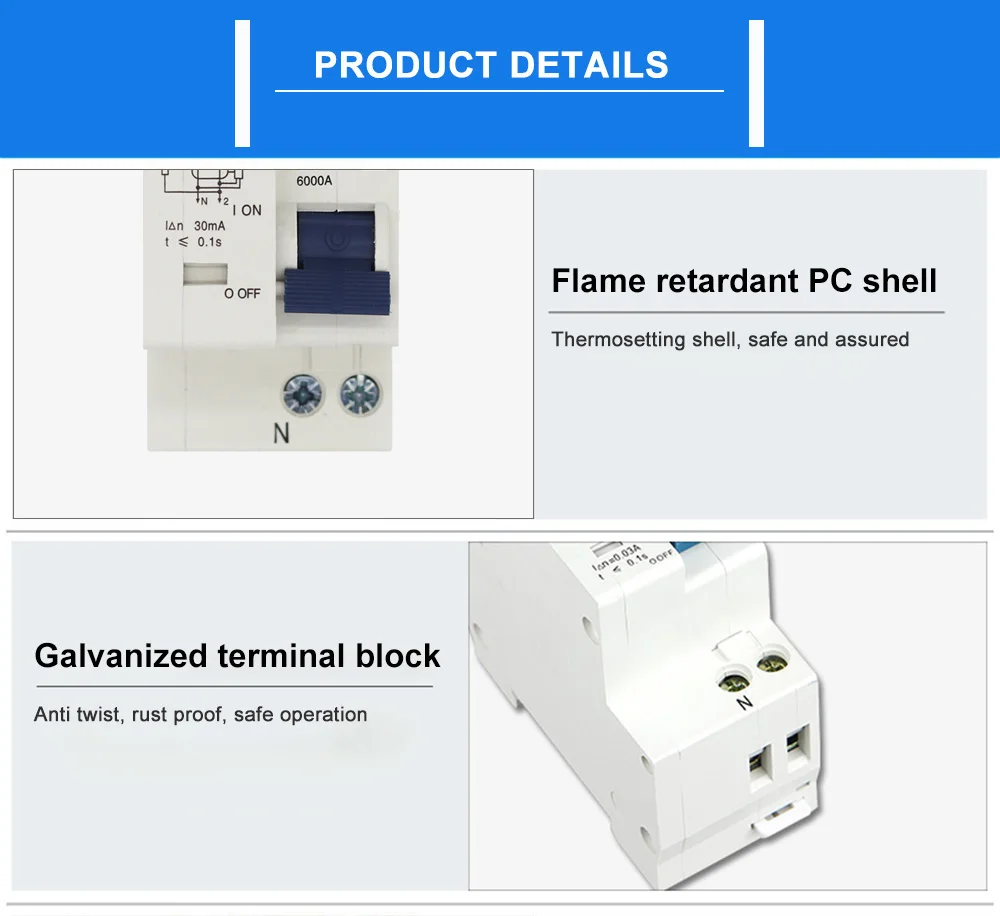

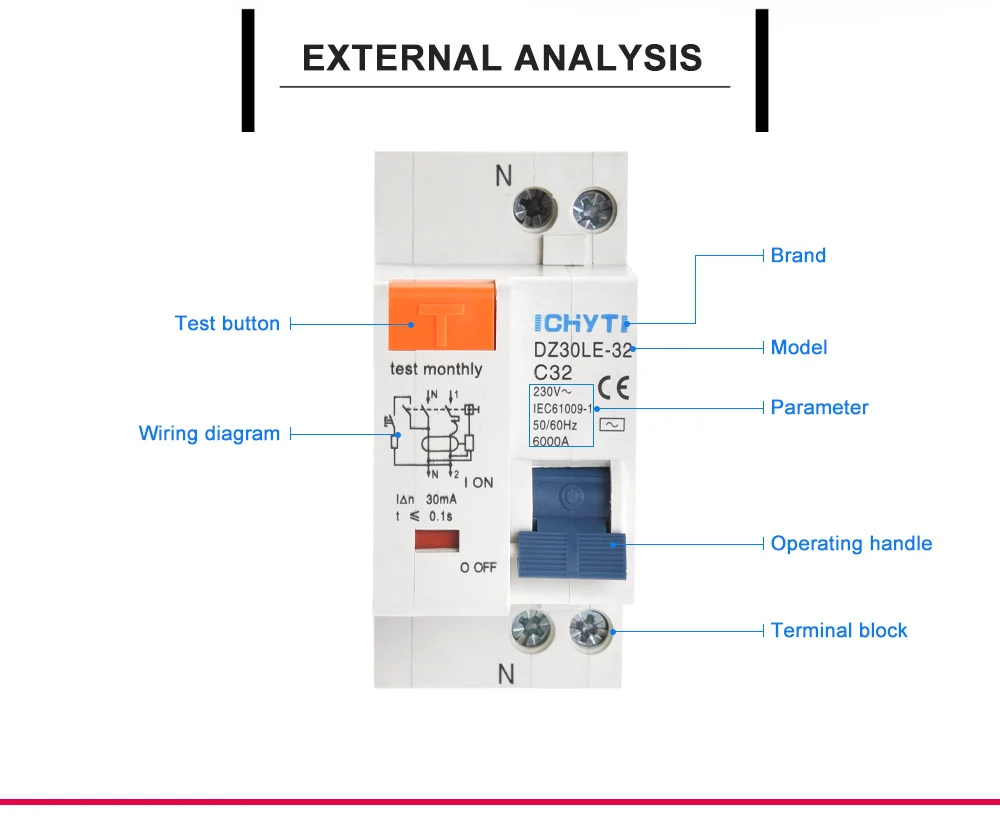

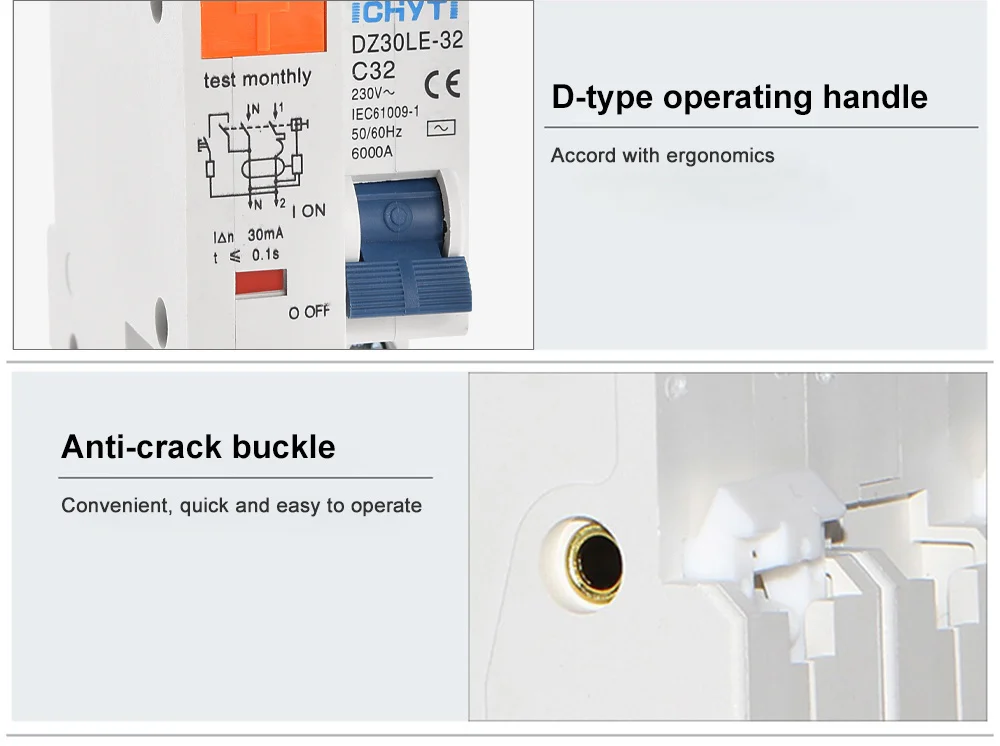

1.The indicator window will turn to red when the RCBO trip off by earth leakage.

2.The indicator window won't turn to red by switching on the handle.

3.Residual current type: AC type.

4.This product conforms to IEC61009.

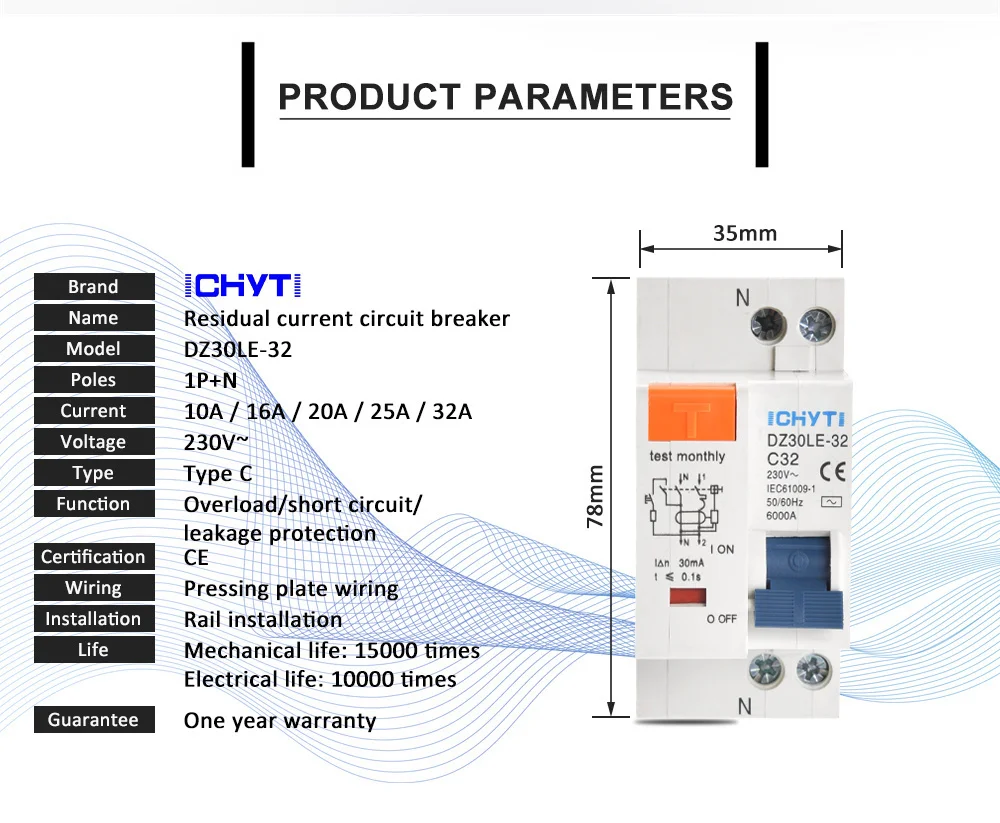

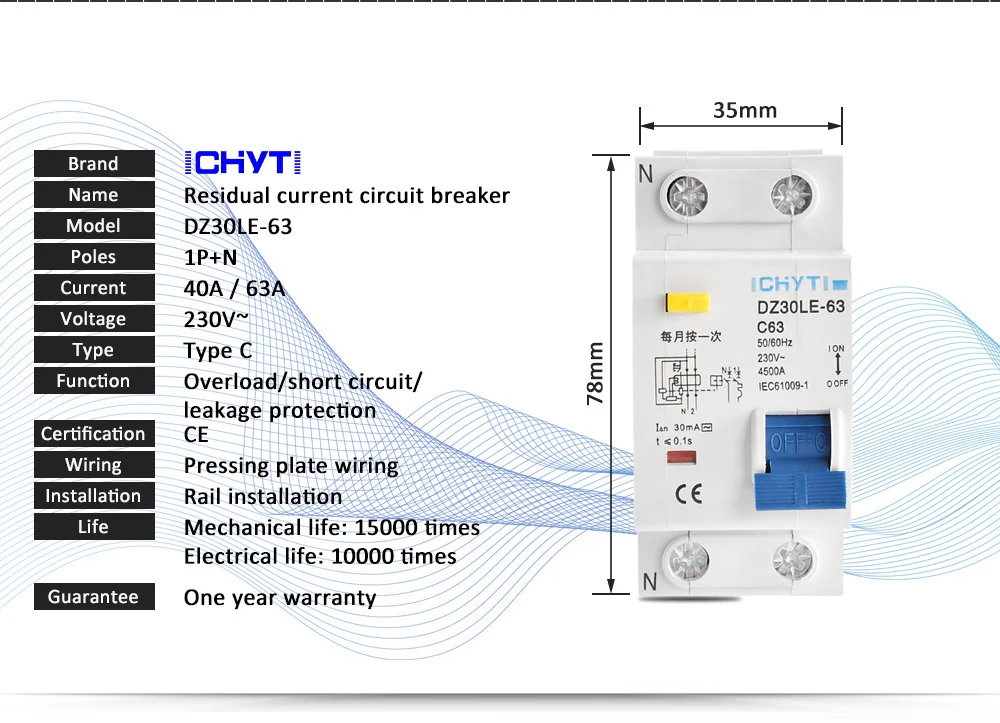

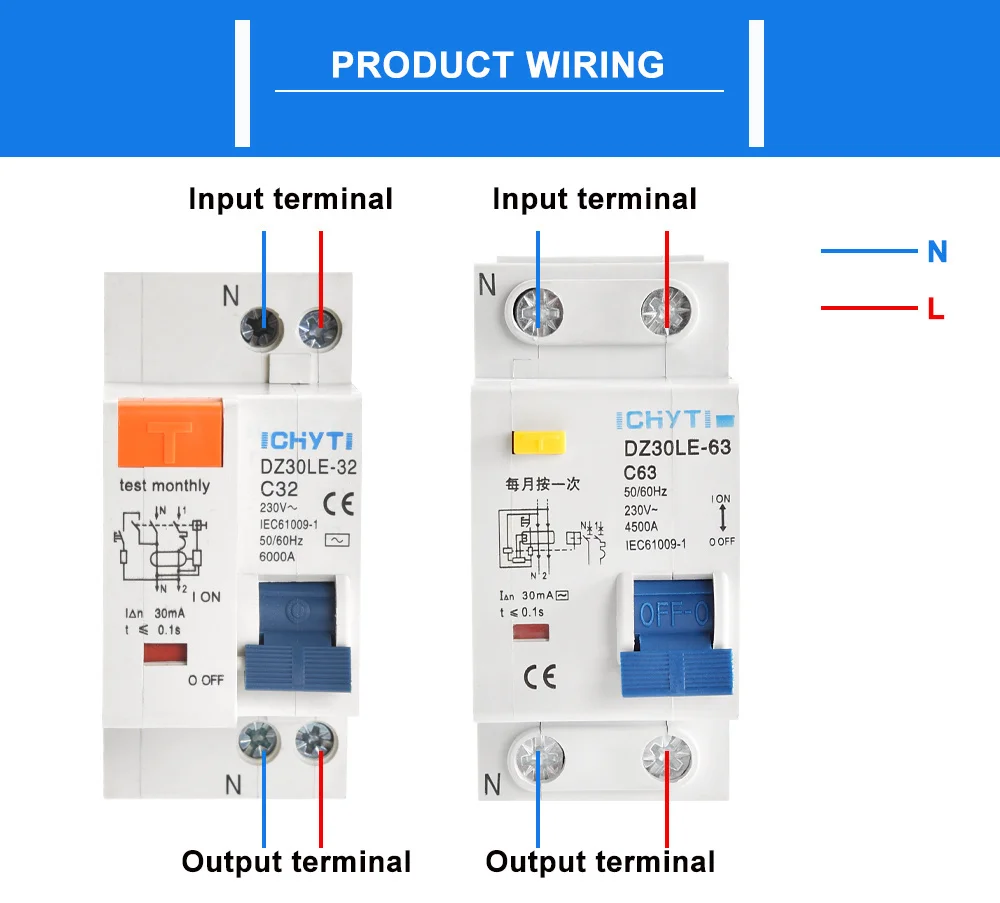

Product Model

DZ30LE-32

DZ30LE-63

Pole

1P+N

Rated Current (A)

10, 16, 20, 25, 32

40, 63

Rated Residual Operating Current(mA)

30

Rated Residual Non-operating Current (mA)

15

Rated Voltage (V)

230

Residual Current Off-time

≤0.1S

Short Circuit Capacity(lcu)

6000A

4500A

Testing Current (A)

Rated Voltage ( V )

Limited Time

Pre-engage Result

Start Situation

Note

1.13In

all

t≥1h

non-trip

cold state

The current rise steadily to a fixed value within 5s

1.45In

all

t<1h

trip

heat state

2.55In

all

1s<t<60s

trip

cole state

Open the supplementary switch , connect the power

5In

all

t≥0.1s

non-trip

cold state

10In

all

t<0.1s

trip

cole state
