Модуль передатчика беспроводной зарядки Qi мощностью 15W/20W с быстрой зарядкой на 5V и 12V, с печатной платой PCBA и катушкой для зарядки телефона в автомобиле.

DescriptionFeatures:
1: The temperature during charging is 5-10℃ lower than similar solutions
2: Built-in MCU and charging management IC chip
3: Wiring is simple to use
4: Product certification: CE/FCC/RoHS
5: Safe fast charge with 6 protections, over current protection, over voltage protection, over temperature protection, over power protection, under voltage protection, short circuit protection

Purchase instructions Wireless charging = transmitter + receiver
1. The mobile phone "has" wireless charging function: if your mobile phone has wireless charging function, or you have purchased the "receiving terminal"
Then just buy the "transmitter (base)" to charge.
2. The mobile phone "does not have" wireless charging function: if your mobile phone does not have a "receiving end (coil patch)", then you have to buy it "Transmitting terminal + receiving terminal" can be charged.

Parameter:
Input power: Type-C port: 5v/9V/12V or QC3.0; welding wire: 8V-13.5V
Transmission distance: Spacer (O-8mm), Max: 10mm / Spacer (0-10mm), Max: 14mm
Charging power: 5W/7.5W/1oW/15W/20W automatic identification

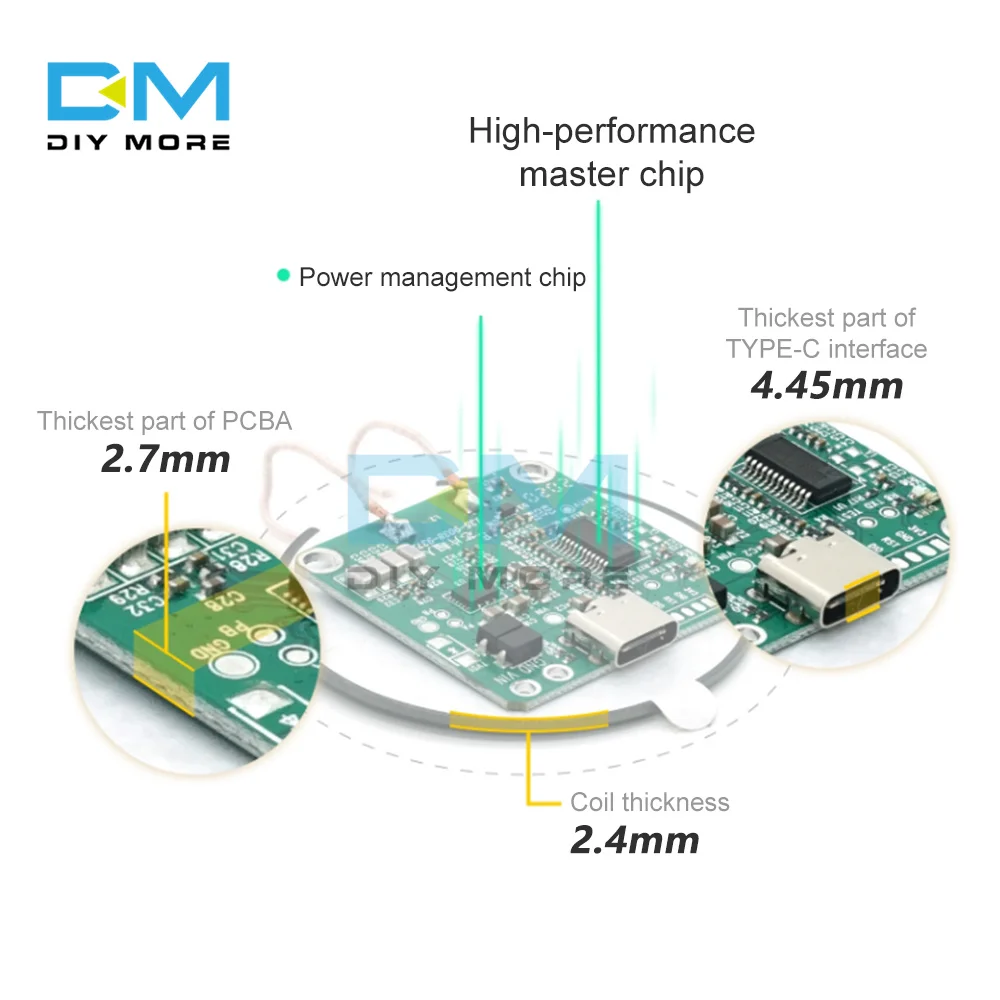

Coil size: diameter 50mm; thickness 2.2mm
Circuit board size: 35mm*35mm; thickness 3.1mm
Executive standard: Qi wireless charging standard
Product certification: CE/FCC/RoHS

(Note: If there is no wireless charging function, the receiver needs to be added) Support 5W charging

Package Included:
1* Wireless fast charging module

---
