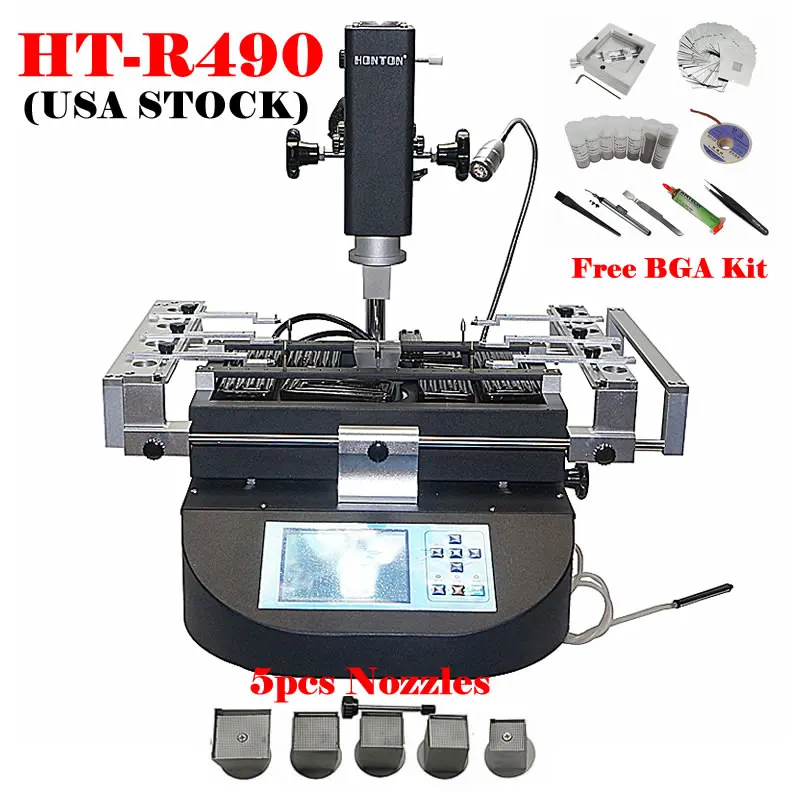

HT-R490 Hot Air Heating 3 Zones BGA Rework Soldering Station Lead Free Welding Machine for Laptop Mobile Phone Repairing Kit

Basic Parameters

Heating

HR

Dimension

L580mmx W560mmx H650mm

Weight

28kg

Total weight

About 35 kg, vary with the differen need of the users

Electrical Parameters

Power

220V AC

Upper Heating

HR

Size of upper (IR)

---------------

Consumption of upper (IR)

---------------

Nozzle of upper(HR)

4pcs: 19x19,29x29,34x34,37x37 mm

Consumption of upper (HR)

800W

Bottom Heating

HR

Nozzle of bottom(HR)

1 pcs: 50x50 mm

Consumption of bottom (HR)

800W

Bottom Preheat

IR

Consumption of preheat (IR)

2400W

General power

4KW

Temperature Control

Control mode of Upper

Independent temperature control, high-precision closed-loop control,
precision ± 0.5%, Alarm

Control mode of Bottom

Independent temperature control, high-precision closed-loop control,
precision ± 0.5%, NO Alarm

Rework Function

SMD

Suit for welding, remove or repair packaged devices
such as BGA,PBGA,CSP,multi-layer substrates, EMI
metallic shield product and solder/lead free Reworkwelding

Size of applicable chips

≤80mm x80 mm

Size of applicable PCB

MIN 10mm*10mmMAX 350mm*400mm

1X bga rework station

5X nozzles: 4 pcs top(19,29,34,37mm) and 1 pcs bottom(50mm);

6X pcb jig (with screw)

1X vacuum pen

1X k-type thermocouple

1X socket head wrench

1X Computer Cable

1X CD of manual and software (if not get, may be lost in customs, please contact us)

1pcs X 90mm reballing station

1set X 10 PCS 90mm stencils universal

7pcs X 25k solder balls (0.3/0.4/0.5/0.55/0.6/0.65/0.76mm)

1pcs X suction line

1pcs X brush

1pcs X vacuum pen

1pcs X scraper

1pcs X 223 10cc Flux

1pcs X Tweezers

10pcs X 90mm stencils universal Details:

0.30mm Universal

0.35mm Universal

0.40mm Universal

0.45mm Universal

0.50mm Universal

0.55mm Universal

0.60mm 0.9 Universal

0.60mm 1.0 Universal

0.60mm Universal

0.76mm Universal

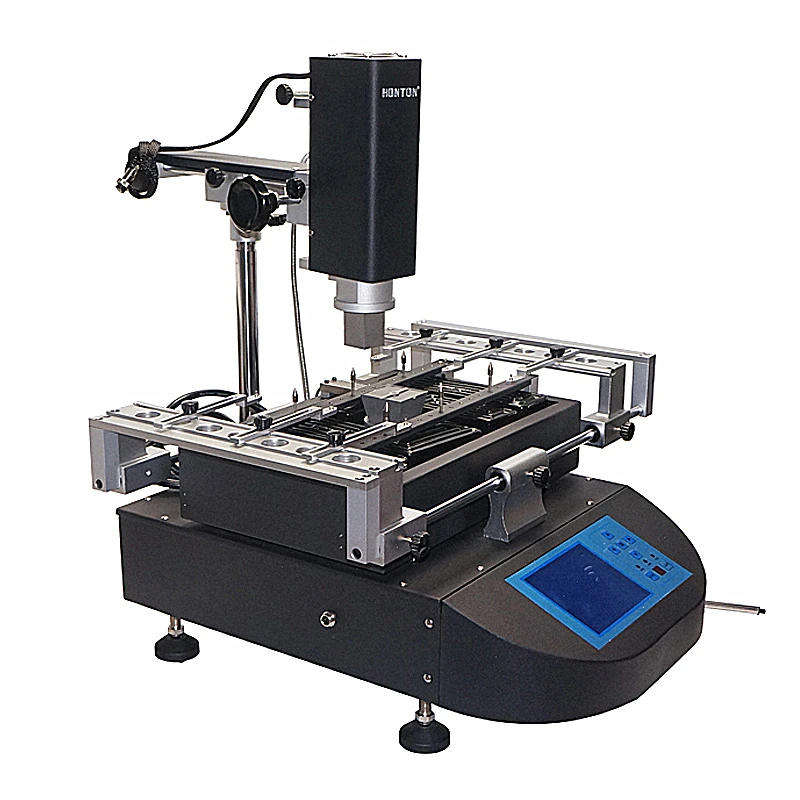

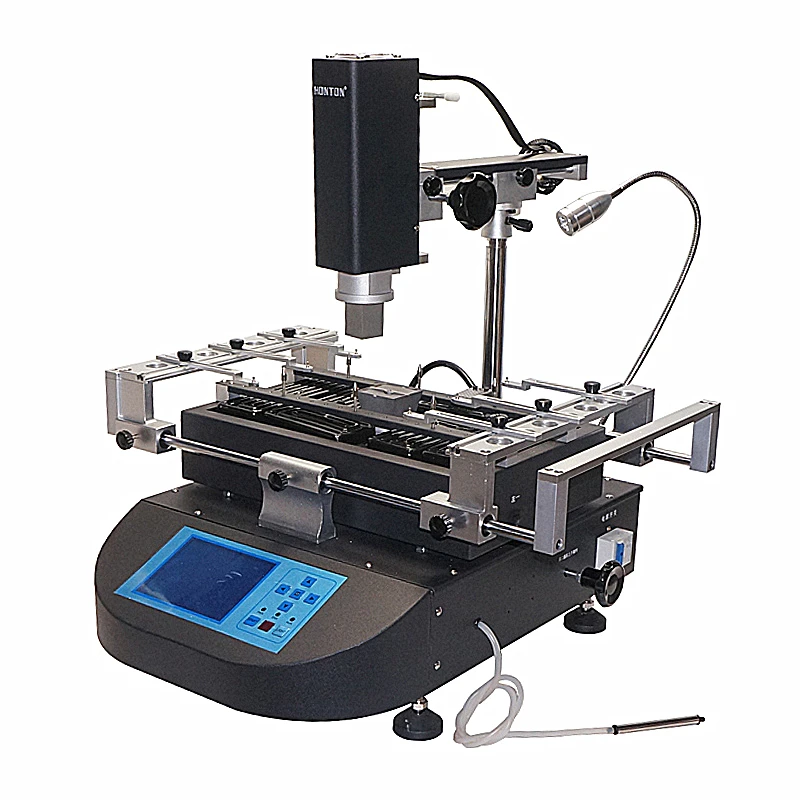

1: head heater limit rod. (To prevent head heater crushed PCB)

2: head heater. (Temperature zone)

3: the head heater adjust the handle up and down. (Adjustable up and down position)

4: LED lights. (Increase the brightness of the work area)

5: head heater, hot air nozzle. (Can be replaced according to different chip size)

6: infrared heating panels warm-up area. (Third zone)

7: PCB clamping bracket. (Fixed PCB board with a holding device)

8: PCB clamping bracket locking screw. (Tighten the right side of the PCB clamping bracket)

9: The display and control buttons. (Show and set parameters)

10: the upper heater, locking handle and move around.

11: the upper part of the heater cable

12: the lower part of the heater and wind mouth. (Second temperature)

13: shaped plate fixture and tighten the screws.

14: shaped plate fixture. (Clamping irregular PCB, such as notebook panels)

15: plywood jig and move around to tighten the screws
