Electric bicycle battery Datasheet

Model

DTB SS014

Chemistry

Li-ion

Nominal Voltage

48V

Nominal Capacity

17.5Ah-21Ah use brand new power 18650 cells

Weight

Approx  4.3KG-4.9KG

Outer case

Silver fish

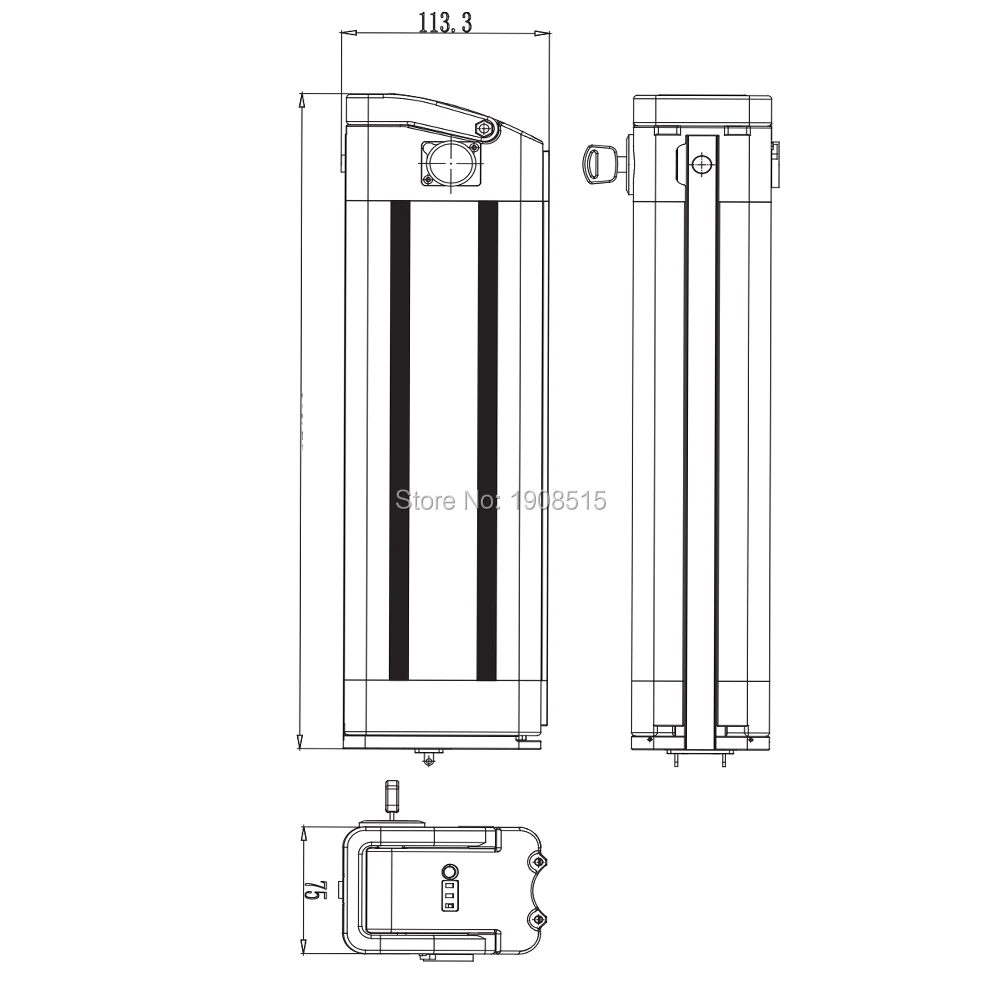

Dimension

75*110*388mm

Standard Charge

Constant Current 0.2C, Constant Voltage 54.6V 100mA Cut-off

Fast Charge

Constant Current 0.5CA, Constant Voltage 54.6V 100mA Cut-off

Standard Discharge

Constant Current 0.2C/End Voltage 39V

Cycle Life

700 times

Peak discharge current

20A-25A

BMS function

Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection, Balance

Storage Temperature Range

Temperature: -10-40

Relative humidity:45-75%

Pressure: 86-106KPa

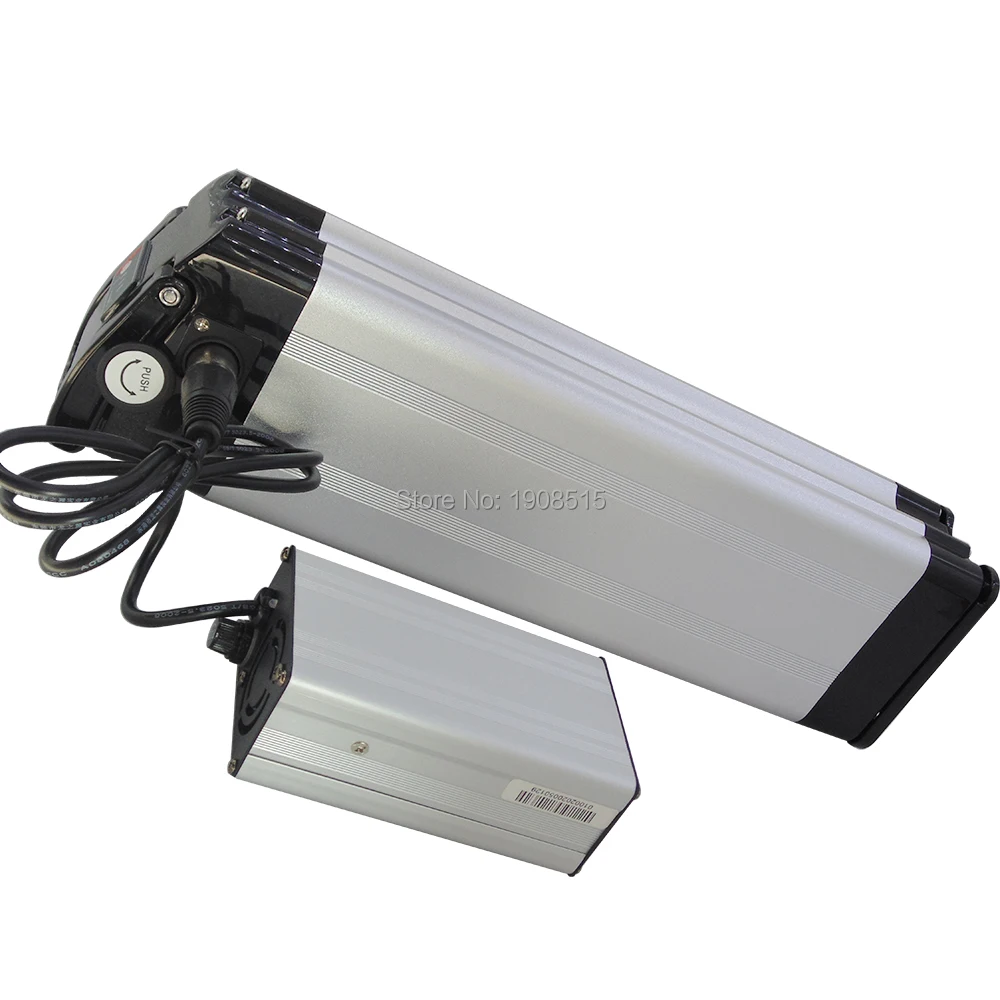

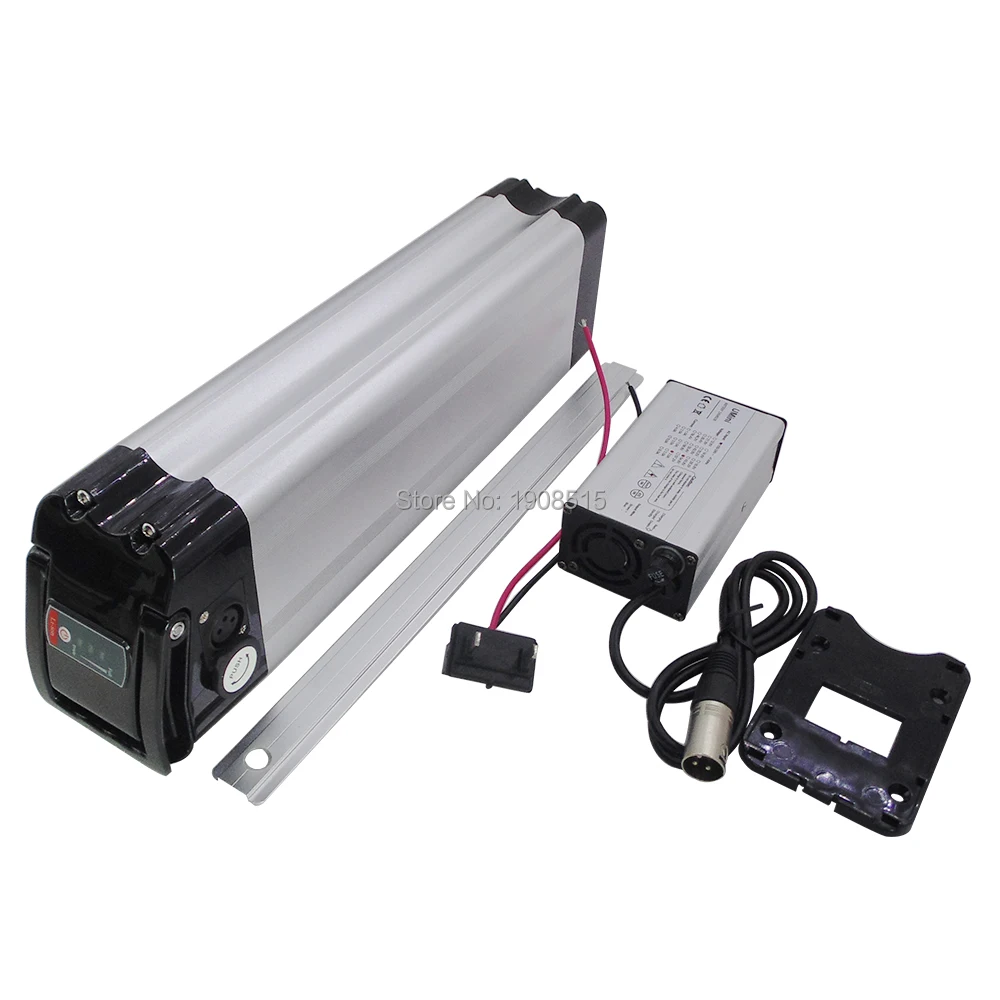

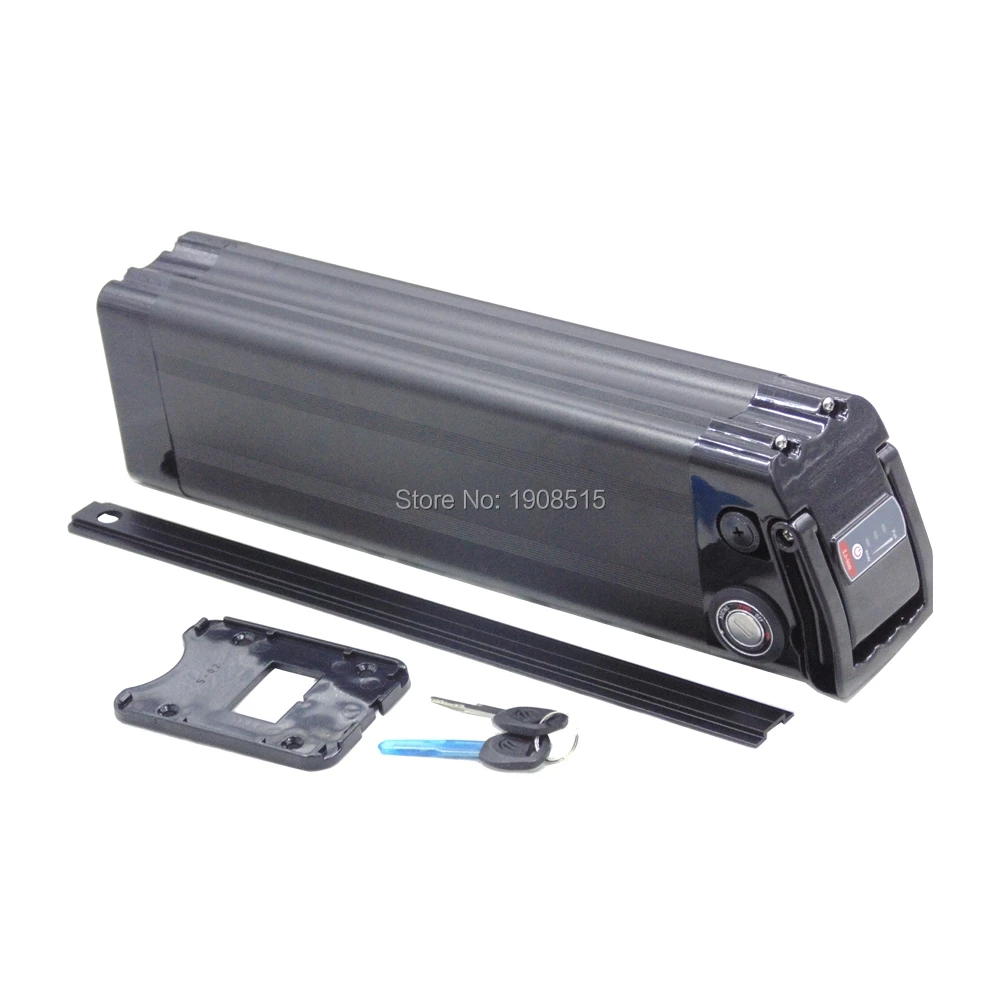

Battery picture:

Charger Input Plug:   If you have no request, we will provide the charger with standard plug, according to your country/region. EU US AU UK Japan plugs are available.

Charger output connector:  If you have no request, the charger connector will match battery charge connector. XLR, DC, RCA, Anderson, XT30, XT60, IEC320, or T connectors.

 Cautions:

1.Use special caution when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mishandled;

2. Make sure user has enough knowledge on Li-ion rechargeable batteries in charging, discharging and assembly before use;

3. We are not responsible for any damage caused by misuse or mishandling of these Li-ion batteries;

4. Strongly suggest that you use our smart Li-ion battery charger to recharge the battery pack;

5. Never use conventional DC adapter to charge the battery module.
