free ship 4000W ZVS Induction Heater High frequency Heating PCB Board Melted Metal+Coil+70/150ml crucible+power supply | Инструменты
Описание товара

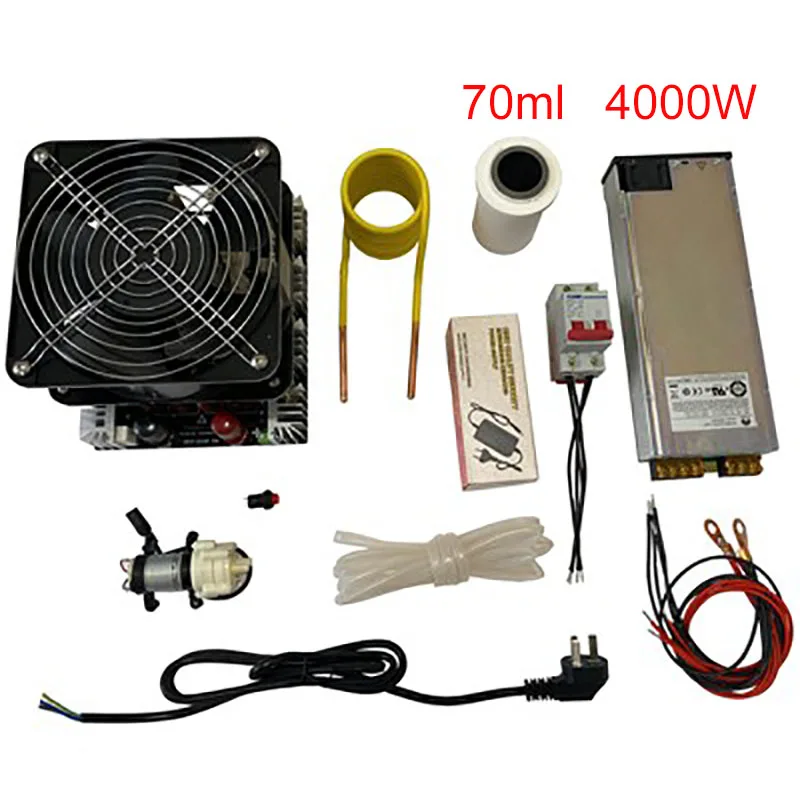

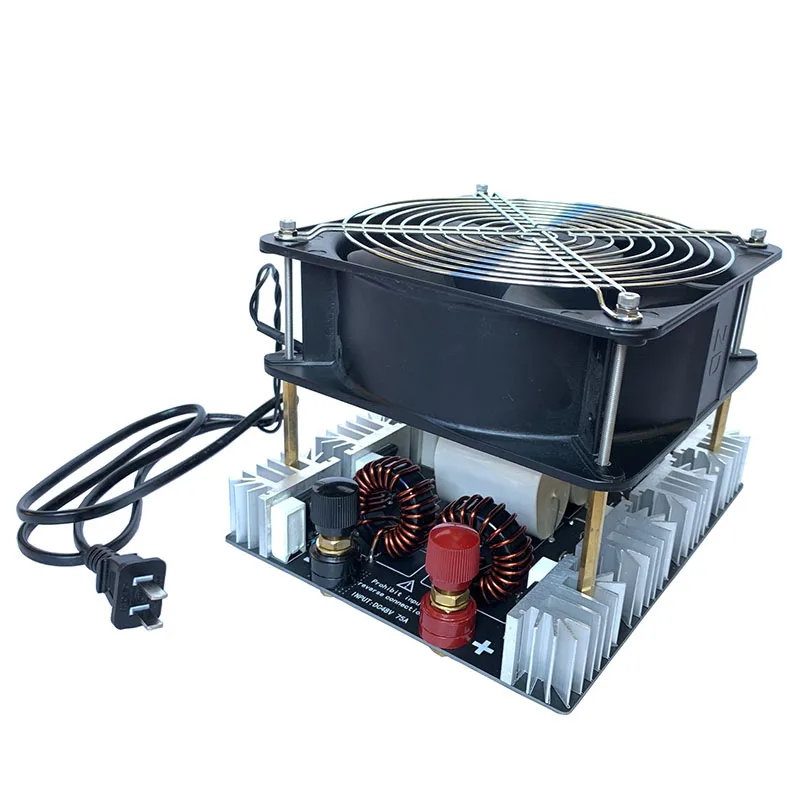

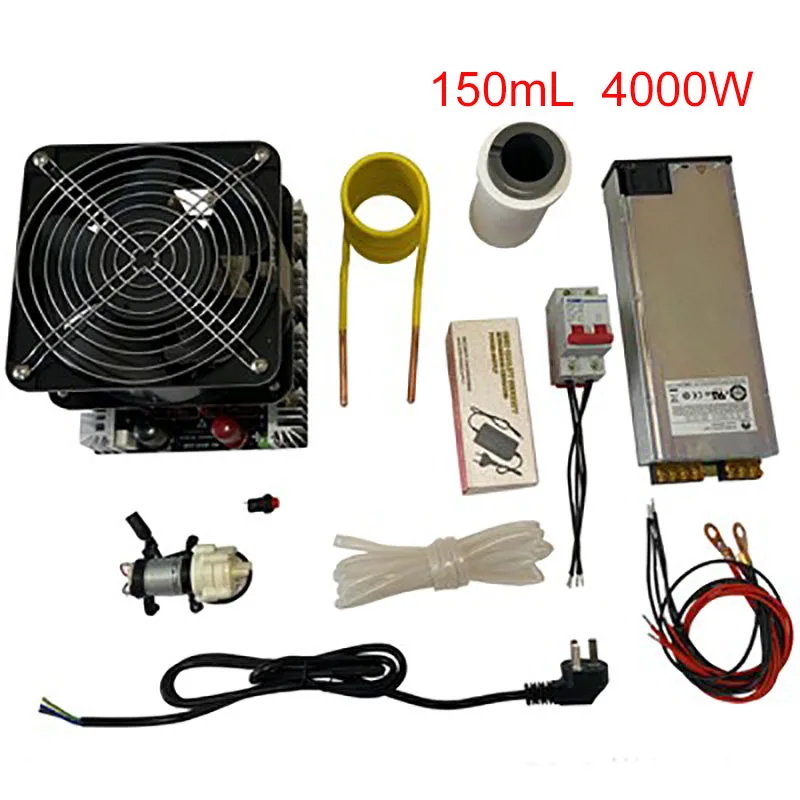

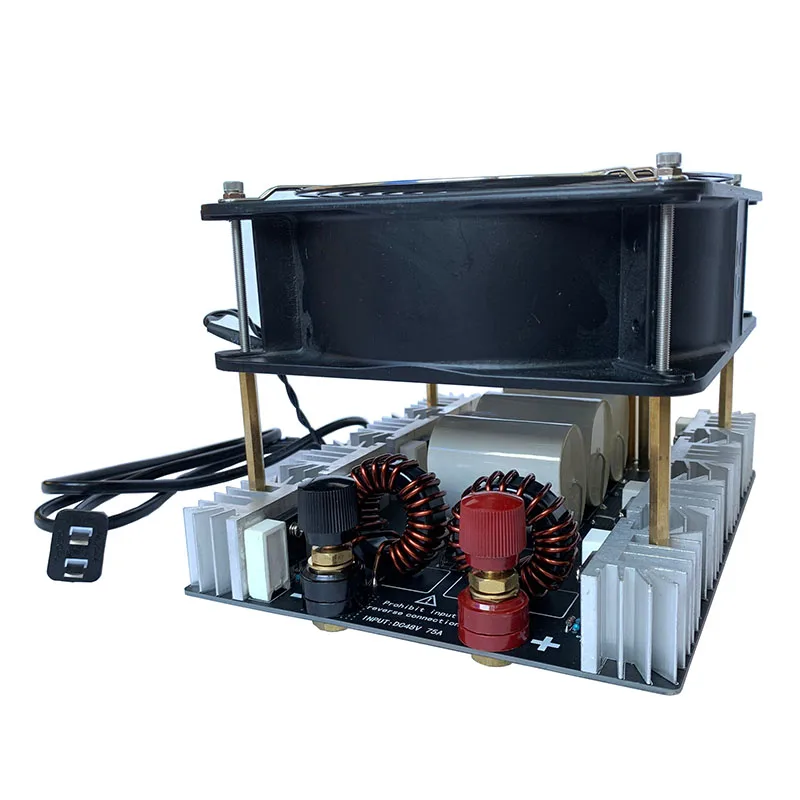

4000W ZVS Induction Heater Induction Heating PCB Board High frequency Heating Machine Melted Metal + heating Coil + Pump+150mL/70mL crucible+1pcs 4000W power supply
This product is a small power induction heating machine that supplies power to DC48V with
a maximum current of 85A and a power of 4000W. Mainly used for heating and quenching of
small ferrous metal materials, with matching 70mL or 150ml graphite crucible, the maximum
temperature can reach 1600 degrees Celsius. It can easily melt iron, copper, gold, silver and
aluminum.
![]()
1. 2mm thick PCB design, copper thickness 2OZ, large current, good heat dissipation;
2. 180mm 220V cooling fan;
3. The heating ring is wrapped with high temperature insulation material to prevent short
circuit during heating and customize a specific heating coil;
4. The input terminal uses a large current power terminal, which can be directly connected to
a dedicated 100A power meter;
5. Send the matching water pump to the water ring of the heating coil, and send the
temperature sensor to monitor the temperature of the main board at any time;
![]()
1. Dimensions: length, width and height 220*180*150 (unit: mm);
2. Heating ring size: 60*70*73 or 70*80*73 (inner diameter * outer diameter * high);
3. Input voltage: DC48V;
4. Maximum power: 4000W;
5. Maximum DC operating current: 85A
6. Direct heating of metal iron up to 1000 degrees Celsius
7. Usecruciblemaximum temperature 1600 degrees Celsius![]()
If the motherboard is damaged, please don't turn it on again easily, it is dangerous
matters needing attention：
1. Only those who purchase the motherboard and do not purchase the power supply must use
their own power supply to ensure that the power supply can stably output more than 80A.
Generally, two 50A communication power supplies are used in parallel.
2. The power-on sequence should follow the power supply first, wait a few seconds for the
powersupply to stabilize output, and then turn on the power between the power supply and
themotherboard (it is recommended to use a current of 100A). Do not operate the error,
otherwise it will directly burn the motherboard. And no protection. Turn off the switch
between the main board and the power supply before turning off the power, and then turn off
the power switch.
3. Work must be water-cooled and air-cooled at the same time. If any one of them does not \
work, immediately disconnect the power supply and contact the manufacturer for a solution;
4. If the conditional water cooling can be directly discharged by using cold water and hot
water,the circulation method is not adopted, so that the heat dissipation effect is better;
5. Long-term use of antimony should be prepared, graphite high-temperature heating will
react with oxygen to form carbon dioxide and gradually consume it;
6. Always pay attention to the changes of various parameters of the display, especially the
voltage and current and the temperature of the motherboard. Whenever an abnormality is
found, the power must be disconnected immediately.one year warrantyWe are not responsible for any custom duty or import tax, it is buyer’s responsibility.![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
This product is a small power induction heating machine that supplies power to DC48V with
a maximum current of 85A and a power of 4000W. Mainly used for heating and quenching of
small ferrous metal materials, with matching 70mL or 150ml graphite crucible, the maximum
temperature can reach 1600 degrees Celsius. It can easily melt iron, copper, gold, silver and
aluminum.
1. 2mm thick PCB design, copper thickness 2OZ, large current, good heat dissipation;
2. 180mm 220V cooling fan;
3. The heating ring is wrapped with high temperature insulation material to prevent short
circuit during heating and customize a specific heating coil;
4. The input terminal uses a large current power terminal, which can be directly connected to
a dedicated 100A power meter;
5. Send the matching water pump to the water ring of the heating coil, and send the
temperature sensor to monitor the temperature of the main board at any time;
1. Dimensions: length, width and height 220*180*150 (unit: mm);
2. Heating ring size: 60*70*73 or 70*80*73 (inner diameter * outer diameter * high);
3. Input voltage: DC48V;
4. Maximum power: 4000W;
5. Maximum DC operating current: 85A
6. Direct heating of metal iron up to 1000 degrees Celsius
7. Usecruciblemaximum temperature 1600 degrees Celsius
1x 4000Wpower supply
(This power supply is disassembled second-hand communication power supply)
1 x PCB Board
1 x 48V Copper Tube
1x water pump
1 x crucible
NOTE:
When in use, it is necessary to continuously observe the running state of the machine
If the motherboard is damaged, please don't turn it on again easily, it is dangerous
matters needing attention：
1. Only those who purchase the motherboard and do not purchase the power supply must use
their own power supply to ensure that the power supply can stably output more than 80A.
Generally, two 50A communication power supplies are used in parallel.
2. The power-on sequence should follow the power supply first, wait a few seconds for the
powersupply to stabilize output, and then turn on the power between the power supply and
themotherboard (it is recommended to use a current of 100A). Do not operate the error,
otherwise it will directly burn the motherboard. And no protection. Turn off the switch
between the main board and the power supply before turning off the power, and then turn off
the power switch.
3. Work must be water-cooled and air-cooled at the same time. If any one of them does not \
work, immediately disconnect the power supply and contact the manufacturer for a solution;
4. If the conditional water cooling can be directly discharged by using cold water and hot
water,the circulation method is not adopted, so that the heat dissipation effect is better;
5. Long-term use of antimony should be prepared, graphite high-temperature heating will
react with oxygen to form carbon dioxide and gradually consume it;
6. Always pay attention to the changes of various parameters of the display, especially the
voltage and current and the temperature of the motherboard. Whenever an abnormality is
found, the power must be disconnected immediately.one year warrantyWe are not responsible for any custom duty or import tax, it is buyer’s responsibility.
