Waterproof 52mm FUEL Level Gauge + Fuel Sender Unit Sensor 0~190ohm Liquid Water Tank Level Indicator Meter 7 Color Backlight

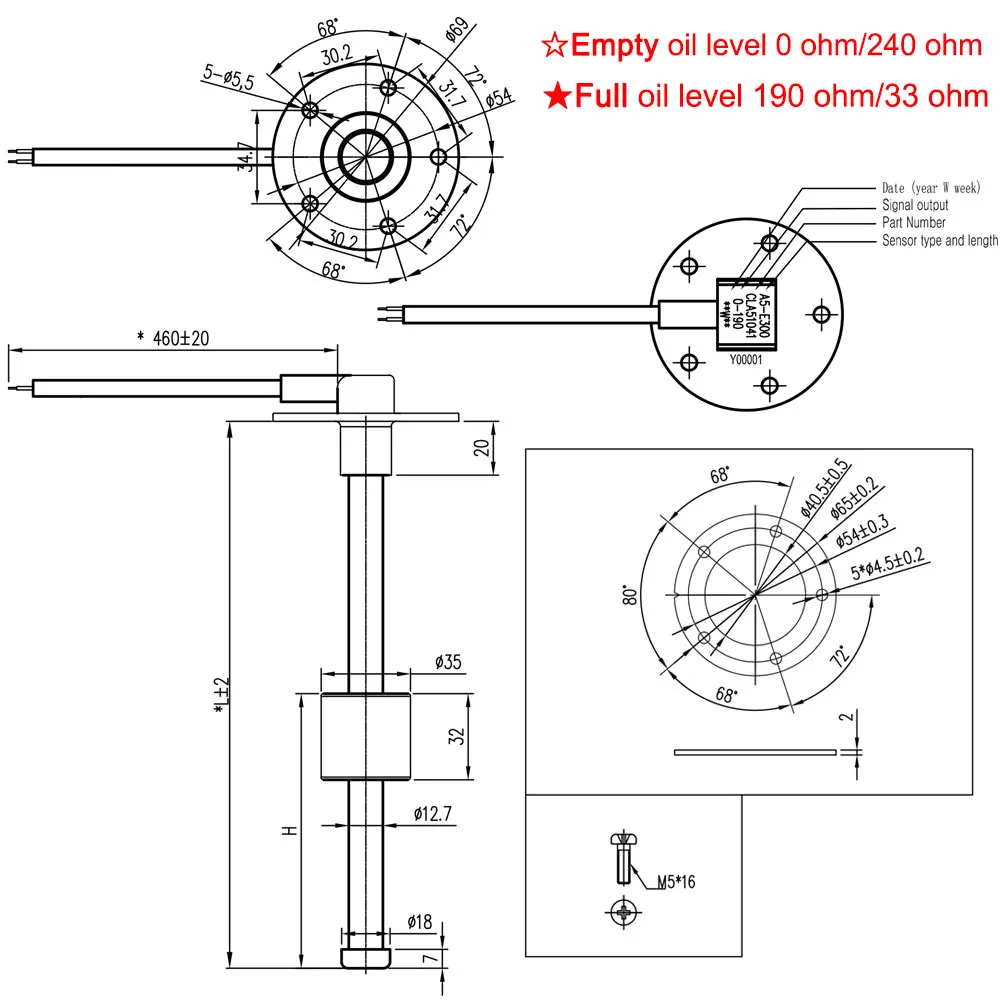

Sensor Specifications:

- Protection ank: IP67
- Resolution range: 21 mm
- Assembly: SAE standard 5 holes
- Rated current for alarm switch: 500mA
- Operating temperatures: - 40 to 85 Celsius
- Fit for Fuel Level Gauge and Water Level Gauge
- Sensor Length :100MM~1500MM
- Mounting: 5 pieces of M5 screws and 2 mm thick gasket
- Output signal: 0~190 ohm (Standard European),

Gauge Specifications:

- Input signal: R ohm
- Indication range: E-F
- Working current: ≤60mA
- Install diameter: 52mm
- Working voltage: 9~32VDC
- Storage temperature: -40℃~+85℃
- Operating temperature: -30℃~+75℃
- Water Level Gauge Waterproof : front cover IP67 ,back cover IP5

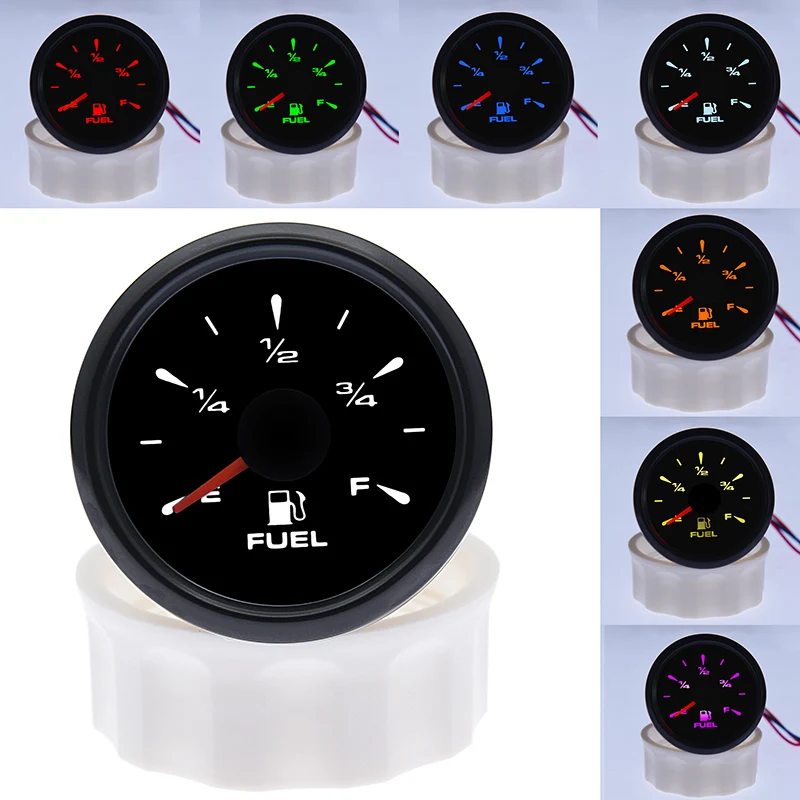

- Backlight: (7 colors ) red.green.blue.yellow.olive . orange.purple

Can be customized:

Sensor Length:
100mm, 150mm, 200mm, 250mm, 300 mm ,350 mm ,400mm, 450 mm,500mm, 550mm, 600mm, 650mm, and so on

Output signal:
0~190 ohm (Standard European), 240~33 ohm (Standard American) and so on

The length and output signal of the sensor can be customized, if you need other sizes or output signal, please contact us at any time, we can customize any size for you~~

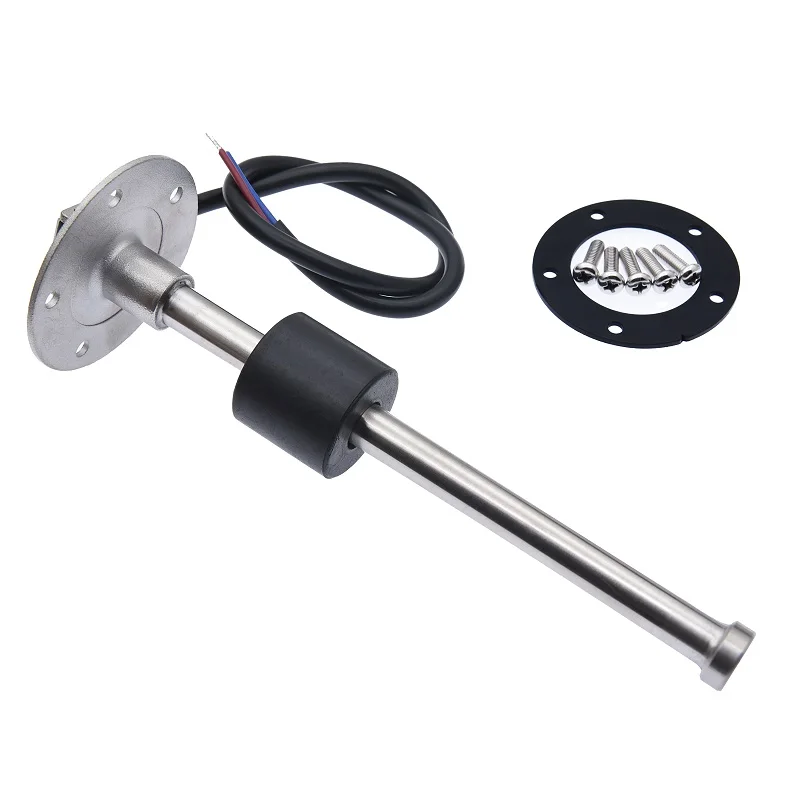

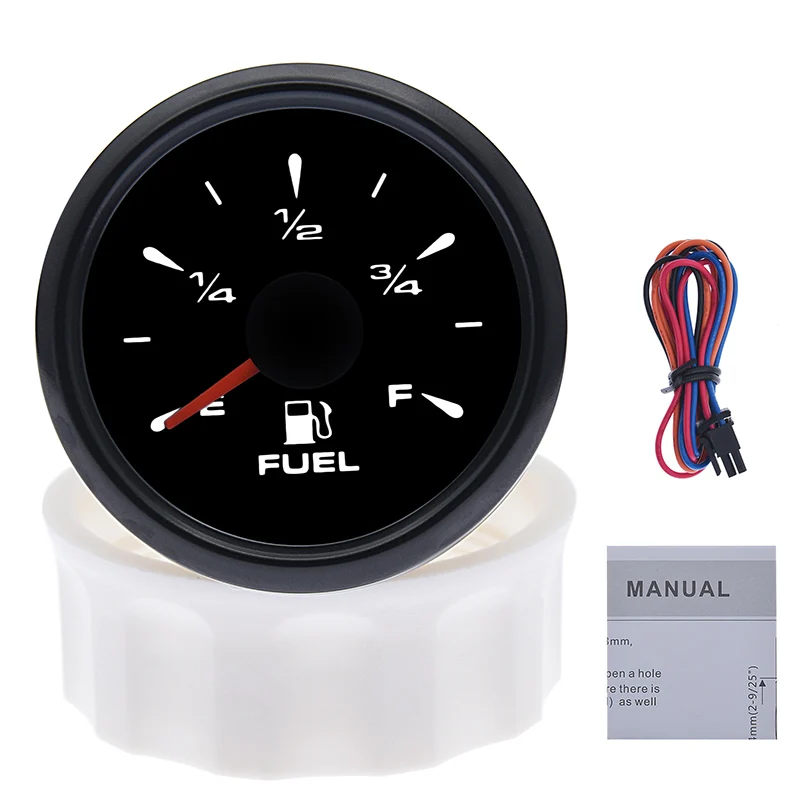

Package Include:

1 x 52mm Gauge
1 x Sensor
1 x Gasket
5 x Screws

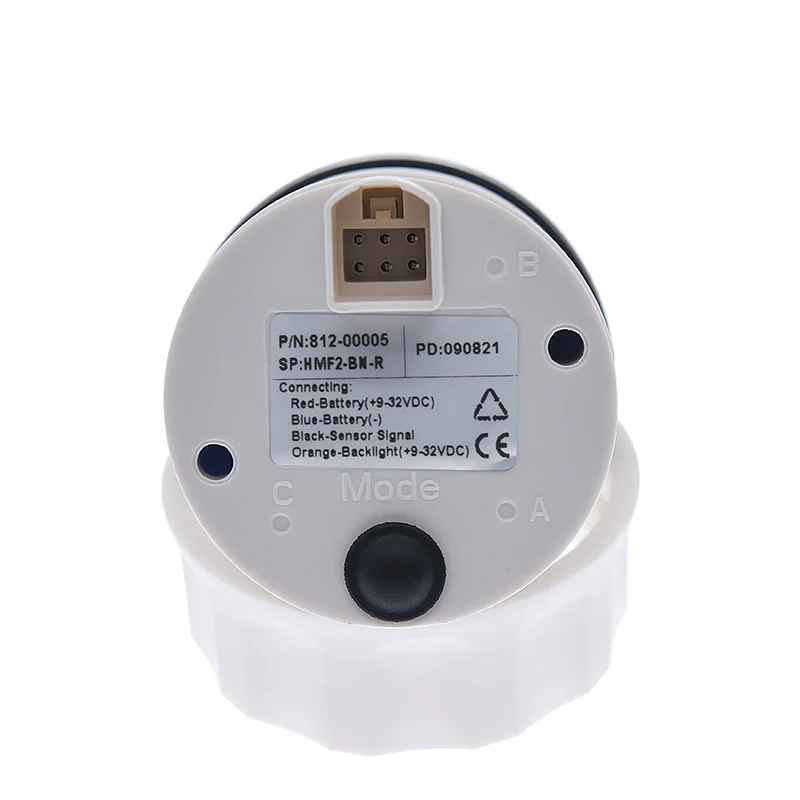

Sensor Connection:

Blue wire: connect the ground wire
Brown wire: connect the gauge signal wire

☆Empty oil level 0 ohm
★Full oil level 190 ohm

Please attention :

0~190 ohm sensors can only be applied to 0~190 ohm fuel gauge.
