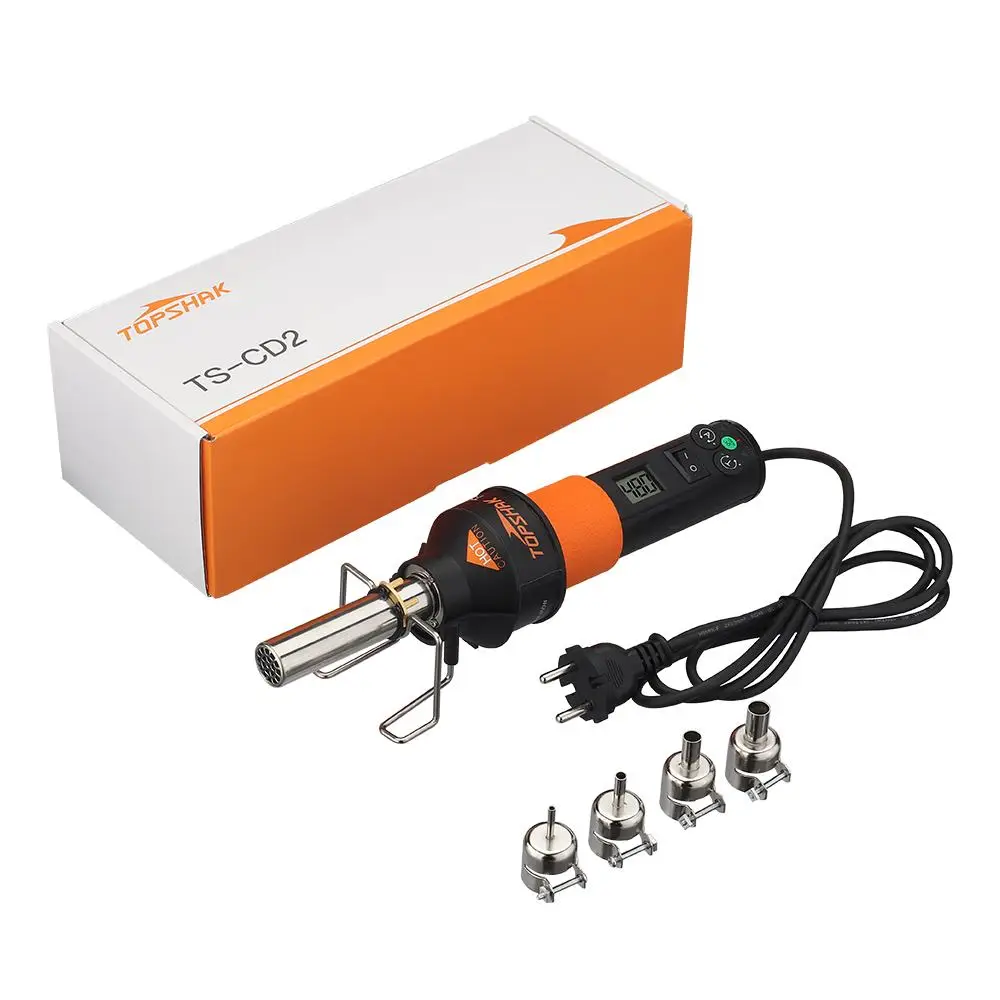

Package Included:
1 x TS-CD2 LCD Potable Constant Temperature Hot Air gun
4 x Nozzles
1 x Stand

Features:

1. Numerical control & Digital display: With closed loop sensor and high power,the temperature controlled by PWM and LCD digital display which lead to steady and accurate temperature. It can adapt to a variety of purposes.

2. Brushless fan: Brushless fan inside lead to air flow adjusted, wind gentle, long life motor & low noise

3. Constant temperature mode: The temperature is accuracy and stability, without the wind effect.

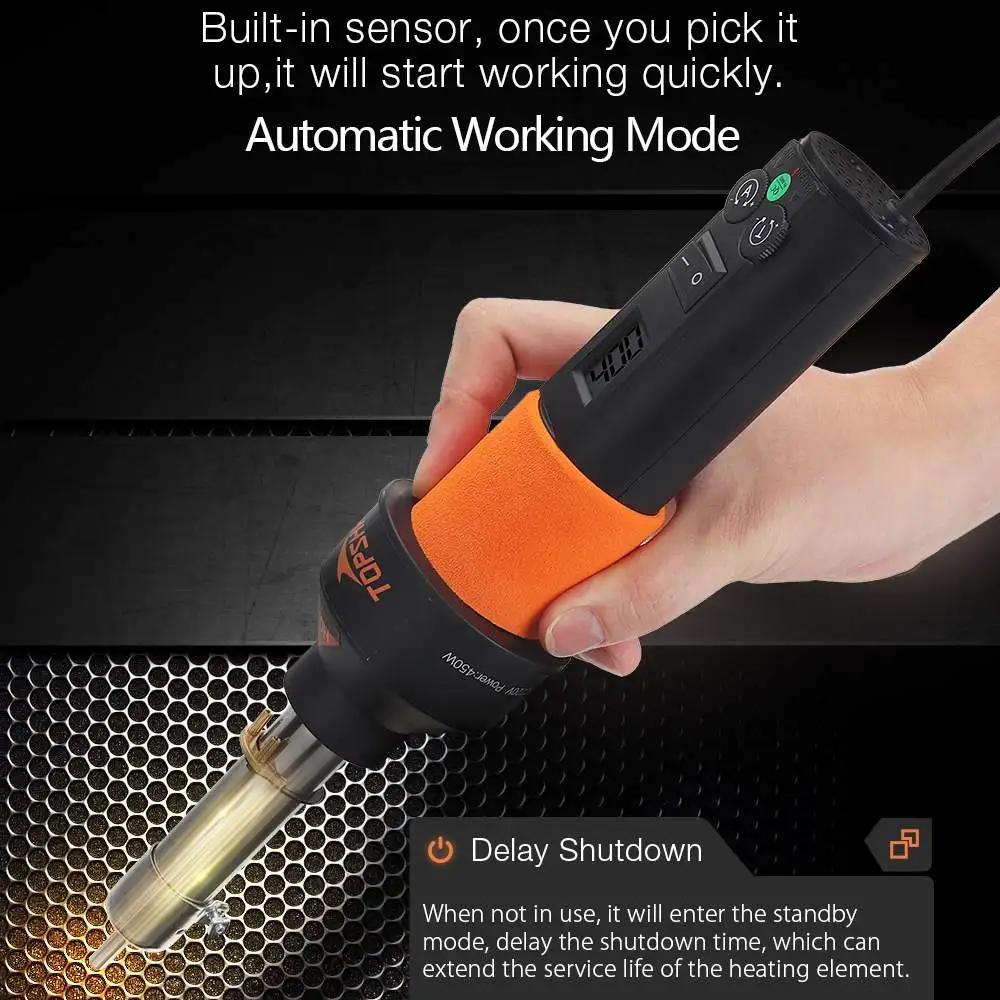

4. Automtic mode: There is a sensor in the machine, the system enters the work-mode (heat-blow air-make temperature constant) as long as you pick up the machine, and it enters the standby- mode(stop heating--cooling down --delay to sleep) when it is put back to the frame prolonged heating element life and protect hot air Guun. It is easy to use.

5. Plug outand inmode: Heating element interface is connector, and is easy replaced.

6. Portable machine: Small size & light.

Specifications:

Name

Constant Temperature Hot Air Guun with Brushless Fan

Modle

TS-CD2

Voltage

AC220V

Power

450~700W

Motor type

Brushless with ball bearing

Motor life

>10000 hours

Air flow type

Brushless fan gentle wind

Air flow

80~160L/min (MAX)

Temperature set range

280℃∽480℃

Display type

LCD digital displayResolution 1℃

Cord length

150cm

Machine size

?48 (handle) ?67 (MAX) x Length 300 mm

Weight

0.35KG (include cord)

noise

< 45db

Work temperature

0∽40℃

Storage temperature

-20∽80℃

Storage humidity

35%∽45%

Applications:

1. Suitable for a various kind of soldering or desoldering purposes of the electronic components such as: SOIC, CHIP, QFP, PLCC, BGA, SMD, etc.

2. Applicable to thermal shrinking, drying, painting removal, adhesive removal, thawing, warming, plastic welding, etc.

Operating instructions:

1. Take the hot air guun and the frame on a flat work table, the guun put on the frame,connect the power supply.

2. Install the required nozzle (try to use big mouth nozzle).

3. Turn on the power switch, and the screen display “000”, for the machine is in standby mode.

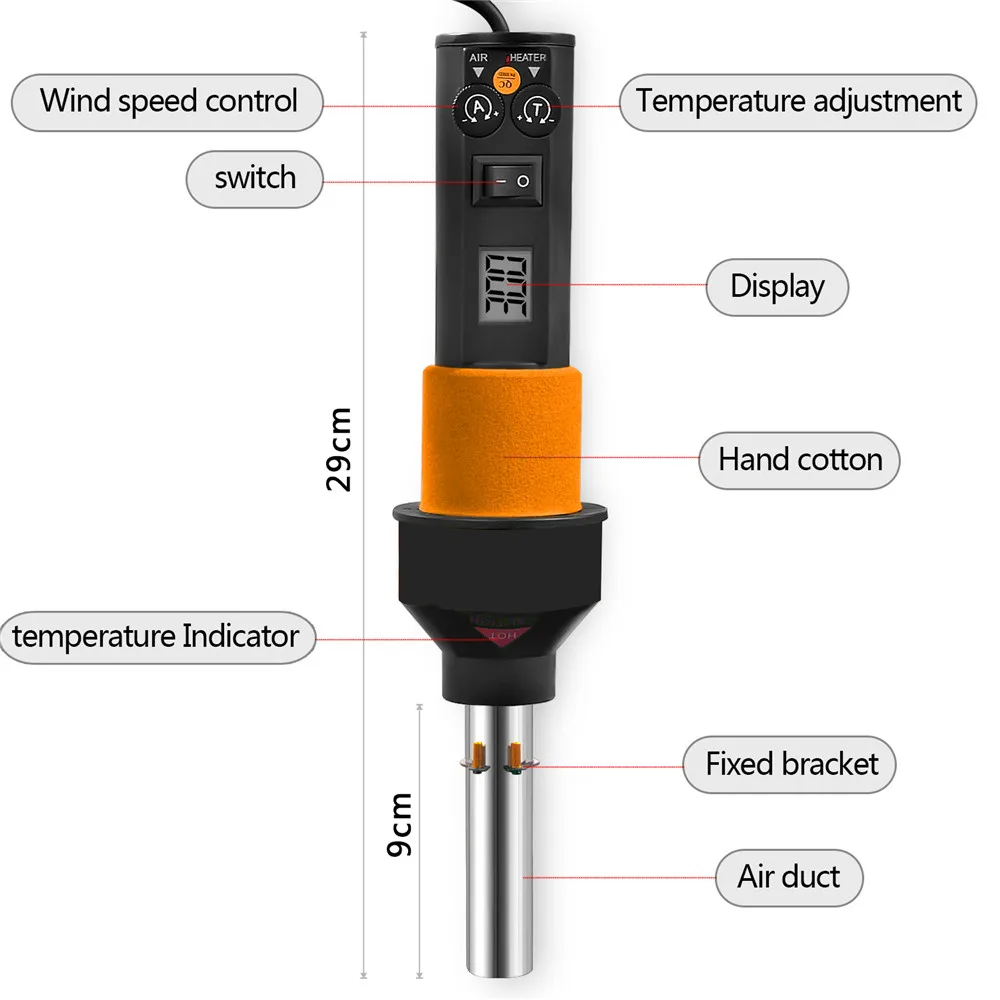

4. Take the machine of the frame, and it starts to heat normally. Adjust T knob to set the temperature, and A knob to set air flow. When the LED ligh quickly flash, this indicate that the temperature reaches the set value, machine is constate state, and you can use it. The temperature set range: 280~480℃.

5. Put the machine on the frame after work, the machine will automatically enter standby mode (cut off the heating current--blowing air by high speed to cool the heating element--working delay 30” to shut off fan--LCD display “000”).

6. Take the machine off the frame again, it immediately enter into working state by the setting value. When the temperature stabilize, LCD display window shows air outlet temperature.

7. Turn off the power switch in case long time stop of operation.

Installation and Dismantling Nozzles:

1. To install, put the selected nozzle on the outlet tube, tighten the screw.

2. To dismantle nozzle, loose the screw, then pull it out.

Replacement of Hot Air Heating Element:

*No need to dismantle the hot air guun when replace the heating element. Turn off power switch, and ensure the hot air guun fully cooled down before replacing the element.

1. Loose three screws at the end of the metal tube.

2. Take the metal tube off pay to the insulating material, make sure they will not be dropped or shocked.

3. Using tweezers to remove the button away at the end of the heating element, and pull it out.
