Driven by high-power brushless brushless motor with high power,

Originally used in brushless garden machinery tools,

The power should be great, this batch is all trimmed,

So you need to have the hands-on ability to wire and solder.

The control lines are basically cut,

The nominal voltage should be 36V40V lithium battery,

The measured driving voltage works between 32-48V,

Drive fully sealed potting treatment,

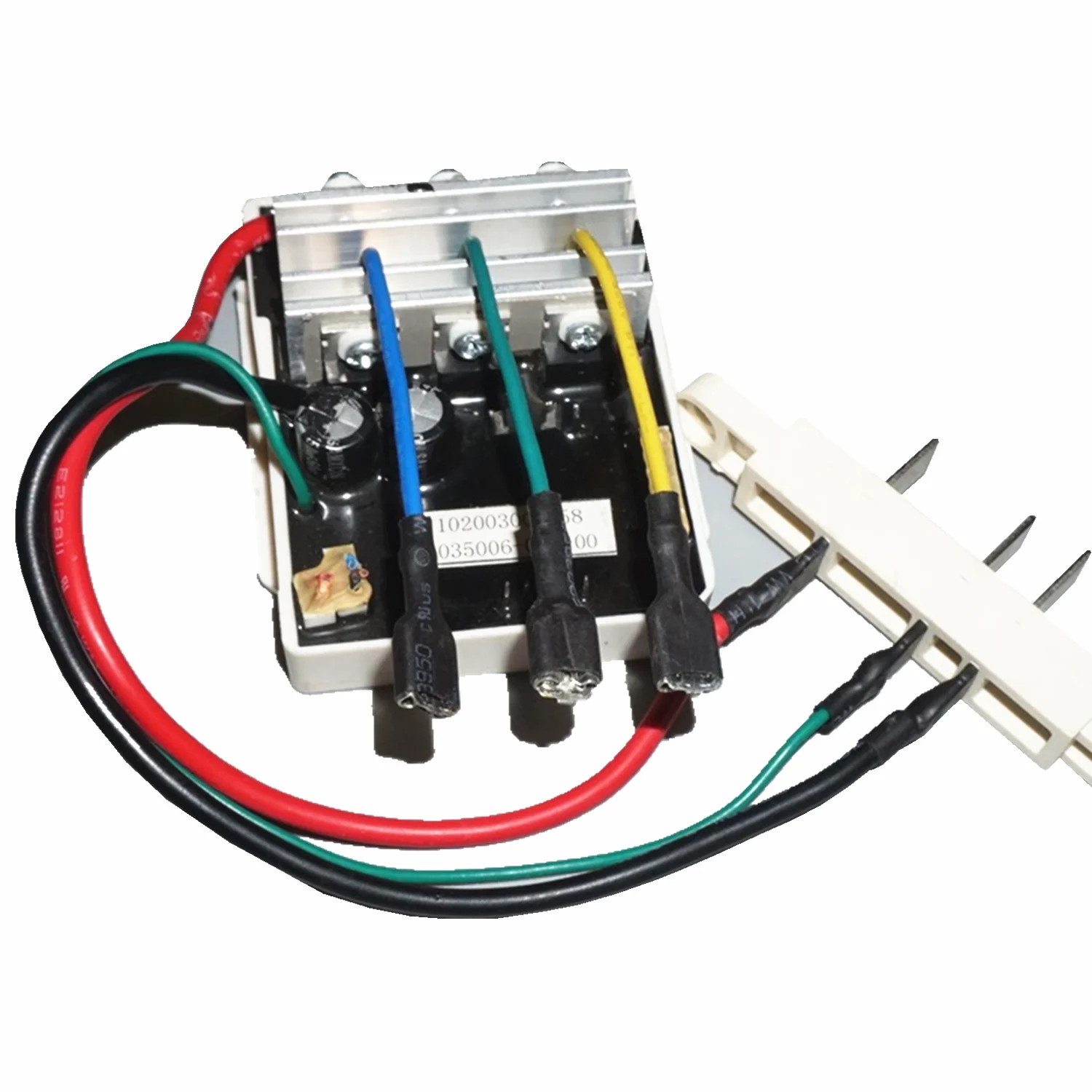

With aluminum heat sink, 71V90A high-power MOS tube,

The drive supports 3 speed settings,

The specific wiring diagram introduction is marked with pictures.

3 micro switches plus 1K resistors and LED lights are included.

Note that the wiring of the micro switch should be changed to the normally open position.

The shop owner simply tested several common brushless motors for electric tool lawn mowers on the market.

The 600W nidec brushless motors in our shop can all run,

The overall compatibility is not bad, but there are many types of brushless motors.

There is no guarantee that it can be used,

In the video, the shopkeeper randomly shot the test process of a motor for reference.

Be careful not to overload the brushless drive,

It is recommended not to use a motor with too much overload,

So as not to burn the driver,

Pay attention to the heating of the driver during DIY modification and use,

The output UVW three-phase short circuit is strictly prohibited,

The three-phase wiring is in contact before running,

The positive and negative poles of the power input should not be mistaken.

The drive weighs approximately 145 grams.
