Description:

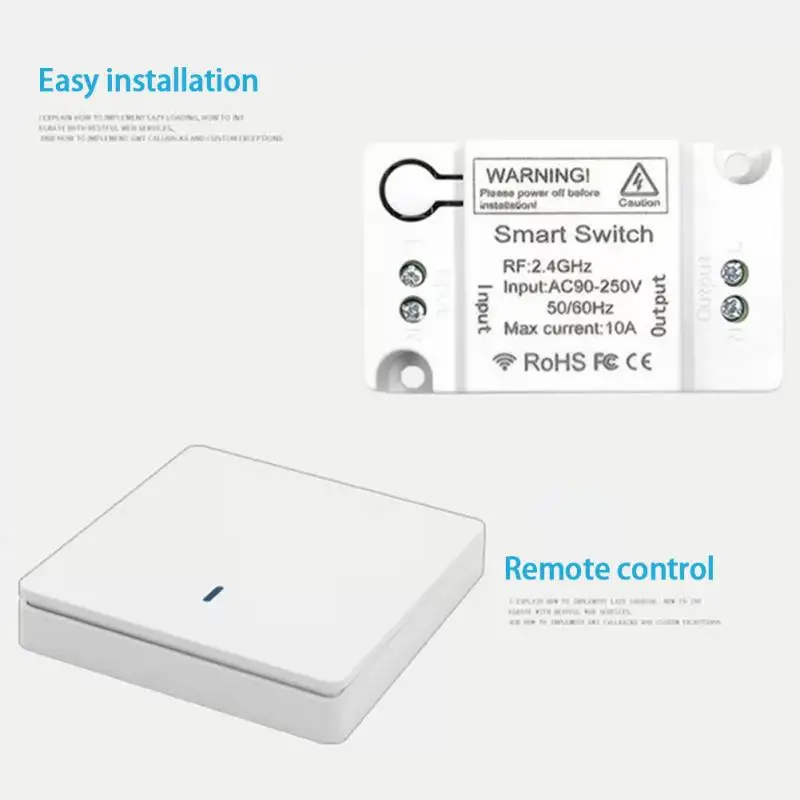

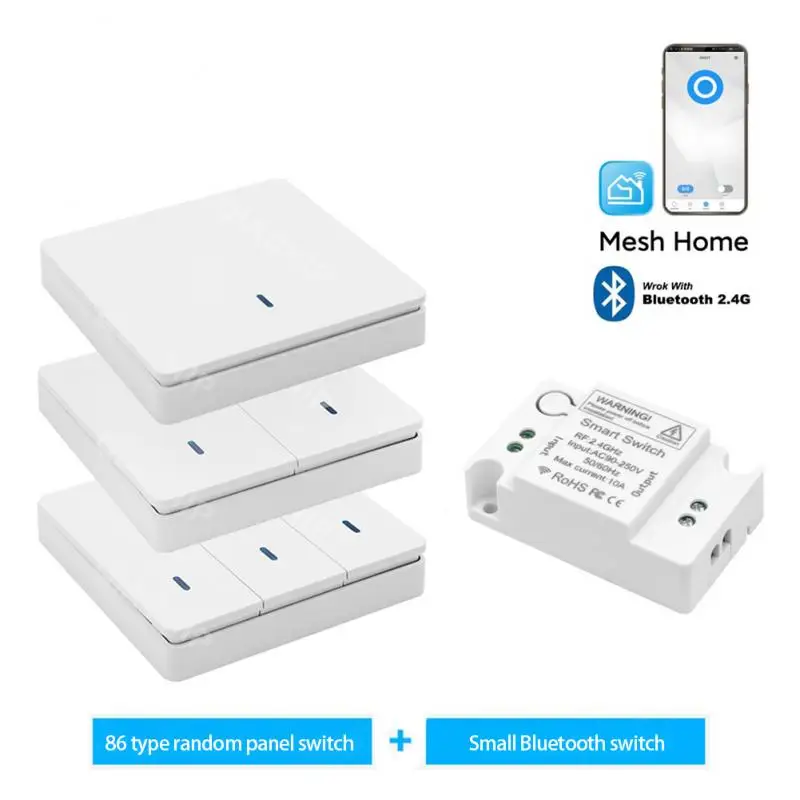

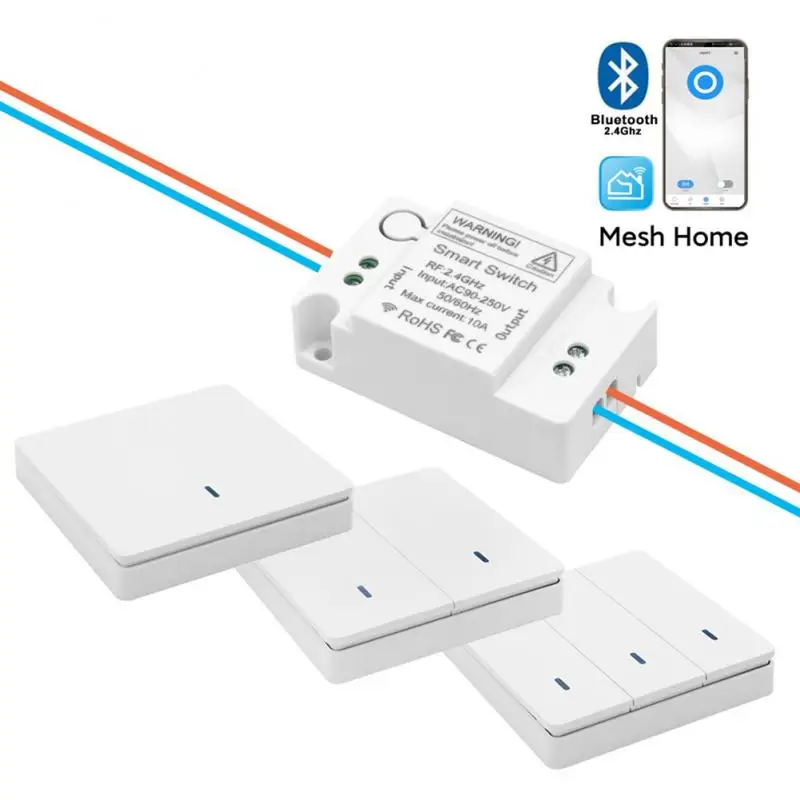

Product name: Smart on-off device

RF: 2.4GHz

Input: AC90—250V 50/60Hz

Max current: 10A

Input Power：AC90-250v 50/60Hz

Output Power：AC90-250V

Max power

Load power：≦1000W;

Loaded LED power：≤500W;

Standby power：≤0.1W

Temperature：-20℃~40℃

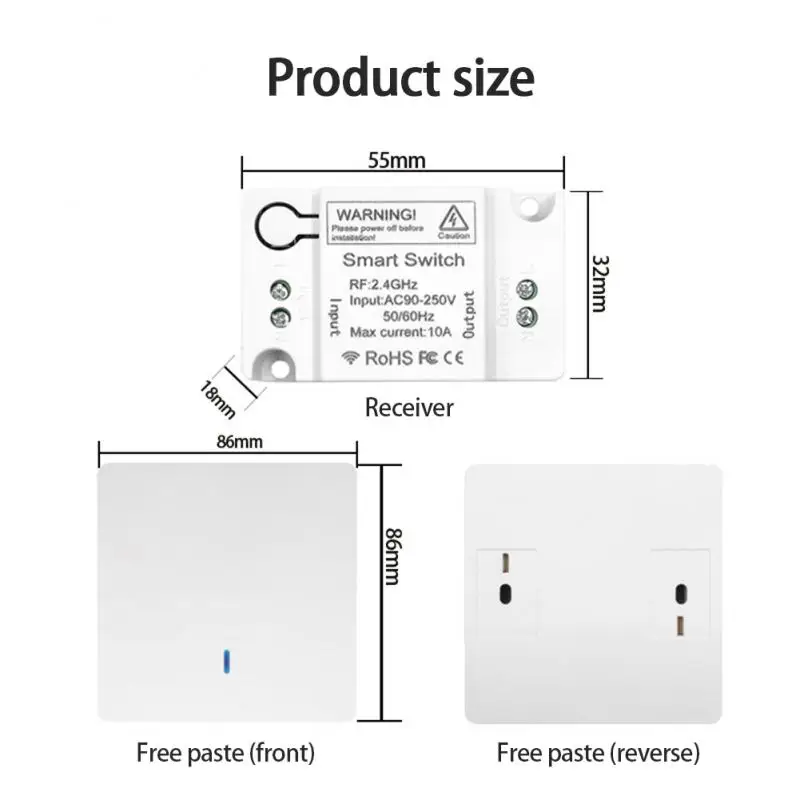

Size：60mm*36mm* 22mm

Weight：31g

Specifications:

Note

●This product can only be used indoors, please read this

manual carefully.

●Do not install this product near any heat source to avoid

fire.

●Please use it in a dry environment. Do not install this

product with wet hands to avoid the risk of electric

shock.

●This product is not waterproof, please do not expose this

product to any dangerous environment such as dripping

or splashing water, so as to avoid damage to the

equipment and cause malfunction.

●When in use, please strictly follow the instructions of the

smart switch to connect the wiring, and then turn on the

power after the correct wiring is completed to avoid short

circuit.

●The load power and current of the power supply

connected to the breaker cannot be greater than the

maximum power and current that the smart breaker can

withstand.

●If the weight of this product is heavier than the weight of

the equipment that needs to be replaced, it may reduce

the mechanical stability of the lighting equipment and the

lamp holder, and may damage the fixed position of the

contacts and the lamp.

Scope of application

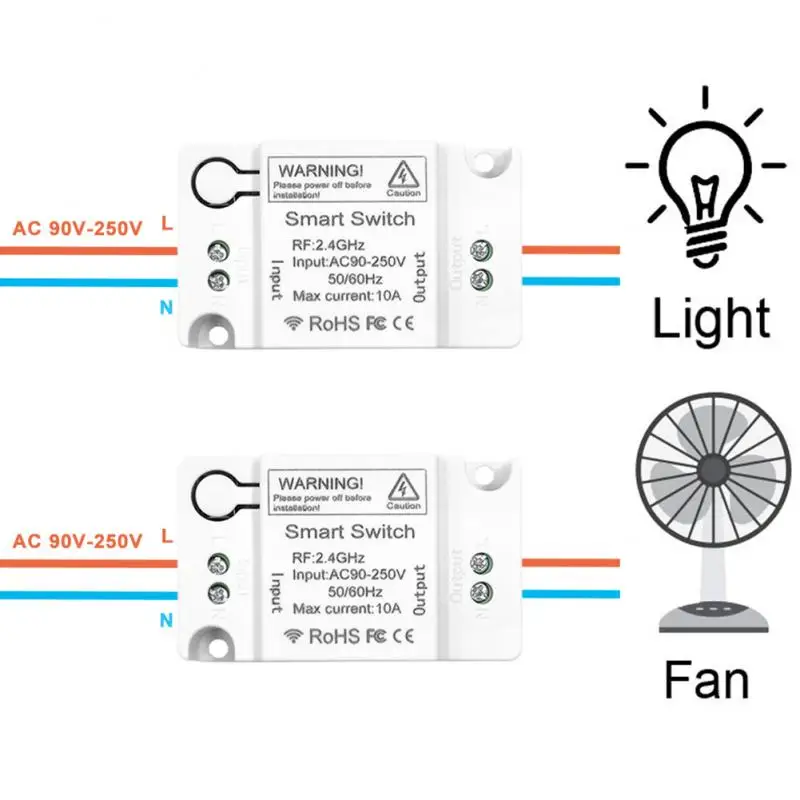

Resistive electrical appliances within 1000W: lights, electric heaters, bath heaters, etc.

Inductive electrical appliances within 300W: electric fans, exhaust fans, water pumps, solenoid valves, etc.

Instructions before use

Manual mode

There is no need for a remote control, and a switch is used

to control the switch of the device.

After correct wiring, press the code matching button of the

switch to turn on the "smart switch"(receiver); press the

code button again to turn off the "smart switch"(receiver).

(Do not switch frequently, press once every 2 seconds.)

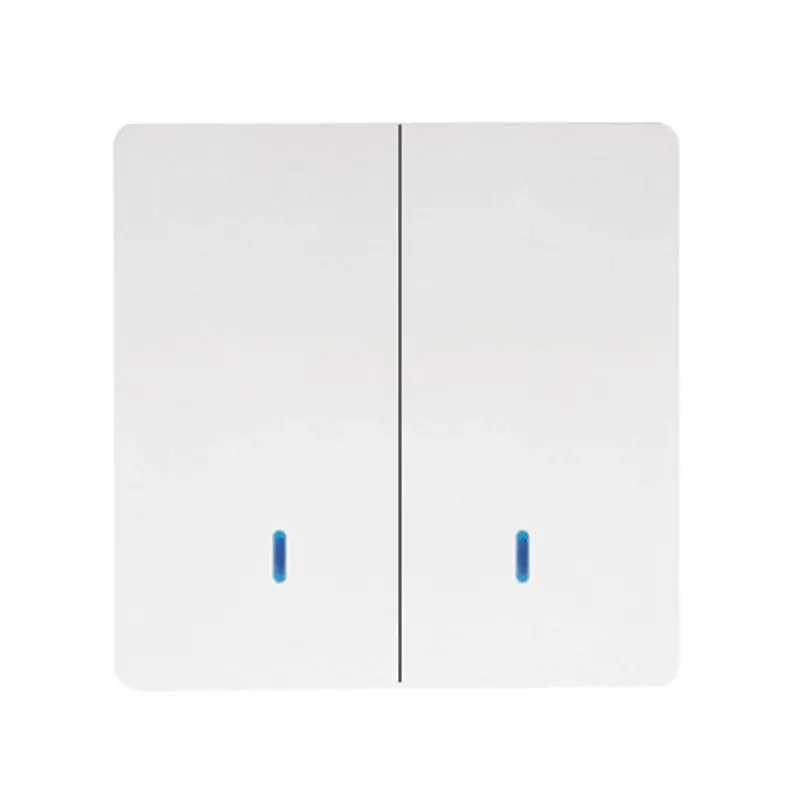

Match the Wall Panel Transmitter

It is recommended to performbefore matching the

remote control switch. After matching, press the same

button on the remote control switch to open and close the

remote control switch.

Settings reset:

Continuous press the code button of the "smart switch"

(receiver) 8 times, the "smart switch" (receiver) will b

Package Included:

smart switch*1
