Материнская плата HM55B PGA988 для настольного компьютера DDR3 SATA II Mini ITX для хоста/HTPC/Radio/рекламного автомата.

Item ConditionNewModel Number1Brand NameNoEnName_NullOriginMainland ChinaCertificationNONEApplicationDesktopApplicationServerApplicationWorkstationApplicationMiningBundleMotherboardsPackageYesQuality CertificationNONESocket TypeOnboard CPUSupport Memory TypeDDR3Usage ScenarioWorkstationUsage ScenarioServerUsage ScenarioMiningSpecial FunctionNONEChipsetIntel B150Chipset ManufacturerIntelWith CPUYesMaximum Ram Capacity8 GBStorage Interface TypeSATA 2PCI - E standardsPCI - E 2.0Back I/O Ports2x RJ45Number of PCI5Onboard LAN2x RJ45Measurement unitpiece/piecesEach pack1Main board modelnew HM55B main boardSize of the main board170mmx170mm3 644,96 ₽-24%3 644,96 ₽-24%2 770,24 ₽2 770,24 ₽Add to CartBuy now2 770,24 ₽loaderDescription body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } All solid state main board

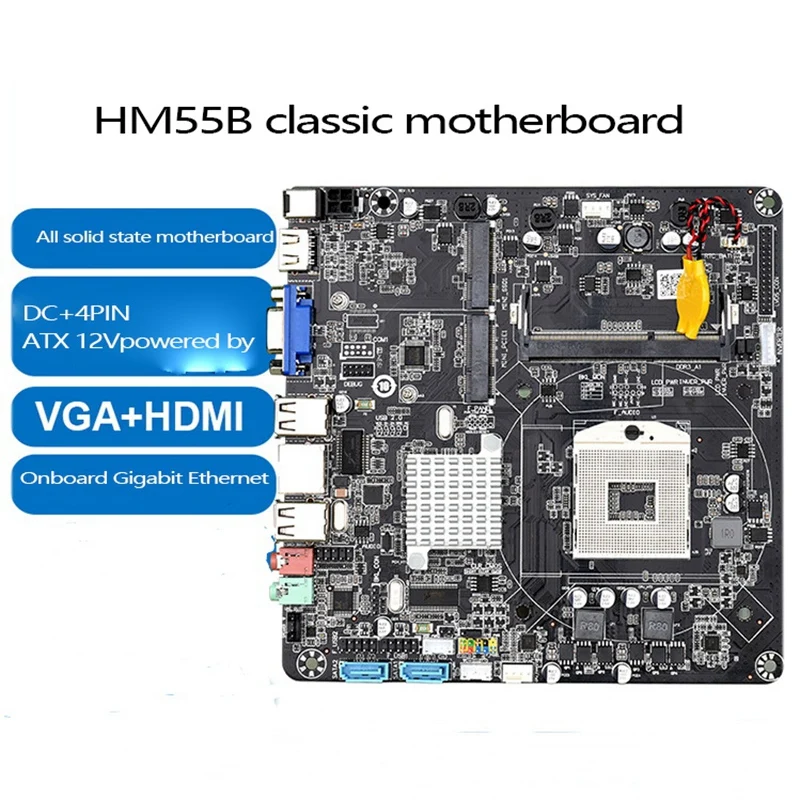

Support Dc+4PIN
ATX 12V power supply
VGA+HDMI- compatible

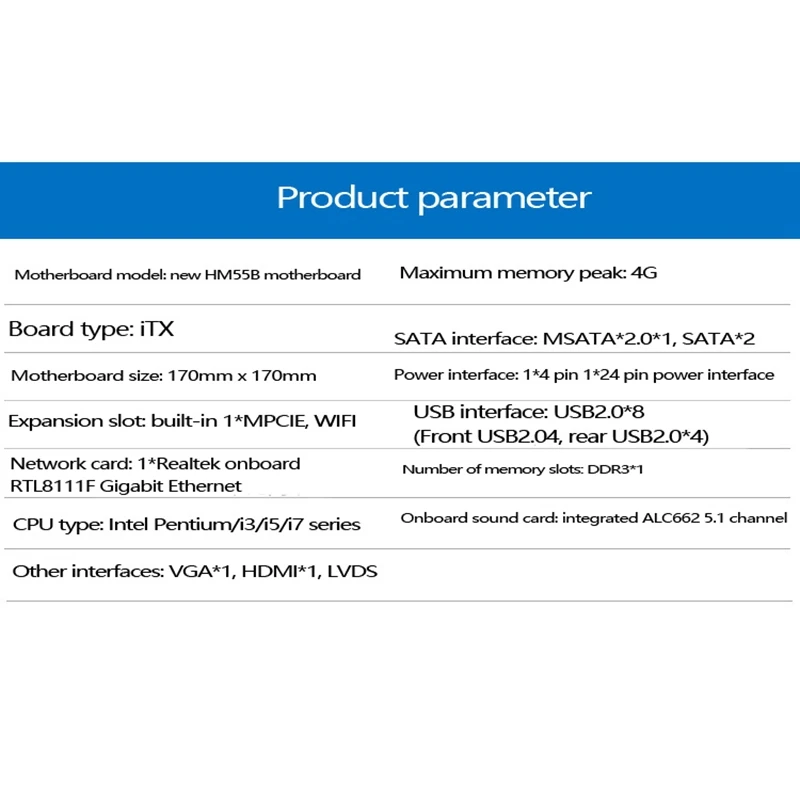

Main board model: new HM55B main board
Size of the main board: 170mmx170mm

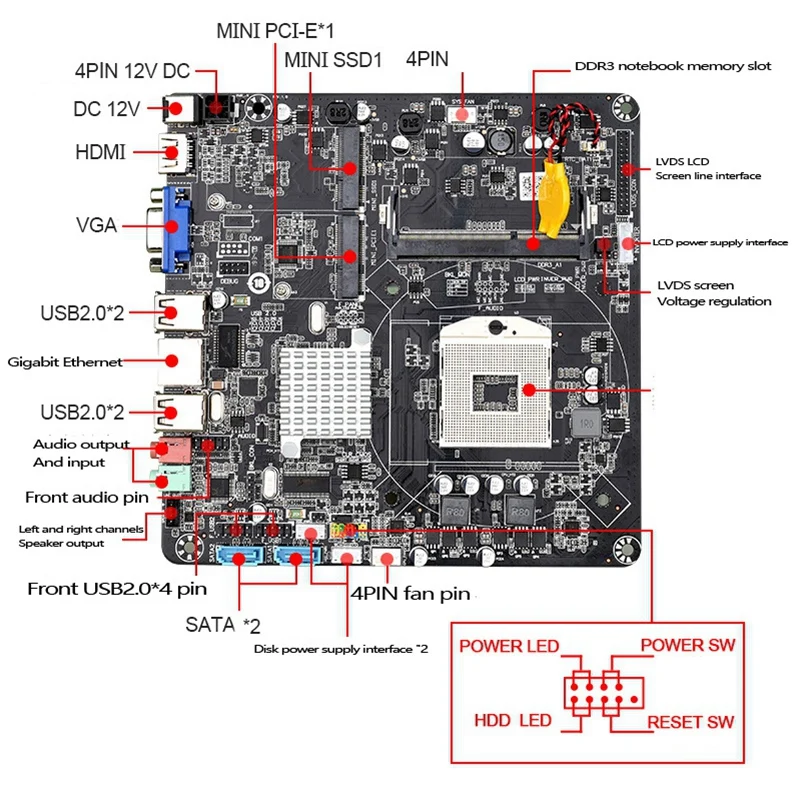

Expand the slot: 1*MPCIE, support WIFI
Network card: on board 1*ReaItek RTL8111F, thousands of network cards
Other devices: VGA*1, HDM*1, LVDs
The peak memory: 4G
SATA interface: MSATA*2.0*1, SATA*2
Power supply: 1*4 needles, 1*24 needles
USB interface: 2.0*8 (front USB 2.0*4, back UsB 2.0*4)
Number of memory sockets: DDR3*1
On board voice card: integrated with ALC662 5.1
Material:PCB
colour:black

Package Contents:
1 * Computer motherboard

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

---
