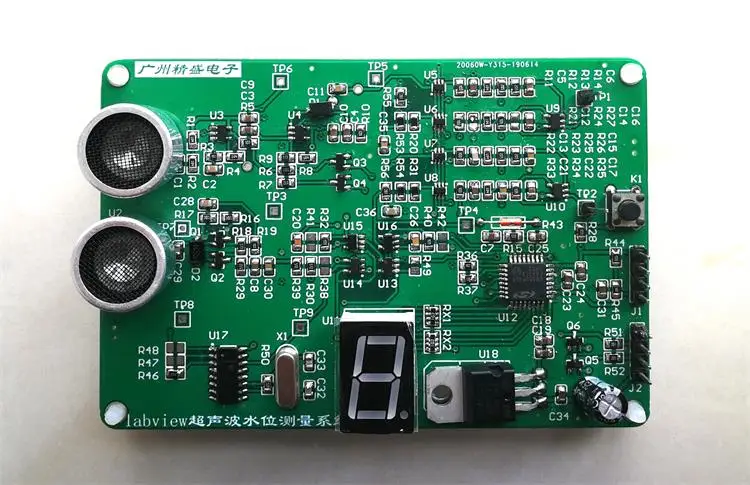

Product name:Ultrasonic water level measurement system/labviewUpper computer interface editing/DIYSpare parts
\Product model: JSD-CSBSW
\product price :240element
\\
Jiangsu Vocational School skills competition
\Electronic circuit assembly and adjustment and Application
\project assignment paper-National competition training
\\
Competitor station number
\_________________________________________________________________________
\Work tasks and requirements
\Please stay here4Within hours,Complete three parts of work tasks,Specific tasks and requirementsas follows:
\1.Complete the assembly of ultrasonic ranging circuit、Testing and commissioning。
\2.utilizeLabview2017The control interface of ultrasonic water level measurement system is completed,Realize the test and evaluation of on-site sample paper;Using data collectormyDAQComplete the specified data collection。
\3.utilizeAltium Designer10The software completes the PCB design of the specified circuit。
\Total score full score70branch。
\\
\
Above tasks,In addition to live works,Please record the rest on the computerDUnder the root directory,“Z+Station number work”In folder,Include answer sheet documents。The blank answer sheet document is in theDDisk reference folder。
\Task 1 Ultrasonic ranging circuitAssembly of、Testing and commissioning (30branch)
\According to the figure5Schematic diagram shown、chart4Assembly drawings and tables shown2List of components shown,Correctly select components,Accurately welded to the printed circuit board provided by the stadium。
\Welding requirements:The solder joint size of electronic components welded on the printed circuit board is moderate、smooth、Mellow、clean,No burr;Correct position;passionless、false、empty、Continuous welding。The pin processing size and forming meet the process requirements,Conductor length、The length of wire stripping head shall meet the process requirements,The core wire is intact,Tinning of twisting head。Including:SMD component welding and in-line component welding。
\Assembly requirements:Welding and installation of components without errors and omissions;The plug-in position on the circuit board is correct,Connector、The fasteners shall be installed reliably and firmly;components and parts、The installation of wires and the direction of character marks on components shall meet the process requirements;The circuit board and components shall be free of burns and scratches,The whole machine is clean and free of dirt。

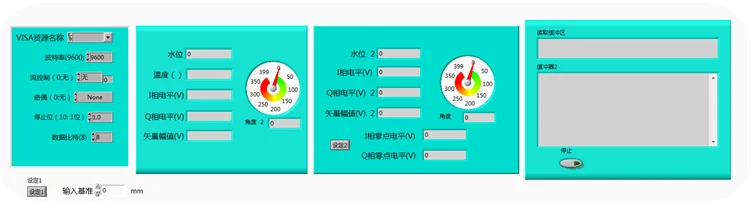

\Task 2 Making of system control interface(25branch)
\receive data
\meaning
\M[0]I0=1.096V.Q0=1.084V. 00:08
\pattern0,IPhase level1.096V,QPhase level1.084V,Power on time00branch08second
\M[1]I1= 0.068V. Q1= 0.019V. V1= 0.071V. A1= 015. 00:27
\pattern1,IPhase level0.068V,QPhase level0.019V, Vector amplitude0.071V,angle15degree,Power on time00branch27second
\M[2]I2= 0.127V. Q2= 0.097V. V2= 0.160V. A2= 037. 01:11
\pattern2,IPhase level0.127V,QPhase level0.097V,Vector amplitude0.160V,angle37degree,Power on time01branch11second。
\M[3]T0:25.29C 01:14
\pattern3,25.29centigrade,Power on time01branch14second
\M[4]V1=0.187V.A1= 037 01:17
\pattern4,Vector amplitude0.187V,angle37degree,Power on time01branch17second
\M[5]V2=0.049V.A2= 026 02:58
\pattern5,Vector amplitude0.049V.,angle26degree,Power on time02branch58second
\surface1 Serial communication protocol
\\
\
Task three Printed circuit board design(15branch)
\requirement:
\All circuit board design files of the contestant are saved in this folder。
\requirement:Indicate your station number below the schematic diagram。
\requirement:
\(1)Draw the physical boundary of the circuit board on the mechanical layer,size:50mm×80mm。
\(2)Dimensions of four fixing holes;aperture3.2mm,Distance between hole center and plate edge2.5mm。
\(3)The nixie tube is arranged at the upper left of the circuit board,Its boundary is separated from the upper and left sides2.5mm±0.2mm。
\(4)General wiring clearance0.2mm。Wiring lineweight0.25mm,Power line width0.4mm。
\(5)Teardrop on all components。
\(6)Double side copper clad grounding,Copper clad gap0.5mm。
\(7)Indicate your station number on the outside of the upper part of the circuit board。
\\
\
