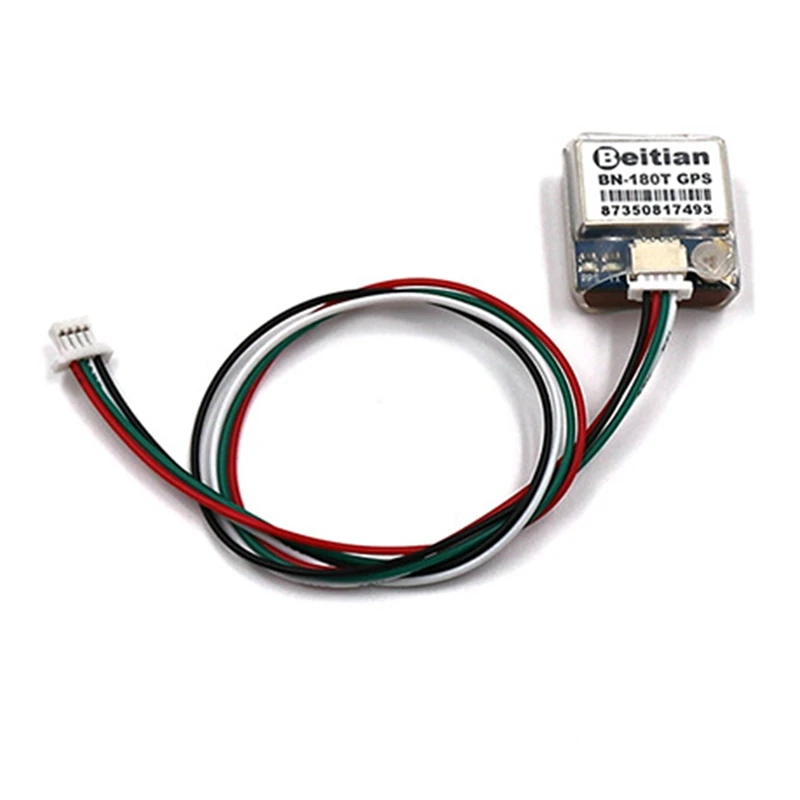

GPS Module BN180T GPS+GLONASS Dual Mode for RC Airplane CC3D Naze32 F3 F4 Drones DIY Parts | Электроника

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; }

Chipset:M8030-KT
Frequency:GPS L1, GLONASS L1, BEIDOU B1, GALILEO E1, SBAS L1, QZSS L1
Receiving Format:GPS, GLONASS, BEIDOU, GALILEO, SBAS, QZSS.Default GPS, GLONASS, SBAS, QZSS.
Channels:72 Searching Channel
Tracking:-167dBm

Reacquisition:-160dBm
Cold Start:-148dBm
Hot Start:-156dBm
Position Horizontal:2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Velocity:0.1m/sec 95% (SA off)
Timing:1us synchronized to GPS time
Acquisition Time:Cold Start 26s
Warm Start:25s
Hot Start:1s
Support Rate:4800bps to 921600bps, Default 9600bps
Data Level:TTL Level
Data Protocol:NMEA-0183 or UBX, Default NMEA-0183
NMEA message:RMC, VTG, GGA, GSA, GSV, GLL
Concurrent GNSS :1Hz-10Hz, Default 1Hz
size: 18 x 18 x 8mm
Material:Electronic component
colour:As shown

Package Contents:

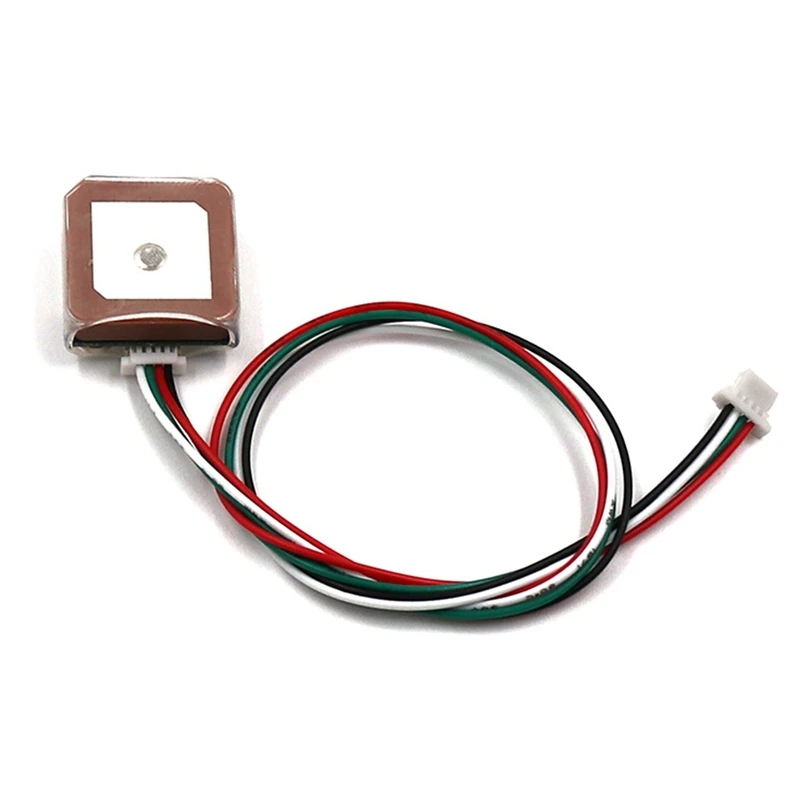

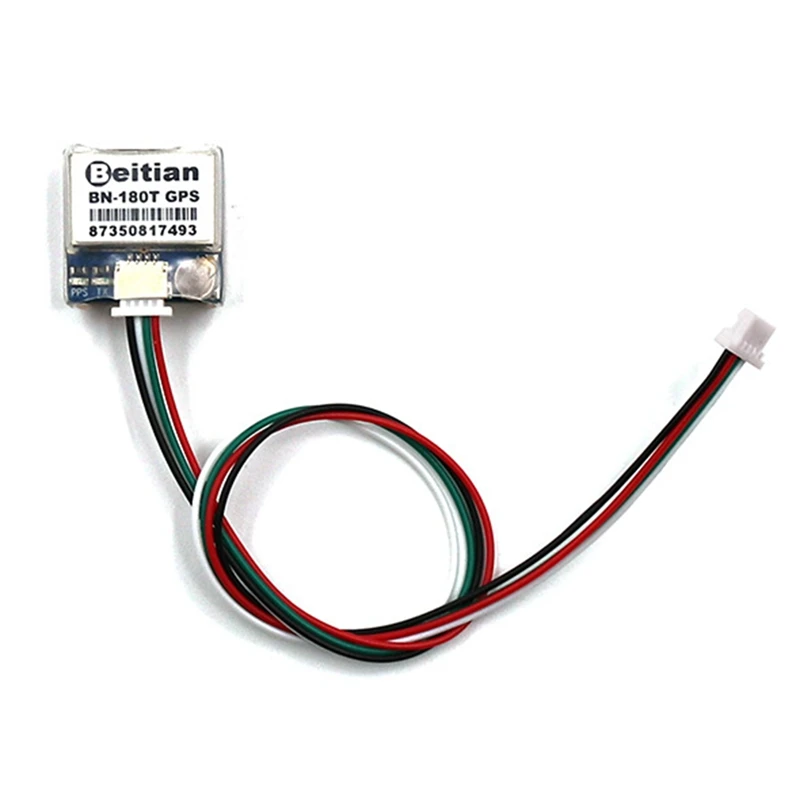

1 x GPS Module

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
