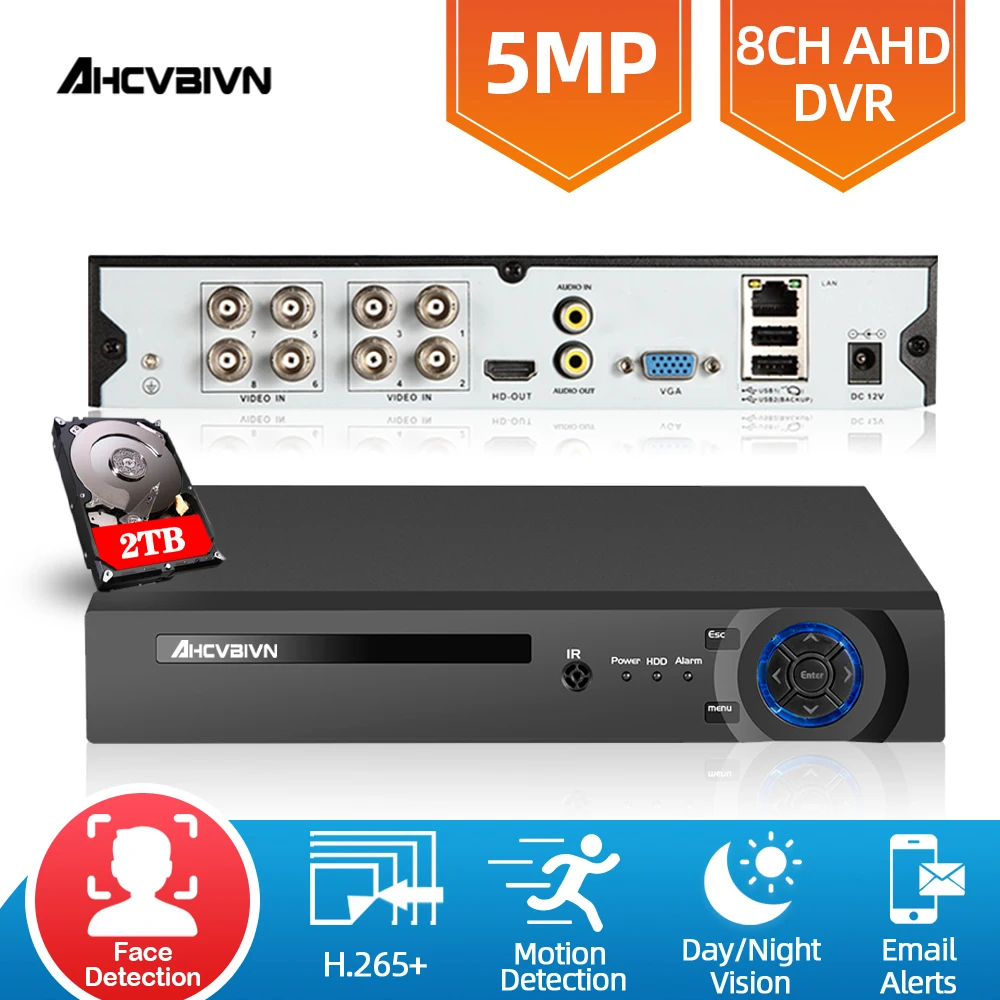

4 and 8 channel 1080P 5MP 6 in 1 DVR video recorder for AHD camera analog IP P2P NVR cctv system H.265 4ch 8ch | Безопасность и

4 and 8 channel 1080P 5MP 6 in 1 DVR video recorder for AHD camera analog IP P2P NVR cctv system H.265 4ch 8ch | Безопасность и

4 and 8 channel 1080P 5MP 6 in 1 DVR video recorder for AHD camera analog camera IP camera P2P NVR cctv system DVR H.265 4ch 8ch

Main Features

1.H.265 8CH AHD Digital Video Recorder;
2,Ultra HD 5MP High Definition Display,Advanced H.265 Video Compression;
3.Support CVBS,AHD,TVI,CVI ,XVI,IP ,6 in 1 Hybrid input;
4.Support Face Detection,Face Record,Face Playback;
5.Support HDMI&VGA Output,Audio Input&Audio Output;
6.Support Ultra HD Day Night Vision View;
7.Support 3.5"inch Hard Drive;
8.Support Motion Detection, Email Alerts, Video Playback and Multi-Language;
9.Support Android,Iphone,Ipad,PC,VMS,P2P view;
10.Support Plug and Play ,Easy to Setup;
11.Remote Access Anywhere,Anytime;

5MP Super HD Resolution

Capture more clear images, never miss any important moment.

Face Detection & Face playback

Face Detection and Face playback and Face Record;
Quickly capture face images and quickly play back face videos;
Face Detection:automatically capture face images;
Face Playback:Intelligent Face video playback,saving time,not missing every details.

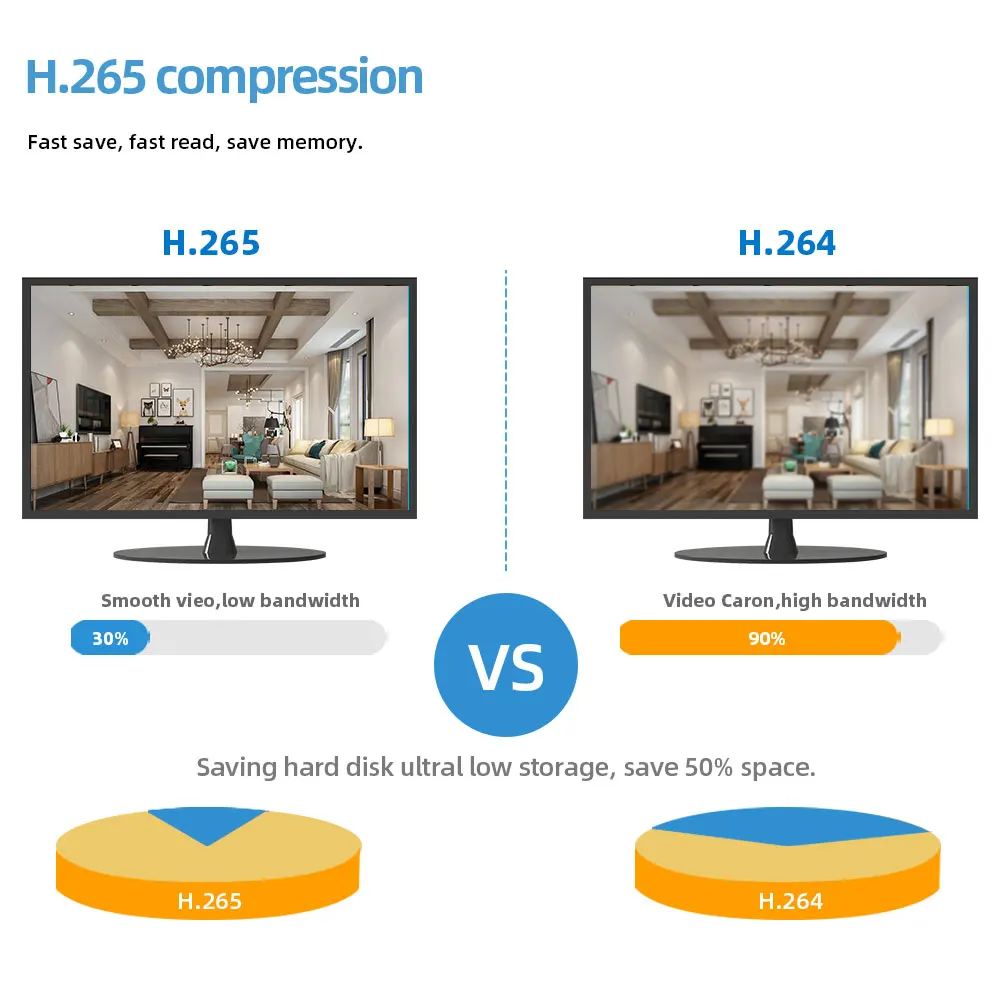

Why chooses H.265?

H.265 More Clear , HD resolution offer you best image quality in a lower bit rate.Save more storage space,can reduce 40%-50% file size,save your HDD storage space and reduce your purchase cost.

6 in 1 Hybrid AHD DVR

You can freely enjoy Six connection modes with this one multi-function digital video recorder.AHD(Analog High Definition)is new advanced technology on home security with 6 recordering modes.for your option:Analog/ AHD/ Network / TVI / CVI / AHD+Network. You can get HD quality video in each mode.

Ultra HD Day &Night Vision View

Every day real-time for you to provide high-quality video images,to bring you a different visual experience

Motion Detection & E-mail Alert

Can set up the area you want to control,When it is triggered,it will send message to your email ,
You can get the first hand information ,no matter when and where you are .

Smart Playback

You can easy find the video footage you'd like to playback,Smart playback available with customizable searching area, playback time is greatly reduced by speeding through unimportant videos.

Multiple Viewing Options

View on HDMI Monitor
Easily display video through the HDMI port of your computer monitor to take full advantage of the security system's clarity. (HD Cable Not Included)
View on TV or PC Monitor
For added convenience, the DVR also comes with VGA and BNC connections for standard resolution viewing options.(VGA or BNC to RCA cable is not included.)

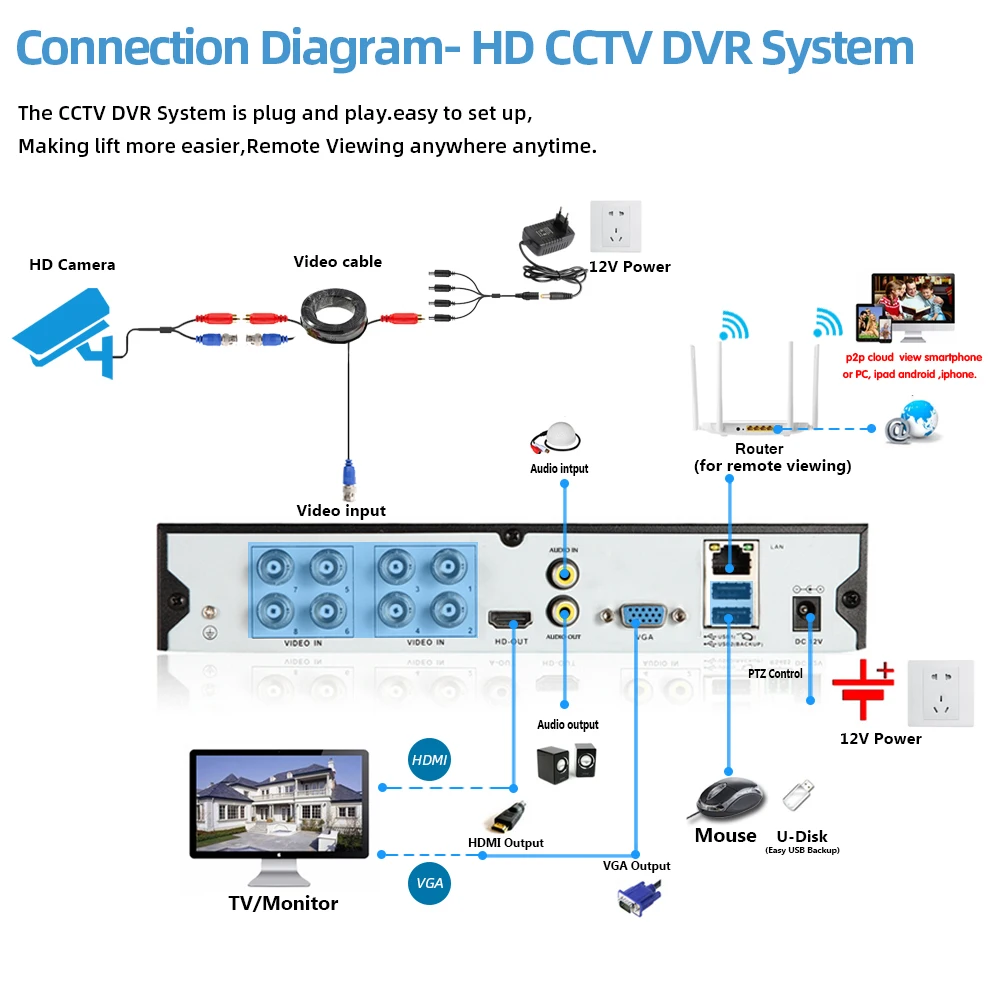

Connection Diagram-Plug and play,Easy to use

The cctv security system is plug and play ,easy to set up,Making lift more easier.Remote viewing anywhere anytime.

Easy remote view setting

Easy setting , just 4 steps for mobile phone viewing,View live video of the system from anywhere and anytime via you smarphone, table or PC with advanced P2P technology, you are able to remote access your system in minutes or less, no portforwarding needed, remote access has never been so easy！！！

Remote viewing anywhere,anytime

No matter where you are, you can remotely access the camera to see live streaming and stayconnected.Remotely view the camera via: free Xmeye App on your mobile device, free CMS Client on your computer, IE web browser.

H.265 8CH 5MP DVR Specifications

System
Main processor: Embedded processor
Operating system: Embedded Linux
Video compression:H.265
System resource：Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up

Interface
Operation interface：16bit real color GUI interface support
Preview ： 1/4/8/9

Video
Video standard :PAL; NTSC
Image encode:H.265
Monitor quality: VGA,HDMI:High definition
Analog input ：8CH*5MP
Network input:4CH*5MP/8CH*4MP / 16CH*1080P
Motion detection：Support
Email Alert : Support
Face Detection:Support
Face Playback:Support
Smart Playback:Support
Remote Access:Support

Audio
Audio compression ：G.711A
Intercom : Yes
Record&Playback
Record mode：manual>alarm>motion detection>timing
Local playback：5MP
Video search：Time, date, event, channel search
Storage&Back up
Video storage : Local HDD ,Network
Back up mode： Network backup, USB portable，HDD,USB imprint,SATA imprint

Interface
Video input：8CH BNC
Video output : 1ch VGA,1ch HDMI HD output
Loop output : N/A
Audio I/O :1CH input/1CH output
Alarm I/O:No
Network port:1* POE RJ45 1000M self-adaptive Ethernet port;
USB port : 2* USB 2.0
HDD port :1 SATA ports,max support 8TB(HDD is optional)

Other
Power :DC 12V
USB Mouse：included
Remote Control : included
Temperature : -20℃+50℃
Humidity : -10%-90%
Dimension : L255mm* W225mm* H45mm
Weight :1.5KG

DVR Language
Russian, English, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish, Thai, Turkey Romanian, Slovakia, Czech, Arabic, Swedish and so on

What's in the box?

1 X H.265 8CH 5.0MP 6 IN 1 AHD DVR Hybrid Digital Video Recorder
1 x Power Supply for DVR
1 X USB Mouse for DVR
1 X Software CD for DVR
1 X Remote Control for DVR
Hard Disk Optional !!
