This portable Type-C voltage and current protocol tester with powerful functions such as dual Type-C interface (1 male&1 female), two-way recharging, four major modes curve detection, V/A/W 6-bit high precisions detection and so on. If you need it, come and have a try, it will not let you down.

Features:

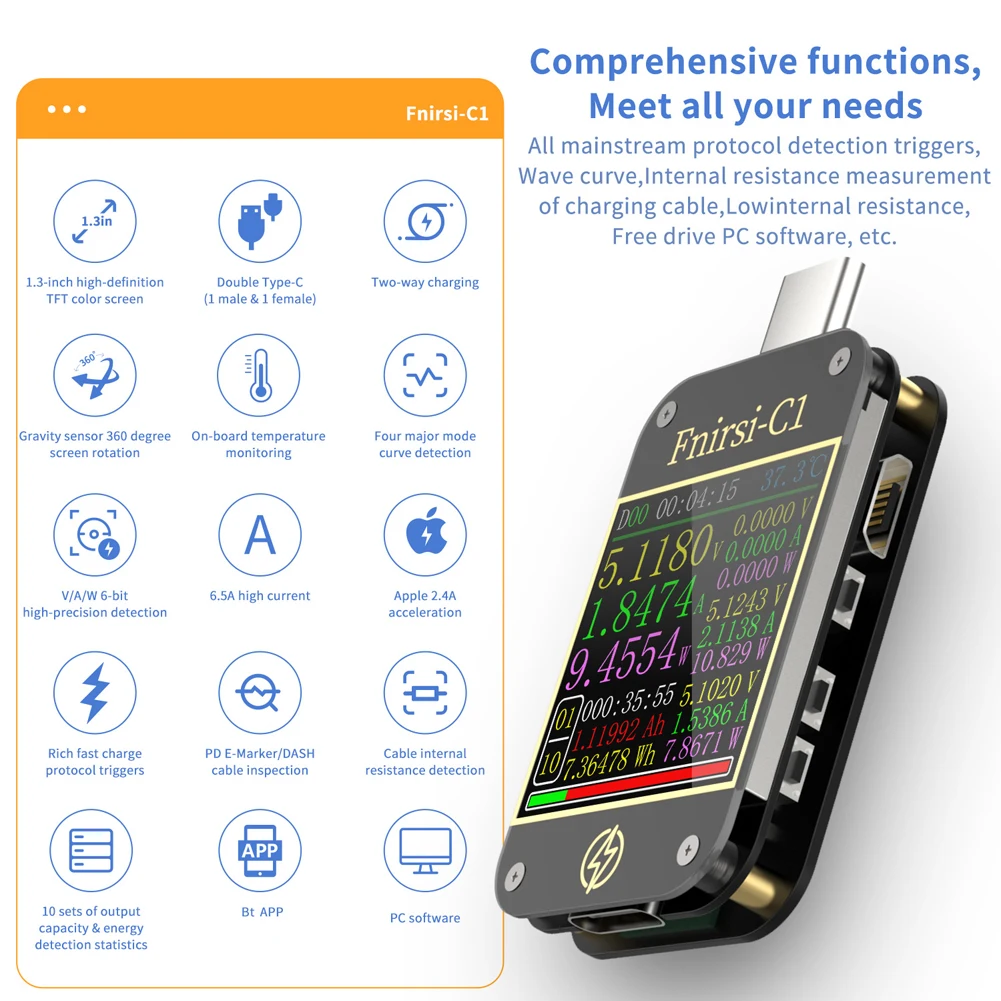

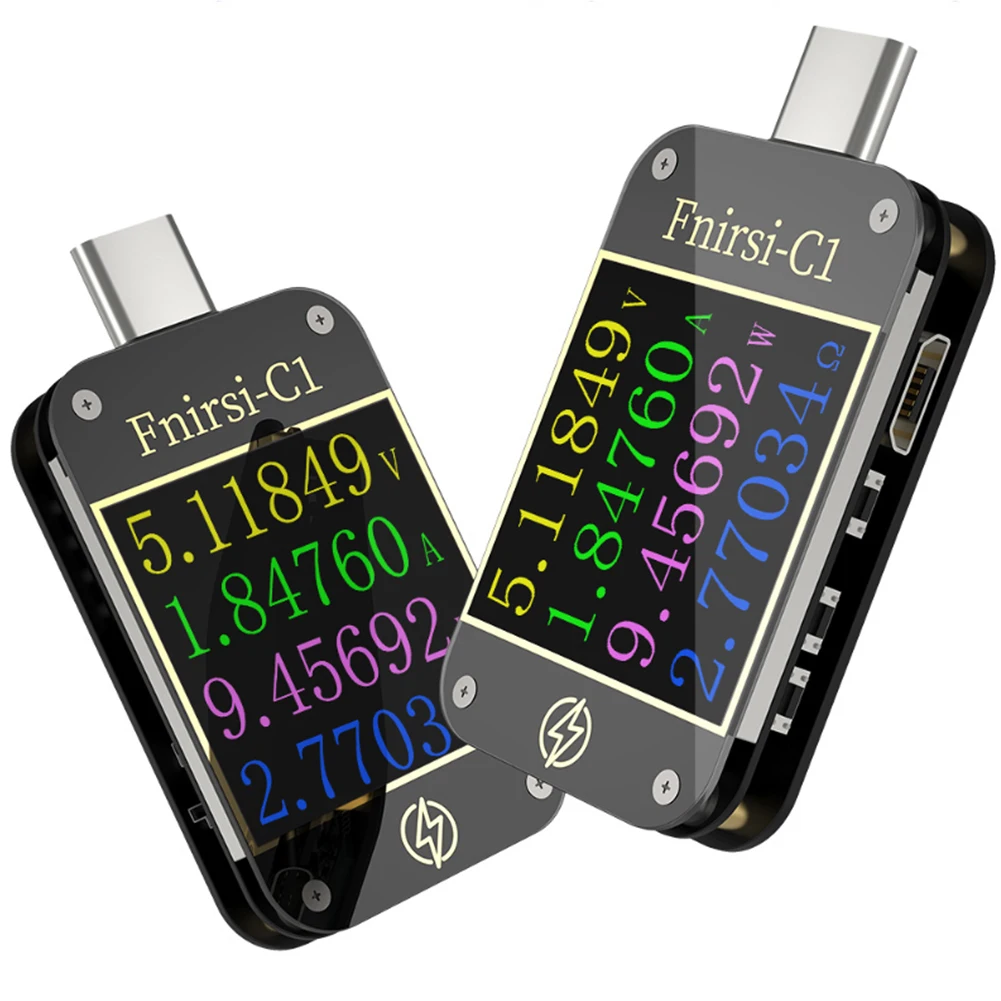

Adopt 1.3inch TFT color screen for you to read the data more clearly, and allows 360° screen rotation, you can read the data more easily.

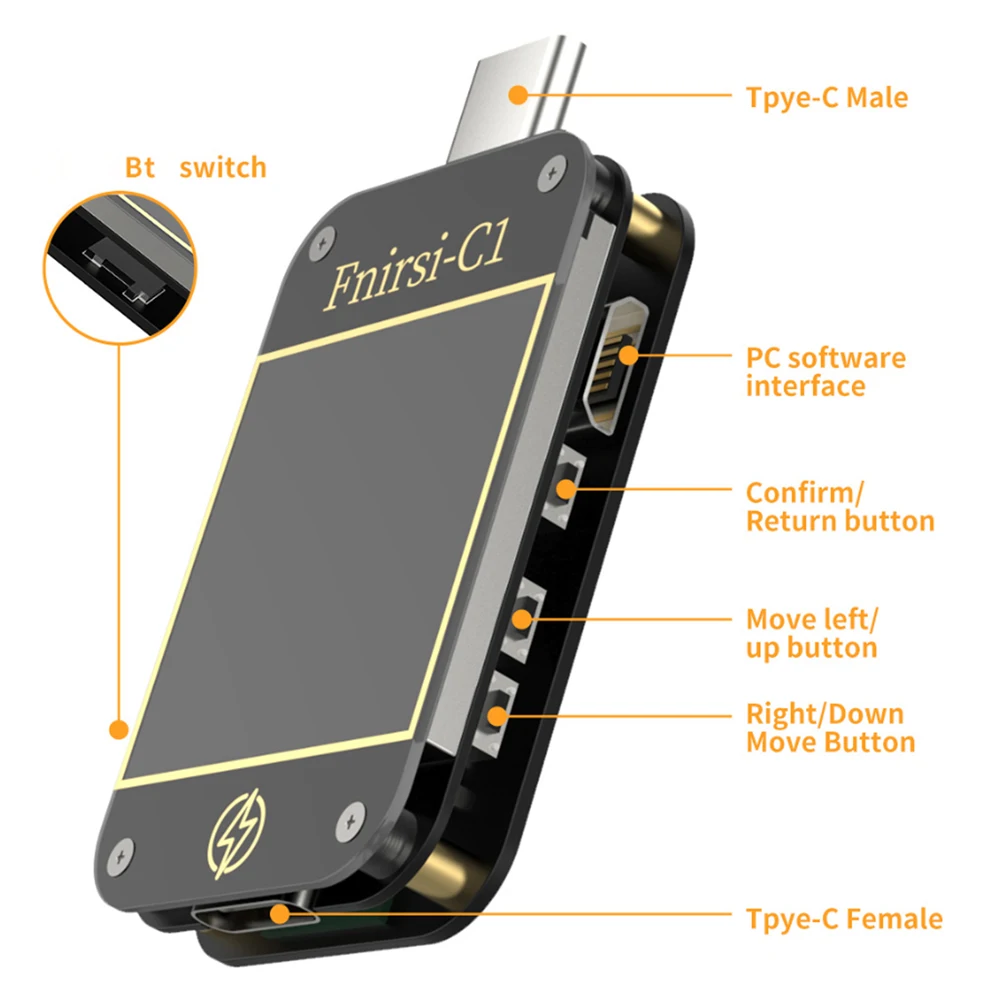

With double Type-C interface (1 male&1 female) and supporting two-way recharging, also support 6.5A large current.
Real-time monitoring of recharging voltage, current and power. Use external 16-bit AD&PD protocol physical chip, which can be used for test a lot of rechargers, power banks, data cables, mobilephones and laptops and other digital devices.
A variety of quick recharging protocols automatically detect/trigger: Protocol trigger: QC2.0, QC3.0, SCP, AFC, PD protocol, and protocol detection: IOS2.4A, PD2.0, PD3.0, QC2.0, QC3.0.
3 large curve interface and record offline curve: low speed voltage and current curve, low speed D+D- curve, record offline curve, high-speed voltage waveform.
With powerful PC software and drive free install, combines the functions of data management, protocol control, firmware upgrades, and support monitoring and recording of voltage and current curves.
Cable internal resistance detection: Differential pressure method to measure the internal resistance of the cable,Use with constant current load,Easily test the internal resistance of the cable in two steps.
PD E-marker cable measurement: Support reading E-Marker data. Connect the data cable to easily read the E-Marker chip. With IOS 2.4A acceleration function, quick recharging function can be realized without originals data cable, and detect voltage current, power, etc.

Specifications:
Material: Printed circuit board
Monitoring voltage: 4~24V
Resolution: 0.00001V
Accuracy: ±(0.2‰+2)
Monitoring current: 0~6.5A
Resolution: 0.00001A
Accuracy: ±(0.5‰+2)
Monitoring power: 0~130W
Resolution: 0.00001W
Accuracy: ±(0.5‰+2)
Load equivalent resistance: 0~9999.9Ω
Resolution: 0.0001Ω
Accuracy: ±(0.5‰+2)
D+/D- voltage: 0~3.3V
Rresolution: 0.001V
Accuracy: ±(1.0%+2)
Equipment temperature: ℃/℉
Capacity: 0~9999.99Ah
Resolution: 0.00001Ah
Package size: 100 * 65 * 18mm / 3.9 * 2.6 * 0.7in
Package weight: 47g / 1.7ounce

Note:
The host computers software may be incompatible with some Wins systems. Please install and test the software before purchasing the product.

Packing list:
1 * Tester
