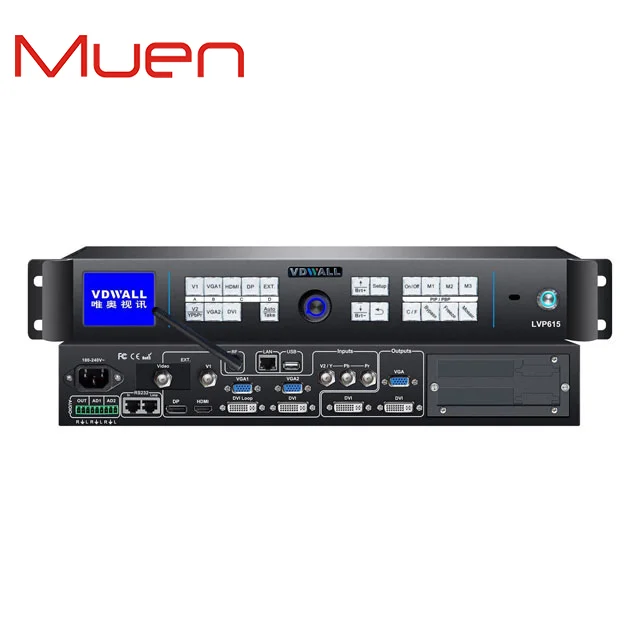

LVP615 series LED HD video processor Muen Led | Displays

Supply AbilitySupply Ability99999 Square Meter/Square Meters per MonthPackaging & DeliveryPackaging Detailswooden casesPortshenzhenLead Time:

Quantity(Pieces)

1 - 50

>50

Est. Time(days)

10

To be negotiated

Product Description

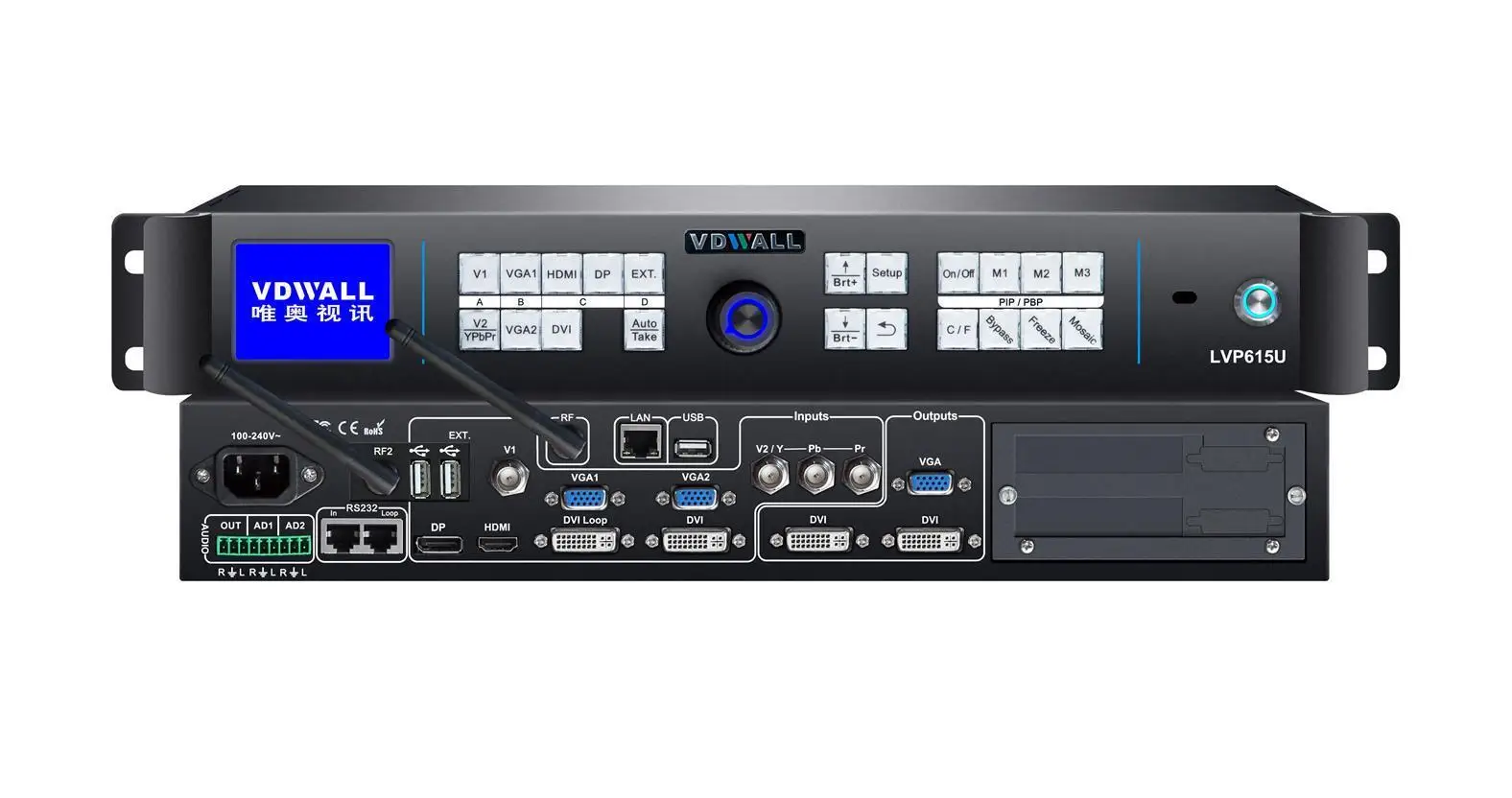

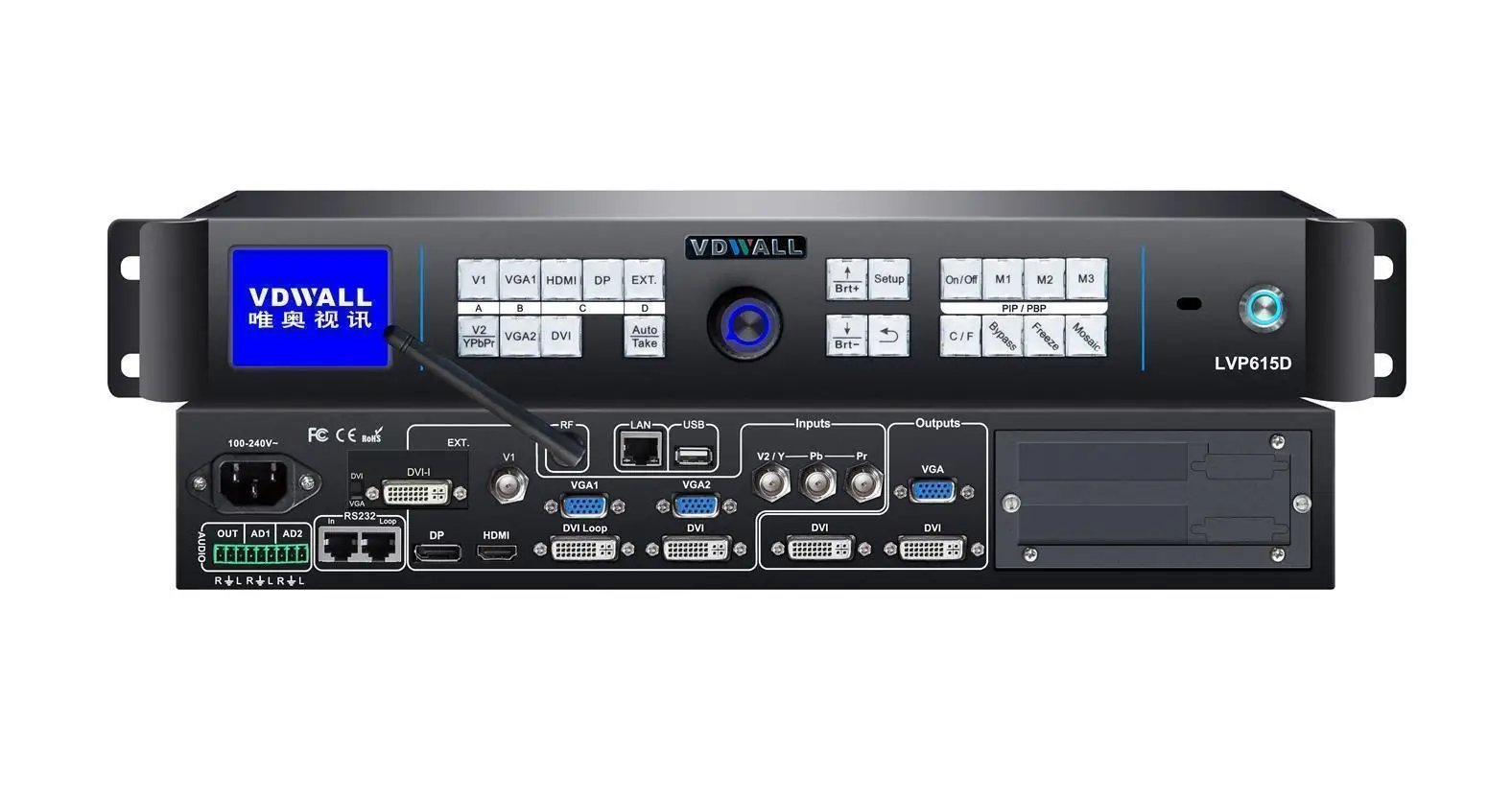

LVP615 seriesDVI Loop unlimited cascading synchronous splicing, driving unlimited LED screen dot matrix.Panel buttons, infrared remote control, PC software, WIFI and other control methodsLVP615 multi-machine synchronous splicing1：A P5 full-color LED display, the pixel points are 4608*2304 points, and the pixel points of a single cabinet are 128*128 points. AV signal output by a camera, VGA signal output by a laptop computer and DVI signal output by a desktop computer on site2：4608*2304 point LED screen, horizontally divided into two sections, vertically divided into two sections, and evenly divided into four parts, each part of 2304*1152 points is controlled by an LVP615. Using another LVP615 as the master control unit, combined with the infinite cascading and synchronous splicing functions of the LVP615, the four-part 2304*1152 LED screen can be spliced into a complete 4608*2304 point.
LVP615 Wiring Diagram
1：Suitable for rental
performances

2：TV Studio Center
3：Large stage theater
4：ConferencesLarge-screen display occasions such as exhibitions.

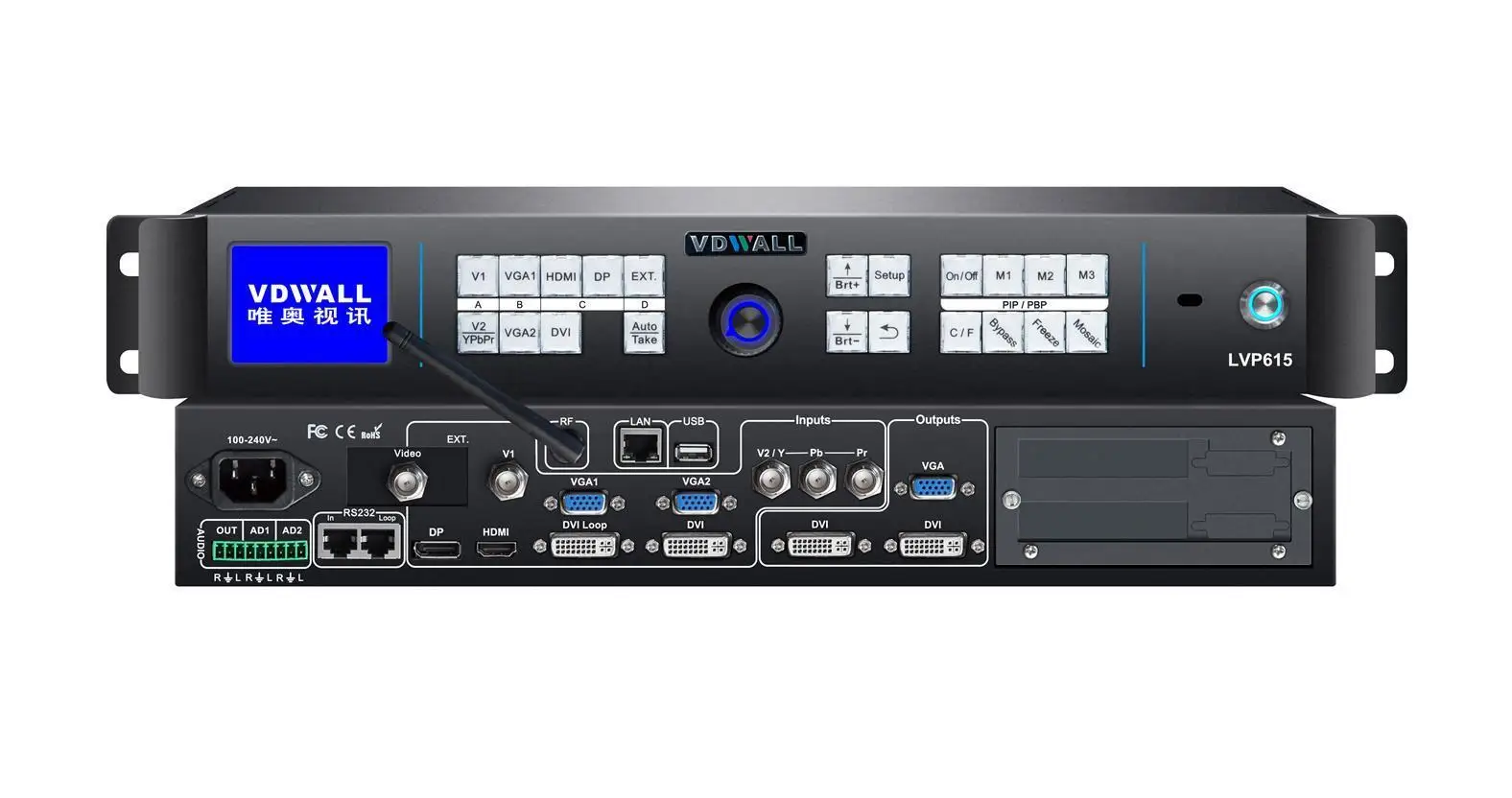

Front panel buttons and remote control operationLVP615 supports front panel buttons, remote control, RS232 and network control and other control methodsChoose 1 PAL/NTSC composite video input1 PAL/NTSC standard composite video or bright color separation video input2 computer analog signal input1 DVI digital signal input1 HDMI digital signal input1 DisplayPort digital signal input1 way expansion interface inputSpecificationitemvalue


Type/Quantity
2×Video
1×YPbPr
2×VGA（VESA）
1×DP（VESA）
1×DVI（VESA）
1×HDMI（VESA/CEA-861）
1×EXT.（Extension interface Video/DVI-I/SDI）Video formatsPAL/NTSCComposite video amplitude impedance1V（p_p）/ 75ΩYPbPr formatSD/HD（CEA -861）
YPbPr amplitude impedanceY= 1.0V（p_p）/ 75Ω
Pb= 0.35V（p_p）/ 75Ω
Pr= 0.35V（p_p）/ 75ΩVGA format
PC（VESA） ≤2048x1152 _60Hz
VGA amplitude impedanceR、G、B = 0.7 V（p_p）/ 75ΩDP formatDisplayPort1.1（VESA）audio2.0Vp-p/10KΩ


The input terminalsVideo：BNC
YPbPr：BNC×3
VGA：15pin D_Sub(雌)
DP：DisplayPort SMT母座 20pin
DVI：24+1 DVI_D
HDMI：HDMI端子A类
SDI ：BNC
Type/Quantity
1×VGA（RGBHV）
2×DVI






VGA/DVI resolution1024×768_60Hz/75Hz
1080×1920_60 Hz
1200×1600_60 Hz
1280×1024_60Hz/75Hz
1366×768_60Hz
1440×900_60Hz
1536×1536_60 Hz
1600×1200_60Hz
1920×1080p_50Hz/60Hz
1920×1200_60 Hz
2048×1152_60Hz
2304×1152_60Hz
2560×816_60Hz
Custom output resolution (horizontal pixels up to 3840, vertical pixels up to 1920)VGA output amplitudeR、G、B = 0.7 V（p_p）/ 75Ω
The output terminalsVGA OUT：15pin D_Sub(雌)
DVI OUT1：24+1 DVI_D
DVI OUT2：24+1 DVI_DThe input voltage100-240VAC 50/60HzMaximum power consumption≤20WMultiple control modespanel keys, infrared remote control, PC software, wireless WIFICompany Profile00:0002:12ABOUT MUENLED
