Новый трансивер USDX USDR 8 Band SDR All Mode USB LSB CW AM FM HF SSB QRP QCX-SSB с батареей и европейской вилкой.

Brand NameNoEnName_NullOriginMainland ChinaCertificationNONEMeasurement unitpiece/piecesEach pack1Model NumberUSDX USDR HFPAExternal power amplifier, PTT signalKEYautomatic key body connectionMICExternal microphone port

Unavailable in

Description

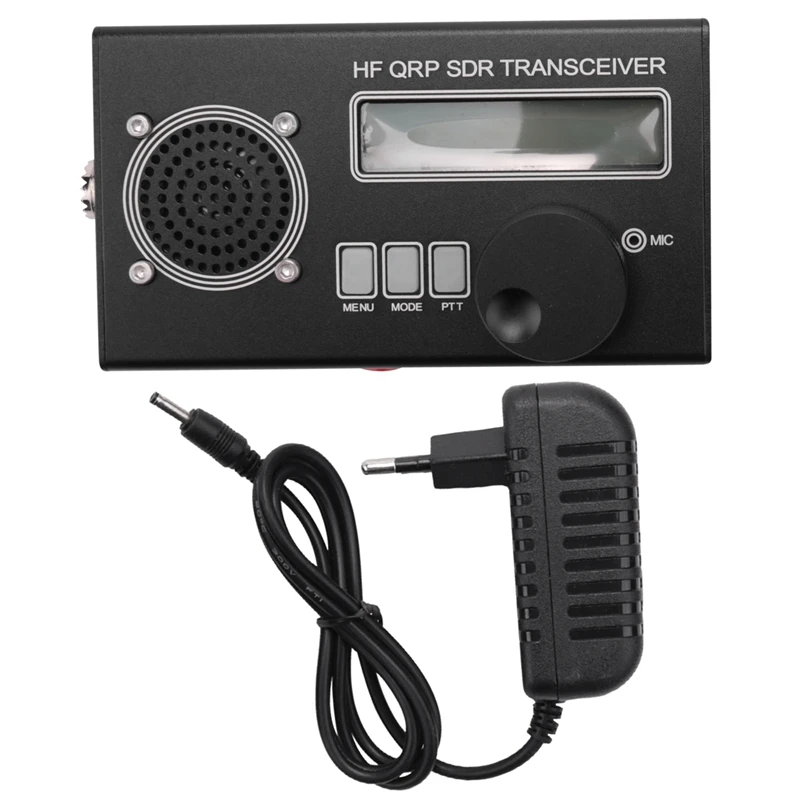

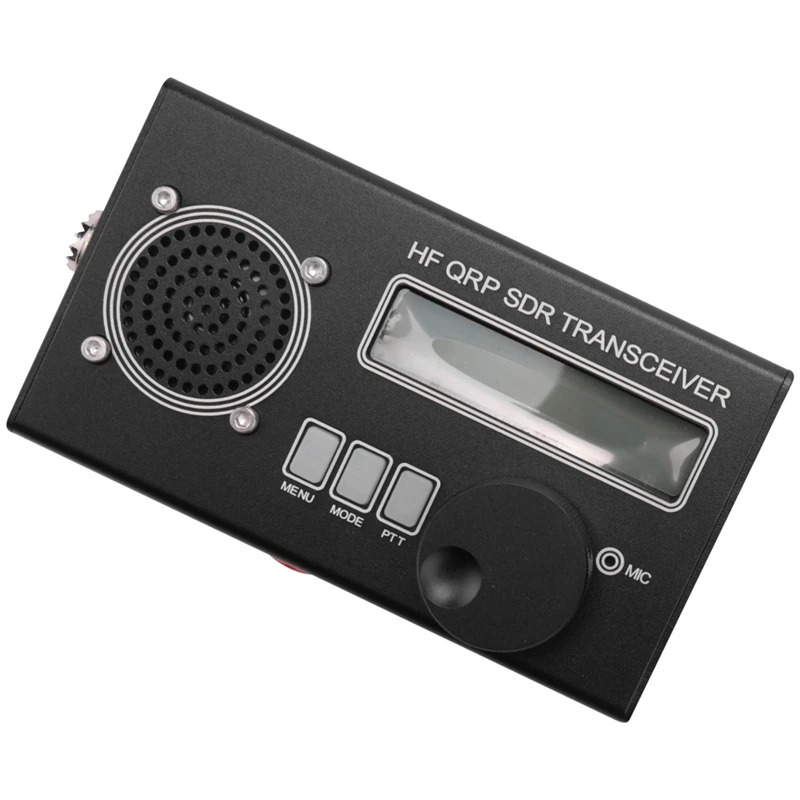

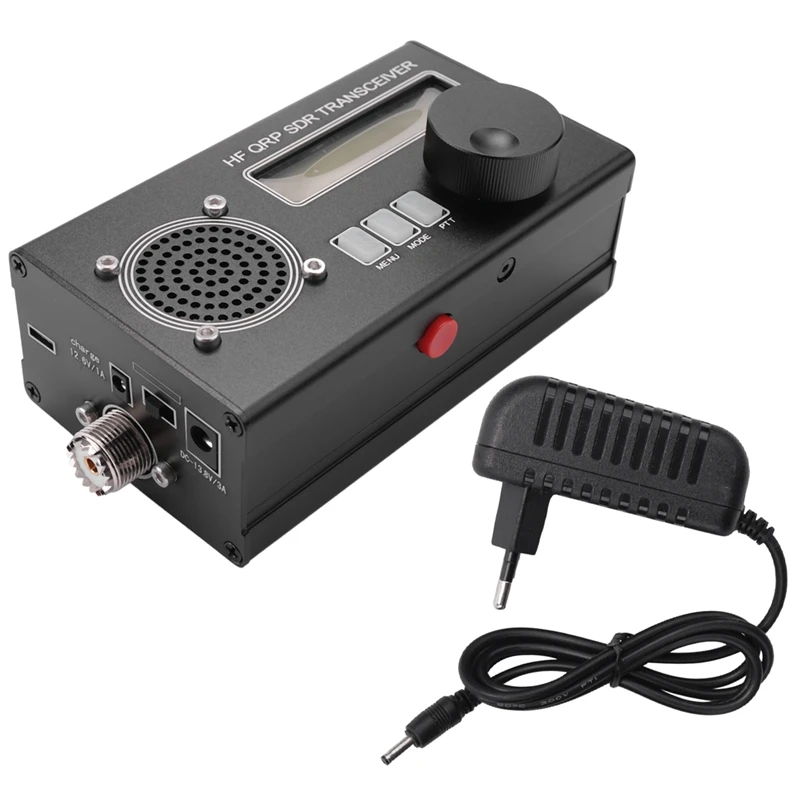

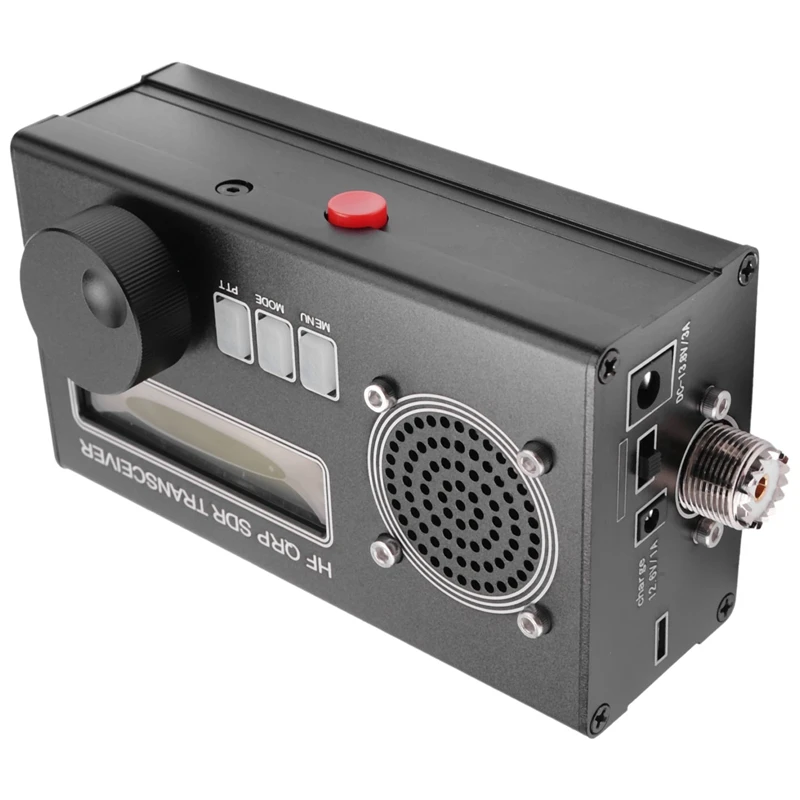

New USDX USDR 8 Band SDR All Mode USB, LSB, CW, AM, FM HF SSB QRP Transceiver QCX-SSB with Battery EU Plug

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; }
Using IRF series launch tube, durable
Can be used by connecting the antenna (M seat)
8 bands. Power standing wave digital display! 10W max when use extral 13.8V power supply, not all bands can reach 10W
Use TCXO for KDS. Accuracy 0.5PPM (1PPM per year)
Simple, interesting and versatile QRP SSB HF transceiver with embedded DSP and SDR functions

EER E-level driven SSB launch stage
13.8V power supply provides about 10W PEP SSB output
Full mode support: USB, LSB, CW, AM, FM
DSP filter: 4000, 2500, 1700, 500, 200, 100, 50Hz passband
DSP function: automatic gain control (AGC), noise reduction (NR), voice trigger, voice trigger Xmit (VOX), RX attenuator attenuator (ATT), TX
noise gate, TX driver control, volume control, dBm/S-meter
SSB reverse sideband/carrier suppression transmission: better than 45dBc, IMD3 (two tones) -33dBc, reception: better than -50dBc
Multi-band support, continuously adjustable in the 160m-10m frequency band (and performance loss from 20kHz.99MHz)

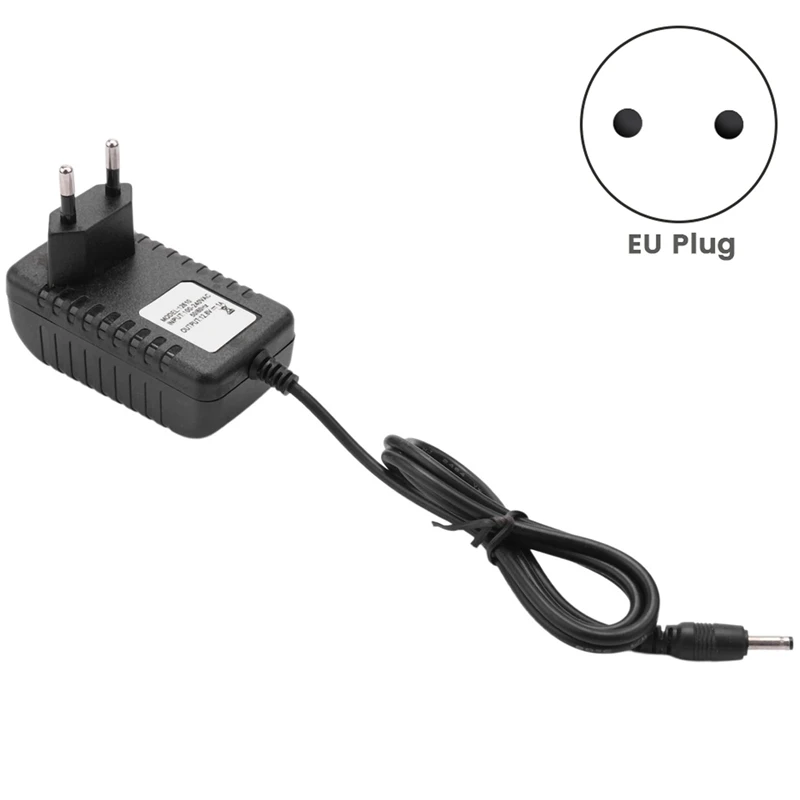

Plug Type: EU Plug, it applies to Indonesia, Germany, France, Spain, Italy and so on.
size:76 x 46 x130mm
Material:Metal + plastic
colour:black

Package Contents:
1 * QRP SSB/CW transceiver
1 * Power adapter

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

---
