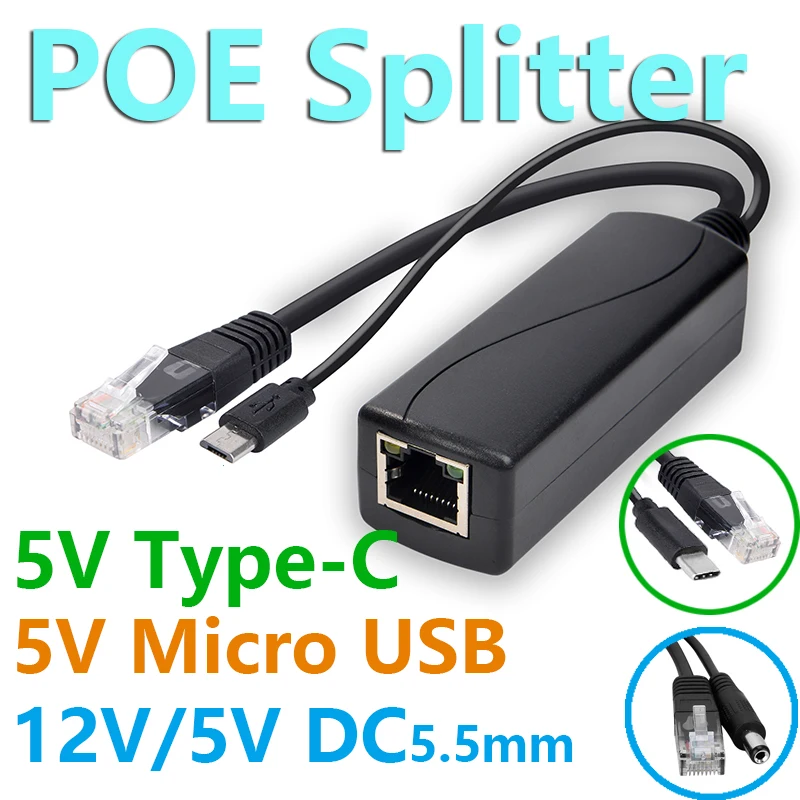

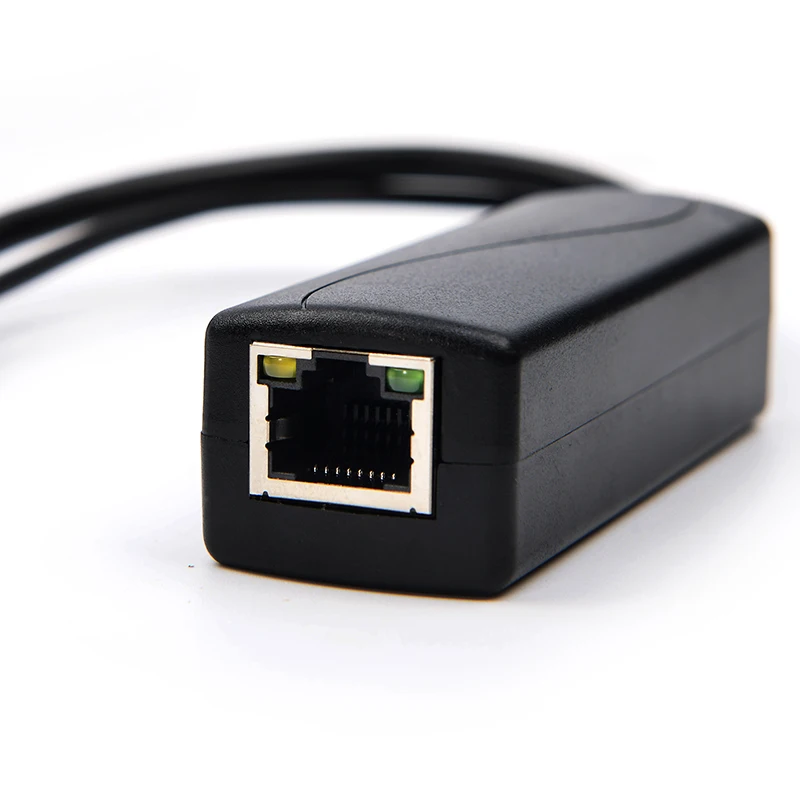

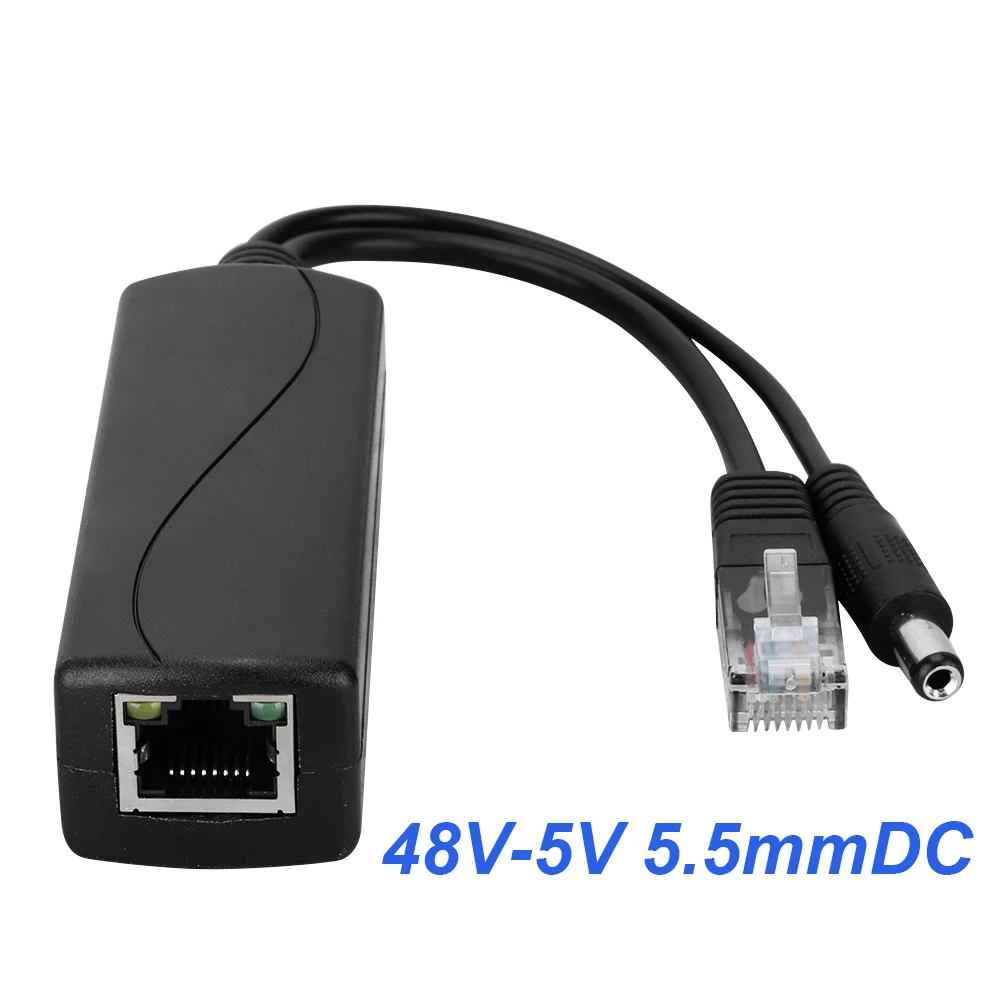

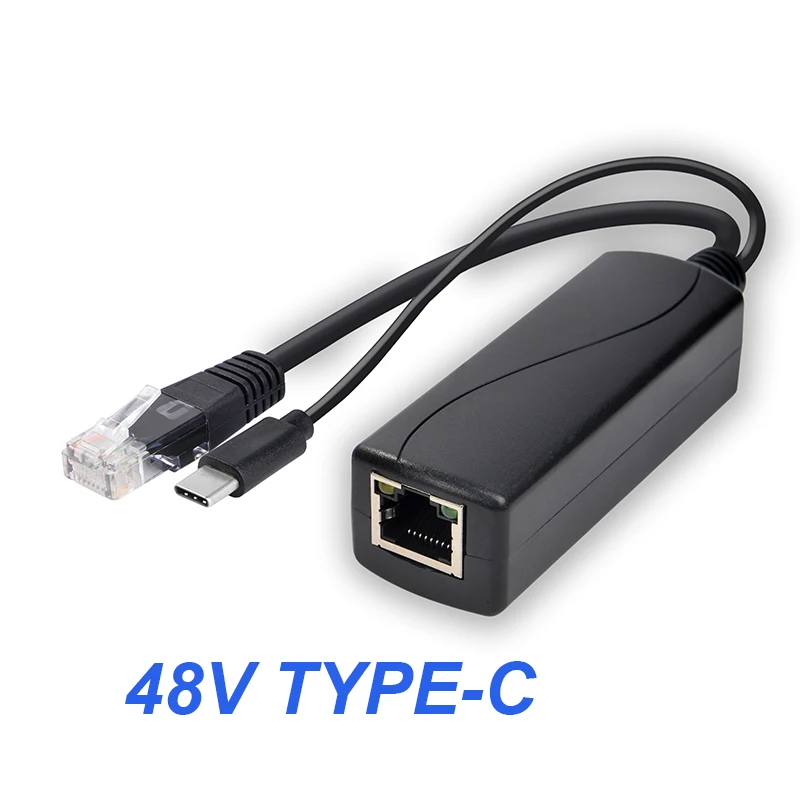

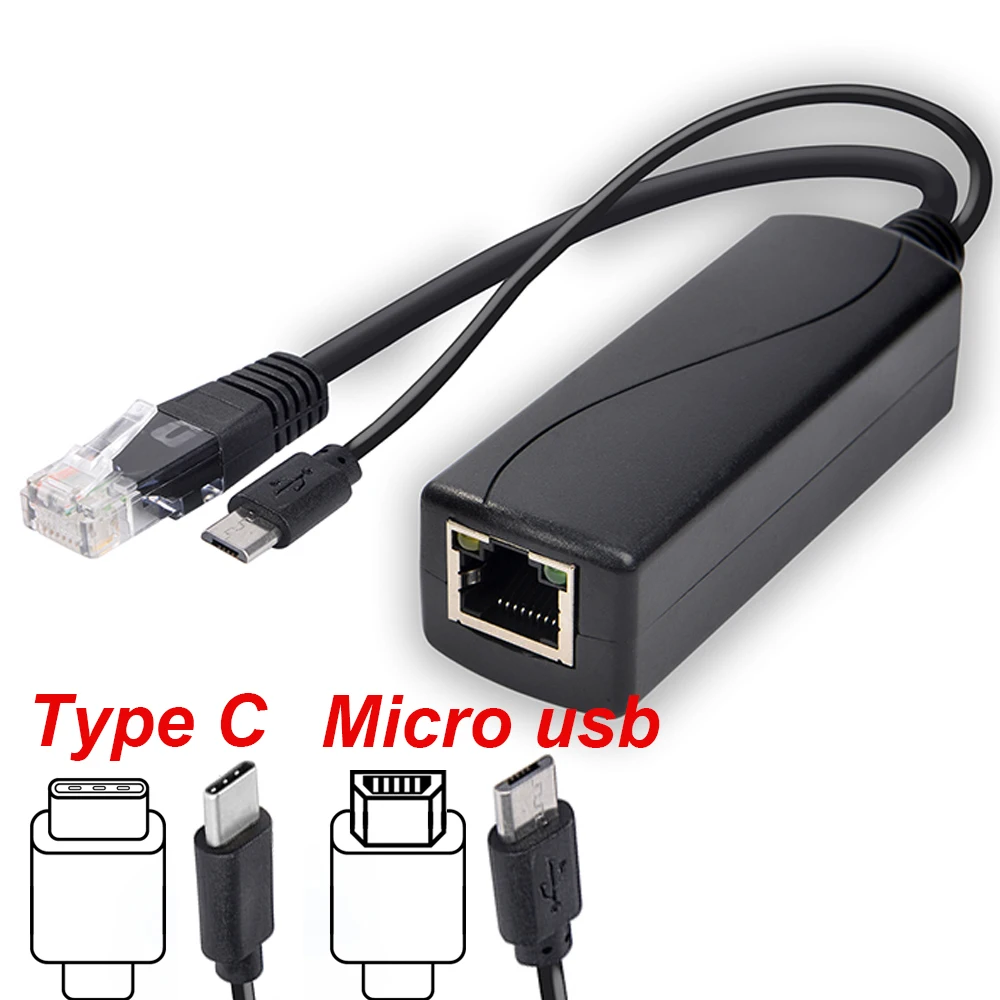

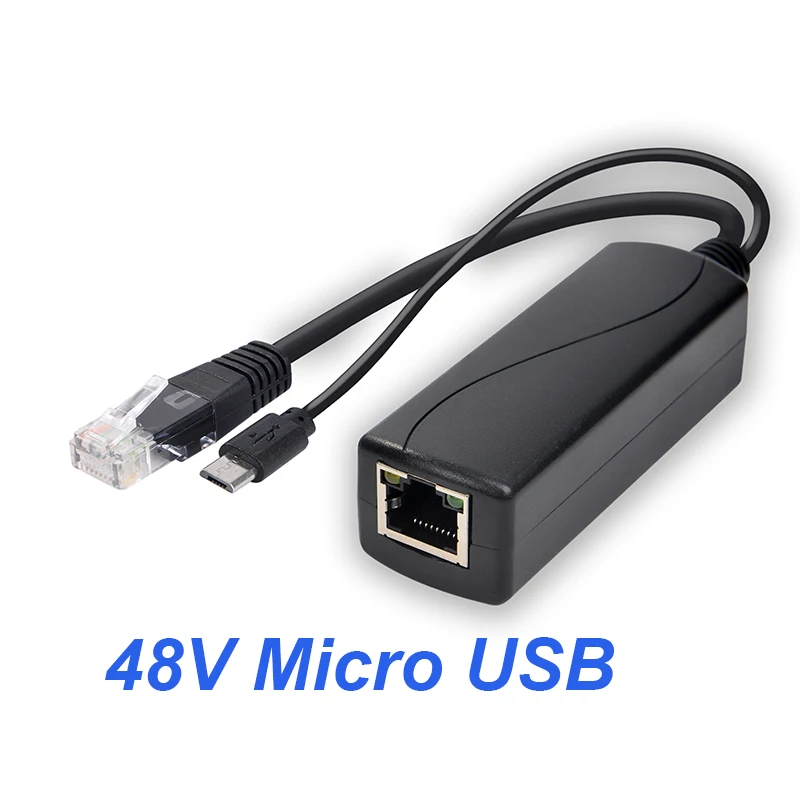

IEEE 802.3af Micro USB Active PoE Splitter Power Over Ethernet 48V To 5V for Tablet Dropcam or Raspberry Pi

Compliant with IEEE802.3af / at

Isolation: 2.5kV

Power Input: DC 44~57V

Power Output: DC 12V/DC 5V/Micro USB/Type-C

Data&Power INPUT Port: from RJ45 female (Compliant with IEEE802.3af/at PoE)

Data Output Port: RJ45 Male

Max Transmission distance: 150Meters (Depends on the quality of RJ45 Cable)

Data Transfer Rate: 10/100/1000Mbps (Only the Gigabit Version is 1000Mbps)

Devices will be detected before poe input

Power Pin: support both 1/2(+),3/6(-) and 4/5(+),7/8(-)

Size: 82 x 28.5x 23 mm

DC cable length: 215mm

RJ45 Modular Plug cable length: 220mm

Weight : 65g

Overview

With RJ45 port and DC port with Micro USB.
it is an economical and practical PoE remote power equipment base on IEEE802.3af standard. It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af,Provides power and data at the same time for the terminal device does not support PoE.
PoE splitter, output voltage of 5V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line

Technical Parameters

The main parameters:
