Новый промышленный мини-ПК 11 поколения Intel i7 1165G7 i5 1135G7 безвентиляторная система

Новый промышленный мини-ПК 11 поколения Intel i7 1165G7 i5 1135G7 безвентиляторная система

Processors

Cores & Threads

Cache

Base Frequency

Max Turbo Frequency

Graphics

Core i3-7020U

2 cores, 4 threads

3M

\

2.30 GHz

Intel HD Graphics 620

Core i3-8145U

2 cores, 4 threads

4M

2.10 GHz

3.90 GHz

Intel UHD Graphics 620

Core i5-8250U

4 cores, 8 threads

6M

1.60 GHz

3.40 GHz

Intel UHD Graphics 620

Core i7-8550U

4 cores, 8 threads

8M

1.80 GHz

4.00 GHz

Intel UHD Graphics 620

Core i5-10210U

4 cores, 8 threads

6M

1.60 GHz

4.20 GHz

Intel UHD Graphics 620

Core i7-10510U

4 cores, 8 threads

8M

1.80 GHz

4.90 GHz

Intel UHD Graphics 620

Core i5-1135G7

4 cores, 8 threads

8M

2.40 GHz

4.20 GHz

Intel Iris Xe Graphics 1.30GHz

Core i7-1165G7

4 cores, 8 threads

12M

2.80 GHz

4.70 GHz

Intel Iris Xe Graphics 1.30GHz

Highlight

- Onboard newest 10nm 11th Gen Intel Core i5/i7 Processor with powerful computing performance;

- Onboard newest Intel Iris Xe Graphics that is comparable to NVIDIA GeForce MX350 discrete graphics card;

- Brushed Full Aluminum Alloy Black color Rugged shell, Exquisite production craft on
outside design fit for industrial fields;

- Fanless system without cooling fan, no any noise, work as long as 7x24 hours;

- 2*DDR4 RAM slots 2xfaster than 1 ram slot, DDR4 2xfaster than DDR3;

- Triple-Storage capacity: support 1*MSATA SSD+1*M.2 2280 SSD+1*2.5'' SATA SSD/HDD;

- Support VGA + HDMI dual display output synchronously and asynchronously;

- Can be mounted on the wall by long screws;

- Low consumption CPU TDP only 15W, save much energy eco-friendly.

Notice

Barebone Mini PC ("No Ram No HD No WiFi" bundle) package DO NOT include WiFi(antennas), if you need, please pay extra US $10 at this link. Other bundles include WiFi(antennas).

PC had best to use Samsung, SKhynix, Micron etc original brand accessories,We DO NOT compensate for buyer's man-made damage and faulty.

Basic Information:

CPU

Intel Core i3/i5/i7

TDP

15W

Memory

2 x SO-DIMM DDR4 Slot

OS

Windows 11/Windows 10/Linux

Audio

ALC662 HD Audio

Intel Lynx Point-LP HD Audio Controller

Network

Realtek RTL8168E Gigabit Nic

Video

Intel® UHD Graphics

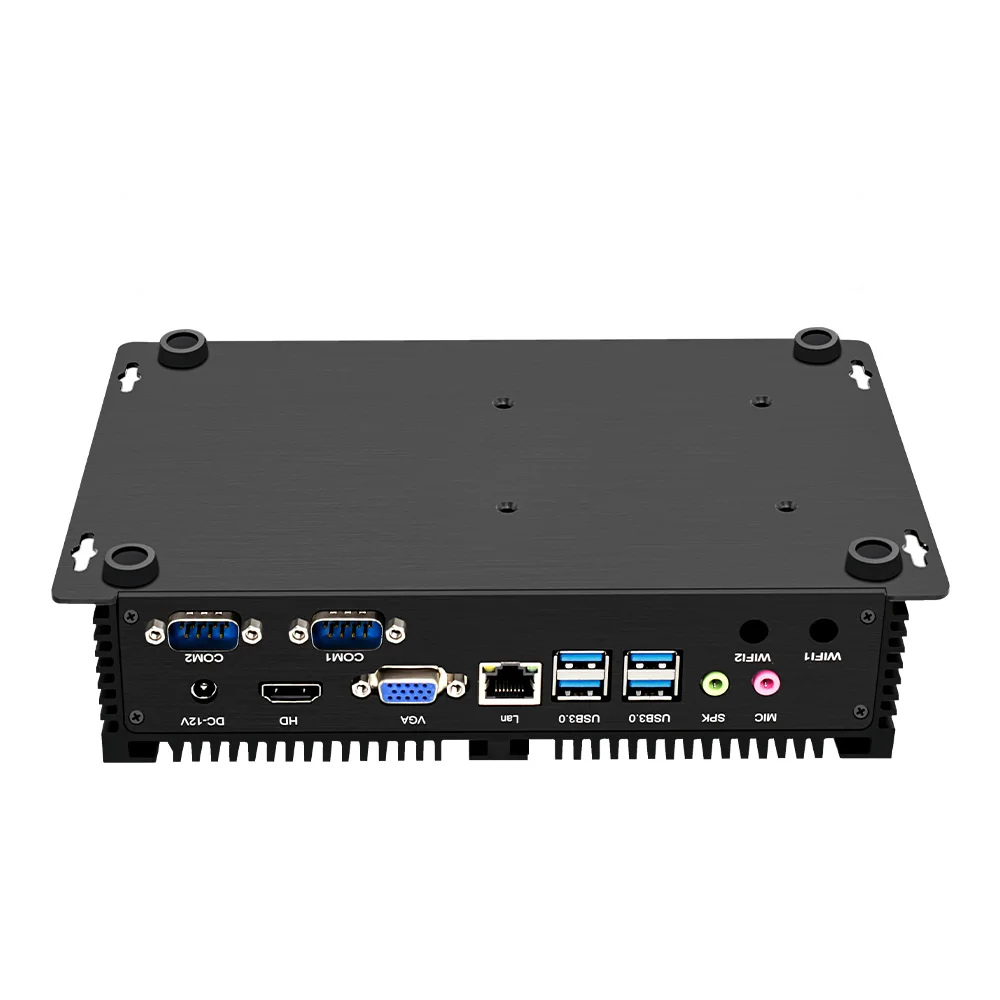

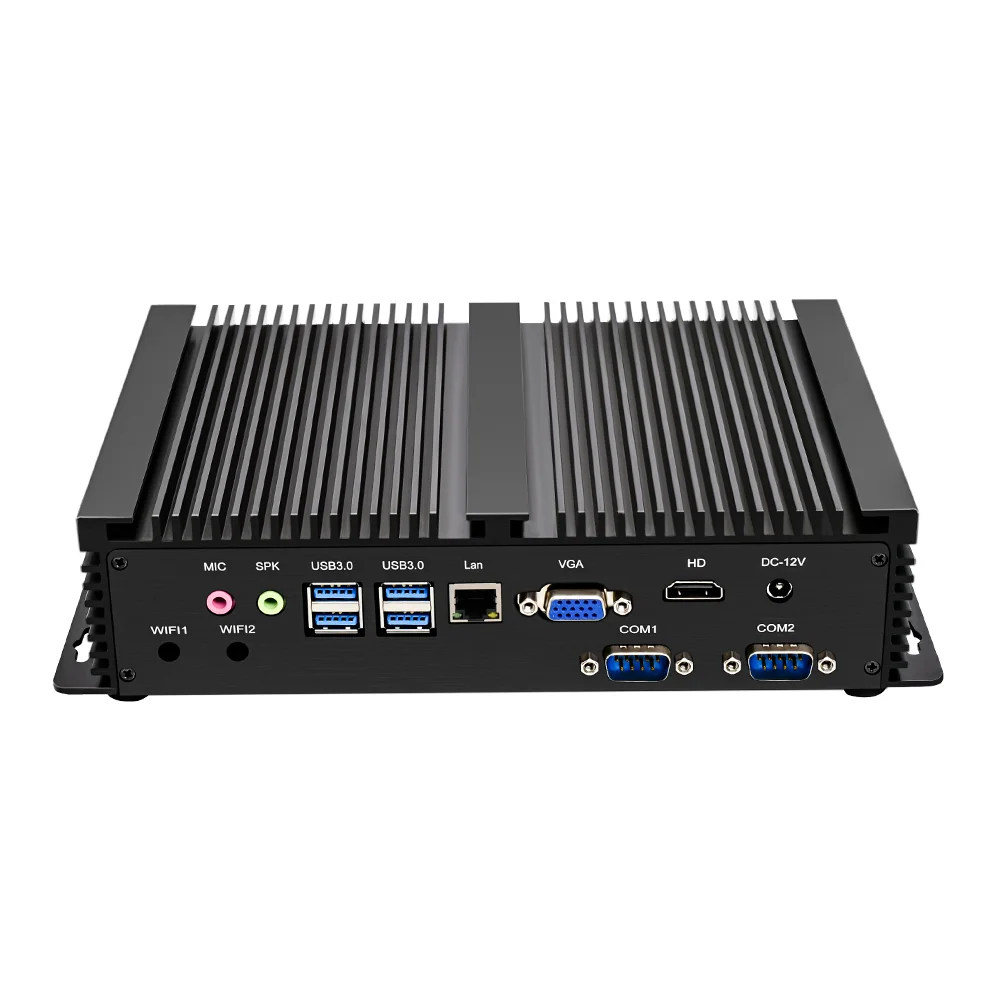

Input/output port

Switch

1 x Power On/Off Switch

Power

1 x DC In

USB

3 x USB2.0, 4 x USB3.0

Display

1 x VGA, 1 x HDMI

LAN

1 x RJ45 Gigabit LAN

COM

2 x COM RS232(DB9) ports

Audio

1 x MIC, 1 x SPK

Storage

MSATA

1 x MPCIE slot for MSATA SSD, support 6Gb/s

M.2

1 x M.2 2280 SATA/NVMe/PCIe3.0x4 SSD, support 32Gb/s

SATA

1 x SATA3.0 slot for 2.5'' SATA HDD/SSD, support 6Gb/s

Wi-Fi

Module

1 x MPCIE-half height for Wi-Fi module

Antenna

2 x inner RF cables and 2 x external antennas(optional)

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC +12V~+19V

Operating Temperature

-20/+75 Centigrade

Storage Temperature

-40/+80 Centigrade

Relative Humidity

0%~90% (non-condensing)

Product Dimension & Details

Size

212*150*54mm

Weight

Net 1.6kg, Gross 2.5kg

Shell

Black color aluminum alloy(any customized color for bulk order)

Mounting

4 Mounting holes on case

Cooling Mode

Fanless

Functions

Watchdog, Auto power on, RTC, PXE boot etc

Package Content

Standard

1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag

Optional

Wi-Fi antennas, 1xUser Manual, 1xLong Screws Bag

Free Operating System: Default installed our trial windows 10/8/7 pro English for free, other languages can be selected among:  Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc.  Please inform us which language you want to install.  Other systems we can install free are like Linux, Ubuntu etc if you need. Seller is not responsible for trial OEM system.

1. Genuine OEM windows license add extra cost 35$.

2. 500GB 2.5'' HDD add extra 50$, 1TB 2.5'' HDD add extra 65$, 2TB 2.5'' HDD add extra 100$.

Upgrading link: https:/item/32738298207.html

(how many dollars to upgrade, pay how many pieces, US$1=1pcs, For example upgrade USB IR remote, pay 14pcs for US$14, remember to leave message noting which one you uprade for...)
