4-way 5-way Wireless RC Car Boat Tank Parts Launch Board Receiver Boards RC Receiver 27mhz 40mhz DIY Toys Circuit Accessory

① This link accessory does not guarantee that it is universal to other remote controls and receiver boards. Even the same frequency is not guaranteed to work. (Except for our shop package)

② During the assembly process, pay attention to the correct positive and negative poles of the battery plug receiver plug, otherwise the board will be broken.

③Please ignore the lighting and music version (not sold) in the main picture and video. Some of your own remote control cars have lights, and you can also use this receiver board for music. For specific tutorials, please refer to the welding.

④ There are detailed tutorials for this transmission and reception, which will be sent together with the package. If you don't understand, you can also consult customer service to solve it (only for accessories in our store)

⑤Conservatively ten meters indoors, twenty or thirty meters outdoors (the radio will be affected by the environment), the store is 45 meters away from the field without any wireless interference near the open field.

⑥ Applicable to remote control cars, one motor is used as steering and the other is used as forward power, which can realize forward, backward, left turn and right turn.

Suitable for remote control boats (differential steering), two motors are used as forward, backward, left and right differential steering. (applicable to upgrade version)

Suitable for remote control tanks (differential steering), two motors are used as forward, backward, left and right differential steering. (applicable to upgrade version)

⑦Note: The operation structure and principle of the remote control circuit of the upgraded model and other models are different. Please read the page information before purchasing.

Note: This circuit is a dual-motor cooperative control to achieve the forward,backward,left and right functions, so it cannot be used on the frame structure of 'one power motor, one steering motor' (two motors will rotate at the same time)!!!

4-way remote control: control the forward and reverse rotation of two motors, one motor is used as the function of forward and backward, and the other is used as the left and right steering to realize the function of forward, backward, left and right.

5-way remote control upgrade: There are two motors that control forward and reverse to realize the function of forward, backward, left and right steering, and the other motor starts and stops left and right to control other functions (such as one-click deformation of a deformed car, rotation of a tank turret, etc.)

Tested: The upgraded version (27mhz) is not common to other circuits (27mhz)

Notice: All the functions described in this link need to be used with the car or other structures. The circuit board itself only has the function of remote control of the motor rotation.

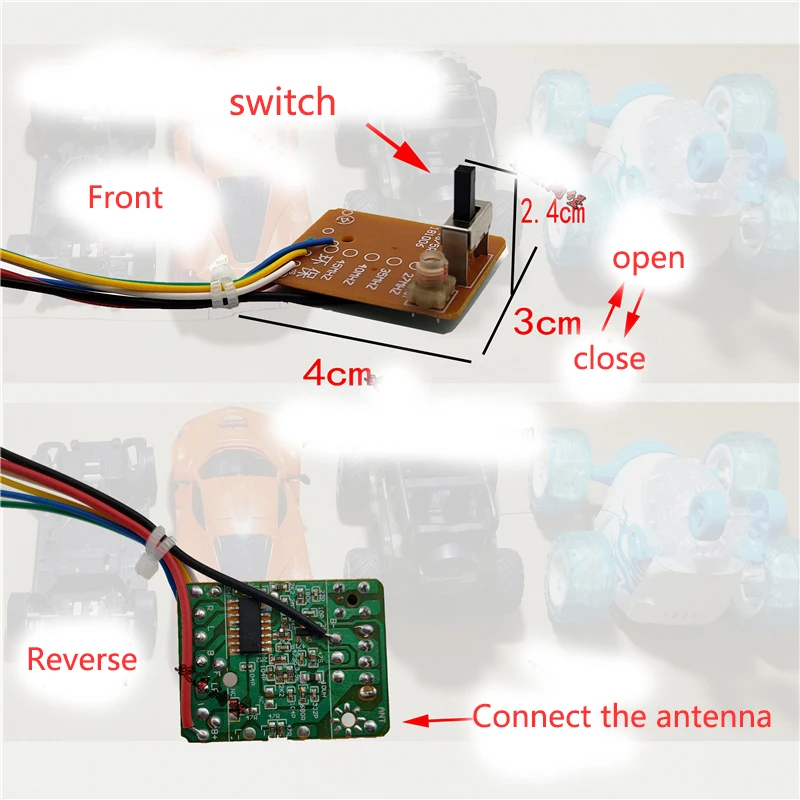

Receiver board size: 50*24*23mm(L*W*H)

The receiving board is suitable for: 130 ordinary toy motors * 3 pcs. (Self-provided/package purchase) Current of receiving board: The most east load current is 4A, and the average of three motors is about 1A. Remote control distance: 30-50 meters. (Conservatively, the distance is more than ten meters indoors, and more than 30 meters outdoors)

Receiver Dimensions: Length 40mm* Section 30m
Frequency: 27mhz, 40mhz (specified frequency is not provided for the time being, the frequency will be shipped together) Working voltage: Launch board: 2 AA batteries (ie 3V)
Receiver: 3.6v-4.8V rechargeable battery or 3-4 AA5 alkaline dry cells

Output voltage: output two voltages 2-3.5V. Can control two motors forward and reverse, 1-3v motors can be used.

Such as 130 motor, ordinary toy car, toy boat R130 motor

Product feature:
1. The voltage of the output two-way motor may have a size check, and it may be obvious when the battery is insufficient. Therefore, it is recommended to take out the small voltage separately and use it as a steering motor.
2. The remote control distance, in the case of sufficient circuit, no interference, about 30 meters or more after connecting the antenna normally is for reference only
3. In order to improve the sensitivity of the remote control, please equip the motor with a 104 motor, which can increase the remote control distance and use time.

Connection method:
1. Launching board: red wire V- is connected to the positive pole of the power supply, black wire V- is connected to the negative pole of the power supply, and ANT is connected to the antenna.
2. Receiver board: The black wire is connected to the negative pole of the power supply, and the red wire is connected to the positive pole of the power supply; R and L are connected to a motor, and B and F are connected to a motor. The voltage output from the B and F lines is larger.

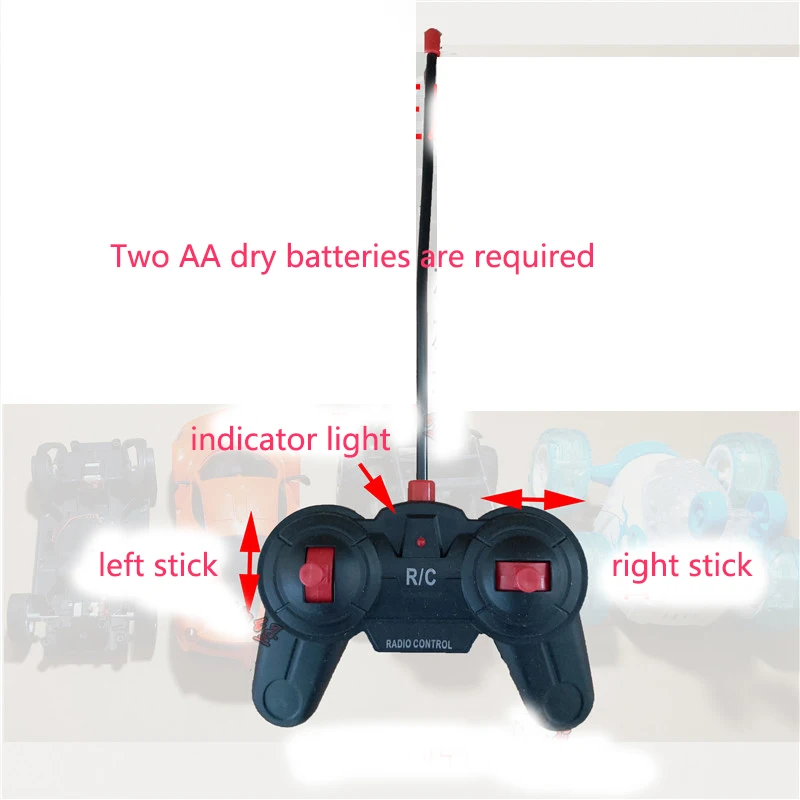

Remote control rocker function

Method 1: Use Individual Motor Control

The left stick acts as a power drive to move forward/backward.
The right stick acts as a steering actuation for turning left/right.

Method 2: Use the principle of motor differential speed

Left and right joysticks operate simultaneously as power drive, forward/backward.

Left stick, right stick stop, as steering drive, turn left.
Right stick, left stick stop, as steering drive, turn right.

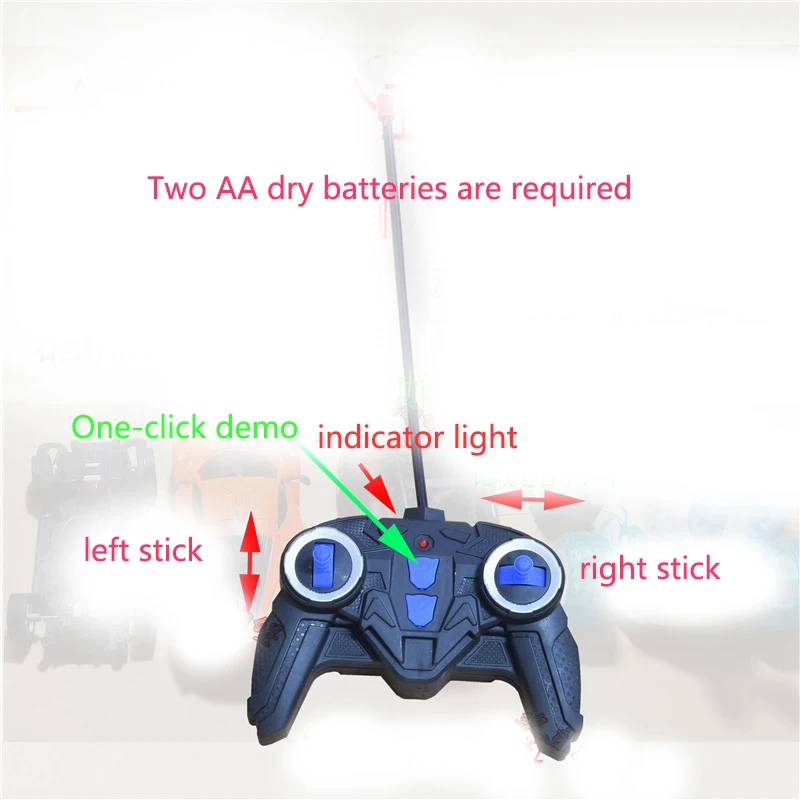

One-click demonstration function, which is more suitable for automatic demonstration of vehicles and tanks.
