Yieryi WIFI Online PH EC Meter Conductivity Temp Water Quality Tester Controller for Aquarium Soilless Cultivation Hydroponics |

Yieryi WIFI Online PH EC Meter Conductivity Temp Water Quality Tester Controller for Aquarium Soilless Cultivation Hydroponics |

Yieryi WIFI Online PH EC Meter Conductivity Temp Water Quality Tester Controller for Aquarium Soilless Cultivation Hydroponics

【Tuya Smart WIFI Online PH EC Controller】Download "Tuya" APP, WIFI Connection/Intelligent Real-time Data Transmission, You Can Get the Flow Data, Historical Data, Abnormal High and Low Data Alarms on The Mobile Phone, Etc. Unlike other WIFI Water Controllers This PH EC TEMP Meter Can Export to Excel/Email for Viewing and Sharing, And even better news is that one phone can have multiple devices! Connect to your phone in seconds and you can get PH and EC Readings. It Makes Testing More Accurate and Convenient【Note: Please Read the Manual for Specific Operations, If There is Any Discrepancy, Please Contact Customer Service】

【Simple Operation, Easy to Set Up Control System】Test PH/EC/Temperature at the same time, dip the tester electrode into water and wait a few seconds to get the data. Long-term online measurement with relay output power socket for self-plugging 110V/220V devices such as air stones, oxygen pumps, CO2 regulators, solenoid valves and other pH control devices. Simply set the desired high/low pH value in the controller. If the currently measured pH value is lower than the set value, the device turns on. If the measured value is higher than the set value, the device is switched off。No need to match colours one by one as test strips. Simpler and more convenient to operate, complete with plug for easy control system setup. Support mobile phone APP one-touch backlight control, easy to read even in dim light. Operating system requirements. Compatible with iOS and Android systems.

【Control Box Alarm Setting】 Click on the APP to enter the PH page. Set the alarm value, such as value higher than 6.96 or lower than 4.00 to alarm. The current pH value is 6.98, which is higher than 6.96, the control box is powered on. When the value is lower than 4.00pH, it will alarm and the control box will be powered on (other parameters are also sefin the same way). Be careful not to set both high and low alarms at the same time during use, which will turn on the wrong alarm power supply.

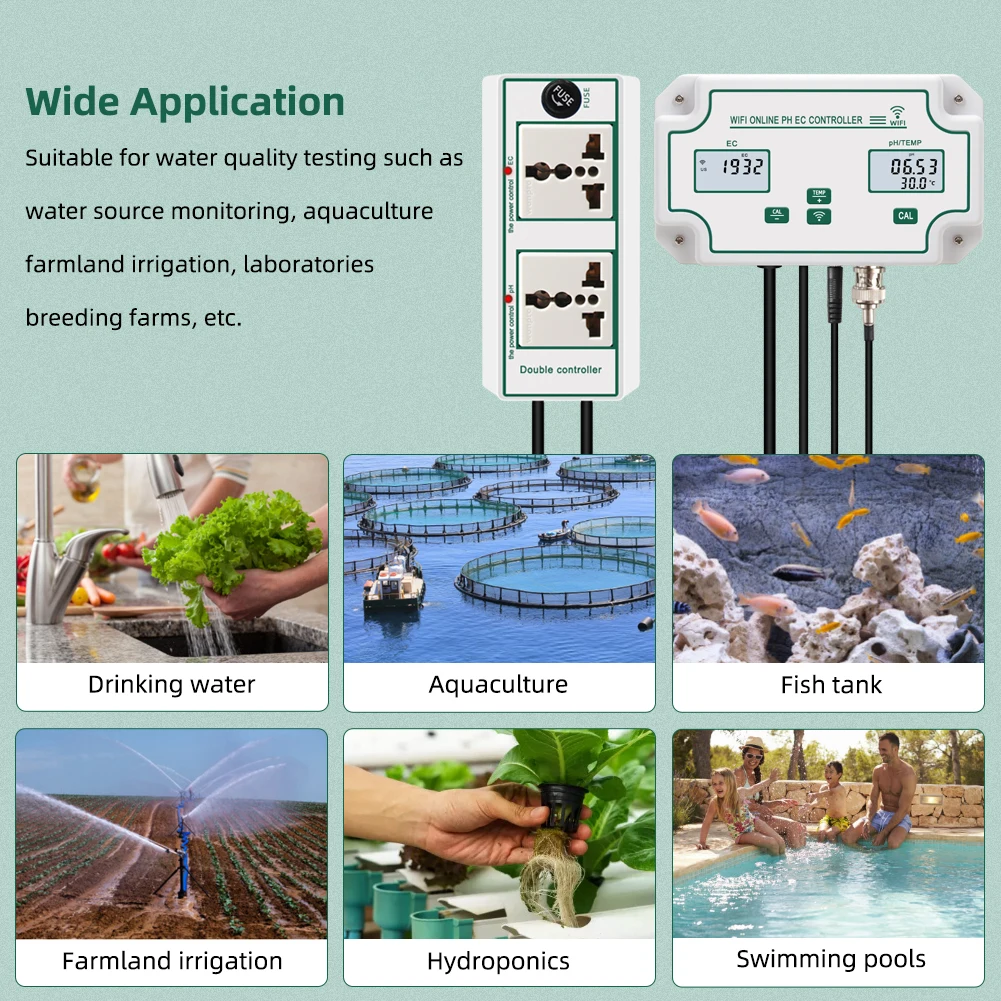

【 High Precision Replaceable Electrode, Wide Application Range】 Check EC using US/cm and ms/cm units as needed. The pH and EC values can be monitored and controlled for a long time. Suitable for water source, soilless culture, aquarium, hydroponics, laboratory, spa, environment, swimming pool, water treatment system, etc. PH & EC test.

【Product Use Safety】Fuse Protection, When the current is abnormal, it reaches a certain height, it will cut off the whole circuit and play a protective role

【APP Language Selection】English, French, German, Russian, Japanese, Korean, Spanish, Chinese, Traditional Chinese (offline only supports Chinese and English)

Specifications

1.Measuring Range :
PH: 0.00-14.00PH;

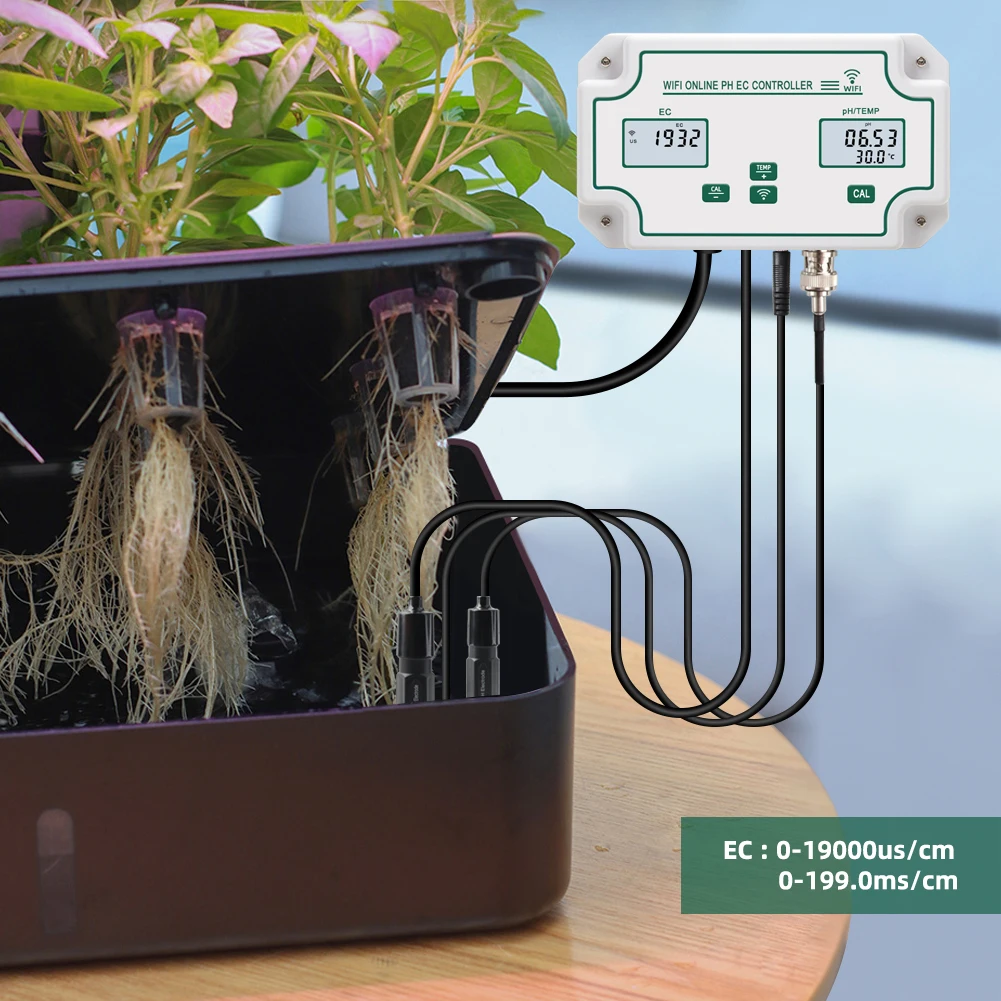

EC: 0~19000us/cm, 0~199.0ms/cm
TEMP: 0°-50°C (32°F-122°F)

2.Alarm setting range:
PH 0.00-14.00PH;
EC: 0~20000us/cm

3.Material: ABS

4.Plug Type: AU / EU / US / UK (Optional)

5.Power Supply: AC230, 50Hz (EU) / AC120V, 60Hz (US)

6. APP Name: Tuya

7.OS Requirement: Compatible with iOS and Android system

8.Resolution: pH: 0.01pH;1us/cm(<1000us/cm) 10us/cm(>1000us/cm), 0.1ms/cm
;Temperature: 0.1℃(0.2℉)

9.Accuracy: pH: ±0.1pH; EC: ±2% f. S; Temperature: ±1.0℃

10.Alarm Setting Range: pH: 0.00~14.00pH

11.Operating Temperature: 0~50℃ (32~122℉)

12.Length of Sensor Line: 2m / 6.56ft

13.PH/ORP/TEMP Controller Size: 160 * 95 * 40mm / 6.30 * 3.74 * 1.57in (Excluding Electrode Connector)

14.Control Socket Size: 130 * 65 * 53mm / 5.12 * 2.56 * 2.09in (Including Fuse)

15.Item Weight: 872g / 1.92lb

16.Package Weight: 1075g / 2.37lb

17.Package Size: 32*20.5*7.6cm / 12.60*8.07*2.99in

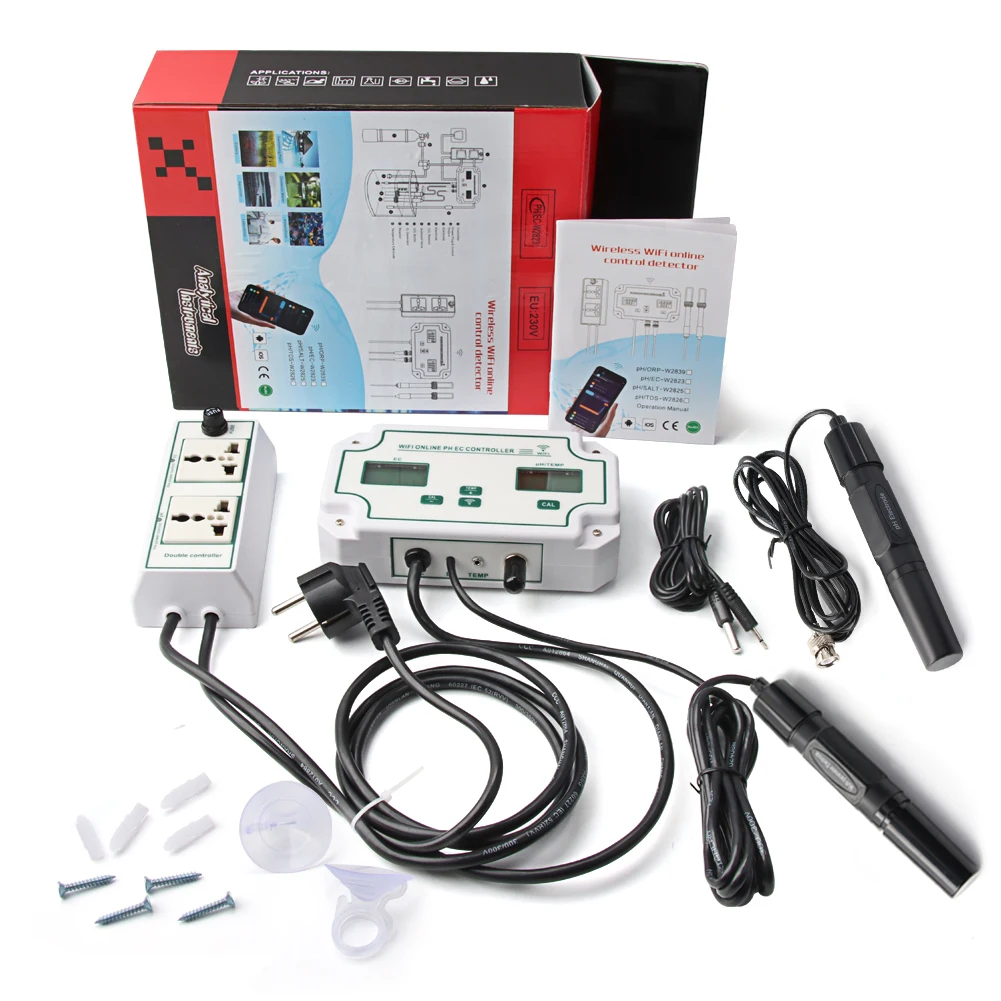

18.Packing List:1*Tuya Smart WIFI online PH EC Controller; 3 packs of PH calibration powder (4.0, 6.86, 9.18) ;1 * pH Electrode;1 * Temperature Electrode(EU) ;2 * Suction Cup;4 * Screw;4 * Anchor Bolt;1 * User Manual (English)

Export Data to Excel / Send Email to View and Share

Every Hour, Every Day, every week and every month the export is directly sent to the mailbox in the form of a table Click Download after sending the email

* Please Note That：To prevent malicious attacks on mailboxes, each mailbox can only receive 55 sets of data within 24 hours (30 sets of Days, Weeks or Month, and 25 sets of Hour)

One Mobile Phone Can Control Multiple Devices

Multiple equipment with the same number can be connected at the same time or other equipment of the same series can be connected at the same time

WiFi Connection/Real-time Data Transfer:

Download the Tuya APP, you can view the current data and historical data on the mobile phone, alarm of abnormal high and low data, etc.

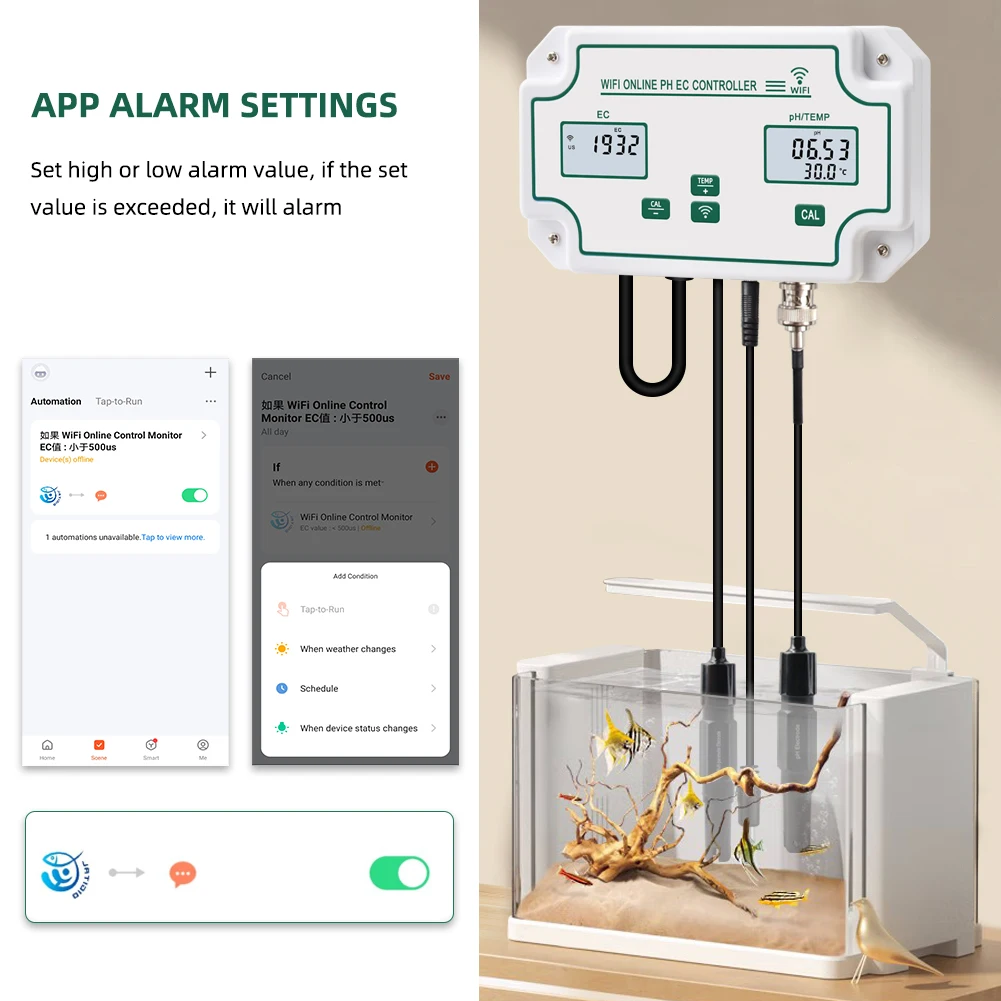

Apply Alarm Settings :

Set high or low alarm value, if the set value is exceeded, it will alarm

APP Live View:

Record data for a long time to facilitate comparison and analysis and formulate solutions iOS and Android systems are compatible

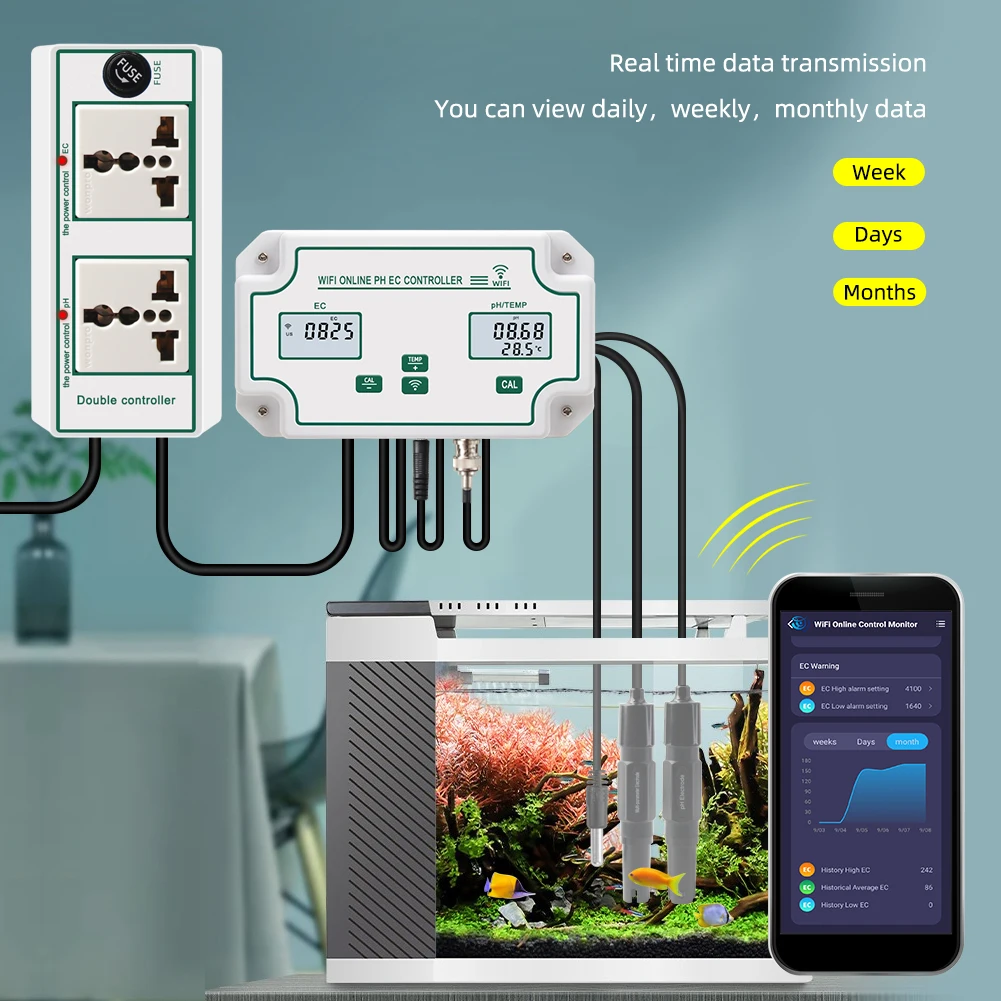

Precise Online Monitoring :

Real time data transmission You can view daily, weekly andmonthly

Fuse Protection:
When the current is abnormal, it reaches a certain height, it will cut off the whole circuit and play a protective role


High-precision electrode :
Fast measurementHigh precision, fast response, more stable data, corrosion resistance, long service life

Easy to use:
The rear hanging hole can be hung on the wall for flexible use

High-precision Electrode/Fast Measurement:

High precision, fast response, more stable data, corrosion resistance, long service life
