USB-DMX512 SD card controller,with" off-lin"function;support Martin Lightjockey,Pearl2004,D4,Titan4.2,grandMA,sunlite,daslight

1:support SD card offline work function, you an copy your programme into the sd,and without the computer, this controller can play the programme itself.

2: we will update the software each moneth. provide one year warranty. please contact me when you buy this controller, so i can provide the link to down the newest sofoware.

3: 512 channel output, you can use several such controller together to get more channels, such 2pcs controllers=1024 channel,4pcs controllers=2048 channel.

4: support windows XP /2000 /VISAT/Windows7(32bits and 64bites)

5: support ARTNET protocol , can be used as a Artnet Node.

with 512 DMX output channels

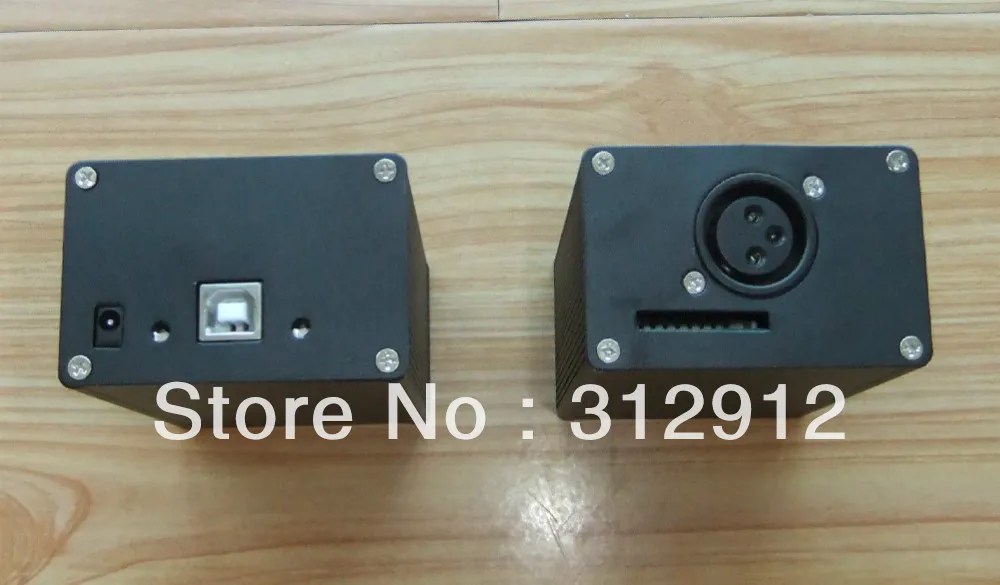

- 1x 3pin XLR female socket (output) and 1 SD card socket (input)
- Plug and play USB interface with power via the PC's USB socket and Dual power supply
- Have DC-DC Isolated / Optical isolation / TVS Protection
- support Win2000,WinXP,Vista,Win7x32,Win7x64 system
- Support usb interface Loose functions, When SD512 Dongle working, you can easily plug and push the usb port,
SD512 and Control Software not go wrong, When you plug SD512 Dongle to your usb again,SD512 and Control software

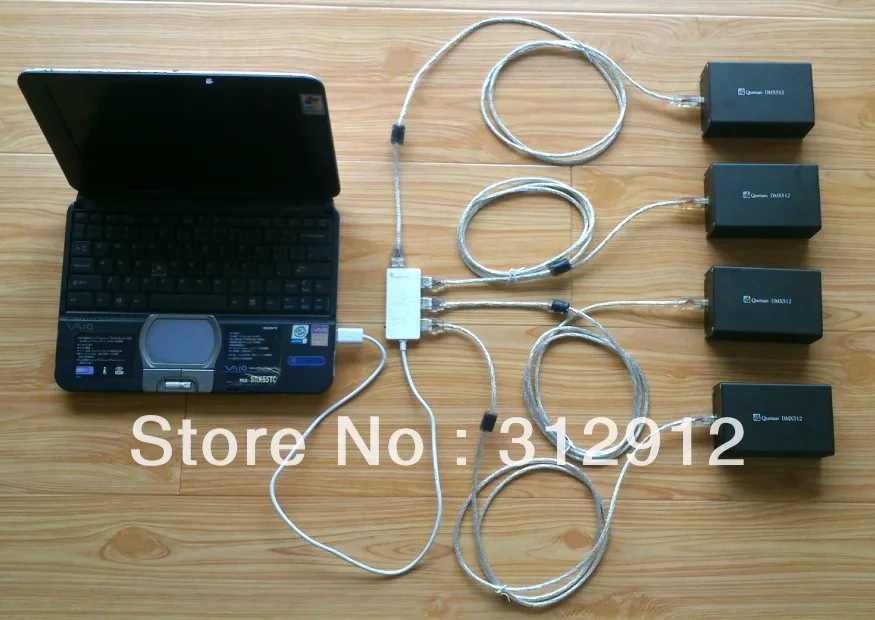

- Each SD512 Dongle can work alone as 512 channels or can use two sets SD512 combinations 1024 channel or four sets
SD512 combination 2048 channels.(When you buy Please tell me if you want combination)

- 100% compatible Martin Lightjockey ....and Support all well-known commercial software

- Supporting Softwares :

Martin Lightjockey (Free)
Avolites Pearl2004 (Free)
Avolites Diamond 4 (Free)
Avolites Titan 4.2 (Free)
FreeStyler (Free)
DMXControl (Free)
PCDimmer (Free)
MagicQ (Free)
MasterPeace (Free)
Abuelites (Free)
LEDMatrix (Free)
LSC Clarity (Free)

Daslight Virtual Controller3 (Free)
SunLite Suite 2 (Free)
grandMA onPC (Free)
LumiDMX (Free)
LumiDesk (Free)

MADRIX (Supported Not Free)
Chromateq Led Player (Supported Not Free)

SD512 has 2 modes, USB Output mode and SD offline mode:

USB Output mode:
Green light means power, Always on, if have data output,the red light flashes

SD offline mode:
1:Green light flashes at 1Hz and red light flashes very fast, means offline is ok.
2:Green light flashes at 3Hz and red light OFF, means have SD card but not DMX files in SD card.

note:

When you get SD512 dongle,First one you can run SDK\TestDemo.exe to test SD512 Device.
if want use USB and any software to control lighting, must remove SD card from SD slot and power on again
