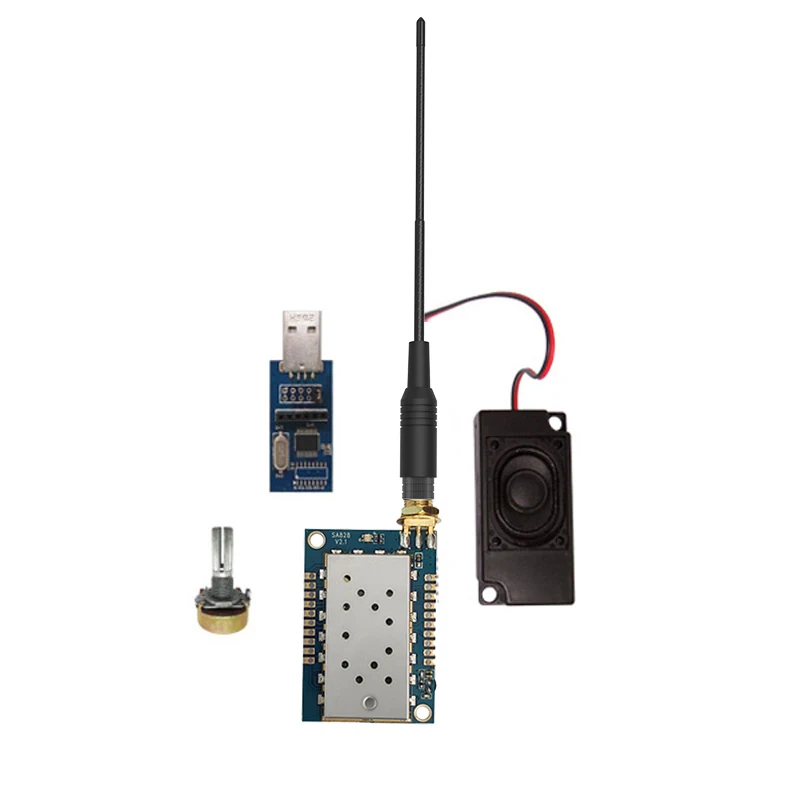

2Sets/lot SA828 1W 30dBm All-in-One VHF 134-174MHz walky talky Module With USB Bridge Board,Antenna,Speaker,Rotary Switch

2pcs SA828 VHF Walkie talkie module

2pcs SW-VHF200 150MHz Rubber antennas

2pcs TTL USB bridge board

2pcs Small Speakers

2pcs Rotary switches

2pcs Pin line

SA828 is an all-in-one professional walkie-talkie module in small size. It is very easy to use with powerful function. This module has full function of a professional walkie-talkie and can talk with any analog walkie-talkie in the market. With the small size, it can be easily embedded into instrument, portable and handheld device. SA828 works well in the hot/cold environment with the KDS 1PPM TCXO. The features of excellent antenna match network, good RF amplifier, high RF sensitivity allow its communication easily to achieve over 3Km in open area.

Rotary switch for channel selection, EEPROM, Audio Amplifier, RF Amplifier, PTT key, Antenna socket are all included in such a small size module. Besides, all parameters (CTCSS, CDCSS, SQ, Predefined channels etc) can be easily modified either by PC software or command using UART interface. With the embedded audio volume turning circuit, user can only solder a variable resistor on Pin16, Pin17 to adjust the volume steplessly.

Features:

1ppm TCXO

Embedded EEPROM, data saved even power off

High / low output power selection (500mW-1W)

8 SQ* 166 CDCSS, 38 CTCSS

High Integrated with ultra small size

High Sensitivity: -124dBm

3~5Km distance in open aera

1W Output Power* 12.5/25KHz bandwidth selection

Solely TX and RX frequency

Frequency range: 134 -- 174MHz

Application:

Audio tracking and control system

Outdoor sport product

Instrument

Security system

Pocket / handheld device

Small size walkie-talkie

Specification:

Internal diagram :

PC software can read the module’s parameter after connecting successfully, As shown below:

Pinout definition:

Mechanism Dimension
