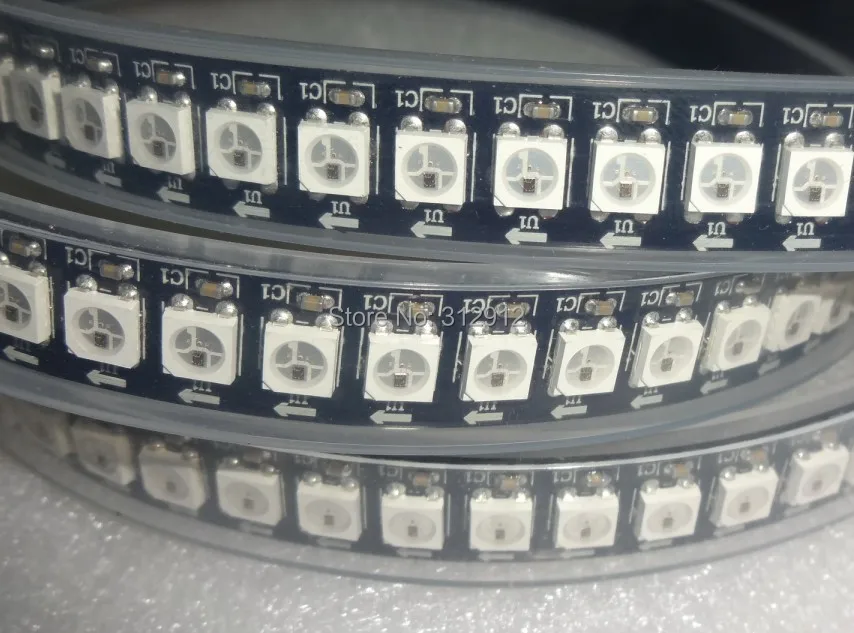

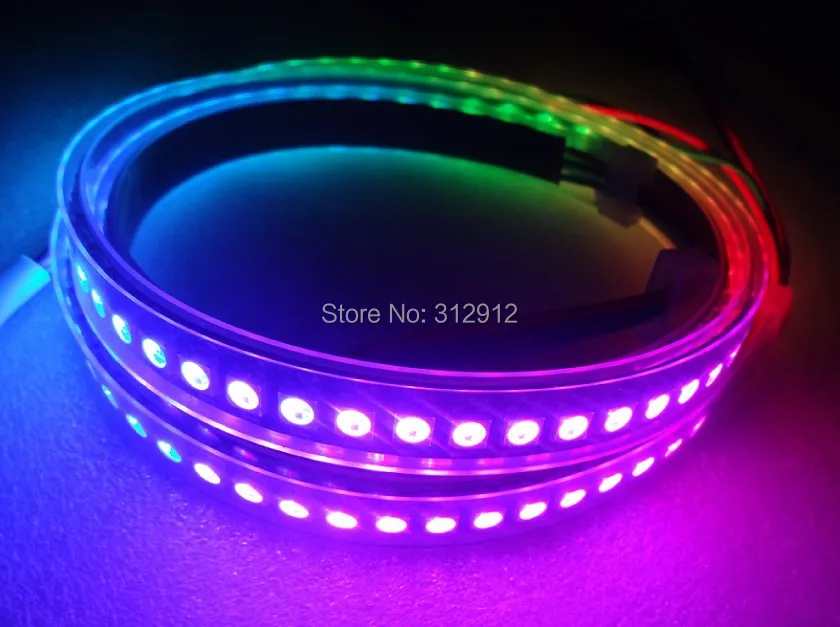

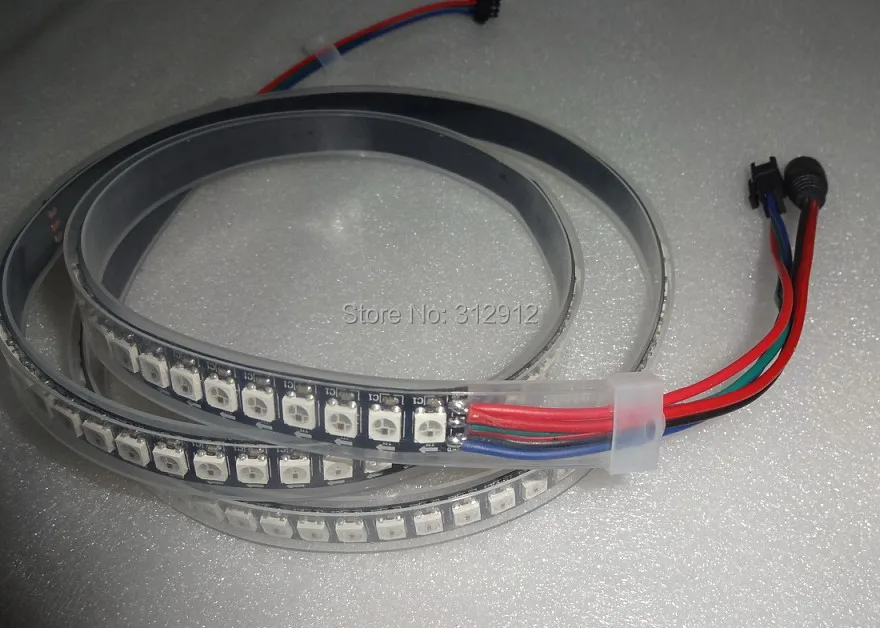

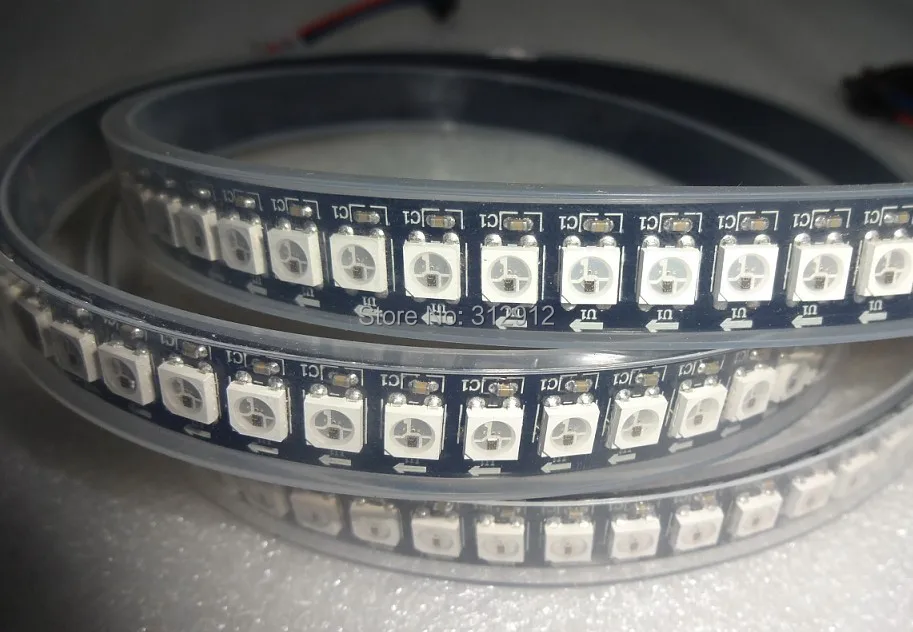

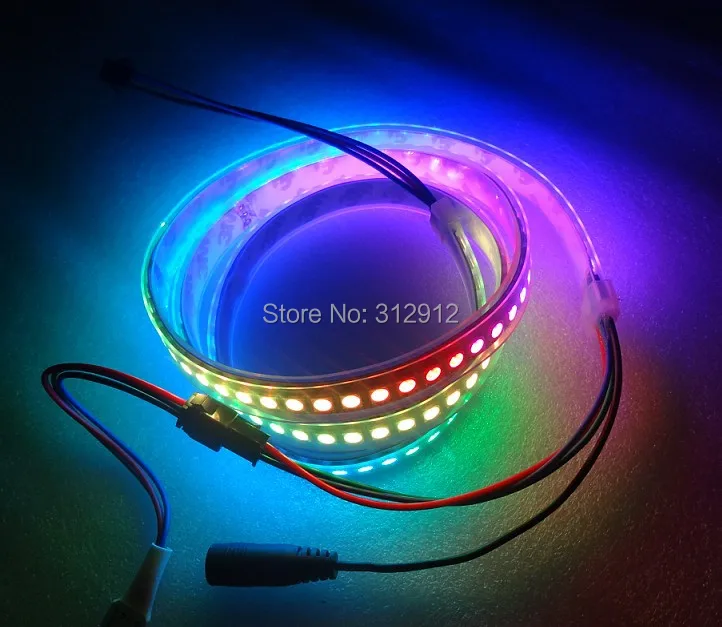

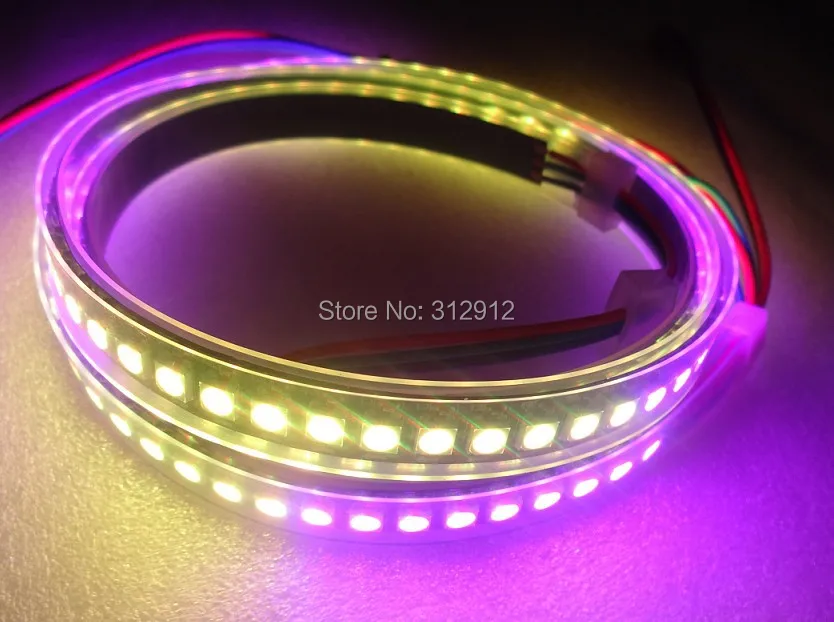

1M long 144leds/m WS2812B(5050 rgb led with WS2811 IC built-in) pixel strip DC5V waterproof in silicon tube BLACK PCB | Лампы и

1M long 144leds/m WS2812B(5050 rgb led with WS2811 IC built-in) pixel strip DC5V waterproof in silicon tube BLACK PCB | Лампы и

Input voltage:.............DC5v;

Power:.......................34.5watt/meter

LED resource:.............WS2812B led(5050 SMD RGB LED with built-in improved version of ws2811 ic)

Q'ty of LED: ...............144leds/meter,each LED is separately controlled

IC Type: .....................improved version ws2811 IC(built inside the 5050 smd rgb led)

Q'ty of IC: ..................144IC/meter (1 IC drives 1 led chip);

Pixels:.........                 144/meter;

Pitch: .........................7mm(1000/144);

Grey scale: ................256;

Bits/color: ...................8-bits/color;total 24bit for RGB color

FPC size: ....................Width:12mm, High: 2.5mm;

FPC color: ....................BLACK

Protection rate............... waterproof in silicon tube;IP66

Colors: ........................Full color RGB, dream color changing;

Cuttable:......................every LED is cuttable;

Package: ....................1meter/reel in anti-static bag,with 3M adhensive tape on the back

1. Easy for installation;

2.Operating temperature: -40 - +80°C;

3. Low Power Consumption, high intensity;

4. Solid-State,High shock/vibration resistant ;

5. Power 5050 TOP SMD LED as lighting resources;

6. Waterproof Material(for waterproof type): Casing tube /Silicone glue /epoxy resin glue;

7. 1m/reel be packed in an anti-static PVC bag (vibration resistant);

8. Anti-oxidation, anti-UV radiation and won‘t change color after long time use;

9. High flexibility ,high transparence, flame-proof and environmental friendliness;

10. for waterproof type:Silicone material offers good heat or cold resistance and is not easily broken;

11. With silicone transparence waterproof connector can easily connect and totally waterproof;

12. IP-Waterproof level (No Waterproof, IP65 and IP66 optional):

1. With WS2812( WS2811 ) IC intergrited,durable and easy for installation;

2. High light transmittance: the transparent of silicon glue and epoxy resin glue can make

the light transmittance reach at least 90%,the bare board can make it up to 100%.

3.Super thin flexible PCB adopted, bent resistance,flexibr for any shape.

4.Low working voltage, DC5v, ensure safety in wet condition.

5.Good service,comprihensive pre-sale and after-sale service, also provide design and ODM service

to projectors.

 Applications:

1. Architectural decorative lighting and backlighting for homes, hotels, marketplaces, bars etc;

2. Auditorium walkway lighting, outdoor illuminated signs and advertisements;

3. Illumination lighting using business walkway, canopy, stairway lighting, amusement park;

4. Channel signal lighting for stores, restaurants, bars, etc;

5. DIY lights for home use
