RB35020UUCC0 P5 TLANMP Crossed Roller Bearings (350x400x20mm) Turntable Bearing High precision bearing for cnc machine |

RB35020UUCC0 P5 Crossed Roller Bearings (350x400x20mm) Turntable Bearing - High precision  bearing for cnc machine   A . Crossed Roller Bearings Parameters Brand- TLANMP Model number- RB35020UUCC0 Inner ring(mm)- 350 Outer ring(mm)- 400 Width(mm)- 20 Weight(Kg)- 3.9 Materials- GCR15/GCR15SiMn Precision grade- P5/P4/P2 Lubrication type- Grease lubrication Rotating part- Inner Ring Rotation Load direction- Multi-load Structure- Separable Outer Ring    B . RB35020 Crossed Roller Bearings Specification Sheet Model
Number Main dimensions Mounting
dimensions  Basic load rating
(radial) weight Inner
ring
d (mm) Outer
ring
D(mm) Roller
pitch
circle
dp(mm) Width
(mm) Greasing
hole φ Chamfer
r(min) ds Dh C kN C0 kN Kg RB35020 350 400 373.4 20 1.5 3.5 363 383 54.1 143 3.9  C . RB type Crossed Roller Bearings Details Product Features

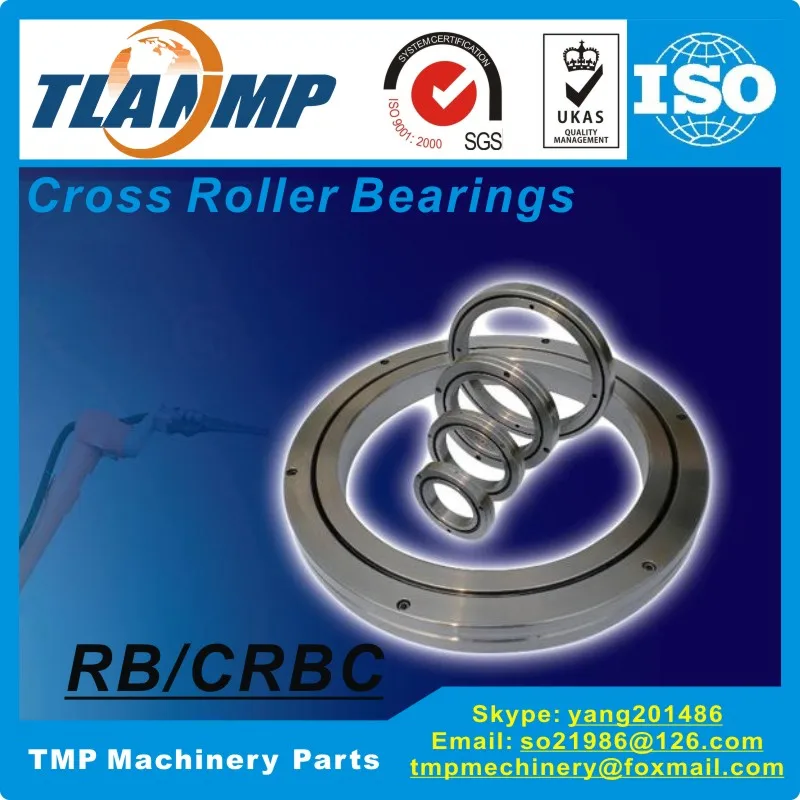

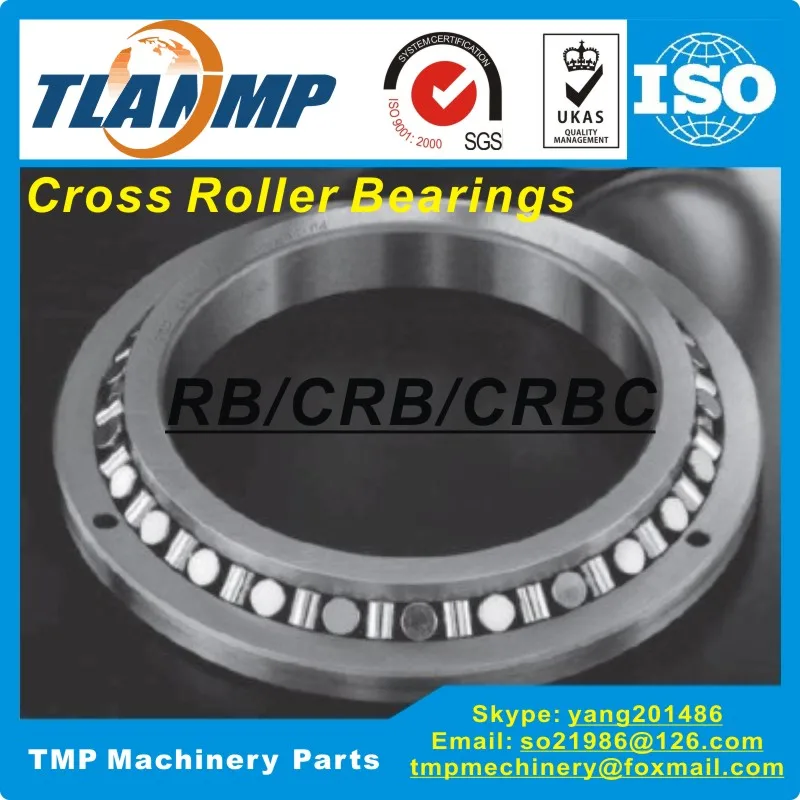

TMP Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer

rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove

 through the separate spacers in the deep groove rolling surface. This special design allows just one

 bearing to carry loads in all directions including radial, axial and moment loads.

Series Introduction

RB standard type is a bearing with thinnest possible inner and outer rings because the outer ring is

split while the inner ring is integrated into the main body. It is being used in cases where a high

rotational accuracy of the inner ring is required.

Series Model No. RB4010UUCC0 RB4510UUCC0 RB5013UUCC0 RB6013UUCC0 RB7013UUCC0 RB8016UUCC0 RB9016UUCC0 RB10016UUCC0 RB10020UUCC0 RB11012UUCC0 RB11015UUCC0 RB11020UUCC0 RB12016UUCC0 RB12025UUCC0 RB13015UUCC0 RB13025UUCC0 RB14016UUCC0 RB14025UUCC0 RB15013UUCC0 RB15025UUCC0 RB15030UUCC0 RB16025UUCC0 RB17020UUCC0 RB18025UUCC0 RB19025UUCC0 RB20025UUCC0 RB20030UUCC0 RB20035UUCC0 RB22025UUCC0 RB24025UUCC0 RB25025UUCC0 RB25030UUCC0 RB25040UUCC0 RB30025UUCC0 RB30035UUCC0 RB30040UUCC0 RB35020UUCC0 RB40035UUCC0 RB40040UUCC0 RB45025UUCC0 RB50025UUCC0 RB50040UUCC0 RB50050UUCC0 RB60040UUCC0 RB70045UUCC0 RB80070UUCC0 RB90070UUCC0 RB1000110UUCC0 RB1250110 Applications Product Application
•Industrial Robotic arm,Reducer drive
•precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
• Aviation equipment,Military radar etc http:/store/1500617 http:/store/1462552 ww-w.tradebearings.com/so21986/     Company Information

      TLANMP- TMP machinery Parts Co.,Ltd is a professional manufacturer of high precision bearings and other equipment,The main products  are Thin Section Bearings, Crossed roller bearings, Rotary Table Bearings, Tapered Roller Bearings, Angular Contact Ball Bearings, Slewing Bearings, Sports equipment accessories etc,Our products are used for Robotics, CNC Machine Tools, You can find all you need in our store, all the bearings and parts here is made in China and can replace with imported parts .
