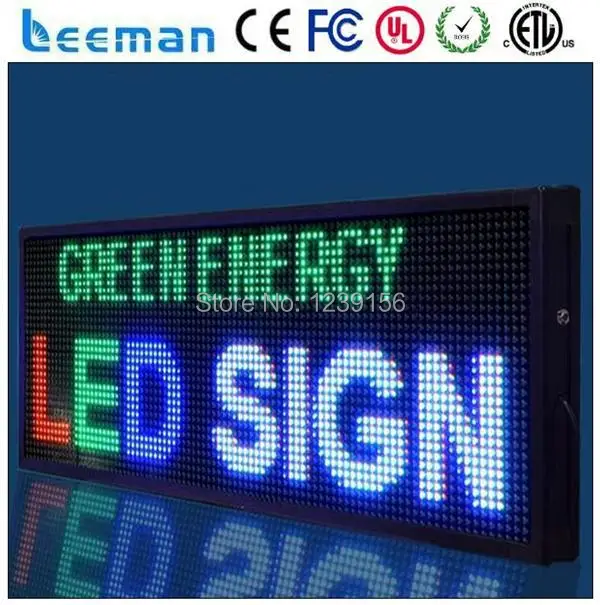

P16 56x160 Pixels RGB full color double side outdoor programmable LED signs Shenzhen led message moving scrolling sign display |



Specification of Outdoor Full Color Video LED display Screen Classification PH10 PH12 PH14 PH16 PH18 PH20 PH22 PH25 PH31.25 Pixel pitch(mm) 10(physical) 12(physical) 14(physical) 16(physical) 18(physical) 20(physical) 22(physical) 25(physical) 31.25 6(virtual) 8(virtual) 10(virtual) 12.5(virtual) Pixel configuration 1R1G1B 2R1G1B 2R1G1B 2R1G1B 2R1G1B 2R1G1B 2R1G1B 2R1G1B 4R2G2B LED package DIP346 DIP346 DIP546 DIP546 DIP546 DIP546 DIP546 DIP546 DIP546 Pixel denstiy/ sqm 10000dots 6844dots 5102dots 3906dots 3086 dots 2500dots 2066dots 1600dots 1024dots 27777 dots 15625 dots 10000dots 6400dots Module size(mm*mm) 320*160 192*192 224*112 256*128 288*144 320*160 352*176 200*200 125*250 Module pixel( dots) 32*16 16*16 16*8 16*8 16*8 16*8 16*8 8*8 4*8 Standard size of cabinet(mm*mm) 960*960 1152*768 896*896 1024*768 1152*864 1280*960 1056*1056 1000*1000 1000*1000 Cabinet pixel( dots) 96*96 96*64 64*64 64*48 64*48 64*48 48*48 40*40 32*32 Best view angle 160° 160° 160° 160° 160° 160° 160° 160° 110° Maximum power comsuption(W/sqm) 750 700 600 1000 950 900 700 600 600 Brightness cd/sqm ≥8500 ≥8000 ≥8000 ≥ 7500 ≥ 6500 ≥ 6000 ≥ 5500 ≥5000 ≥ 5500 Driving method 1/4 constant driving 1/2 contant driving Constant static Display color 256*256*256 Refresh frequency 3500HZ Frame frequency 60HZ Protection Level Front: IP65; back: IP65 Working Voltage AC220/110±10% Working environment temperature -40º degree - +50º degree Life span >100000hours





              Outdoor Die casting Aluminum Rental SMD LED Display 640mm x 640mm Pitch/mm P6 P6.67 P8 P10 Module size/mm 288x288 320x320 320x320 320x320 Density of pixel/(dots/m2) 27,777 22,478 15,625 10,000 Led encapsulation SMD 3535 SMD3535 SMD3535 SMD3535 Resolution of module 48X48 48X48 40X40 32X32 Optimum viewing distance 6-50m 7-75m 8-75m 10-150m View angle / ° 160 H,120 V 160 H,120 V 160 H,120 V 160H,120V Max power consumption/W/M2 1000 1100 1000 1000 Size of cabinet/mm 576x576 640X640 640X640 640X640 Resolution of cabinet 96x96 96x96 80x80 64x64 Weight of cabinet/kg 11 12 12 12 Driving method 1/8 scan constant current 1/8 scan constant current 1/4 scan constant current 1/4 scan constant current Refresh rate Hz/S ≥2000 ≥2000 ≥2000 ≥2000 Luminance of white balance ≥8000 nits ≥7500 nits ≥7000 nits ≥6500 nits Operation of Environmental Temperature/°C below 30  to  above 50 Working vlotage 110-220 VAC/+/- 10% Grey scale/color displaying colors≥16.7M(synchronized) Brightness adjustment 256 levels of each color(manually),100 levels of each color(automatically) Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc Control system linsn(sending card,receiving cards and Hubs) Average of non-failure life >50,00h Life span >100,000h Defect dot rate <0.0001
