Rs470-z type folding radar reflector, has been awarded the national patent certificate, has obtained the TYPE approval certificate of CCS Classification Society Shanghai branch, France Classification Society.

The product including the center axis of a metal material, on the center shaft ends, the set of four for collar clamp ring, each pair of shaft sleeve clamp ring clamping fixed on a vertical placement of vertical reflection of conductive, four pieces of vertical reflection of conductive through fixed-angle rings at the ends of the upper and lower position, its cross section is perpendicular to the "ten" glyph, there are two pieces of semicircular horizontal reflection electrical conductor, transverse reflex of conductive and vertical reflection of conductive through the slot plug together, two horizontal reflection of conductive or horizontal placement of the joining together into a full circle, with horizontal and vertical reflection of conductive reflection of conductive constitute eight three surface square space.

Its features are good reflection performance, easy to install, light weight, small volume, foldable, easy to store and carry, and corrosion resistance and anti-aging characteristics, reliable use, long life.It is a necessary accessory for lifeboat and liferaft, which can be used for rescue at sea when in distress. It can enhance the reflection signal of lifeboat and raft to radar electromagnetic wave, so that the raft and its personnel can get search and rescue as soon as possible.It is also applicable to all ships of less than 100 gross tons sailing in international waters and adjacent coastal navigation areas to prevent maritime collision accidents.

In addition, it can also be used by petroleum, geological exploration and field operators.Its performance meets the technical requirements of IMO IMOA384(X), MSC.164(78) and ISO 8729, a combination of international standards.

oneThe performance of the TLF-470A radar reflector conforms to the requirements of THE SEA Security Council resolution MSC.164(78) and the technical requirements of the International Organization for Standardization ISO8729-1(2010).

twoProduct specification

The maximum radar echo area ≥40m2

The reflector totals at least 280o

Minimum installation height above waterline ≥2m

Applicable temperature range -30℃~60℃

Angle reflector side length 470mm

The Angle reflector weighs 0.6kg

Prop weight <1.1kg

The total weight after packing is <2kg

Note: Suitable for 9320~9500MHz(=3.2cm)

3.Product structure

1. Prop 2. Angle reflector 3. Reflector

5. Center seat 6. Umbrella spring

8. Pull ring 9. Tensioning bolt

10. Connection chuck 11. Chuck nut 12

Link spring pin 14. Strut middle lever 15. Strut lower lever

16. Connect the flange

Four.Installation instructions

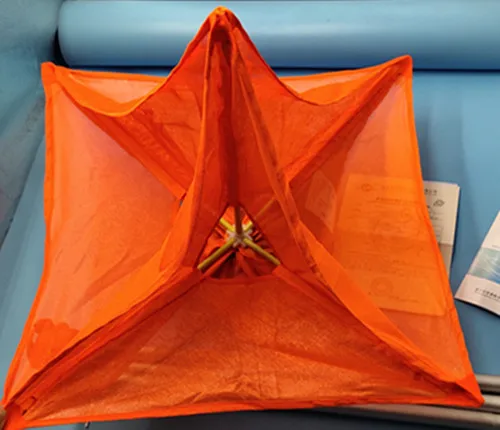

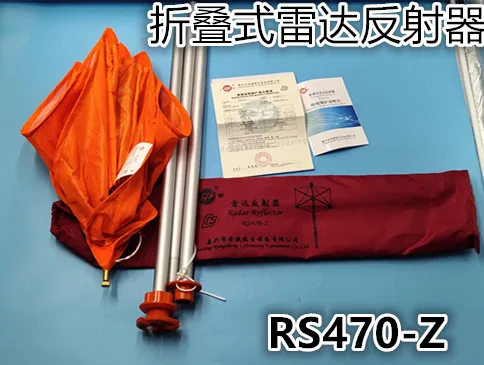

Open the package and take out the Angle reflector and struts (consisting of 2-3 poles).Connect two or three rods (for lifeboats) to secure the connecting spring pin.

Open the Angle reflector so that the umbrella spring ejects the lock and unscrews the tensioning bolt to maintain the tension on the reflecting surface.

Install the corner reflector on the strut so that the three hooked slots connecting the clamps jam the three thicker struts in the center of the reflector and tighten the clamps nut.

Insert the stanchion into the rubber socket in the liferaft and tie it firmly with the rope.

Insert the prop into the retaining hole at the top of the lifeboat cabin and tighten the nuts.
