MT-512 512GB mSATA 512G SSD with 512mb cache Solid State Hard Disk Drive Mini PCIE Module suitable for D34010WYK Intel NUCs DIY laptop computer KingSpec 512GB sata3 mSATA SSD for Tablet PC / Ultra books / Laptops For Lenovo Ideapad G580 G480 Y580 Y570 Y560 Laptop Internal SSD 512GB 512 GB 0.85" Mini SATA 3 mSATA Solid State Hard Drive Disk

Module No: MT-512 512GB mSATA

Factor: 3*5cm

Interface: SATA

Capacity: 512GB
Average Access time: 0.2ms
Sustained Read/Write: 200~535/150~310MB/s (for reference only)
4KB Sepuential Read IOPS: 5, 217
4KB Sepuential Write IOPS: 5, 142
MTBF: 1, 000, 000hours
Operating Temperature: 0~70º C
Warranty: MLC 3 years; SLC 5 years
Packing: standard gift box





Our products’Competitive Advantage:



1) Original brand NAND Flash
2) Fast read/write speed ,faster application load times
3) High reliability, data stability
4) Low energy consumption
5) Anti-shock, anti-dust, Noiseless, superior security
6) Shockproof, rugged design safe and high stability and reliability



1. Datasheet for KingSpec SATAIII mSATA mini-pcie module ssd for Mid/Server/ Umpc/ Motherboard/PC

Model MT-512 512GB mSATA General Form factor mSATA Module Interface mSATA Performance Capacity  512GB Sustained Read (for reference only) 200~535MB/S Sustained Write (for reference only) 150~310MB/S Random IOPS   4KB Random Read IOPS 24000 4KB Random Write IOPS 350 Average Access time 0.1ms Storage Media NAND Flash MLC Power Consumption input Voltage 3.3V±5% Idle 0.5W Active 2.0W Reliability& Endurance Write endurance 8 years @100GBytes write and erase per day at 32GB Read endurance unlimited Wear-Leveling Algorithm Dynamic and static wear-leveling Data Retention 10 years at 25ºC MTBF 1,000,000hours ECC support NCQ,TRIM 16bits or 24bits in 1024 bytes Bad Block Management Auto Bad Block Management in system Environment Operating Temperature 0~70°C Non-operating Temperature -40~85°C Shock   Vibration   Ambient Humidity 5-95% Warranty   Available unit Available NO EOL Testing Platform CPU: Intel® Core(TM) i5-2400 CPU @ 3.10GHz Chipset: Intel® Z68 Express Chipset Memory: Kingston KHX1600C9D3C1K2/4GX OS: Microsoft Windows 7 Professional 64-bit AHCI Driver: Intel Chipset SATA AHCI Controller 10.5.1.1001 BIOS Settings: AHCI Mode Testing Software ATTO Disk Benchmark,CrystalDiskMark v3.0 ,HD Tach RW 3.0.1.0,HD Tune PRO 3.50 Physical Dimensions & Weight Height(mm) 3.5+/_0.25 Width(mm) 30+/_0.25 Length(mm) 50.0+/_0.25 Weight(g) 3.5+/_0.5 The read and write speed is limited to this test platform. Application for below Laptops if your laptop with mSATA interface: Fujitsu LH532 Acer Aspire: M3-xxx, M5-xxx, R7, S7 (S7-391), Timeline, V5-572G-6679
Acer Iconia Tab W500, W700
Acer EC 470G
Dell Alienware m14x R2/R3, M17x R4/R5, M18X R2
Asus Eee Slate EP121
Asus VivoBook: S400CA, S551LB
Asus Zenbook: UX21, UX
Hasee Bluesky P150SM, P151SM1, P157SM, W350STQ, W650SR, W230ST, W350SKQ,W355STQ, W650SH, W651SH, W651SR, W655SH, W655SR, W740SU
Dell Inspiron: 14z (5423), 15 (7537), 15z (5523), 15R SE, 17R, 17R 5720,17R SE
Dell Latitude: 6430u, ST-LST01, XT2, XT3
Dell Precision: M4500, M4600, M4800, M6400, M6500, M6600, M6700, M6800
Dell XPS: 12 (12-9Q33), 13 (L321X), 14 (L421X), 15 (L521X), 18, One 2710
Dell Vostro: 3360, 3460, 3560
Dell E7440, E6440
Fusion Futro: S700, S900
Fusion Garage JOOJOO
GIGABYTE Q1742N, U2142, U2440M, U2440N, U2442
Google CR-48 Chrome
HP ENVY: 14 Series*, 15 Series (15-3xxx), 17 Series (17-3xxx)
HP ENVY Sleekbook: 14*, 15.6"*
HP ENVY Spectre XT 13
HP ENVY TouchSmart: 15 Series (15-J003xx, 15-J154ca, 15t-j100,15-j113ea), 20-d010
HP Folio: 13-1000
HP Pavilion: dm4t Series (DM4T-3xxx), dv6 Series
HP ZBook 15 Mobile Workstation
Lenovo K26, K27, K29, K47A, K47G, K49, M490s
Lenovo Essential: B590
Lenovo IdeaPad: S210, S400, U300, U310, V570, Y460, Y460P, Y470, Y470P,Y480, Y500, Y500N, Y510, Y560, Y560P, Y570, Y580, Y471A
Lenovo IdeaPad Yoga 13
Lenovo ThinkPad: L420, L430, L520, L530, T420, T420s, T430, T430i, T430s,T430si, T520, T530, T530i, W520, W530, X220, X220T, X230, X230i, X230 Tablet,X230i Tablet
Lenovo ThinkPad Edge: E220s, E320, E330, E420, E420s, E430, E430s, E520,E530 (530C not ok ), S430
Lenovo Yoga 2 Pro
LG Xnote: P330
MSI GE60, GE70: 2OE-014NE, 2OE-017US
MSI: Windpad 110W
Samsung: Series 7 Slate, Series 9; Samsung Chromebook Series 5
Sony VAIO: E Series, Tap 21
Toshiba Qosmio: X70, X75-A7298
Toshiba Portege: Z830, Z835, Z930; Toshiba Satellite: P70, P770 Application for below Desktop Motherboard if it is with mSATA interface: Intel NUC Board: DC33217GKE, D34010WYB, D53427RKE, D54250WYB
Intel NUC Kit: DC3217IYE, D34010WYK, DC53427HYE, D54250WYK ASRock Z87 11/ac
ASRock Z87M
MSI Z87 MPOWER
MSI Z87 MPOWER MAX
MSI Z87 XPOWER
ASRock Z77E-ITX
GIGABYTE GA-B75-D3V
MSI Z77IA-E53 Application for below Mobile Devices if it is with mSATA interface: Drobo Mini Portable Storage Array Microsoft RT Surface tablet
Microsoft Surface Pro tablet
Microsoft Surface Pro 2 tablet
Microsoft Surface Pro 3 tablet

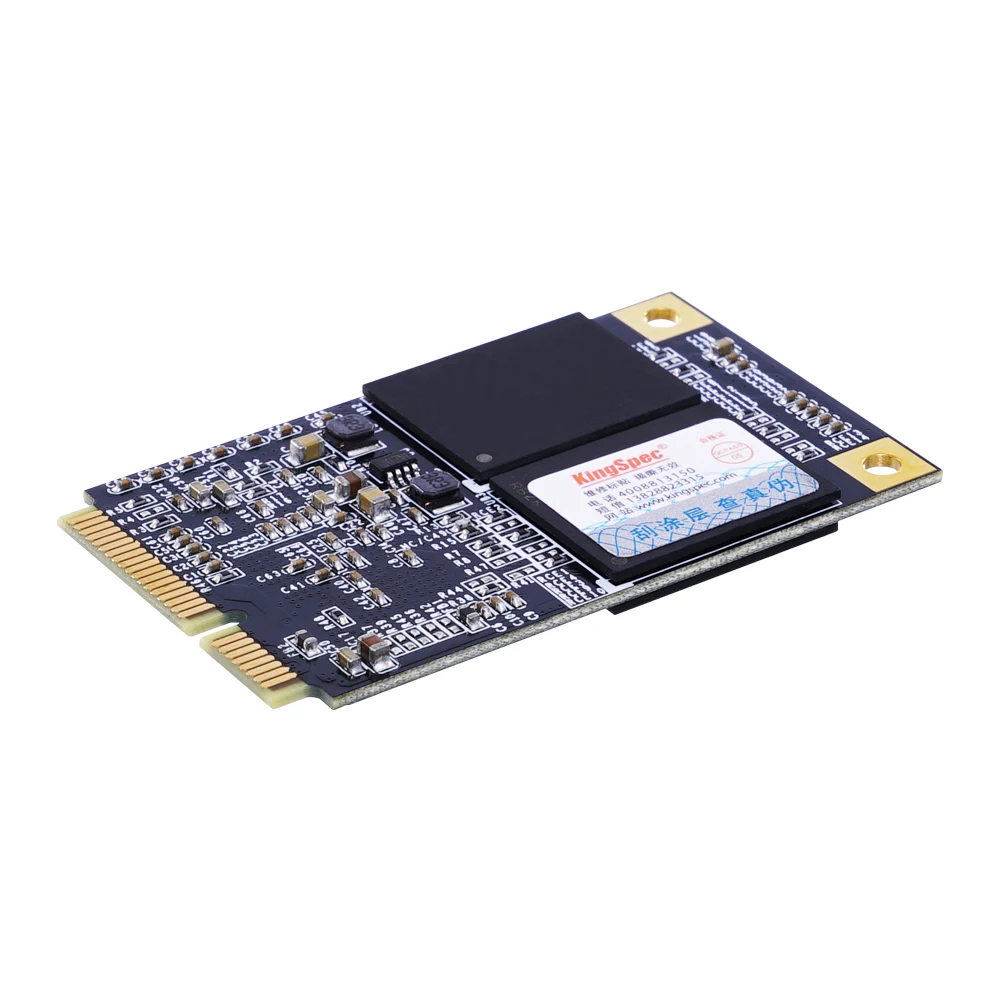

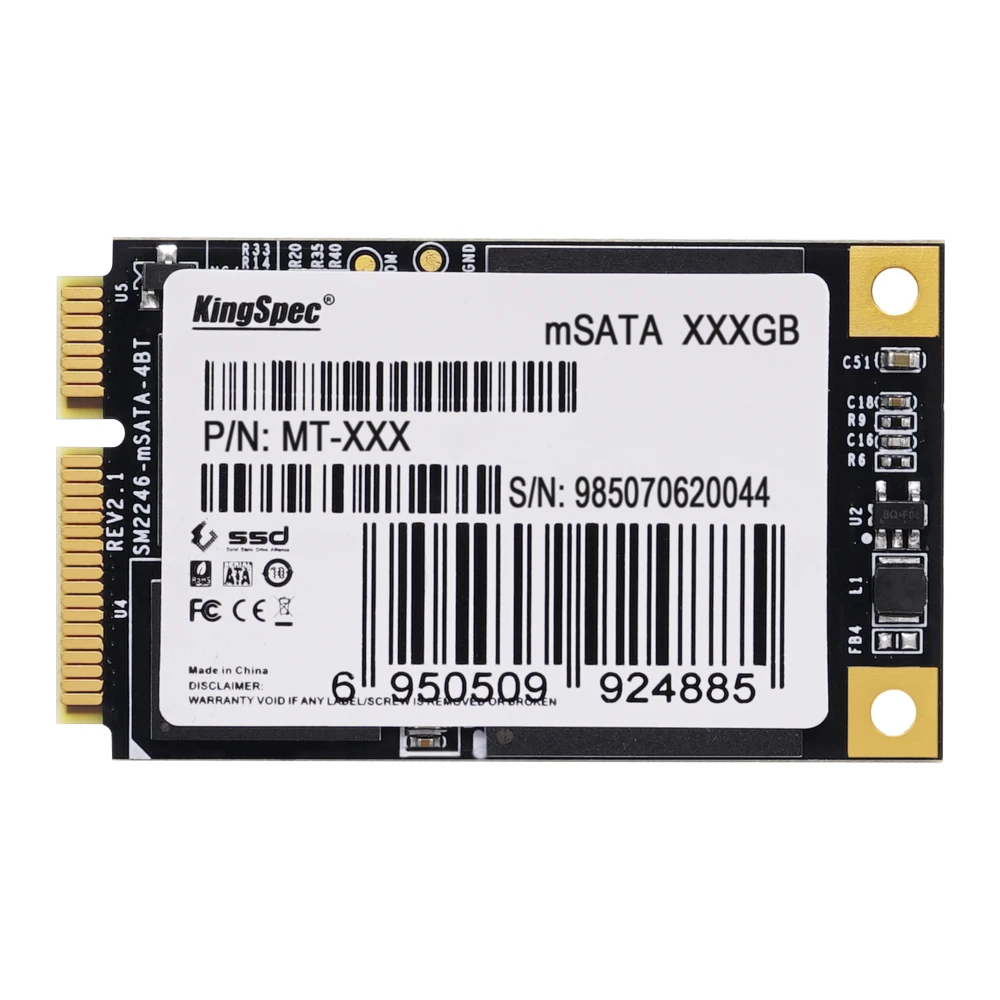

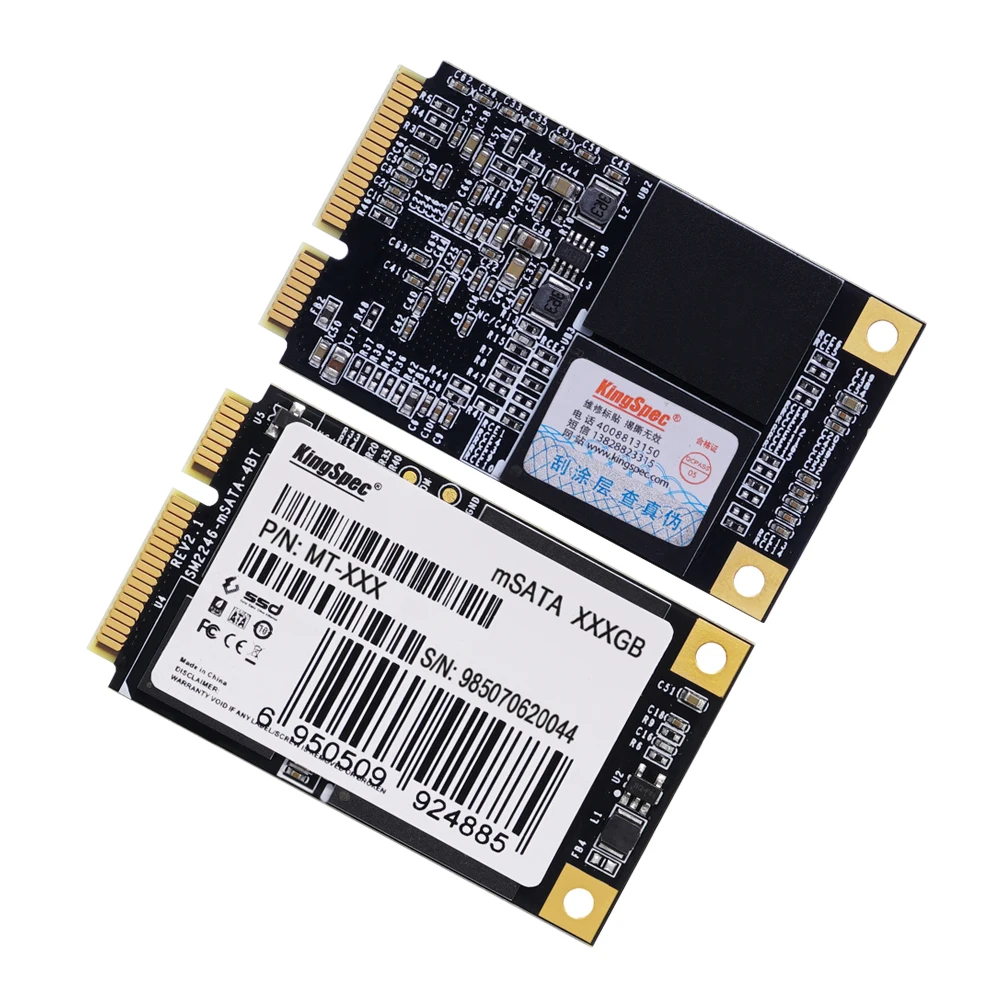

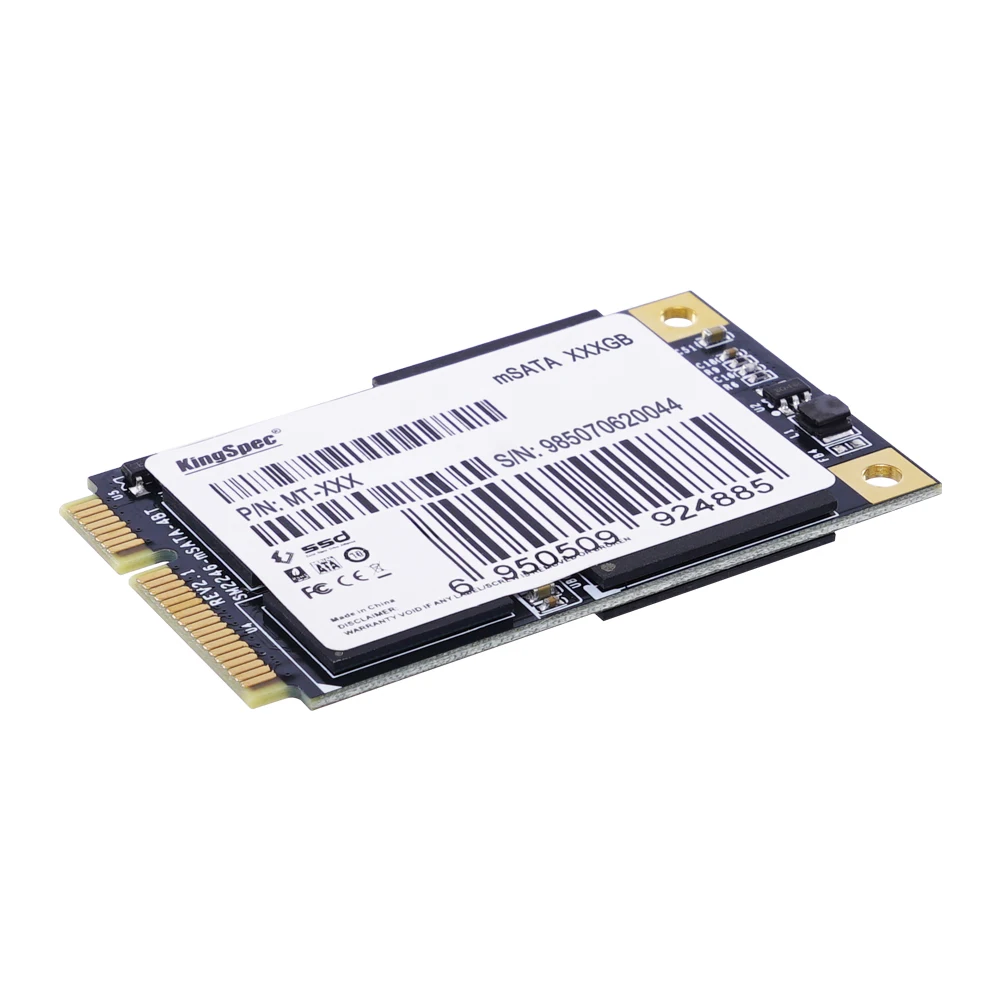

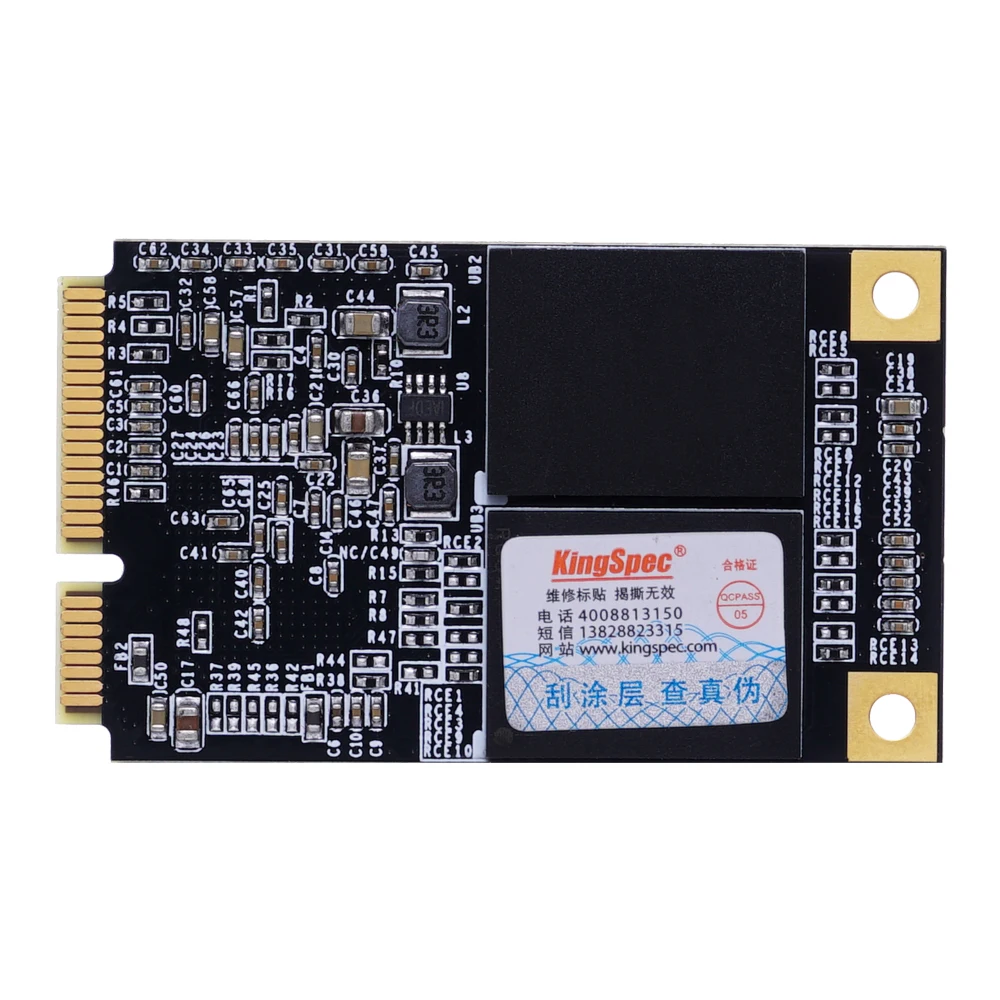

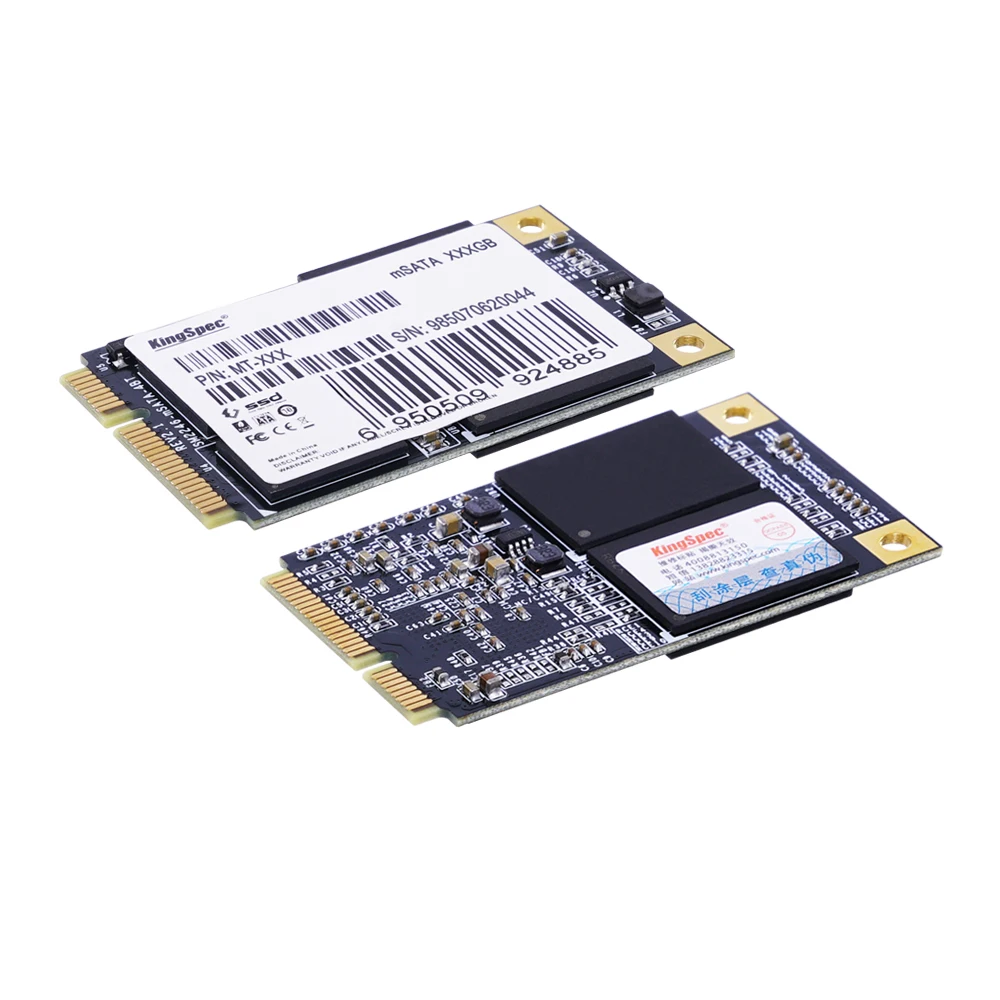

2. Product picture (for reference only):







3. Package (for reference only):







4. Company Information:

KingSpec Electronic Technology company’s brief introduction:

We KingSpec are a solid state disk manufacturer, specialized in designing, developing, manufacturing and selling SSD products as well as other storage devices like USB flash drives, memory card, and dom. Besides designing and producing our products, we also do the OEM and ODM. Our factory had passed ISO9001:2008 certification and had membership with SSDA, the SSDs are CE, FCC certificated. After several years of effort, our independent R&D SSD products have entered the global market successfully and won excellent public praise from our client comes from Europe, America, Southeast Asia and many other countries.

5. Factory pictures:





6. Certificates:



7. Shipping options:

8. Company fair:

9. Our shops:



10. Our team:

Kingspec mSATA SSD Solid State Drive FOR Tablet Free Shipping mSATA SSD Mini SATA Solid State Drives240G SSD For Desktop Laptop Server Read 530 MB/S, Sequential wirite 300 MB/S 240G mSATA SSD Mini SATA Solid State Drive Module For Desktop Laptop Server ( ACSC4M240mSA )

ACSC4M512mSA Internal SSD 512GB mSATA Solid State Drive MLC Flash Storage Devices Disk for Desktoo Laptop

More details welcome to contact with Ms. Sammy Sheng (Skype: live:sammysheng8)
