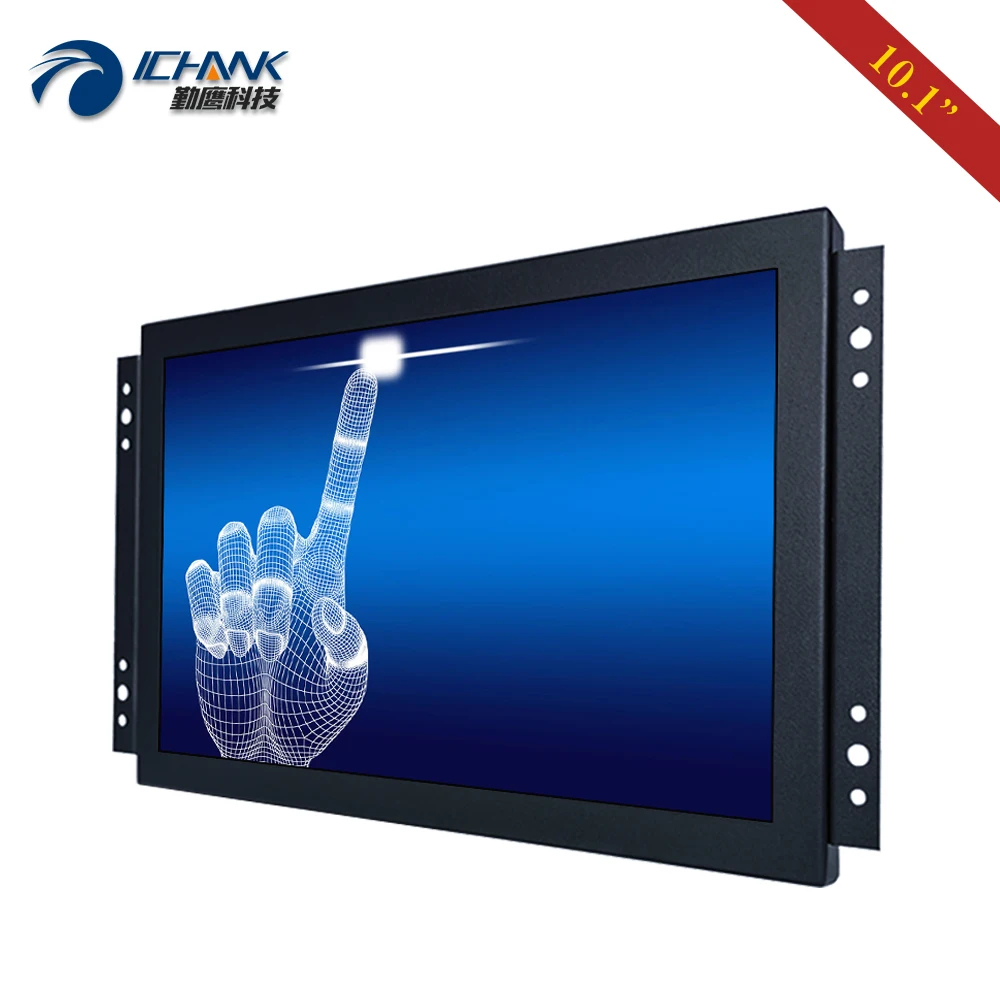

10,1-дюймовый дисплей 1920x1200 1080p Full View IPS с HDMI-входом, USB, металлическим корпусом, встроенным открытым каркасом и сенсорным монитором K101TC-ABHUV-H.

10 1-дюймовый дисплей 1920x1200 1080p Full View IPS с HDMI-входом USB металлическим корпусом встроенным открытым каркасом и сенсорным монитором K101TC-ABHUV-H.

Product Body:

Product Brand:

iChawk; (this logo will only appear on the product label, and there will be no logo in other positions)

Model Number:

K101TC-ABHUV-H;

Shell Material/Color:

Metal/Black;

LCD Panel Parameters:

Panel Type:

10.1 inch 16:10 full view IPS HD screen;

Resolution:

1920(H) x 1200(V) pixels;

Display Area:

217x136mm;

Brightness:

500cd/m²; (recommended to use indoors; support paid custom a high-brightness version for outdoor use)

Contrase Ratio:

1000:1;

View Angle:

89°/89°/89°/89° (Left/Right/Up/Down);

Optimal Visual Angle:

Full view;

Display Color Count:

16.7M;

Refresh Rate:

50~70Hz; (60Hz recommended)

Color System:

PAL/NTSC Auto switch;

Touch Screen and Compatible OS:

Touch Screen:

Yes, with industrial four-wire resistive touch screen;

Touch Screen's Hardness:

≥3H;

Positioning Accuracy:

＜2mm;

Click Lifespan:

＞50,000,000 times;

Touching Media:

Finger or resistive touch pen (self purchased please);

Right Click Function:

Click a certain point and hold for at least 3 seconds;

Touch Screen's Interface:

USB; (supports paid customization to make it a COM (RS232) port)

Compatible OS:

1. When not using touch screen: Most OS on the market are supported by default, including Windows XP/Vista/7/8/10/11, Linux (Ubuntu, Debian, Raspbian, Yocto, Fedora Core, Mandriva, etc.), Android, Mac OS, etc.

2. When using touch screen: Supports Windows XP/Vista/7/8/10/11 by default. (if your OS is Linux (Ubuntu, Debian, Raspbian, Yocto, Fedora Core, Mandriva, etc.), Android, Mac OS, etc., please provide us with your OS version before purchasing, so that we can verify whether the touch screen of monitor is compatible with your OS)

Optional:

Support paid customization for a five-wire resistive, multi point capacitive, infrared touch screens, etc;

Power Parameters:

Default Power Adapter:

Input: AC 100-240V～50/60Hz 0.65A Max; Output: DC 12V 2A;

Monitor Input Power:

Supportable range of input voltage and input current: DC 12V⎓1~3A;

Power Adapter Plug:

US, EU, UK, AU standard plugs are optional. But by default, we will provide you with a power adapter that matches the country's plug standard according to the country you reserved in the order;

Interfaces and Function:

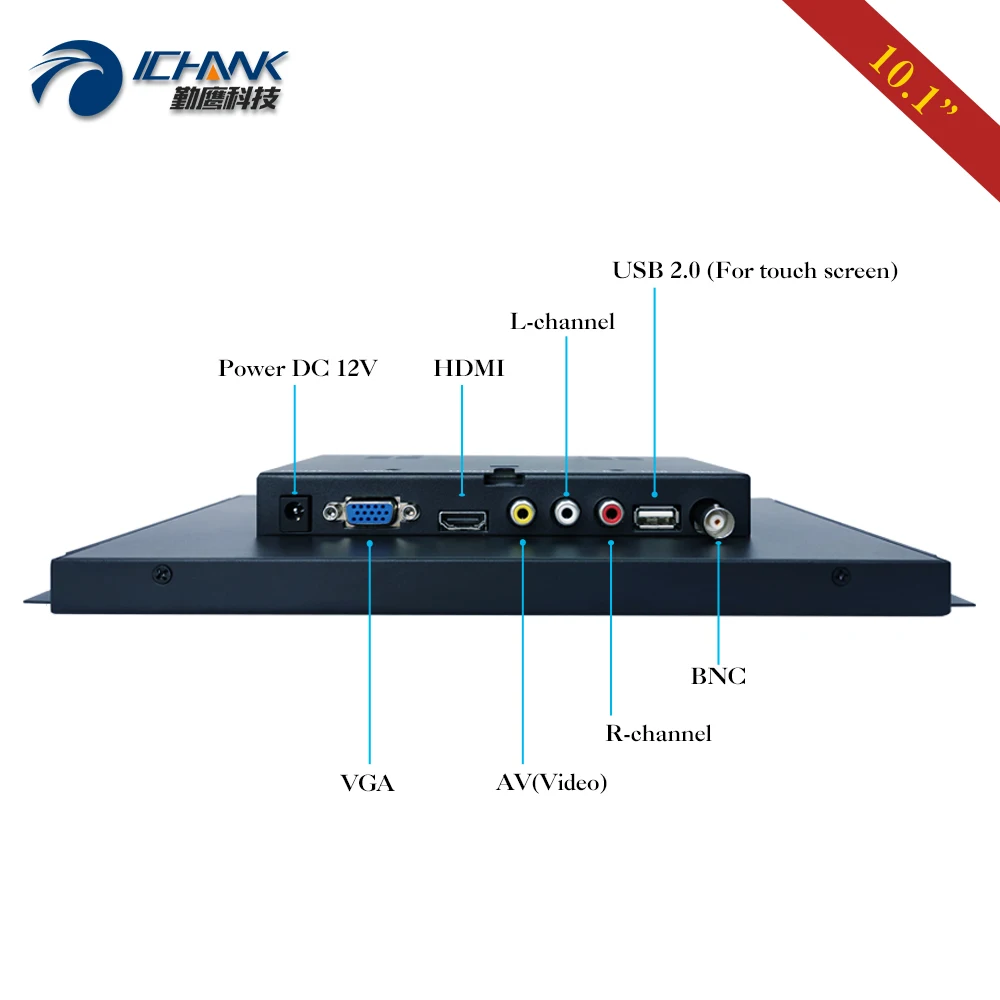

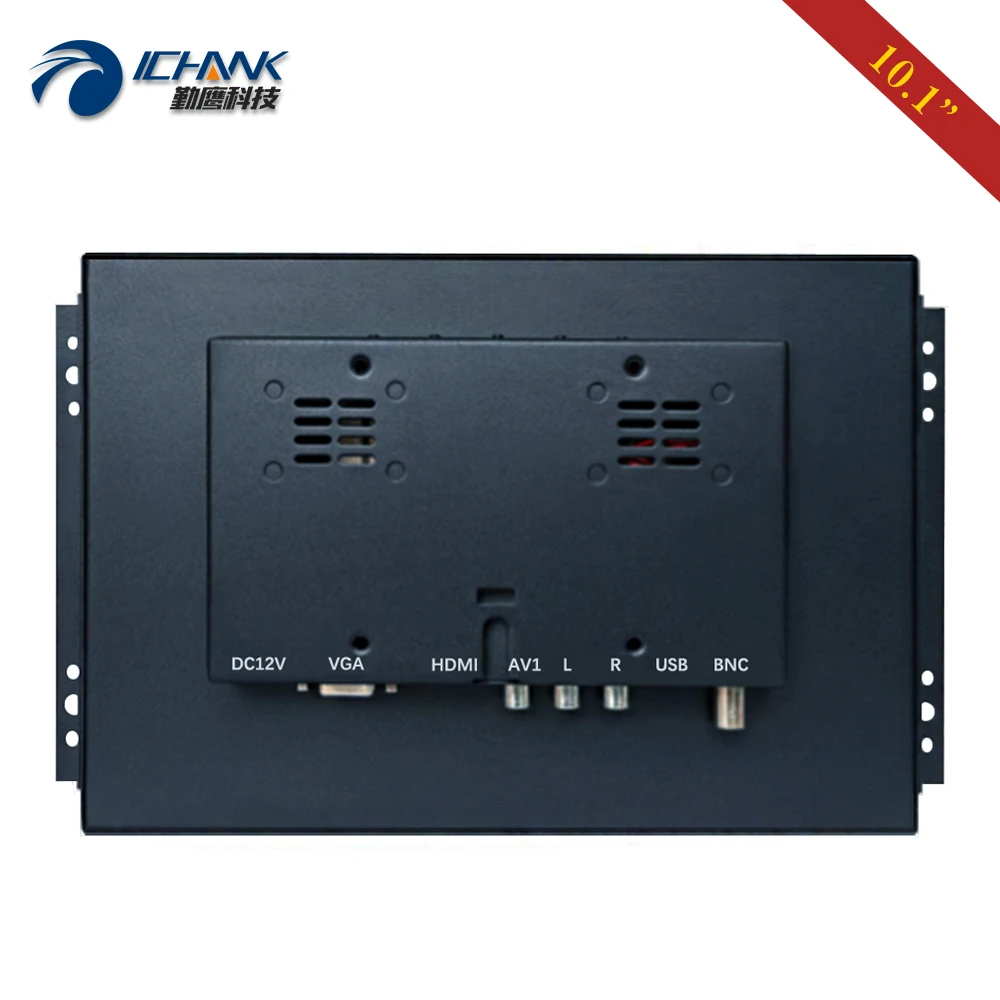

Interfaces:

AV (ie. RCA)*1 group/BNC*1/HDMI-input*1/USB*1/VGA*1; (AV/BNC port not available in touch screen function)

Built-in Speaker:

Yes;

Remote Control:

Not available by default; (support paid customization of this function)

Built-in Battery:

None, this function is not supported;

Menu Language:

OSD Language:

English, Simplified Chinese, Traditional Chinese, French, Italian, German, Spanish, Russian;

Menu Control Mode:

Button;

Environmental Parameters:

Operation Condition:

Temperature: -10℃ ~ +50℃; Relative Humidity: 0%~80%; (without condensation)

Store Condition:

Temperature: -15℃ ~ +60℃; Relative Humidity: 0%~90%; (without condensation)

Mounting of Product:

Base (Stand):

Yes, with base by default; (it can be rotated or adjusted up and down)

Mounting Mode:

Support multiple mounting modes, such as: Desktop, Wall-mounted, Open frame, Embedded;

VESA Compatible:

75x75mm; (standards for all threaded holes: M4)

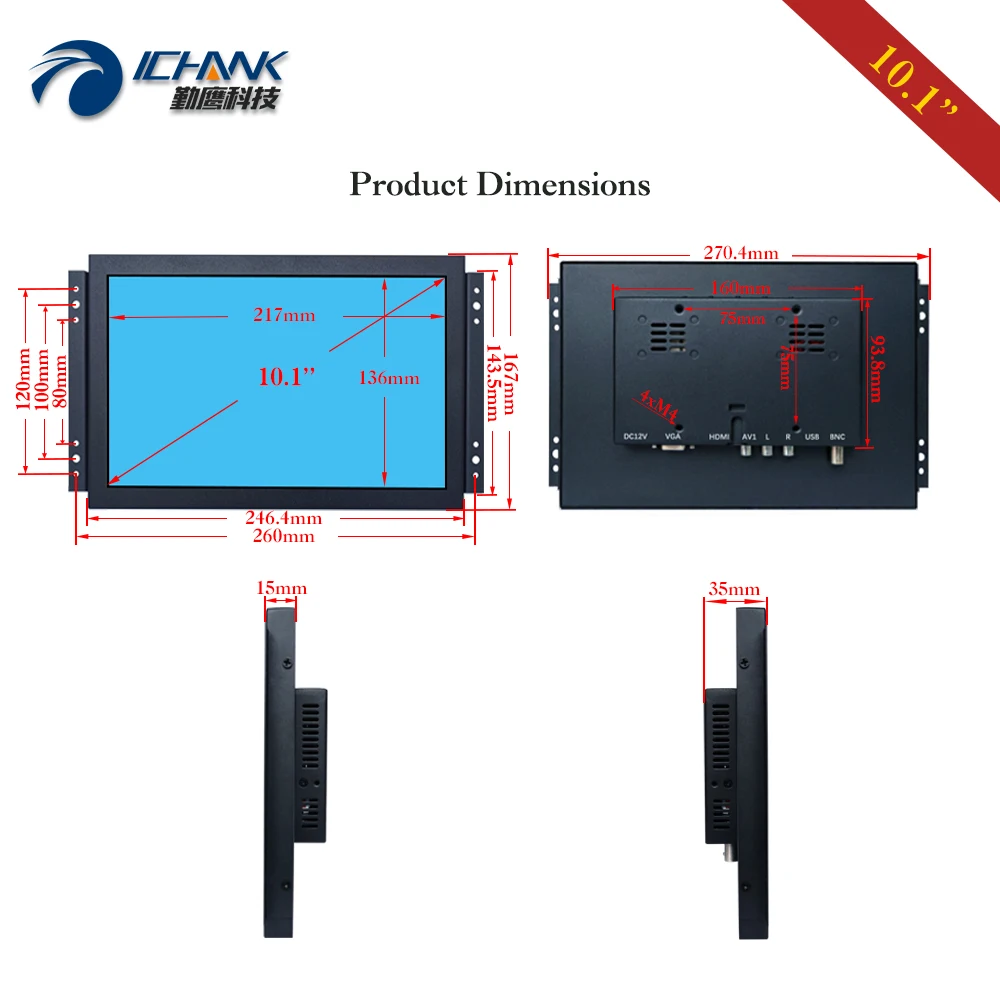

Dimensions and Packaging:

Monitor Size/Net Weight:

270.4x167x35mm/1.3Kg (without base; manual measurement, some differences are normal)

1 Piece of Monitor:

Size and gross weight of box: 36x28x10cm/2.5Kg; (manual measurement, some differences are normal)

1 Carton of Monitor:

Full carton: 10 pieces, full carton size/gross weight: 38x34x52.5cm/22Kg; (refers to when you buy a full carton)

Packing List:

Monitor*1/Power adapter*1/Base*1/Open-frame bracket*2/USB cable*1/VGA cable*1/Touch screen driver CD*1/User manual*1 (general version, for reference only);

Warranty Policy:

Default Warranty:

LCD screen and touch screen (if equipped) warranty for 1 year, other spare parts for 2 years;
